Throttle and Shift Cables: Stiff Controls, Missed Gears and Replacement

The throttle and gear lever at the helm is connected to the engine by two push-pull cables, one for throttle and one for shift, and those cables are the reason a boat that drove sweetly five years ago now needs two hands to find neutral and clunks into gear like a dropped anchor. Cables wear slowly enough that owners adjust their habits around them. This guide explains how they fail, how to measure for new ones, which type fits what, and how to set them so the lever at the helm and the gearbox at the back agree with each other again.

How a control cable works

Inside the plastic outer casing there is a flexible steel inner core, and inside that core a solid wire or a flat strip that is pushed and pulled by the lever. The outer casing is anchored at both ends so the inner can move inside it. Standard marine cables have about three inches of travel, a threaded end at each side that takes the clevis or ball joint, and a bulkhead fitting that clamps the casing to the control box and the engine bracket. The whole thing is sealed, lubricated at manufacture, and not serviceable. When it goes stiff, it is because water has got in past a damaged jacket or a cracked end seal and the inner has corroded; grease on the ends does nothing for a fault that is in the middle of the run.

Stiff, sloppy or missed gears

A lever that is stiff all the way through its travel is a cable corroded inside, or an outer casing that has been kinked or bent too tightly behind the dash. Disconnect the cable at the engine end and work the lever: if it is still stiff, it is the cable; if it frees up, the stiffness is in the engine's throttle linkage or the shift mechanism and the cable was taking the blame. A lever with a dead zone, where the first part of the movement does nothing, is a cable with a worn inner or stretched end fittings, or a loose anchor at one end letting the casing move instead of the core. Gear engagement that clunks, or a boat that will not stay in gear, or will not come out of it at idle, is usually a shift cable adjustment, and the test is to disconnect it at the engine and move the gearbox lever by hand: if the gearbox shifts cleanly by hand, the cable is set wrong or worn. Outboards add a wrinkle, because many have a shift interrupt switch that briefly kills the ignition as the lever passes through neutral to unload the gears, and a shift cable that is out of adjustment can hold that switch on and make the engine stumble at idle. If the controls are stiff and the steering is heavy as well, the two often age together, and the steering guide covers the other side of the helm.

Which cable

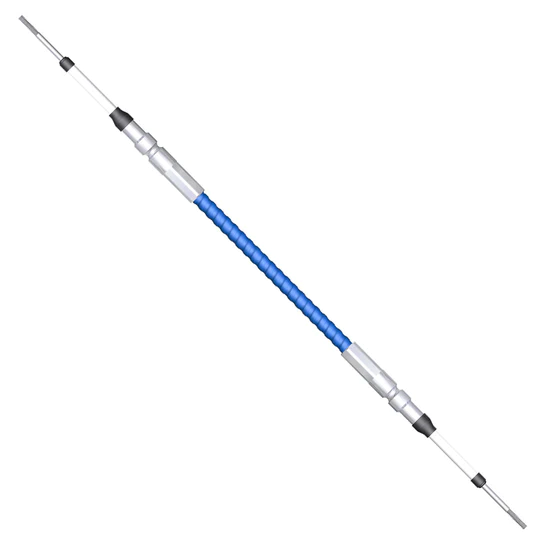

There are two broad families. Universal cables, often called by the old Teleflex or Morse type numbers, have a standard threaded end and a standard bulkhead fitting and suit the great majority of control boxes and most engines fitted with an adapter bracket. The common universal type is the light standard cable; a heavier version with a larger core suits big engines, long runs or twin installations where the lever loads are higher. Then there are engine-specific cables with a snap-in or push-in end made to fit one maker's engine without an adapter, which is how Mercury, Evinrude and Johnson, Yamaha and Honda have each done it at various times. The engine end dictates which you need; the control box end is almost always universal. Our marine control cable range is sorted by type and length, and the Volvo sterndrive and inboard cables are matched by serial in the Volvo Penta engine controls range.

Measuring

Cable length is measured from the end of one threaded stud to the end of the other, with the inner fully extended, and it is always quoted in feet, rounded up to the next whole foot. Measure the old cable out of the boat if you can; if you cannot, run a length of rope along the exact route the cable takes from the control box to the engine, with the same gentle bends, add about three hundred millimetres for the end fittings, and round up. Too short pulls the cable into tight bends that make it stiff from new; too long leaves loops that absorb the lever's movement. Throttle and shift cables on one engine are often different lengths, so measure both. Never route a new cable with a bend tighter than about two hundred millimetres radius, and keep it clear of the exhaust and anywhere it can be stood on.

Setting them up

The principle is the same on every engine. With the cable disconnected, put the control lever in neutral and the gearbox in neutral by hand, then adjust the cable end fitting until it drops onto its pin without moving either. Connect it, and check that full forward and full reverse at the lever give full engagement at the gearbox without the lever hitting its stop first, which would strain the cable. Do the throttle the same way: idle at the lever should give idle at the engine with a millimetre of free play, and full throttle at the lever should just reach the engine's stop. On outboards, check the shift interrupt switch is only triggered in the neutral zone. Volvo's engines, and some others, use an engine-side clamp that allows the casing to be slid to fine-tune the neutral point, and the manual gives the detent positions. If you are not confident, the cables are the one job where a half hour of a mechanic's time is cheap insurance, because a boat that jumps into gear at the ramp is a dangerous boat.
