0434629 Evinrude Johnson Roller Sleeve AY | Genuine OEM BRP Outboard Part

🔧 Product Description

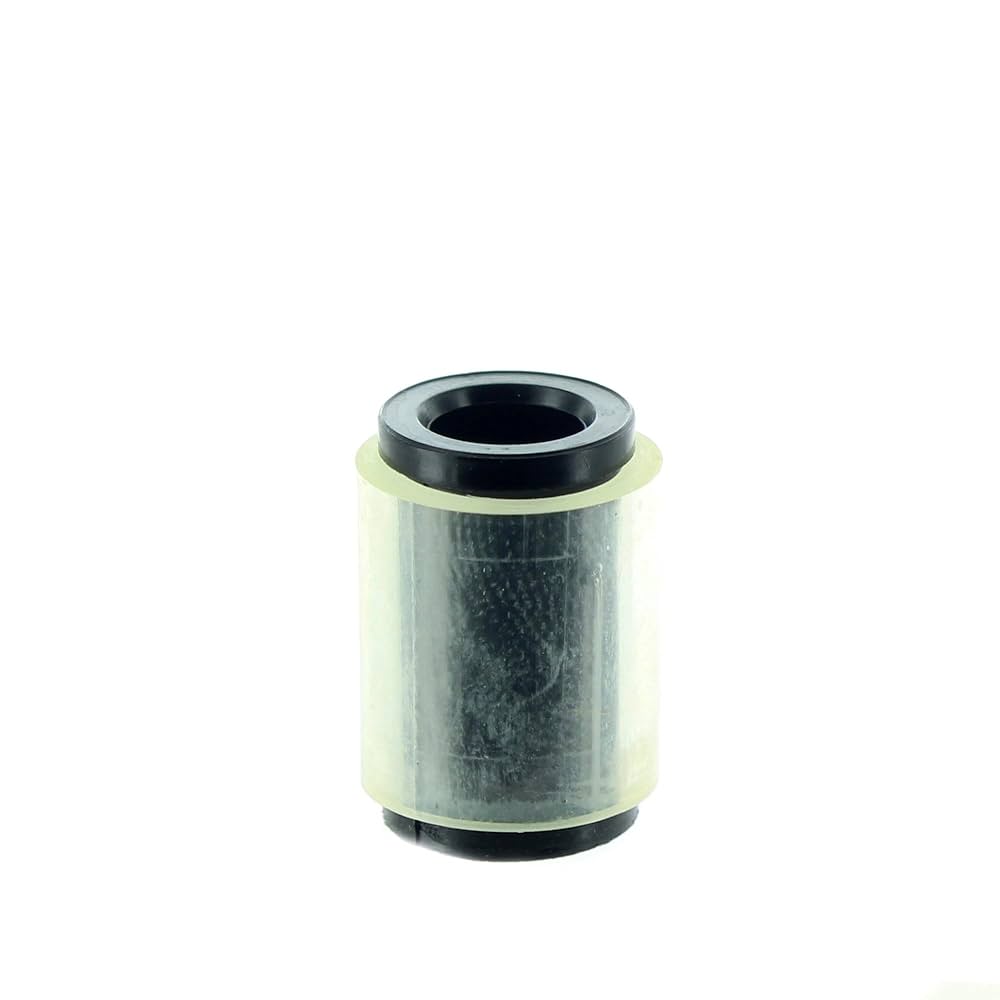

Genuine BRP Evinrude Johnson Lower Rubber Engine Mount - Part Number: 0434629

A genuine BRP lower rubber engine-mount assembly for selected high-horsepower Evinrude and Johnson outboards.

Although the supplied title identifies a roller-and-sleeve assembly, OEM catalogues identify 0434629 as a lower rubber mount assembly.

The mount connects the powerhead and exhaust-housing structure to the steering and swivel-bracket assembly while isolating engine vibration.

⚙️ Key Features

• Genuine BRP OEM lower engine mount

• Correct OEM part number 0434629

• Moulded rubber and metal-bonded construction

• Absorbs vibration and propulsion shock

• Used on selected V4 and V6 outboards

• Replaces earlier lower-mount references

🔄 Supersession & Cross Reference

OEM Supersession / Related Chain:

• 0391774

• 391774

• 0769470

• 769470

• 0434629

• 434629

Related Numbers:

• 0434632 - Different high-performance or shaft-length-controlled lower mount; not an automatic substitute

• Opposite-side mount and retaining hardware vary by engine model

Aftermarket / Verified Equivalents:

• No verified branded direct aftermarket equivalent

• Used OEM and new-old-stock mounts are commonly used where the BRP part is unavailable

• Generic rubber mounts should not be installed unless stiffness, dimensions and bonding are verified

🚤 Compatibility

Verified legacy applications include selected:

• 88HP: 1988-1990

• 90HP: 1981-1990

• 100HP: 1988-1990

• 110HP: 1986-1989

• 115HP: 1981-1985 and 1990

• 140HP: 1981-1984

• 150HP: 1981-1990

• 175HP: 1981-1983 and 1985-1990

• 185HP: 1984-1985 and 1989-1990

Important fitment note:

• Later outboards may also list 0434629, but the engine model and exhaust-housing diagram must be checked.

• Lower mounts can differ by shaft length, standard or high-performance specification and steering housing.

• Mounts should generally be inspected or replaced in matched pairs.

🔌 Function

The mount controls powerhead and exhaust-housing movement while isolating normal engine vibration from the transom bracket.

Common signs of failure:

• Excessive engine movement

• Clunk during acceleration or deceleration

• Steering feels loose

• Rubber separates from the metal

• Engine sits unevenly in the swivel bracket

• Cracks or swelling in the rubber

• Propeller thrust causes abnormal housing movement

• Mounting bolts or bores are corroded

Installation considerations:

• Support the engine correctly

• Inspect both lower mounts and the upper mount

• Check mounting bolts, sleeves and bracket bores

• Remove corrosion from the mount pocket

• Do not apply petroleum grease to exposed rubber

• Tighten hardware to the specified torque

• Confirm unrestricted steering movement

📦 Condition

• Genuine BRP Evinrude Johnson OEM part

• Brand new

• Supplied in genuine or equivalent protective packaging
