🔧 Product Description

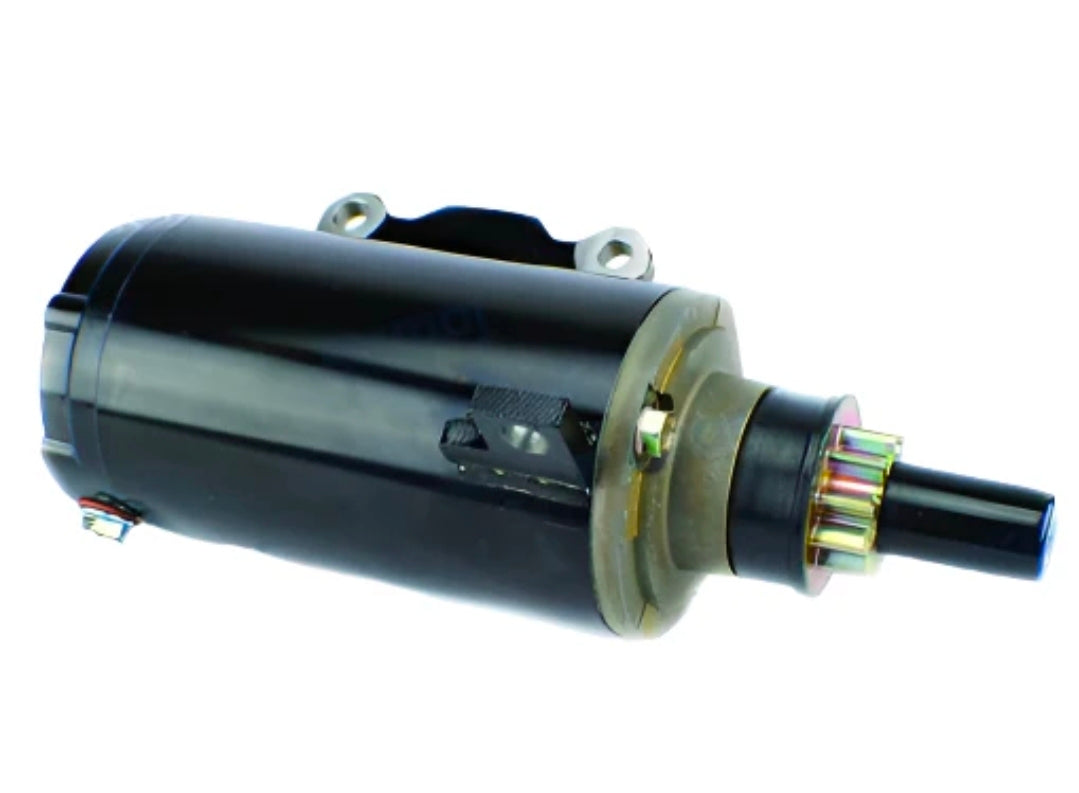

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0586283

Brand-new 12-volt starter motor for Johnson and Evinrude V4 crossflow outboards. This starter uses a 10-tooth drive and covers the established 85HP-140HP V4 engine family, including selected OMC Sea Drive applications.

⚙️ Key Features

• 12-volt marine starter motor

• 10-tooth starter drive

• Designed for V4 crossflow outboard engines

• Direct replacement for the documented OMC starter family

• Complete starter assembly with marine corrosion-resistant finish

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586283 → Supersedes 0585057

• 0585057 → Supersedes 0777688

• 0777688 → Replaces earlier 0389558 and 0585051 applications

• 0585051 → Related to earlier 0389954 and 0385529 references

OEM / Related Numbers:

• 0385529 / 385529

• 0386465 / 386465

• 0389380 / 389380

• 0389558 / 389558

• 0389954 / 389954

• 0391554 / 391554

• 0585051 / 585051

• 0585057 / 585057

• 0585196 / 585196

• 0586282 / 586282

• 0586283 / 586283

• 0777688 / 777688

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-5634

• Sierra Marine: 18-5647

• ARCO Marine: 5372

• Mallory Marine: 9-15007

• MES Marine: S2066M

• Protorque: PH130-0044

• EMP: 50-02842

• Red Rhino: JE-750

• WAI: WPS5719N

• Mercury / Quicksilver: 8M6007312 / 8M6014129

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude V4 crossflow two-stroke outboards

• Selected OMC Sea Drive 1.6-litre V4 applications

Typically suits:

• Engine models:

• Evinrude E65 V4

• Evinrude E80

• Evinrude E85

• Evinrude E88

• Evinrude E90

• Evinrude E100

• Evinrude E110

• Evinrude E112

• Evinrude E115

• Evinrude E135

• Evinrude E140

• Johnson J65 V4

• Johnson J80

• Johnson J85

• Johnson J88

• Johnson J90

• Johnson J100

• Johnson J110

• Johnson J112

• Johnson J115

• Johnson J135

• Johnson J140

• Selected OMC Sea Drive 1.6-litre 90HP and 115HP V4 installations

• HP Range: 65HP-140HP

• Engine Type: V4 crossflow two-stroke outboards

• Year Range: Primarily 1973-1998, with individual early V4 applications requiring part-number confirmation

• Model/Serial Note: Do not use on later 60-degree V4 looper engines requiring 0586284 or 0586287.

🔌 Function

The starter rotates the V4 crankshaft through the flywheel ring gear, allowing the ignition and fuel systems to start the engine.

Common signs of failure:

• Starter does not respond despite correct solenoid output

• Slow cranking under V4 compression load

• Pinion spins without fully engaging

• Grinding or chipped flywheel teeth

• Intermittent dead spots from brush or commutator wear

• Starter housing becomes abnormally hot

• Internal corrosion, bearing noise or armature drag

📦 Condition

• Brand-new aftermarket replacement starter motor

• 10-tooth drive configuration

• Supplied in manufacturer or equivalent protective packaging
