0586343 Evinrude Johnson Sensor AY OIS | Genuine OEM BRP Outboard Part

🔧 Product Description

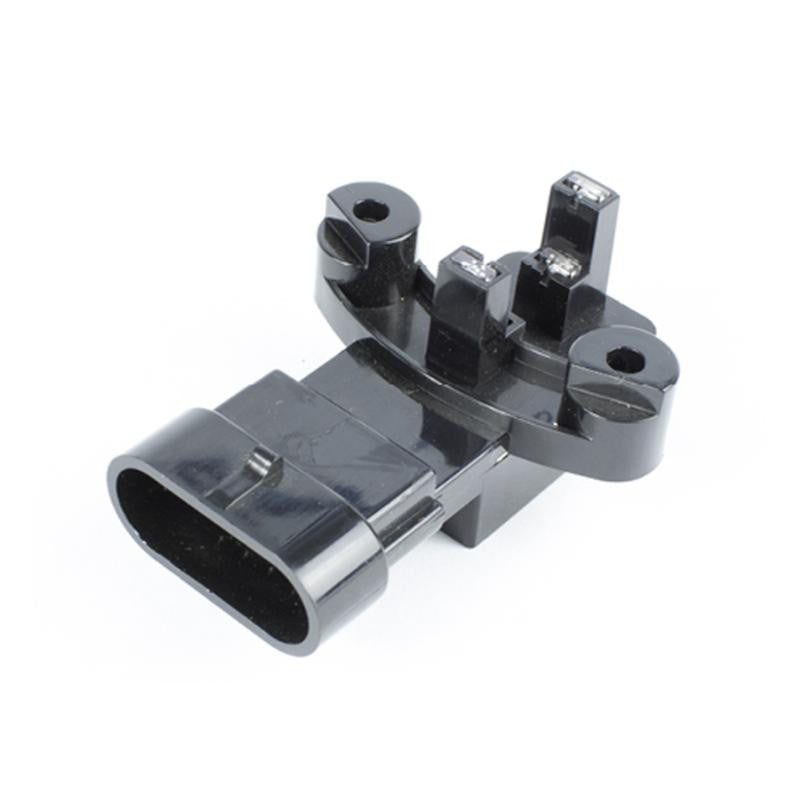

Genuine BRP Evinrude Johnson Optical Ignition Sensor Assembly - Part Number: 0586343

A genuine BRP optical ignition sensor, commonly referred to as the OIS optical sensor or optical eye, for selected Evinrude and Johnson 60-degree V4 and V6 two-stroke outboards.

The sensor mounts beneath the flywheel as part of the timer-base and optical-ignition system. It reads slots in the rotating encoder wheel and supplies the power pack or engine-control system with crankshaft-position and ignition-timing information. Part number 0586343 replaces several earlier OMC optical-sensor references.

⚙️ Key Features

• Genuine BRP / OMC optical ignition sensor

• Correct current reference 0586343

• Used on selected 60-degree V4 and V6 engines

• Supplies accurate crankshaft-position and ignition-timing signals

• CDI Electronics replacement available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586343 → Replaces 0584914

• 0586343 → Replaces 0584265

• 0584914 and 0584265 earlier optical-sensor references

• 0777662 related BRP service reference associated with 0586343

OEM / Related Numbers:

• 0586343

• 586343

• 0584914

• 584914

• 0584265

• 584265

• 0777662

• OIS - Optical Ignition System sensor

• Timer-base optical sensor

• Optical-eye sensor

Aftermarket / Verified Equivalents:

• CDI Electronics: 133-6343

• CDI: CDI133-6343

• Aftermarket optical sensors sold under 133-6343 / 0586343

🚤 Compatibility

Commonly used on:

• Evinrude and Johnson carburetted 60-degree V4 outboards

• Evinrude and Johnson 60-degree V6 outboards

• Optical Ignition System timer-base assemblies

• Selected Ficht and RAM-injection engines using the same OIS sensor

Typically suits:

• Engine models:

• Evinrude / Johnson 80 Jet - approximately 1995-2006

• Evinrude / Johnson 90HP V4 - approximately 1995-2006

• Evinrude / Johnson 100HP V4 - approximately 1995-2006

• Evinrude / Johnson 105 Jet - approximately 1995-2006

• Evinrude / Johnson 115HP V4 - approximately 1995-2006

• Evinrude / Johnson 150HP 60-degree V6 - approximately 1991-2006

• Evinrude / Johnson 175HP 60-degree V6 - approximately 1991-2006

• 1990s and early-2000s engines whose throttle-linkage or timer-base diagram specifies 0586343

• HP Range: 80 Jet / 90HP - 175HP

• Engine Type: 60-degree V4 and V6 two-stroke outboard

• Year Range: Approximately 1991-2006, dependent on engine family

🔌 Function

The optical sensor monitors the rotating encoder wheel and sends ignition-position information to the power pack or engine-management system. This allows the system to trigger ignition at the correct crankshaft position.

Common signs of failure:

• Engine cranks but has no ignition spark

• Spark is lost on all or several cylinders

• Engine starts intermittently

• Ignition timing becomes unstable

• Engine stalls when warm

• Misfiring occurs across multiple cylinders

• Optical sensor is contaminated by grease, dust or debris

• Sensor wiring is brittle, damaged or shorted

• Diagnostic testing shows no optical-sensor output

📦 Condition

• Genuine BRP part

• Brand new

• Supplied in original or equivalent packaging
