1562G Dunbier Axle 39 Round Complete with Hubs 1675mm (66") | Marine Trailer Part

🔧 Product Description

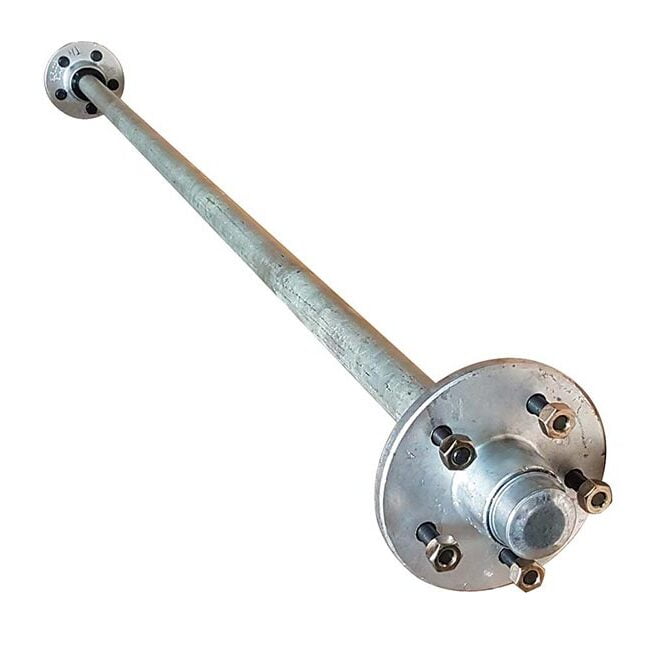

Dunbier Marine Products 39mm Round Solid Axle with Ford Hubs and LM Bearings - 1675mm - Part Number: 1562G

A complete galvanised 39mm round Dunbier axle measuring 1675mm overall, fitted with Ford-pattern non-braked hubs and LM-series bearings. It is intended for narrower 13-inch-wheel trailer frames using the original Dunbier axle geometry.

⚙️ Key Features

• Galvanised steel axle construction

• 39mm solid round section

• Non-braked configuration

• Manufactured for Dunbier trailer geometry

• Critical replacement dimensions must match the original axle

📏 Specifications

• Axle section: 39mm solid round

• Overall axle length: 1675mm / 66 inches

• Wheel-size guide: 13-inch

• Brake configuration: Non-braked

• Bearing family: LM67010 and LM11910 cups with LM67048 and LM11949 cones

• Grease seal: Dunbier 1710

• Legacy catalogue chassis-width guide: approximately 1200mm

• Hub configuration: Ford-pattern non-braked hubs

🔄 Cross Reference & Related Parts

• Dunbier: 1562G

• Beam-only version: Dunbier 1563G

• Longer 1800mm hubbed axle: Dunbier 1550G

• Related seal: Dunbier 1710

🚤 Trailer Compatibility & Application

• Suitable for Dunbier trailers using a 1675mm 39mm round axle

• Legacy chassis-width guide: approximately 1200mm

• Confirm Ford stud pattern and spring-centre spacing

🔌 Function

Carries the trailer wheel loads between the suspension points and maintains the hub, wheel and brake alignment across the trailer.

Common signs of wear or replacement:

• Axle beam is bent or wheels show abnormal camber

• Corrosion, pitting or cracking is visible near spring seats or spindles

• Bearing journals are scored or undersize

• Tyres wear unevenly despite correct pressure and bearings

• Brake or hub alignment cannot be restored

🛠️ Installation & Safety

• Axle replacement is a safety-critical task for a competent trailer technician

• Measure overall length, spring-centre spacing, hub face, stud pattern and brake configuration before ordering

• Use correct U-bolts, fish plates and spring seats

• Set and lubricate wheel bearings to specification

• Verify wheel alignment, brake operation and wheel-nut torque before road use

📦 Condition

• Genuine Dunbier Marine Products part

• Brand new

• Supplied as one complete 1675mm axle with Ford hubs and LM bearings

• Supplied in original or equivalent packaging
