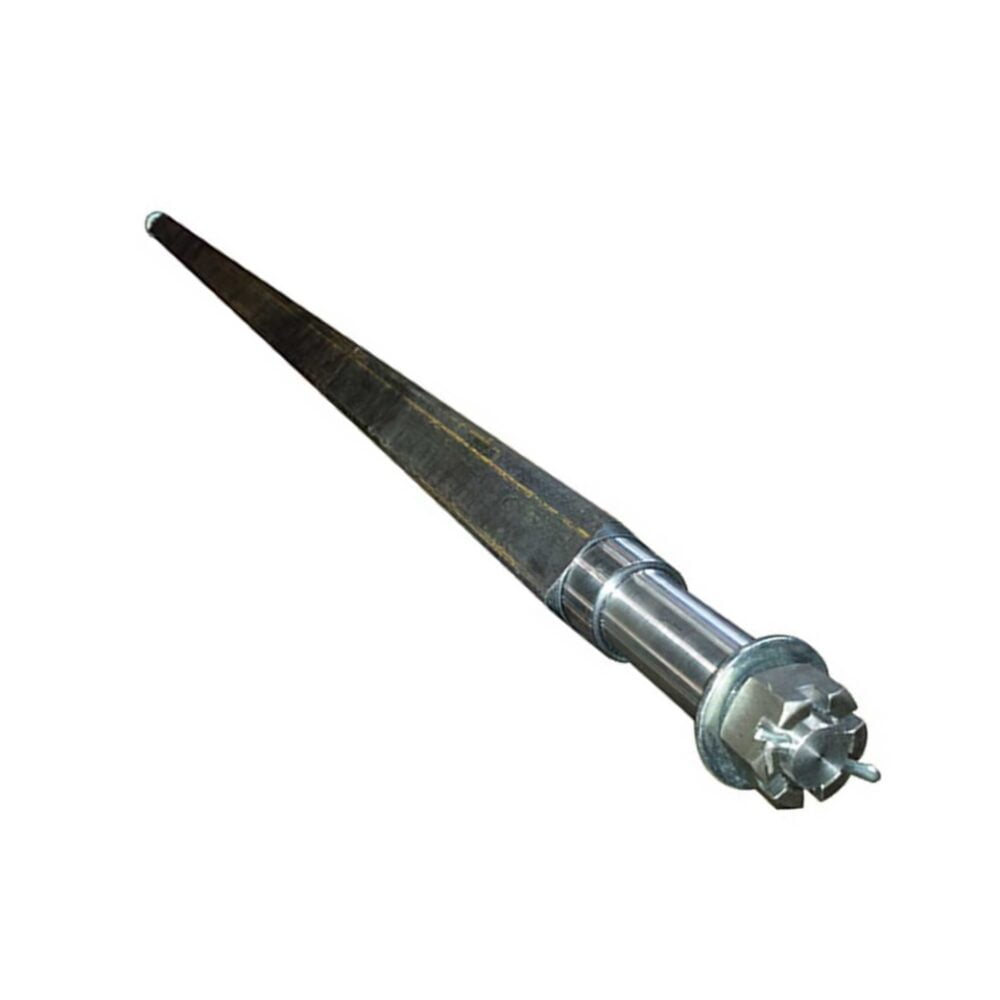

1632 Dunbier Axle 64 x 2.2t Square Beam Only 2275mm (89.5") | Marine Trailer Part

🔧 Product Description

Dunbier Trojan Heavy-Duty 2.2-Tonne Axle Beam Only - Part Number: 1632

A legacy-listed 64mm / current-catalogue 65mm square marine-trailer axle beam only with an overall length of approximately legacy 2275mm / 89.5"; current catalogue 2200mm / 86.5". It provides the structural axle beam and machined bearing journals for a compatible hub system, allowing the installer to select the required lazy-hub or braking configuration.

⚙️ Key Features

• legacy-listed 64mm / current-catalogue 65mm square axle construction

• Straight axle geometry

• Overall axle length approximately legacy 2275mm / 89.5"; current catalogue 2200mm / 86.5"

• Configured for beam only

• Designed for galvanised marine-trailer suspension and hub systems

• Heavy-duty axle family for higher-capacity trailer applications

📏 Specifications

• Beam section: legacy-listed 64mm / current-catalogue 65mm square

• Overall length: Approximately legacy 2275mm / 89.5"; current catalogue 2200mm / 86.5"

• Brake or hub configuration: beam only

• Wheel/hub pattern: Trojan heavy-duty hub pattern to be selected separately

• Trojan 2.2-tonne bearing family commonly uses LM44649/LM44610 and LM48548/LM48510

• Rear seal commonly catalogued in the Dunbier heavy-axle 1711 family

• Confirm the actual bearing and seal numbers removed from the hub before ordering service parts

• Legacy/supplied listing dimension: 64mm × 2275mm / 89.5in

• Current Dunbier 2023/24 catalogue lists the Trojan beam as 65mm × 2200mm / 86.5in

• Confirm current supplied length and measure the existing axle before ordering

🔄 Cross Reference & Related Parts

• Dunbier: 1632

• Complete hydraulic axle: Dunbier 1618T

• Stainless caliper/disc hydraulic axle: Dunbier 1618TS

• Hub, bearing, seal, brake and spring components must be selected by axle journal and installed configuration

• Comparable axles from AL-KO, Mackay, Trojan or other manufacturers are not direct replacements unless beam length, spring centres, journal size, brake offset and wheel track all match

🚤 Trailer Compatibility & Application

• Suitable for compatible Dunbier marine trailers using the stated beam size, overall length and spring-centre geometry

• Measure the existing axle from hub face or axle end using the same method as the replacement catalogue before ordering

• Confirm wheel offset, tyre clearance, mudguard clearance and boat-hull clearance

• Axle capacity is determined by the complete axle, bearings, hubs, springs, tyres, brakes and trailer certification—not beam size alone

• Hubs, bearings, seals, brake components and wheel nuts are not included unless specifically stated

🔌 Function

Supports the trailer load between the suspension and wheel hubs while maintaining wheel track, bearing alignment and brake mounting geometry.

Common signs of wear or replacement:

• Axle beam is bent, twisted or visibly cracked

• Tyres wear unevenly because wheel alignment or camber has changed

• Bearing journals are scored, undersize, corroded or heat-discoloured

• Spring seats, brake flanges or welds are cracked

• Persistent bearing looseness remains after correct adjustment

🛠️ Installation & Safety

• Axle replacement and brake setup should be completed by a competent trailer technician

• Support the trailer on rated stands before removing suspension or hub components

• Align spring centres and axle orientation before tightening U-bolts

• Fit new bearing seals, correctly pack bearings and set bearing end float

• Verify wheel-nut torque, brake operation and tyre clearance before road use

📦 Condition

• Brand new Dunbier Marine Products trailer component

• Supplied as one heavy-duty axle beam without hubs or brake components

• Supplied in original or equivalent packaging
