18-7761 Aftermarket Recmar Carburetor Kit 4HP & 8HP Engines | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Carburettor Repair Kit - Replaces Part Number: 18-7761

New Sierra carburettor repair kit for Suzuki DF4, DF5 and DF6 four-stroke outboards from the later carburettor design. This is not a generic Recmar 4HP-to-8HP kit; it is specifically tied to the Suzuki-built 4HP, 5HP and 6HP platform.

⚙️ Key Features

• Sierra aftermarket repair kit P/N 18-7761

• Fits later Suzuki DF4/DF5/DF6 carburettors

• Also supports Suzuki-built Johnson four-stroke applications

• Includes float-chamber and carburettor gaskets

• One kit services one carburettor

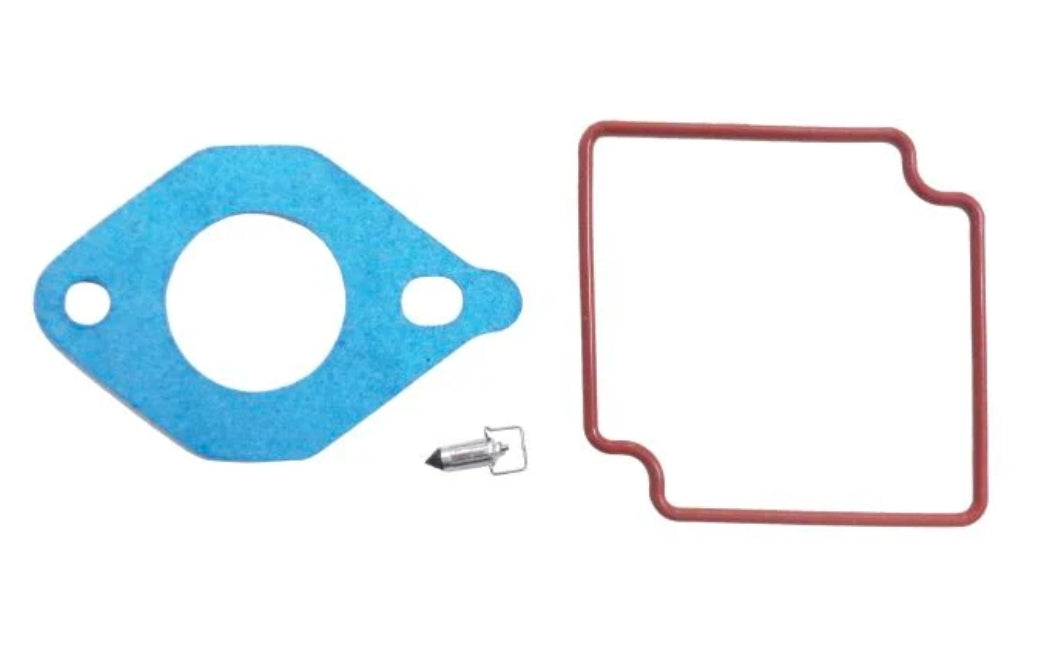

🧰 Kit Contents

• Float-chamber gasket - included under Sierra P/N 18-7761

• Carburettor body gasket - included under Sierra P/N 18-7761

• O-rings and sealing components - included under Sierra P/N 18-7761

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 18-7761 (Sierra aftermarket service-kit reference)

OEM / Related Numbers:

• Suzuki DF4/DF5/DF6 later-design service family

Aftermarket / Verified Equivalents:

• Recmar equivalent service family for Suzuki DF4-DF6, matched by OEM carburettor number

🚤 Compatibility

Commonly used on:

• Suzuki-built small four-stroke outboards

Typically suits:

• Engine models:

• Suzuki DF4

• Suzuki DF5

• Suzuki DF6

• Johnson 4HP four-stroke Suzuki-built application

• Johnson 5HP four-stroke Suzuki-built application

• Johnson 6HP four-stroke Suzuki-built application

• HP Range: 4HP - 6HP

• Engine Type: Single-cylinder carburetted four-stroke outboard

• Year Range: Suzuki approximately 2005 onward; Johnson approximately 2007 applications

• Serial / Carburettor Identification: Earlier 2003-2004 DF4/DF5/DF6 engines use a different service kit; confirm carburettor design.

🔌 Function

The kit renews the wear and sealing components used to control fuel level, meter fuel through the carburettor and prevent air or fuel leaks after the carburettor is dismantled for cleaning.

Common signs of failure:

• Hard starting or the need for excessive choke

• Unstable, hanging or excessively low idle

• Fuel leaking, flooding or fuel smell around the carburettor

• Hesitation, flat spot or stalling during acceleration

• Uneven cylinder fuelling, poor power or excessive fuel consumption

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
