20473997 Delivery Pipe Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta delivery pipe kit for cylinder 1, listed in the fuel system group for TWD, TID and TD series diesel engines. It weighs 0.556 kg and replaces earlier references 8192532, 8192533 and 8192535. Note the cylinder-1 designation: the matching cylinder-4 kit is a different part at a similar weight.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD710G
• Volvo Penta TWD710V
• Volvo Penta TID71A
• Volvo Penta TD710G
• Volvo Penta TD71A

• Engine Family: TWD, TID, TD
• HP Range: Approximately 230 HP
• Year Range: Approximately 1990s-2000s

⚙️ Key Features

• OEM Volvo Penta part number 20473997
• For cylinder 1 - distinct from the cylinder-4 kit of similar weight
• System group: Fuel System
• Supersedes previous part numbers 8192532, 8192533 and 8192535
• Net weight 0.556 kg
• Fits TWD, TID and TD series marine and industrial diesel engines

📋 Kit Contents

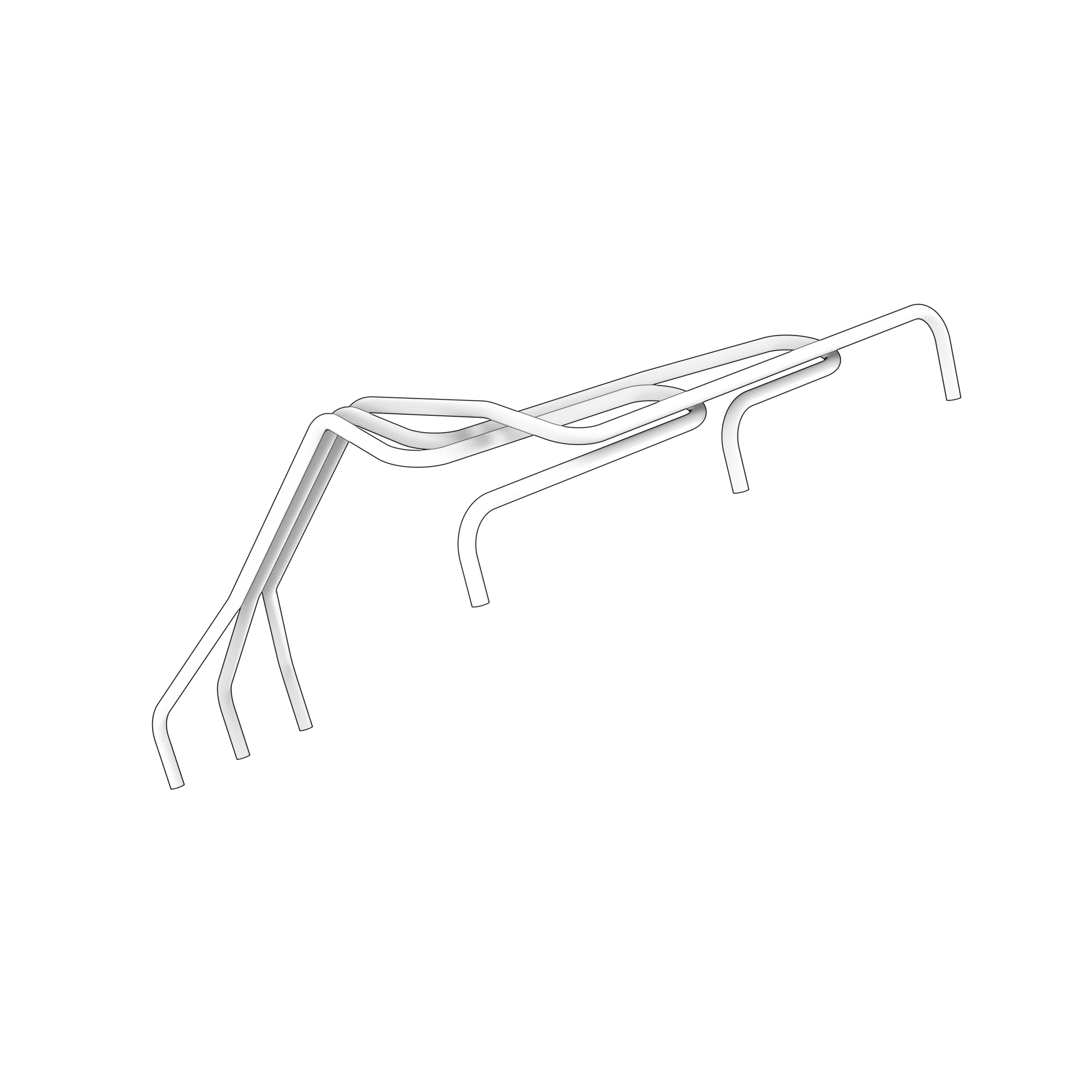

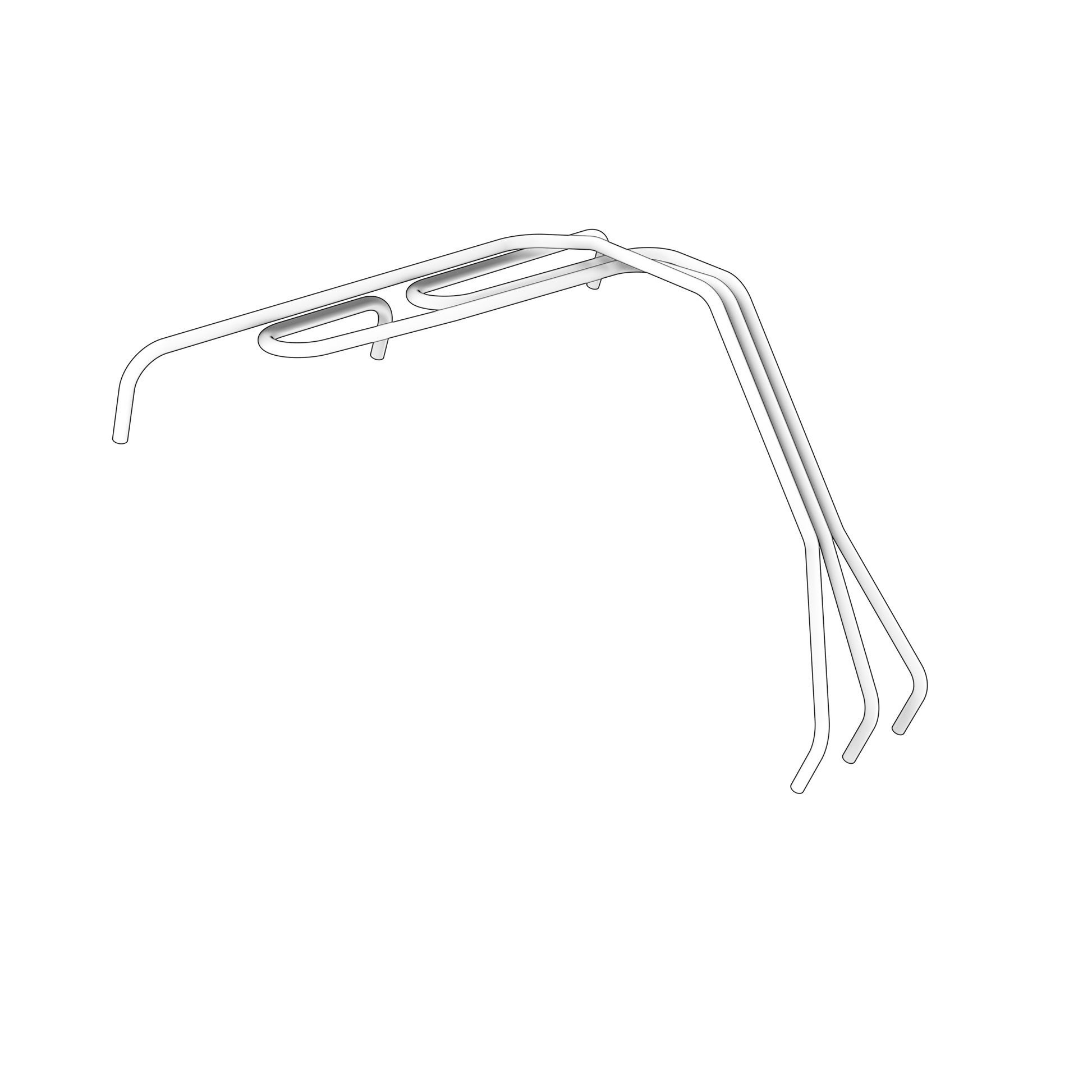

• 1 x high-pressure delivery pipe for each of cylinders 1-3 - three pipes total; the individual pipes are serviced only under kit 20473997 and do not have separate published Volvo Penta numbers

🔌 Function

Delivers high-pressure fuel from the injection pump to its cylinder's injector, maintaining injection pressure along a fixed, formed route. Each pipe is shaped for one cylinder position and must be fitted accordingly.

⚠️ Common Signs of Failure

• Fuel leakage at the union nuts
• Cracking or chafing where the pipe passes a clamp or bracket
• Single-cylinder misfire or uneven running
• Damaged or rounded union threads
• Pipe bent out of shape during previous service

🛠️ Service Notes

• Confirm the cylinder position before ordering; weight alone will not distinguish it from the cylinder-4 kit

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 20473997 → Supersedes 8192535

OEM / Related Numbers

• 8192533 earlier number superseded by this part
• 8192532 earlier number superseded by this part
• 8192535 earlier number superseded by this part
• 848799 injector
• 469455 sealing ring
• 477901 leak-off pipe references
• 471605 leak-off pipe references
• 8194327 pipe clamps
• 8194328 pipe clamps
• 20473998 complementary cylinder-bank delivery-pipe kit

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
