20749399 Oil Cooler | Genuine Volvo Penta Part

20749399 Oil Cooler | Genuine Volvo Penta Part

$1,762.08 AUD
$1,762.08 AUD
Sale Sold out
Shipping calculated at checkout.

Available on request — contact us

As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you

Availability checked daily with Volvo Penta

🔧 Product Description

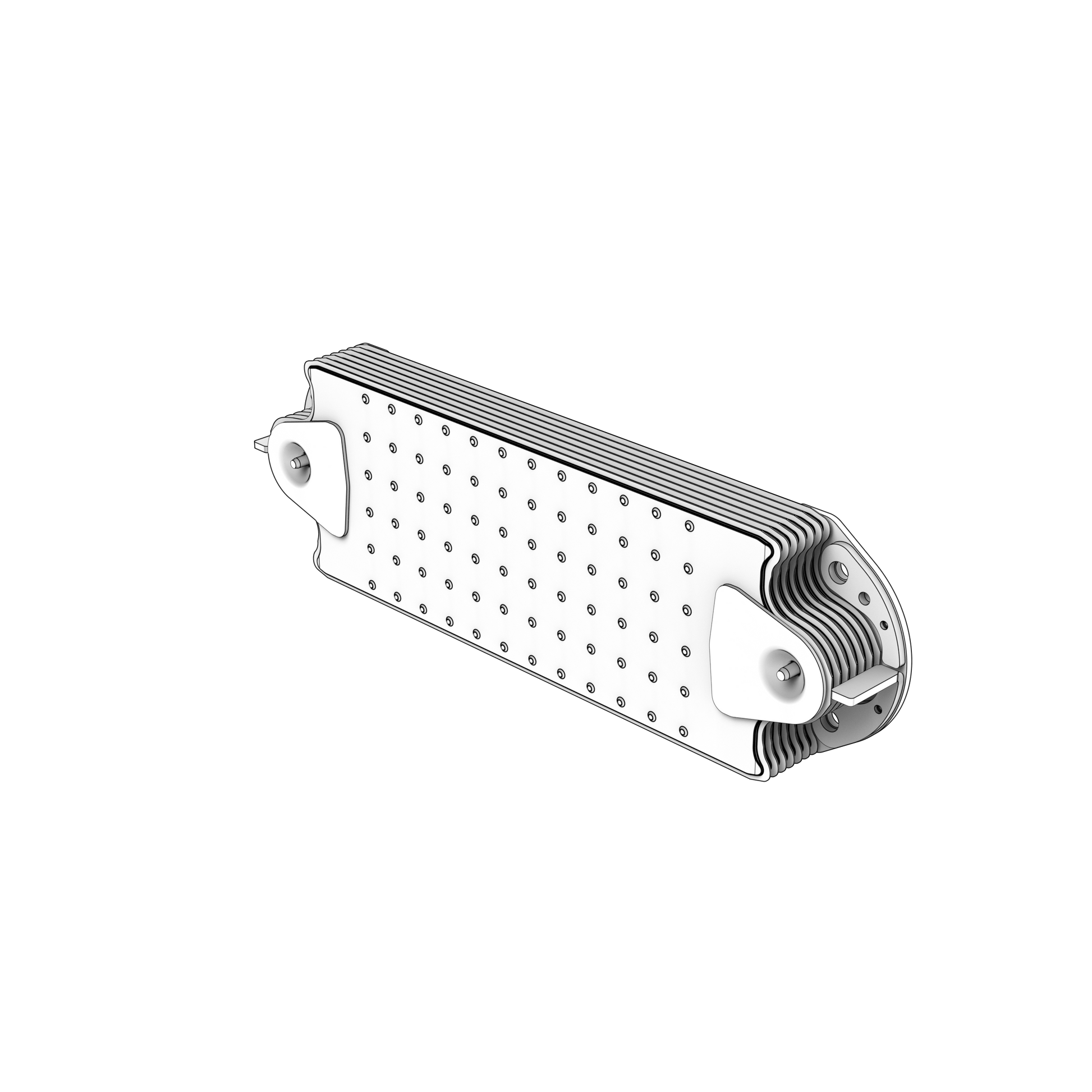

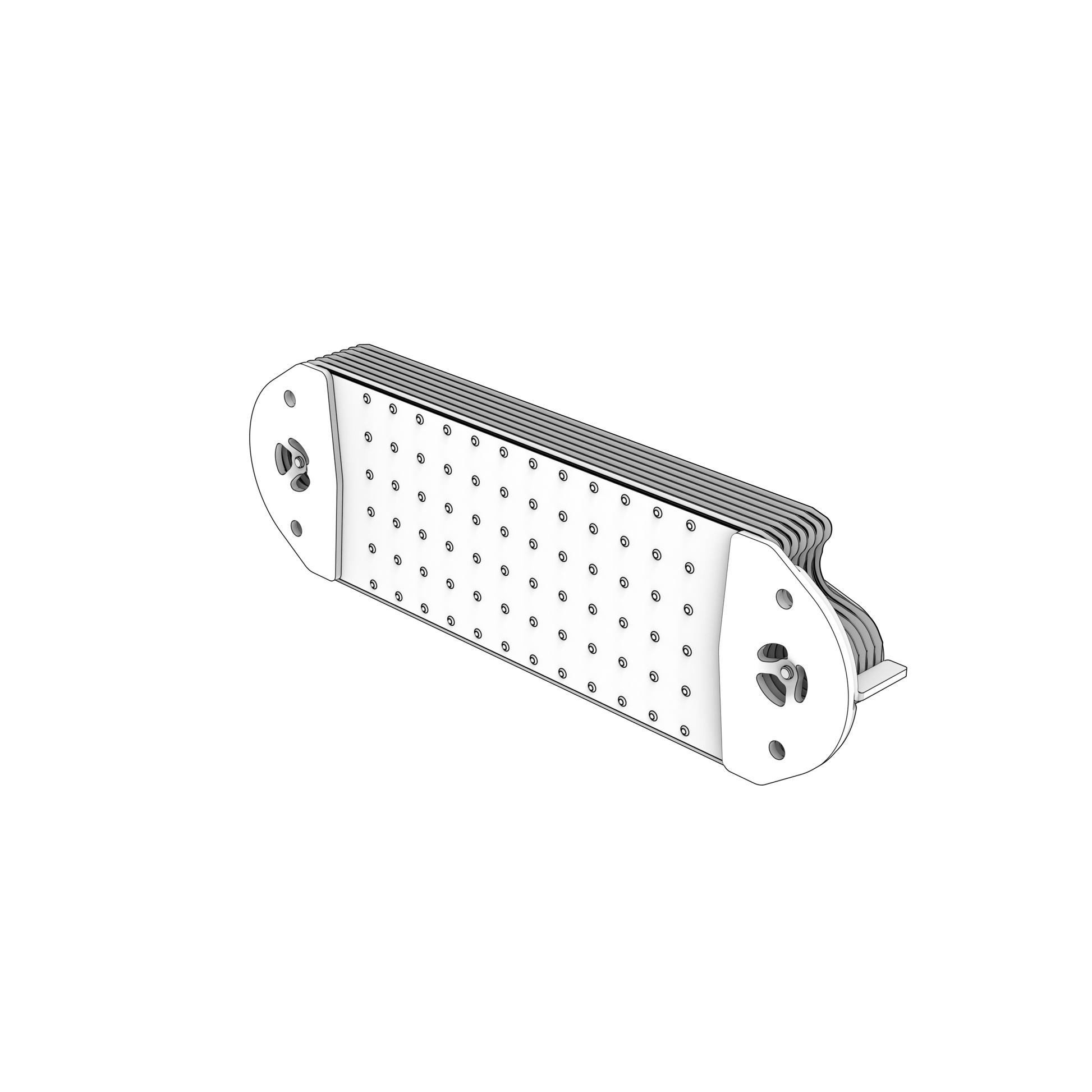

Brand-new genuine Volvo Penta engine-oil cooler for selected D12/TAD12/TWD12 installations. The seven-row cooler core transfers heat from the lubricating oil to the engine coolant while keeping the two fluids separated. It is supplied as the cooler element; sealing ring, covers, gaskets, plugs and fasteners are separate unless expressly included.

🚤 Compatibility

Typically suits:

  • Volvo Penta TWD1240VE
  • Volvo Penta TAD1241GE
  • Volvo Penta TAD1242GE
  • Volvo Penta TAD1250VE
  • Volvo Penta TAD1251VE
  • Volvo Penta TAD1252VE
  • Volvo Penta TAD1250-52VE
  • Volvo Penta TAD1240GE
  • Volvo Penta TAD1241VE
  • Volvo Penta TAD1242VE
  • Volvo Penta TAD1241-42VE
  • Engine Family: TWD, TAD

⚙️ Key Features

  • Genuine seven-row oil-cooler core
  • Approximate dimensions 410 × 125 × 44 mm
  • Maintains controlled engine-oil temperature
  • Direct fit within the original oil-cooler housing
  • Cooler element only; seals and housing components are separate
  • Engine type: 12-litre inline six-cylinder heavy-duty diesel

🔌 Function

Removes excess heat from engine oil through the coolant circuit, preserving oil viscosity and protecting bearings, pistons and turbocharger lubrication.

⚠️ Common Signs of Failure

  • Engine oil running hotter than normal
  • Oil appearing in the coolant reservoir
  • Coolant contamination or unexplained coolant loss
  • Low oil pressure after warm-up
  • External leakage at the cooler seals or housing

🛠️ Service Notes

  • Fit new O-rings, seals and gaskets throughout, lubricated lightly with clean oil so they seat rather than roll, and clean both mating faces first
  • After a cooler that has leaked internally, change the engine oil and filter and flush the oil side — water or coolant contaminated oil must not be left in the engine
  • Deal with the cause on the raw water side as well: clean the strainer and hoses, check the sea water pump impeller for missing vanes, and check the anodes where the installation has them
  • A cooler being reused or investigated can be pressure tested on the water side to confirm whether it is sound before it goes back on
  • Refill and bleed the oil and cooling systems, run the engine and then recheck every joint once hot, when the seals are at working temperature and pressure

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 20749399 → Supersedes 8130186

OEM / Related Numbers

  • 8130186 earlier number superseded by this part

Other-Brand OEM Numbers

  • VOE20749399
  • Renault 7408130186
  • Renault 7408170816
  • MAHLE: CLC 211 000P
  • Pierburg/Rheinmetall: 20 1904 12001
  • Nissens: 90764
  • Valeo: 811802
  • Valeo: 811803

Aftermarket / Verified Equivalents

  • BF: 20190412001
  • Trucktec Automotive: 03.18.011
  • OE Germany: 031820D12000
  • AKS Dasis: 286002N
  • febi Bilstein: 48774
  • NRF: 31201
  • DT Spare Parts: 2.11089
  • Highway Automotive: 30057901

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
