22856066 Delivery Pipe Kit | Genuine Volvo Penta Part

🔧 Product Description

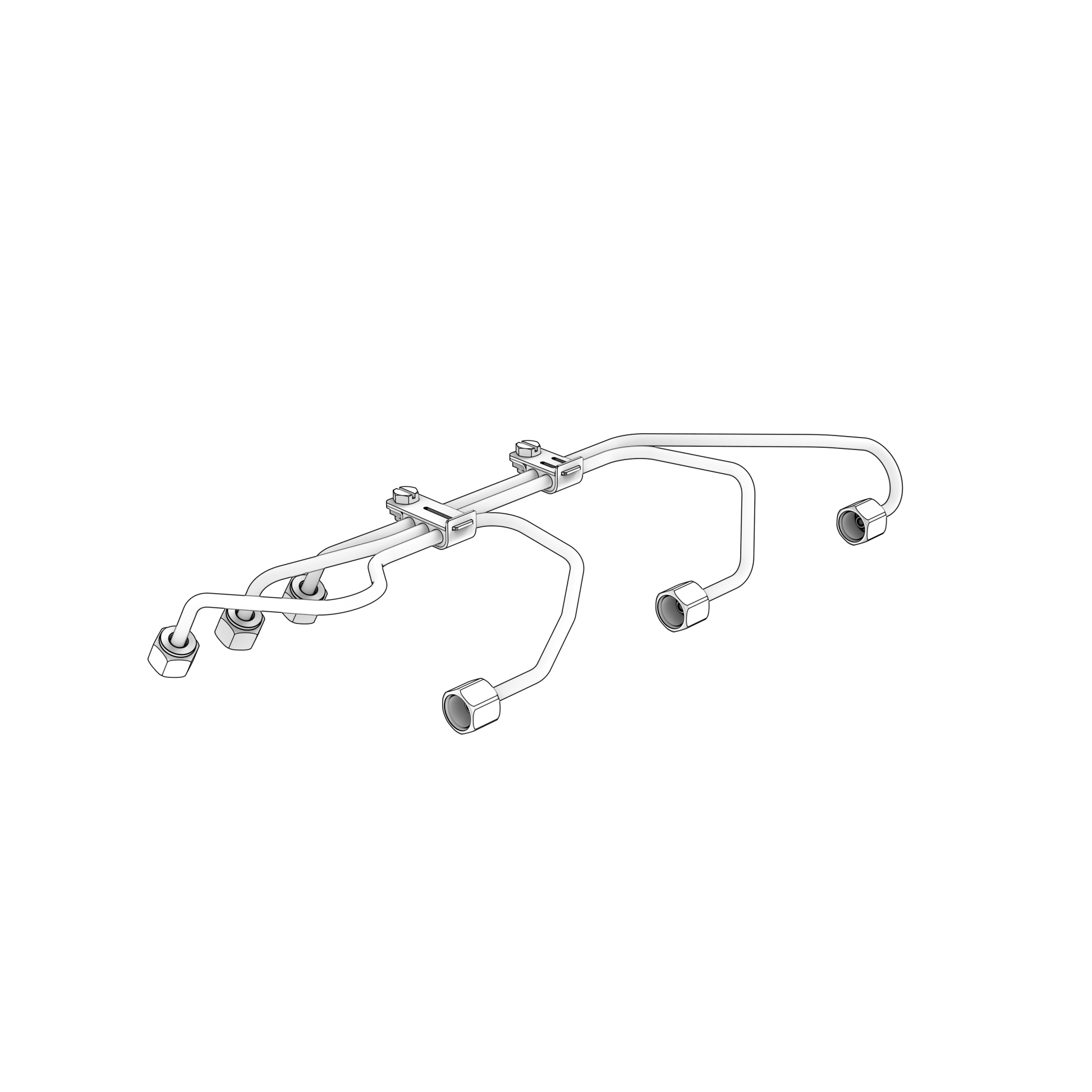

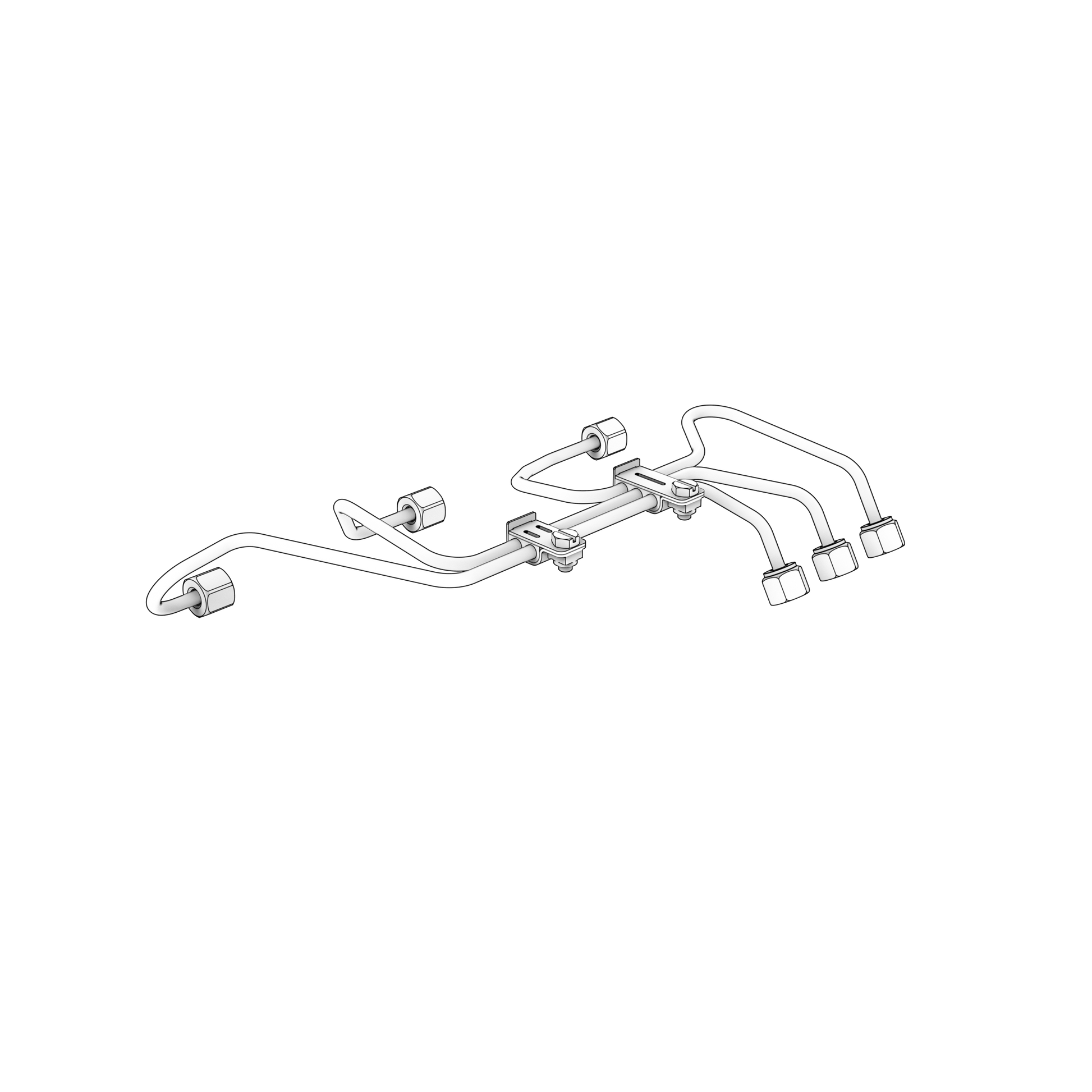

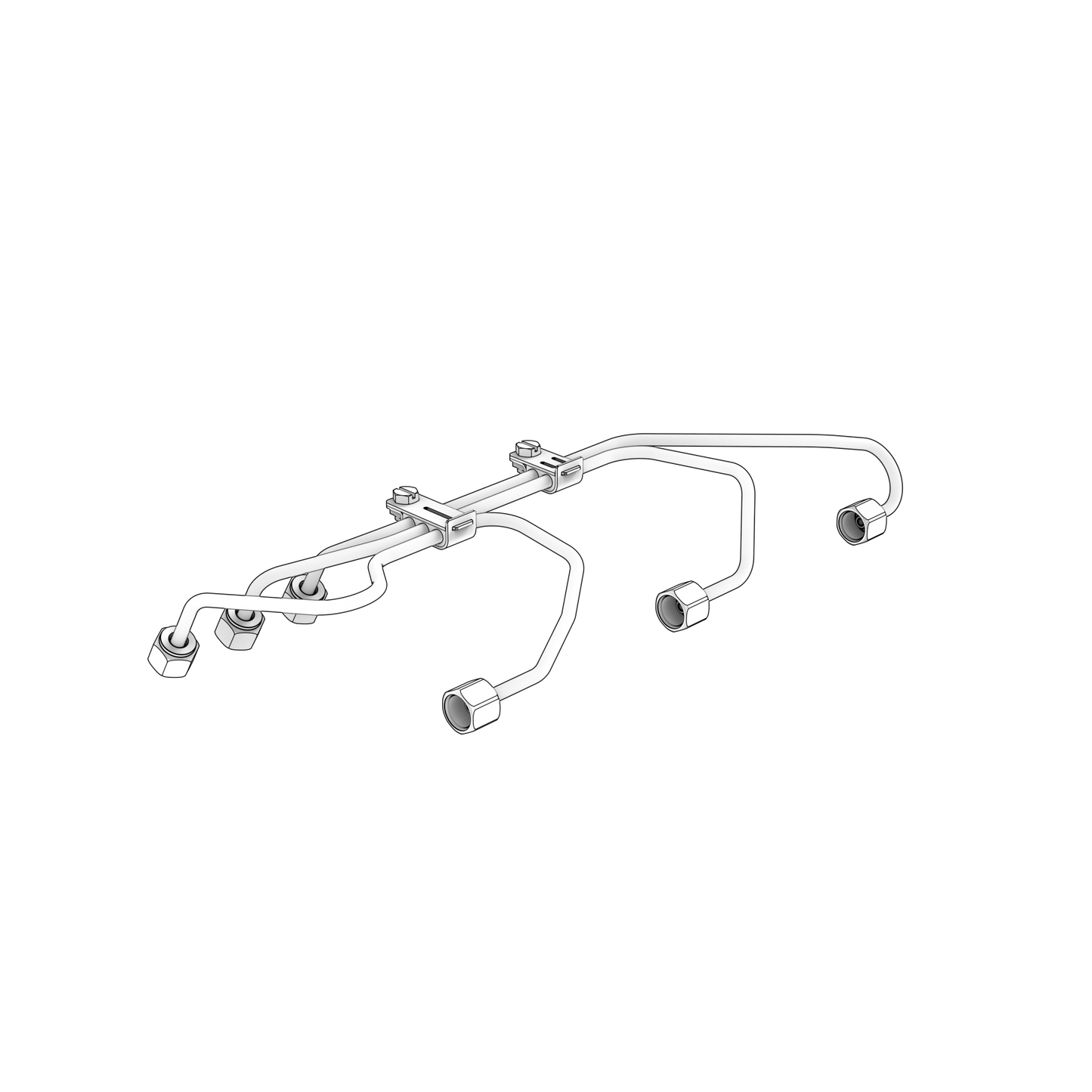

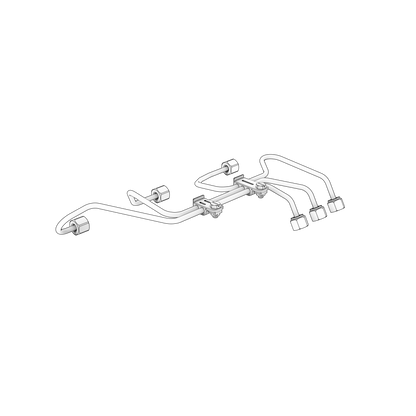

A genuine matched set of common-rail high-pressure injector pipes for cylinders 1, 2, 3 on selected later D6 marine engines. The pipes are factory formed to the correct length and bend geometry and should be replaced as a matched set whenever removed or damaged.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D6-440I-G
• Volvo Penta D6-480I-G
• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta D6-440I-WJ-G
• Volvo Penta D6-480I-WJ-G
• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D6-300I-G

• Engine Family: D
• HP Range: 300-480 HP
• Year Range: Approximately 2010s

⚙️ Key Features

• Matched delivery pipes for cylinders 1, 2, 3
• Designed for the later D6 common-rail fuel system
• Factory formed for correct rail and injector alignment
• High-pressure single-use sealing interfaces
• Clean-room fuel-system practices are required
• Engine type: Volvo Penta inline 6-cylinder D6 common-rail marine diesel

📋 Kit Contents

• High-pressure delivery pipes for cylinders 1, 2, 3 - serviced as Volvo Penta kit 22856066
• The three individual pipe numbers are not separately published in the indexed kit listing

🔌 Function

Each pipe carries highly pressurised fuel from the common rail to its assigned injector without leakage or pressure loss.

⚠️ Common Signs of Failure

• Fuel leakage or diesel odour around a pipe union
• Rail-pressure fault codes
• Engine misfire or difficult starting
• Pipe is bent, fretted or damaged
• A high-pressure connection has been loosened and the pipe requires replacement under the service procedure

🛠️ Service Notes

• Work scrupulously clean: cap every open union and keep dirt out of the pipes and the components they connect, since a single particle can ruin an injection component
• Fit the pipes new and do not reuse an old one — the sealing cone deforms as it is tightened and will not seal reliably a second time
• Offer each pipe up so it seats in its cone without being sprung or bent to reach, and start the nuts by hand; never use the nut to pull a pipe into line
• Tighten the unions in the order and to the figures given in the workshop manual for your engine, and do not cure a weeping union by pulling it up tighter — renew the pipe
• Bleed the system as the manual directs and check for leaks with the engine running before closing the space up, keeping clear of any high-pressure spray

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 23019995 - related common rail
• 23594934 - related injector kit
• 3583078 - related injector O-ring
• 3582669 - related pipe clamp
• 889789 - related protective sleeve
• 3586690 - related six-point screw
• 22583854 - related leak-off line references
• 23741887 - related leak-off line references

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
