22861150T02 Mercury MerCruiser 861150T02 Fitting Assembly - 90DG | Genuine Quicksilver OEM Part

🔧 Product Description

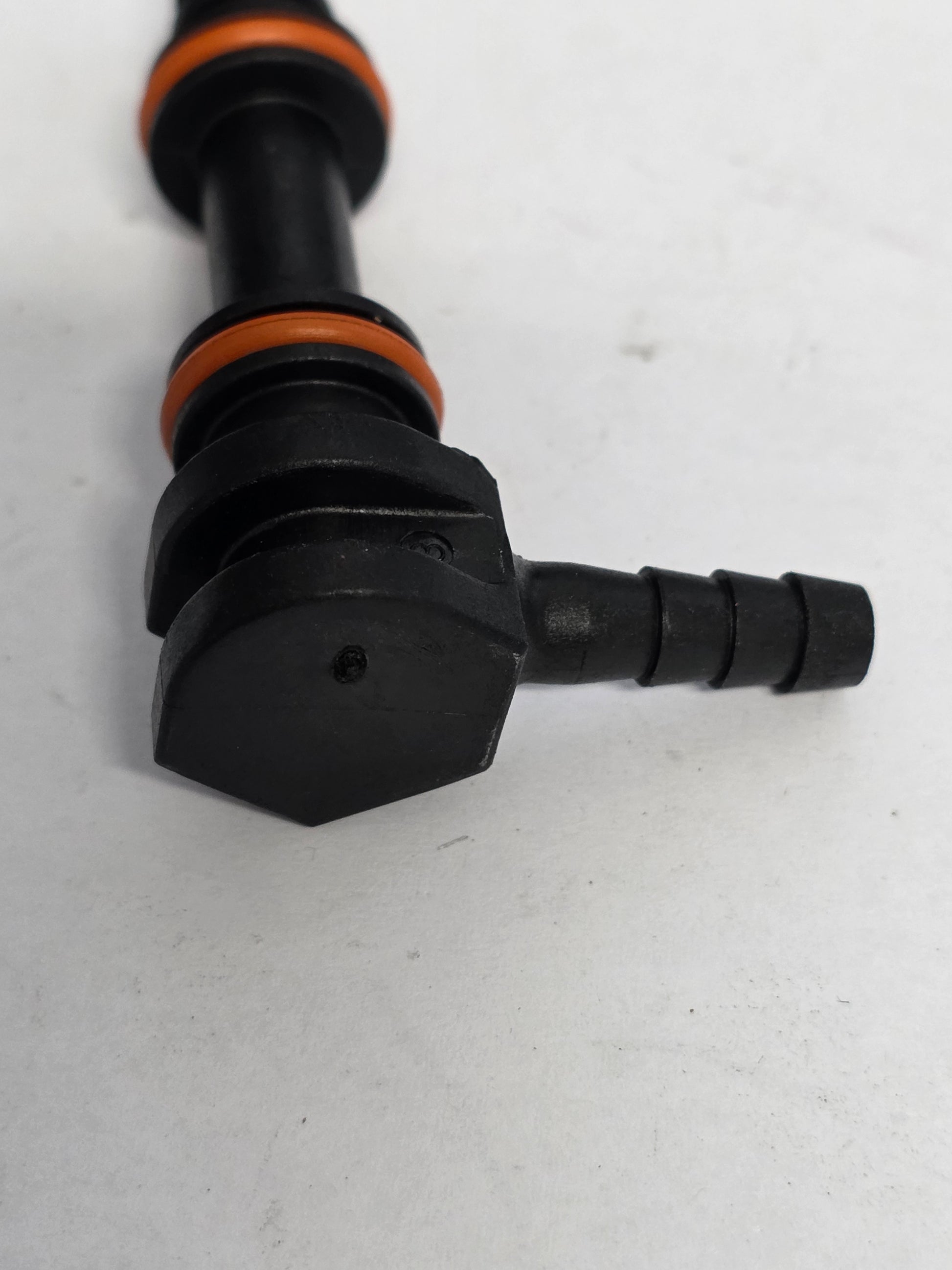

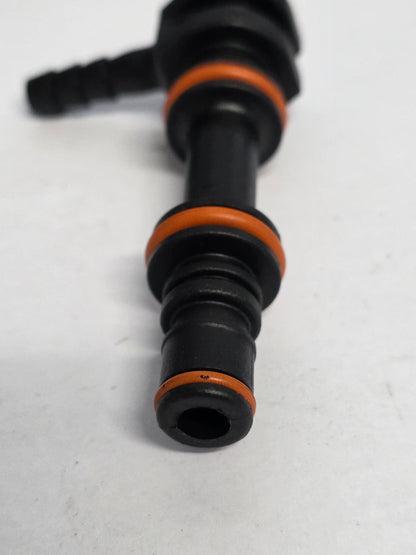

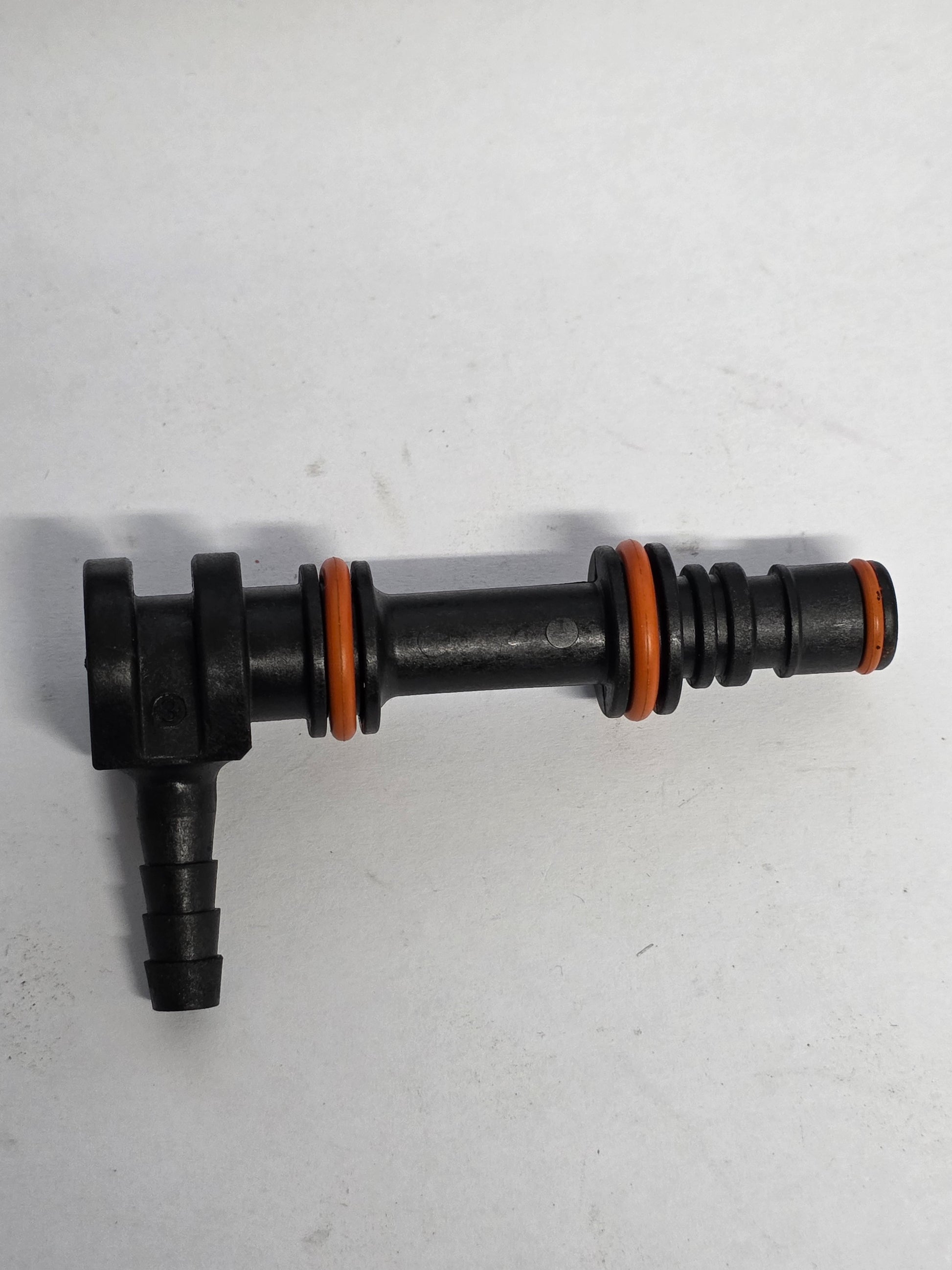

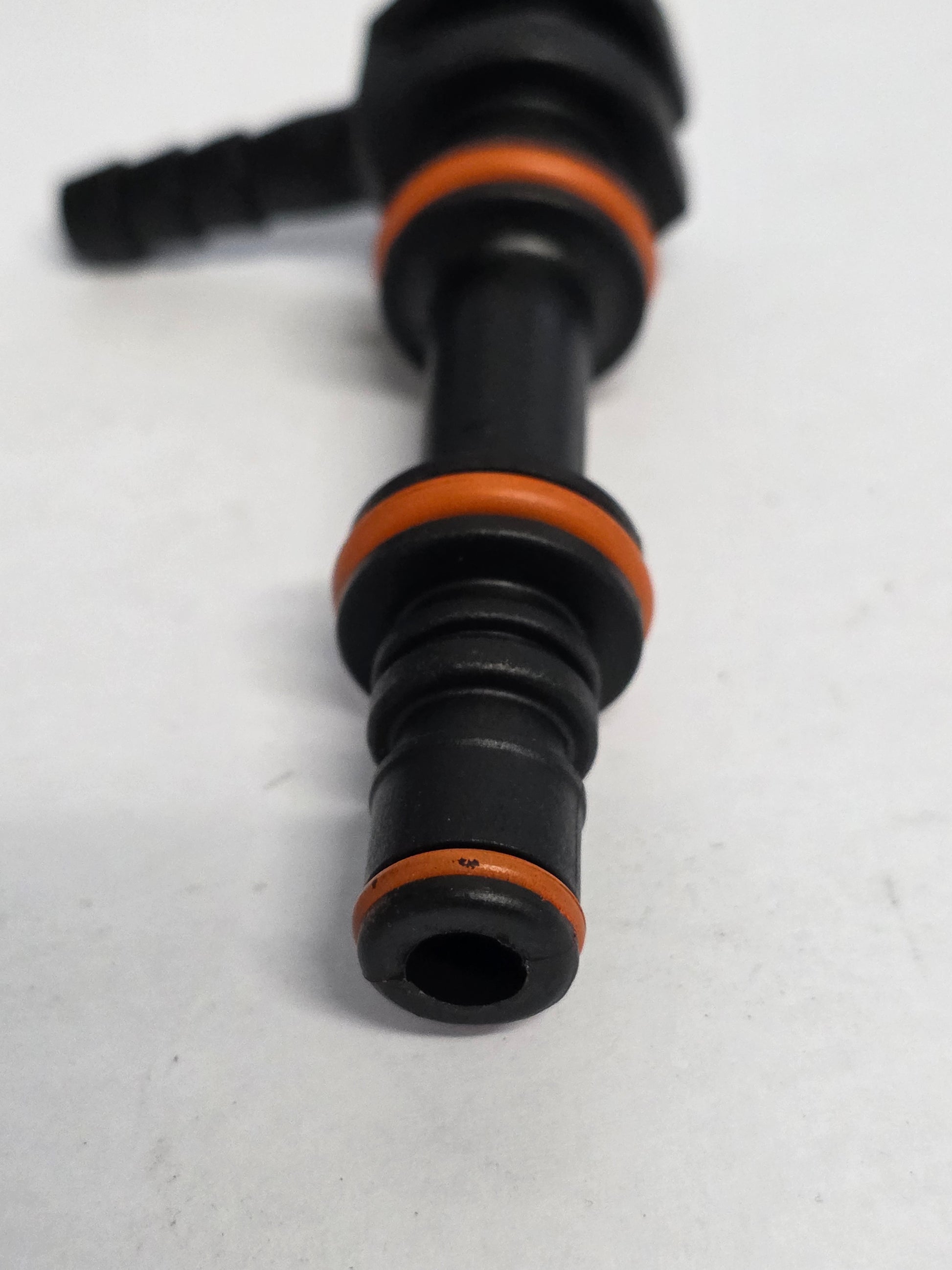

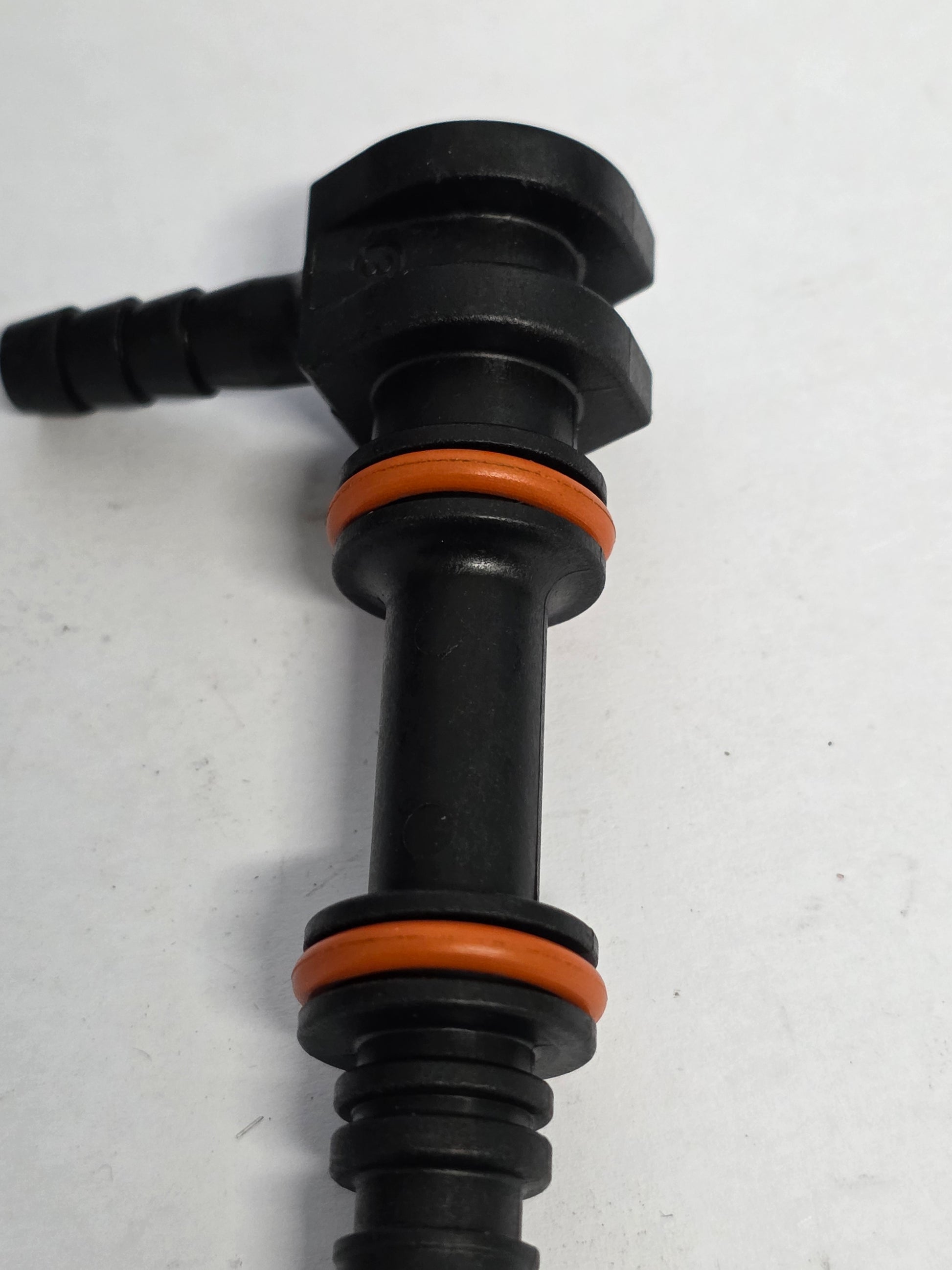

Genuine Quicksilver 90 Degree Gear Lube Fitting Assembly - Part Number: 22-861150T02

Genuine Quicksilver/Mercury 90-degree fitting assembly for MerCruiser gear lube monitor and oil reservoir systems. This OEM fitting is used through the transom/gimbal housing area to connect the remote gear lube reservoir hose to the sterndrive lubrication system on compatible Alpha One Gen II and Bravo applications.

⚙️ Key Features

• Genuine Quicksilver/Mercury OEM 90-degree fitting assembly

• Used in MerCruiser gear lube monitor / oil reservoir systems

• Designed for compatible Alpha One Gen II and Bravo sterndrive transom assemblies

• Plastic/composite bulkhead-style fitting with sealing components

• Pairs with the matching 22-861163 quick connector in the gear lube hose system

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 22-861150T02 → Supersedes 22-861150A2

• 22-861150A2 → Supersedes 22-861150A1

• 22-861150A1 (earlier OEM reference)

OEM / Related Numbers:

• 22-861150T02

• 861150T02

• 22861150T02

• 22-861150A2

• 861150A2

• 22-861150A1

• 861150A1

• 22-861163 quick connector, related component

• 861163 quick connector, related component

• 53-87843 E-ring, related retaining component

• 12-41721 washer, related component

• 32-8M0214996 gear lube hose, related component

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• MerCruiser Alpha One Gen II gear lube monitor systems

• MerCruiser Bravo One, Bravo Two and Bravo Three gear lube monitor systems

• MerCruiser gimbal housing / transom assemblies with remote gear lube reservoir bottle

Typically suits:

• Engine / drive models:

• MerCruiser Alpha One Gen II, 1998 and up, serial 0L100040 and up

• MerCruiser Alpha One Gen II, serial range 0D469859 - 2A999999, where using the matching oil reservoir bulkhead fitting

• MerCruiser Bravo One sterndrive and transom assemblies

• MerCruiser Bravo Two sterndrive and transom assemblies

• MerCruiser Bravo Three sterndrive and transom assemblies

• MerCruiser Bravo applications with remote gear lube bottle / oil reservoir components

• Quicksilver Alpha One applications with oil reservoir components, serial 2A629407 and up where listed

• MerCruiser late-model Alpha and Bravo transom assemblies using 22-861150T02 with 22-861163 and 53-87843

• MerCruiser BlackHawk applications using the gimbal housing oil reservoir bulkhead fitting system where listed

• HP Range: Not engine-horsepower specific; used by compatible MerCruiser sterndrive/transom assembly and gear lube monitor system

• Engine Type: MerCruiser Alpha One Gen II / Bravo sterndrive remote gear lube reservoir system

• Year Range: Approximately 1998 onwards for Alpha One Gen II 0L100040 and up, with Bravo and related sterndrive applications depending on transom assembly and serial number

🔌 Function

This fitting forms the through-transom/bulkhead connection for the remote gear lube reservoir hose. It allows gear lube to pass between the remote bottle and the sterndrive while maintaining a sealed connection through the gimbal housing area. Correct fitment helps prevent gear lube leaks and helps maintain proper drive lubrication monitoring.

Common signs of failure:

• Gear lube leaking around the transom or gimbal housing fitting

• Cracked or broken plastic fitting

• Oil reservoir level dropping without obvious external drive leak

• Hose connection not locking securely

• Gear lube residue in the bilge or transom area

• Damaged O-rings or sealing surface during hose replacement

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
