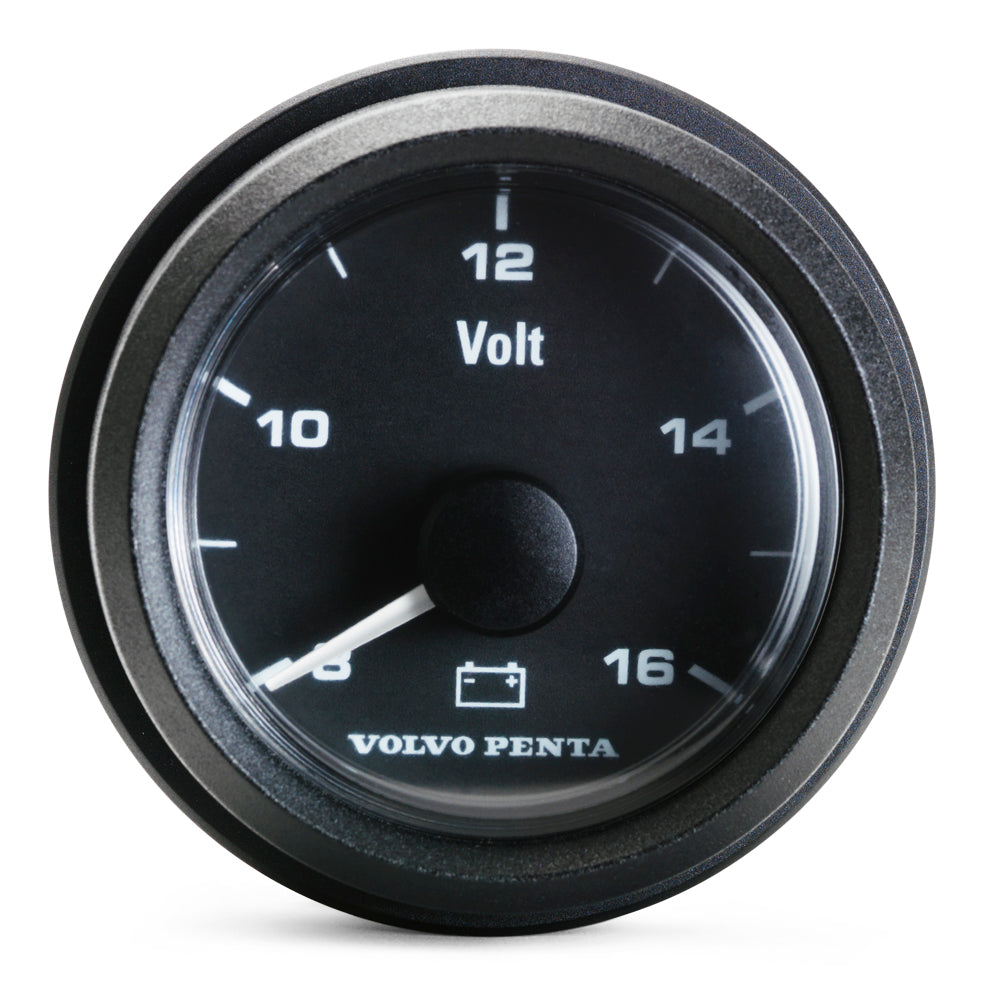

23715881 Voltmeter | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's range of instruments for non-EVC diesel and gasoline engines offers a modern appearance and a high level of readability. The gauges are available in 85 mm and 52 mm and are designed to fit previous instrument panels for Volvo Penta non-EVC engines. Complete instrument panel kits are also available. Reads 8-16 V on a 12 V system. Adapter cable / wiring harness, mounting kit and front ring are included.

🚤 Compatibility

Typically suits:

• Volvo Penta D5A-B TA
• Volvo Penta D5A-T
• Volvo Penta D7A-B TA
• Volvo Penta D7A-T
• Volvo Penta D7C-B TA

• Engine Family: D

⚙️ Key Features

• Voltmeter, 52 mm, for 12 V systems, scaled 8 to 16 V
• Adapter cable and wiring harness, mounting kit and front ring included
• Part of the non-EVC instrument range, sized for earlier Volvo Penta panels
• The voltmeter used in the 12 V main station instrument panel kit
• 0.143 kg
• Listed for five D series engine applications
• Supersedes 23576962
• Voltmeter kit, 12V, 8V-16V
• Part of the new non-EVC instrument range, available in 85 mm and 52 mm
• Designed to fit Volvo Penta instrument panels
• Reading: 8V - 16V
• System voltage: 12V
• Reads 8-16 V on a 12 V system
• Adapter cable / wiring harness, mounting kit and front ring are included
• Scale: 8-16 V
• Voltage: 12 V
• Diameter: 52 mm
• Fits: Volvo Penta non-EVC diesel and gasoline engines

🔌 Function

Displays system voltage at the helm so the state of the batteries and the output of the charging system can be seen at a glance.

⚠️ Common Signs of Failure

• Needle reading high, low or hard against a stop
• Reading that does not rise when the engine is started and charging
• Needle flickering or unsteady
• Backlight dim or dead while the needle still works
• Condensation or a fogged lens behind the glass

🛠️ Service Notes

• Confirm the system voltage before ordering, as the 24 V voltmeter 23715883 is within 5 grams of this one
• Nothing else is needed to fit it: the harness, mounting kit and front ring come in the box
• Check the actual voltage at the battery with a meter before condemning the gauge, and check the gauge earth
• The range is built in two sizes - 85 mm and 52 mm - and is designed to fit Volvo Penta instrument panels. 85 mm gauges suit an 80 mm, 85 mm or 90 mm panel hole with the attaching ring and adapter rings included; 52 mm gauges suit a 52 mm or 60 mm hole with the included adapter rings
• If the panel already in the boat is not one of the Volvo Penta instrument panels in this range, the panel hole diameter may need to be modified to suit the new gauge's diameter
• A mounting kit for flush mounting can be ordered where it is needed; the kit contains the o-ring, fixing brackets and nuts
• For an industrial engine application where the instruments are connected to the CIU, the EasyLink instruments are the ones used instead
• Adapter cable / wiring harness, mounting kit and front ring are included with this gauge, unlike the EVC instrument range where the ring is a separate order
• Match the system voltage where the gauge is voltage-specific

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23715881 → Supersedes 23576962 → Supersedes 873199 → Supersedes 863930 → Supersedes 828628

OEM / Related Numbers

• 23576962 earlier number superseded by this part
• 873199 earlier number superseded by this part
• 863930 earlier number superseded by this part
• 828628 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
