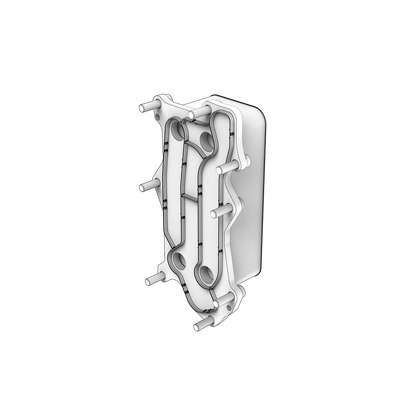

24063062 Oil Cooler Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine small-configuration engine-oil cooler service assembly weighing 3.475 kg, listed for six TAD series applications. It transfers heat from the lubricating oil into the engine cooling circuit while maintaining separation between the oil and coolant passages. The hardware and seals supplied with the kit vary with the application, so check the contents before ordering.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD552VE
• Volvo Penta TAD580-83VE
• Volvo Penta TAD570-72VE
• Volvo Penta TAD570-71VE-B
• Volvo Penta TAD550-51VE
• Volvo Penta TAD540-42VE

• Engine Family: TAD
• HP Range: Approximately 340 HP

⚙️ Key Features

• Genuine small-configuration oil-cooler assembly
• 3.475 kg
• Listed for six TAD series applications
• Hardware and seals supplied with the kit vary with the application
• Transfers excess heat from engine oil to coolant
• Maintains separate oil and coolant flow passages

📋 Kit Contents

• 1 × small oil-cooler module service assembly - Part Number: 24063062
• The package is supplied and serviced under part number 24063062. This package is supplied and serviced as one matched assembly; smaller internal seals or valve pieces are not assigned separate orderable part numbers.

🔌 Function

The cooler controls lubricating-oil temperature by passing engine oil and coolant through separate internal passages, allowing heat to transfer without mixing the two fluids.

⚠️ Common Signs of Failure

• Engine oil temperature rises excessively under load
• Oil pressure falls as the oil becomes overheated
• Engine oil appears in the cooling system, or coolant appears in the engine oil
• External oil or coolant leakage from the cooler assembly
• Restricted cooler passages reduce heat transfer

🛠️ Service Notes

• Check the kit contents against the job before ordering, since the hardware and seals included vary with the application
• Renew the cooler seals from the kit rather than reusing the originals

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 24063050 - O-ring sealing kit
• 24063058 - Oil valve kit
• 24063064 - Medium oil cooler kit
• 24063065 - Large oil cooler kit
• 24063074 - Related engine oil filter
• 24063114 - Oil-cooler thermostat kit

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
