🔧 Product Description

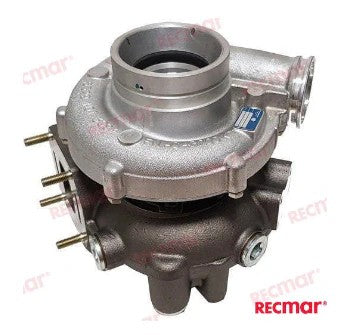

Sawley's Select Marine Parts BorgWarner-Spec K27 Aftermarket Turbocharger - Part Number: 3801138

A new direct-fit aftermarket marine turbocharger manufactured to replace the BorgWarner K27 unit fitted to selected Volvo Penta D6-400 and D6-435 diesel engines.

This large marine turbocharger is matched to the 5.5-litre Volvo Penta D6 common-rail engine family. It replaces the original new-unit reference 3809911 and corresponds with Volvo Penta remanufactured or exchange reference 3801138.

⚙️ Key Features

• Direct-fit aftermarket replacement for Volvo Penta 3801138 and 3809911

• BorgWarner K27 marine turbocharger specification

• Designed for Volvo Penta D6 400HP and 435HP engines

• Suits Aquamatic, inboard and commercial-drive configurations listed below

• Cross-references with BorgWarner, Recmar and SLP numbers

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3809911 current new Volvo Penta turbocharger reference

• 3801138 Volvo Penta remanufactured / exchange reference corresponding to 3809911

OEM / Related Numbers:

• Volvo Penta: 3801138

• Volvo Penta: 3809911

• BorgWarner: 53279987194

• BorgWarner: 53279707194

• BorgWarner: 53279887194

• BorgWarner: 5327-998-7194

• BorgWarner: 5327-988-7194

• BorgWarner: 5327-970-7194

• BorgWarner: K27

• BorgWarner: K27-3571QOAKB12.72GAAXB

• Engine code: P1315

• Mounting gasket set: 3588435

• Recmar mounting gasket: REC3588435

Aftermarket / Verified Equivalents:

• Recmar: REC3801138

• SLP: TC-138

• BorgWarner: 53279987194

• BorgWarner: 53279707194

• FridayParts: FPLJ2603195

• Boatparts: BPN3801138

🚤 Compatibility

Commonly used on:

• Volvo Penta D6 high-output common-rail marine diesel engines

• Aquamatic sterndrive and inboard propulsion packages

Typically suits:

• Engine models:

• Volvo Penta D6-400A-E

• Volvo Penta D6-400A-F

• Volvo Penta D6-435D-A

• Volvo Penta D6-435D-C

• Volvo Penta D6-435D-D

• Volvo Penta D6-435D-E

• Volvo Penta D6-435D-F

• Volvo Penta D6-435I-A

• Volvo Penta D6-435I-C

• Volvo Penta D6-435I-D

• Volvo Penta D6-435I-E

• Volvo Penta D6-435I-F

• HP Range: 400HP - 435HP

• Engine Type: 5.5L inline six-cylinder, four-stroke, common-rail, turbocharged and intercooled marine diesel

• Rated Speed: 3500rpm

• Year Range: Approximately 2006 onward, dependent on engine suffix and production number

🔌 Function

The turbocharger uses exhaust-gas energy to drive the turbine and compressor. The compressor supplies pressurised air through the charge-air cooler, enabling the D6 engine to develop its rated output and torque under sustained marine loads.

Common signs of failure:

• Reduced boost and poor vessel acceleration

• Engine cannot reach rated full-load rpm

• Excessive black smoke under load

• Blue smoke or increased oil consumption

• Loud whining, siren, scraping or grinding noise

• Oil accumulation in the compressor outlet or charge-air cooler

• Excessive radial or axial shaft movement

• Compressor or turbine blade damage

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in original or equivalent packaging
