3840525 Oil Filter | Genuine Volvo Penta Part

🔧 Product Description

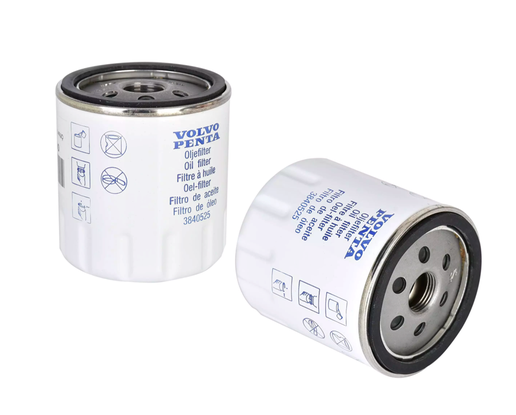

Genuine Volvo Penta spin-on oil filter weighing 0.279 kg and listed for 34 applications across the D and MD series. It is the oil filter for the D1-30 and D2-40 and for the D2-50, D2-55, D2-60 and D2-75, and the same filter serves the MD2030 and MD2040 - the smaller MD2010 and MD2020, and the D1-13 and D1-20, take 861473 instead. It supersedes part number 3589316.

🚤 Compatibility

• Engine Family: D, MD
• HP Range: 30-75 HP

Full model list at the end of this description.

⚙️ Key Features

• Spin-on oil filter
• 0.279 kg
• For the D1-30, D2-40, D2-50, D2-55, D2-60 and D2-75
• Also for the MD2030 and MD2040
• Supersedes 3589316
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Oil filter
• Fits: MD2010, MD2020, MD2030, MD2040 (MD2030/2040); D1-30, D2-40; D2-50, D2-55, D2-60, D2-75

🔌 Function

Filters wear metal and combustion soot out of the circulating oil to protect the bearings.

⚠️ Common Signs of Failure

• Oil pressure low, or slow to build after starting
• Oil black and thick well before the service interval
• Filter seal weeping oil down the block
• Rattle from the top end on cold start
• Filter casing swollen or split

🛠️ Service Notes

• The D1-13 and D1-20 take the smaller filter 861473 - check the engine designation before ordering
• Smear the new seal with clean oil and fit by hand; overtightening distorts the seal and causes leaks
• Change the filter with every oil change, not on alternate changes
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3840525 → Supersedes 3589316

OEM / Related Numbers

• 3589316 earlier number superseded by this part

Other-Brand OEM Numbers

• Fleetguard: LF3335
• Fleetguard: LF17532

Aftermarket / Verified Equivalents

• Hifi Filter: SO11040

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta D1-30, D1-30B, D1-30F
