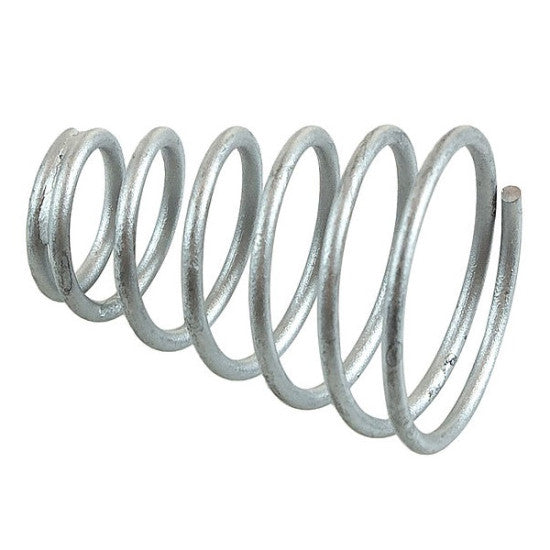

815093003 Mercury MerCruiser Spring | Genuine Quicksilver OEM Part

🔧 Product Description

Genuine Quicksilver Clamp Bracket / Tilt Spring - Part Number: 24-815093003

A genuine Quicksilver spring used in selected Mercury and Mariner clamp bracket, swivel bracket and manual tilt assemblies. This spring forms part of the outboard bracket hardware system and helps maintain correct operation of the tilt, clamp or locking mechanism depending on the specific model application.

⚙️ Key Features

• Genuine Quicksilver OEM spring

• Correct Mercury part number 24-815093003

• Used in selected clamp bracket and manual tilt assemblies

• Commonly fitted to small Mercury / Mariner 4-stroke and 2-cylinder outboard applications

• Direct replacement for the specified OEM bracket spring

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 24-815093003 → Supersedes 8150931

• 8150931 earlier OEM reference

OEM / Related Numbers:

• 24-815093003

• 815093003

• 8150931

• 815093 1

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Mercury and Mariner outboard clamp bracket, swivel bracket and manual tilt assemblies

Typically suits:

• Engine models:

• Mercury 4HP 4-Stroke, clamp bracket applications, serial 0R411838 and up

• Mercury 5HP 4-Stroke, clamp bracket applications, serial 0R411838 and up

• Mercury 5HP 4-Stroke JCI, clamp bracket applications, serial 0R560794 and up

• Mercury 6HP 4-Stroke, clamp bracket applications, serial 0R411838 and up

• Mercury 9.9HP 2-cylinder International, clamp bracket applications, serial 0N059858 and up

• Mercury 10 Carb 2-cylinder 4-Stroke, manual tilt clamp bracket applications, serial 0R575531 to 0R833819

• Mercury 10 EFI 2-cylinder 4-Stroke, manual tilt clamp bracket / swivel bracket applications, serial 0R833820 and up

• Mercury 15HP 2-cylinder International, clamp bracket applications, serial 0N055285 and up

• Mercury 15 Carb 2-cylinder 4-Stroke, manual tilt clamp bracket applications, serial 0R235949 to 0R833819

• Mercury 15 Carb 2-cylinder 4-Stroke JCI, manual tilt clamp bracket applications, serial 0R558208 to 0R833819

• Mercury 15 EFI 2-cylinder 4-Stroke, manual tilt clamp bracket / swivel bracket applications, serial 0R833820 and up

• Mercury 15 EFI SeaPro 2-cylinder 4-Stroke, manual tilt clamp bracket / swivel bracket applications, serial 0R833820 and up

• Mercury 15 SeaPro 4-Stroke, clamp bracket applications, serial 0R051685 to 0R123564

• Mercury 15 SeaPro 4-Stroke, clamp bracket applications, serial 0R123565 and up

• Mercury 18HP 2-cylinder International, clamp bracket applications, serial 0N055285 and up

• Mercury 20 Carb 2-cylinder 4-Stroke, manual tilt clamp bracket applications, serial 0R235168 to 0R833819

• Mercury 20 EFI 2-cylinder 4-Stroke, manual tilt clamp bracket / swivel bracket applications, serial 0R833820 and up

• HP Range: 4HP - 20HP

• Engine Type: Mercury / Mariner small outboard

• System Type: Clamp bracket / swivel bracket / manual tilt spring hardware

🔌 Function

This spring assists the clamp bracket or manual tilt mechanism by applying return tension or retaining force within the bracket assembly.

Common signs of failure:

• Manual tilt mechanism feels loose or does not return correctly

• Clamp bracket hardware does not hold position properly

• Spring is stretched, corroded, broken or missing

• Tilt lock or bracket function becomes inconsistent

• Excess movement or rattling from the clamp bracket area

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
