Boat Trailer Brakes: Override, Hydraulic and Electric

Trailer brakes are the system nobody thinks about until they need them, and the one that lives the hardest life on the whole rig. They get dunked in salt water while hot, then parked for a month. Understanding which type you have makes the difference between maintaining them and discovering them.

Which type of trailer brakes do I have?

Three systems are common on Australian boat trailers, and they work in genuinely different ways.

Mechanical override

The simplest and the oldest. The coupling at the front of the trailer slides on a shaft; when you slow down, the trailer's momentum pushes the coupling in, and that movement pulls a cable or rod that applies the brakes. No electrics, no fluid, no connection to the tow vehicle beyond the tow ball.

Its virtues are that it works with any vehicle and there is very little to go wrong. Its limits are real too: braking effort depends entirely on how hard the trailer pushes, and reversing needs a mechanism to stop the brakes applying as the trailer pushes back — either a manual lockout lever you have to remember, or a one-way device.

Hydraulic override

The same override principle, but the coupling operates a small master cylinder instead of a cable, and hydraulic fluid applies the brakes. This is the most common system on mid-sized Australian boat trailers, and hydraulics apply pressure far more evenly across the wheels than a cable ever manages.

What it asks of you is fluid maintenance: checking the level in the master cylinder at the coupling, keeping air out of the lines, and bleeding it when the fluid gets old or the pedal feel goes spongy. Brake fluid absorbs moisture over time, which on a trailer that lives outdoors is not a small consideration.

Electric and electric-over-hydraulic

Electric brakes are operated by a controller in the tow vehicle, which gives the driver proportional control and lets the brakes work in reverse without a lockout. Electric-over-hydraulic uses that same electrical signal to drive a hydraulic pump, combining the control of electric with the even application of hydraulics.

The catch on a boat trailer is immersion: drum-based electric brakes with their magnets and windings are not naturally fond of being backed into the sea, which is why electric-over-hydraulic with disc brakes is the popular choice on larger, heavier boats. These systems also need a working breakaway device and a properly wired connection to the vehicle, so the electrical side becomes something to maintain.

Disc or drum, and why salt water decides it

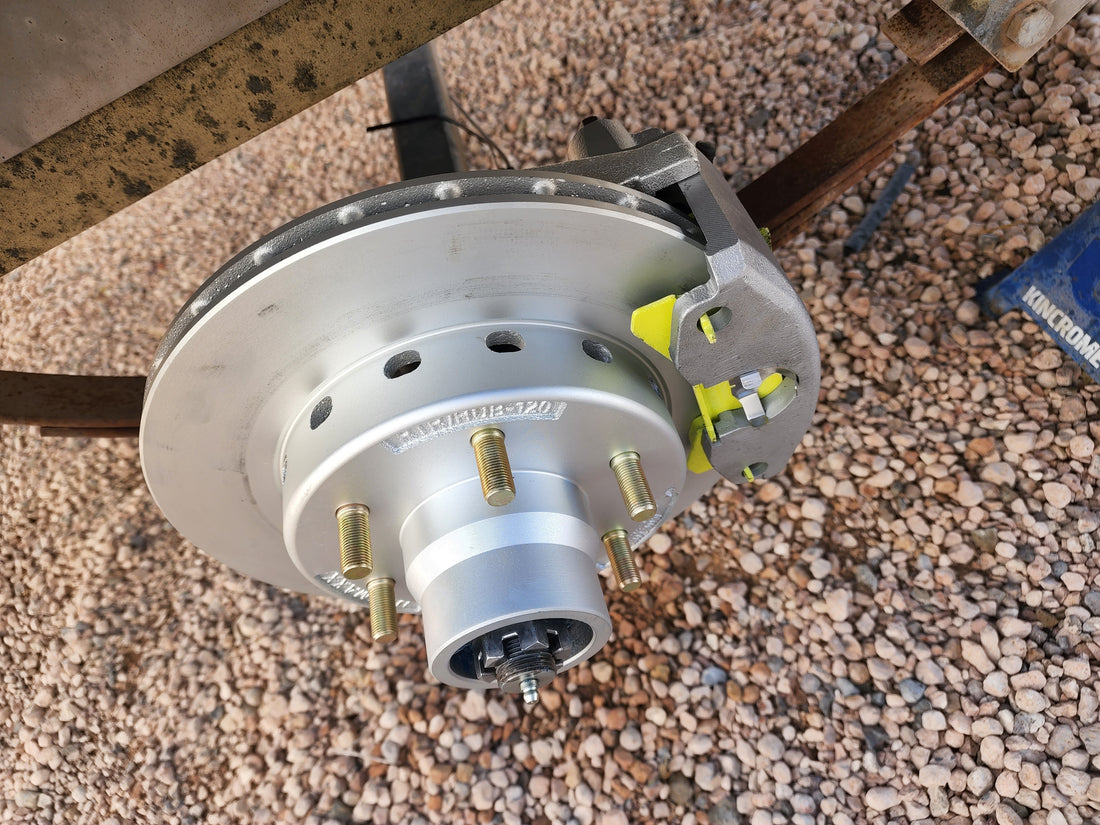

Independent of the actuation type, the brakes themselves are either drums or discs. Drums enclose everything, which sounds protective and is exactly the problem — once salt water gets inside, it stays inside, sitting against the shoes and springs. Discs are open, so they drain and dry quickly, and they are far easier to inspect because you can see the pads and the rotor without dismantling anything.

For a boat trailer that gets immersed regularly, discs are generally the better answer, and stainless components better again. If your trailer has drums and you are constantly fighting them, that is a conversion worth costing rather than a fault to keep chasing.

What actually goes wrong

• Seized calipers or wheel cylinders after sitting, from corrosion — the classic result of a wet trailer parked for a season.
• Corroded or chafed brake lines, especially where they run along the chassis or cross to the axle.
• A rusted master cylinder or a coupling that no longer slides freely, so the brakes never come on properly.
• Contaminated pads or linings from a leaking seal or hub grease.
• Brakes pulling to one side, which is nearly always one side working and the other not.
• Nothing at all — and this one hides well, because a tow vehicle can usually stop a small trailer on its own brakes without you noticing the trailer is contributing nothing.

The habit that catches most of it: flush the brakes with fresh water after every salt-water launch, at the same time you flush the motor, and check that the coupling still slides freely. Then, once a year, someone should take the hubs apart properly — which is also when the wheel bearings get done, since you are already there. Our guide to boat trailer bearings covers that half of the job.

Parts and repairs

Brake components, couplings, hubs and hardware for the common Australian trailers are in our Dunbier trailer parts and Mackay trailer parts ranges, with couplings, rollers, lights and general hardware in boat trailer parts and accessories.

Brakes are also one of the few areas where getting it wrong has consequences beyond your own boat, so if you are unsure what you have or whether it is working, it is worth having it looked at. We inspect and overhaul mechanical and hydraulic brake units, and do welding and suspension work, through trailer and brake repairs at the Kadina workshop. Ring 0412 532 984 — ideally before the long weekend rather than after it.
