Reading Your Engine's ID Plate: Order the Right Part First Time

Most wrong parts are not ordered by careless people. They are ordered by sensible people who knew what engine they had — and were still missing one piece of information the parts catalogue needed. Almost every one of those calls ends the same way: what does the plate say?

Why the model on the cover is not enough

Engine ranges run for years and change quietly as they go. Suppliers change, a filter gets a new thread, an impeller becomes a millimetre wider, a pump is redesigned mid-production. The catalogue tracks all of that by serial number, not by the name cast into the rocker cover.

Our guide to Volvo Penta service kits has a clean example: the D4 and D6 maintenance kits change part number partway through the range, at a specific serial. Two boats, both honestly described by their owners as a D4, take different kits. Neither owner was wrong; the model name simply does not carry enough information.

What the plate tells us

Every marine engine carries an identification plate or label with three things that matter:

• The full model designation — not "D4" but the complete string, like D4-260A-F. The suffixes are the generation and configuration, and they are exactly what decides parts.
• The serial number — the individual engine's identity, and the key that resolves any mid-production change.
• The product or specification number on many engines, which pins down how that particular unit was built.

On a sterndrive boat there is a second plate, and it is just as important: the drive has its own model and serial, separate from the engine's. Bellows, anodes, propellers and drive oil are all decided by the drive, not the engine, so a request for "anodes for a D4" cannot be answered until we know whether it is sitting behind a DPH, a DPI or something older. Outboards carry the same idea on a single plate on the transom bracket, with the model and serial together.

Where to find them

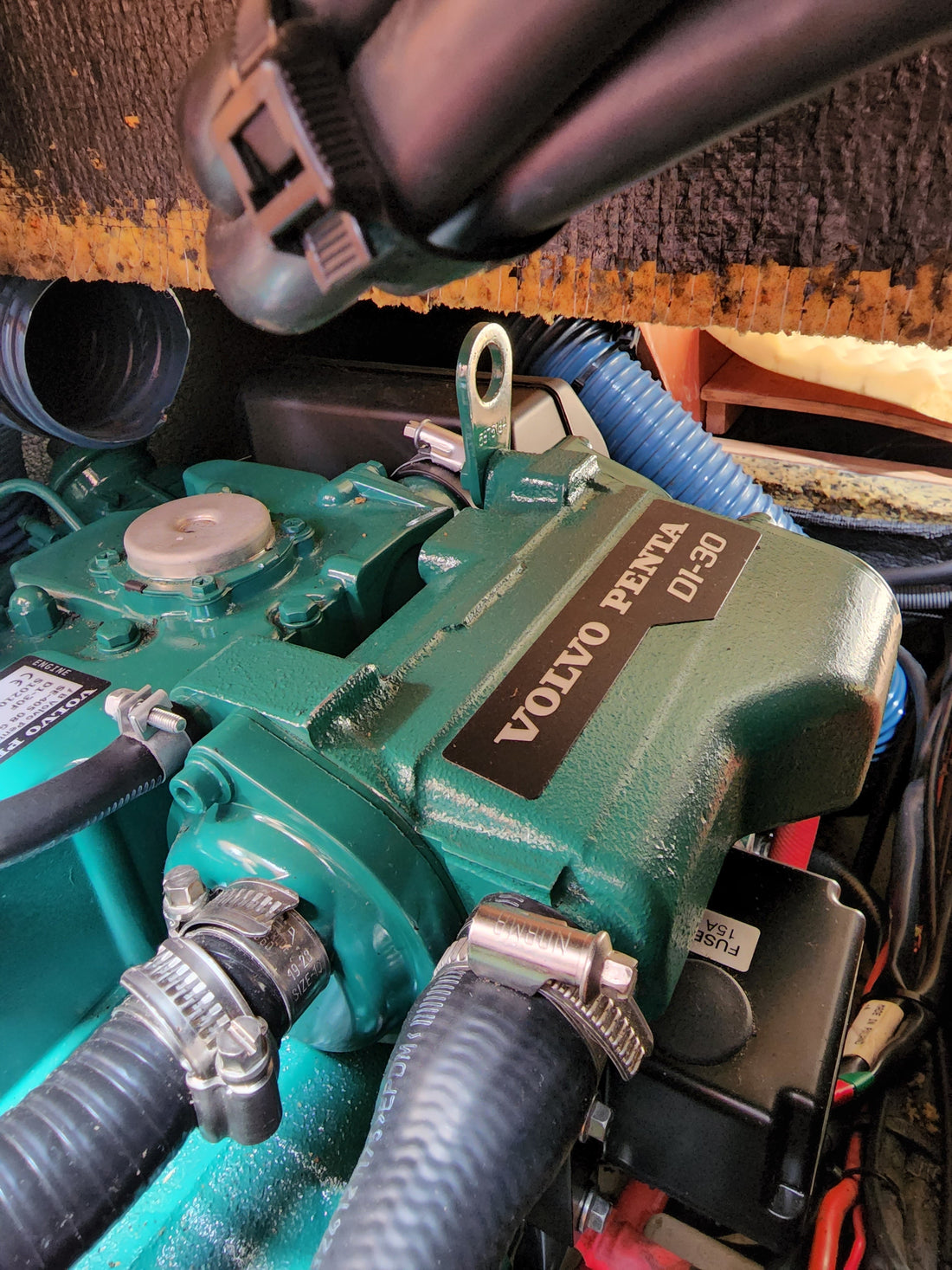

• Marine diesels: usually on the rocker cover, the flywheel housing or the block, often on a decal on the top edge where you can read it from above.
• Sterndrives: on the transom shield inside the boat, or on the drive itself — frequently on the upper housing where the leg meets the transom.
• Outboards: on the swivel bracket or transom clamp bracket, on the starboard side. Also repeated under the cowling on many motors.
• Saildrives: on the leg casing, which usually means getting your head into the engine compartment with a torch.

They are rarely convenient. A phone with the flash on, held at arm's length to take a photo, beats trying to read and remember a long string upside down in a dark engine bay — and a photo is something you can send us directly.

Do this once and never do it again

The single most useful thing an owner can do: photograph every plate on the boat today, while it is convenient, and keep the photos somewhere you will find them. Engine plate, drive plate, outboard plate, and while you are there the trailer's compliance plate and the numbers on the gearbox. Take a picture of the propeller markings too.

Then when something breaks — at a boat ramp, on a Saturday, three hours from home — you have everything needed to identify the right part in your pocket instead of back at the shed. It takes ten minutes and it saves that afternoon repeatedly over the life of the boat.

A tip on transcribing them: zeros and the letter O, ones and the letter I, fives and S, and eights and B are the usual culprits, and marine plates are often corroded exactly where you need them clearest. If a character is genuinely ambiguous, tell us rather than guessing — we would rather resolve it against the catalogue than have you receive something that does not fit.

When the plate is gone or unreadable

It happens, particularly on older boats and on engines that have spent years in a wet bilge. The plate corrodes to nothing, or a previous owner painted straight over it, or the decal has simply peeled away. You are not stuck, but the job gets slower.

Several things can still narrow it down. Many engines have the serial stamped into the block itself as well as printed on the plate, so it is worth cleaning the casting around where the plate sits. Old paperwork helps — a previous invoice, a service record, an insurance document or the original handover pack often carries the full designation. On sterndrive boats, the drive and the engine can identify each other, since only certain combinations were ever built. Failing all that, casting marks, the shape of components and the parts already fitted let us work backwards, which is slower and less certain but usually gets there.

The other thing to know is that identifying by sight alone has limits, and we will tell you when we have reached them. A part that is right for four of the five engines in a range is still the wrong part for the fifth, and on this catalogue we would rather say "we need the serial to be sure" than send you something that nearly fits.

Ringing with the numbers

With the model, the serial and the drive details in front of us, we can identify parts confidently across the whole catalogue, and as the authorised Volvo Penta dealer for South Australia we have the factory's own parts data for those engines rather than a best guess. If you would rather browse first, everything is grouped by category on the parts directory, and many ranges can be filtered down to your engine series once you know exactly what you have.

Send us a photo of the plate or read it down the phone on 0412 532 984. It is a much shorter conversation than the one that starts with a part that does not fit.
