0174663 OMC Trim Gauge | Genuine Used Part

0174663 OMC Trim Gauge | Genuine Used Part

$55.00 AUD
$55.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

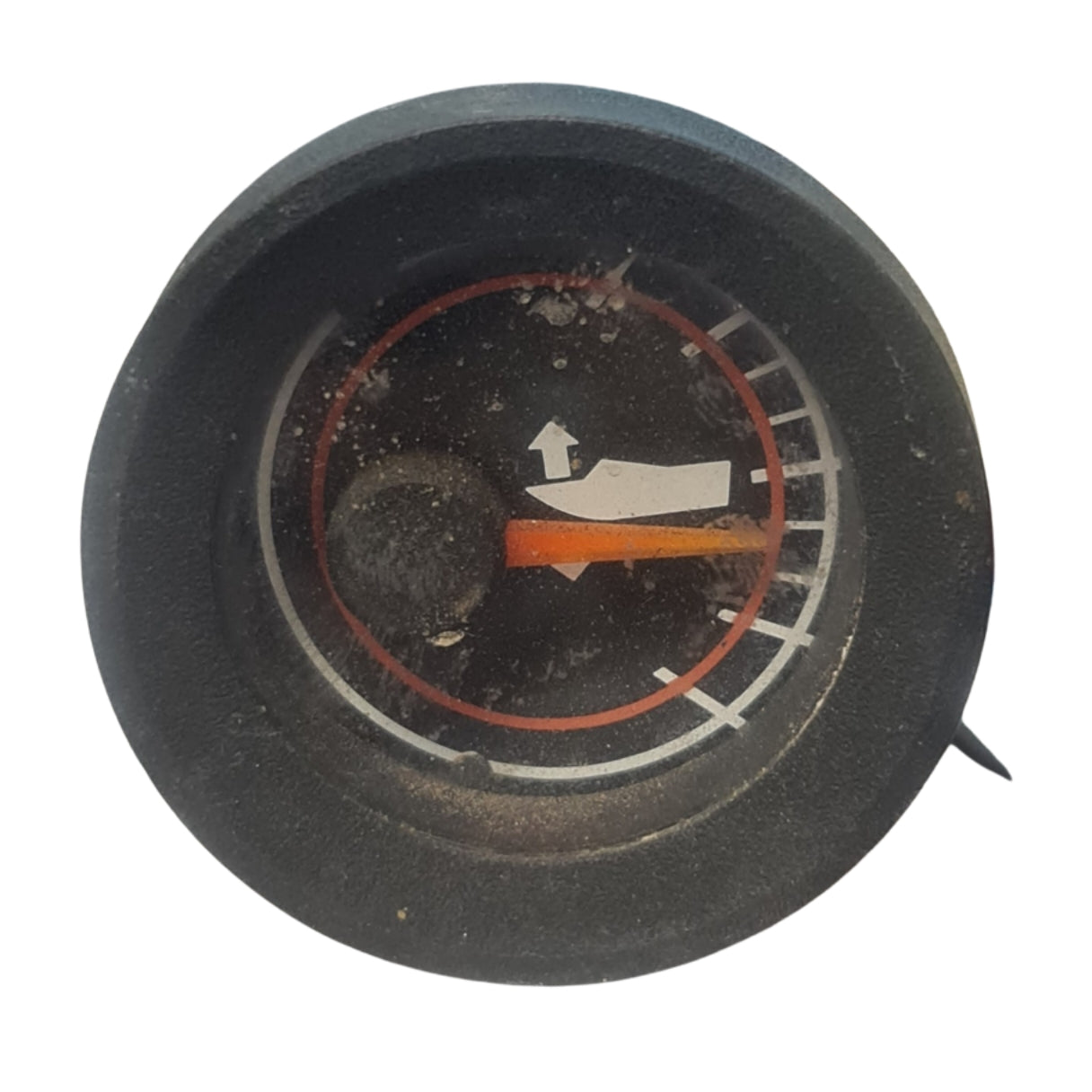

Genuine OMC Johnson / Evinrude Analogue Trim Gauge - Part Number: 0174663

A genuine OMC trim-position gauge for selected Johnson and Evinrude power trim and tilt systems.

The gauge receives a variable-resistance signal from the engine-mounted trim sender and displays the approximate position of the outboard between the fully lowered and raised positions.

⚙️ Key Features

  • Genuine OMC analogue trim gauge
  • Correct part number 0174663
  • Designed for Johnson / Evinrude trim-sender characteristics
  • Flush-mount 12-volt marine instrument
  • Illuminated gauge face

🚤 Compatibility

Commonly used on

  • Johnson and Evinrude outboards with power trim and tilt
  • OMC dashboards wired for the matching trim-sender resistance curve

Typically suits

  • Johnson / Evinrude outboards equipped with the corresponding three-wire trim sender
  • OMC rigging installations whose gauge list specifies 0174663
  • 12-volt analogue instrument panels with matching trim wiring
  • Engine Type: Johnson / Evinrude outboard with power trim and tilt
  • Gauge Type: Analogue trim-position indicator
  • Fitment Control: OMC sender curve and terminal arrangement

🔌 Function

The gauge translates the trim sender's changing resistance into a visual indication of engine angle.

⚠️ Common Signs of Failure

  • Gauge remains at full up or full down
  • Needle moves in the wrong direction
  • Reading jumps when the engine trims
  • Gauge works only through part of the trim range
  • Sender circuit or ground is open
  • Lens fogs or illumination fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0174663 documented OMC trim-gauge reference
  • No confirmed direct superseding service number
  • 0174679 is a related later Tech Series trim gauge, not a confirmed direct replacement for every 0174663 installation

OEM / Related Numbers

  • 0174663
  • 174663
  • 0174679 related Tech Series trim gauge
  • 0767210 later Tech Series trim-gauge kit
  • Related OMC trim sender
  • Related gauge mounting bracket and illumination bulb

Aftermarket / Verified Equivalents

  • Faria Beede Johnson / Evinrude trim gauge - functional replacement
  • Sierra / Teleflex OMC-compatible trim gauge - functional replacement
  • Mercury-curve and Volvo Penta-curve trim gauges are not equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
