0174817 0778773 Evinrude/Johnson 9 1/4 x 11 Aluminium Propeller | Genuine Used Part

🔧 Product Description

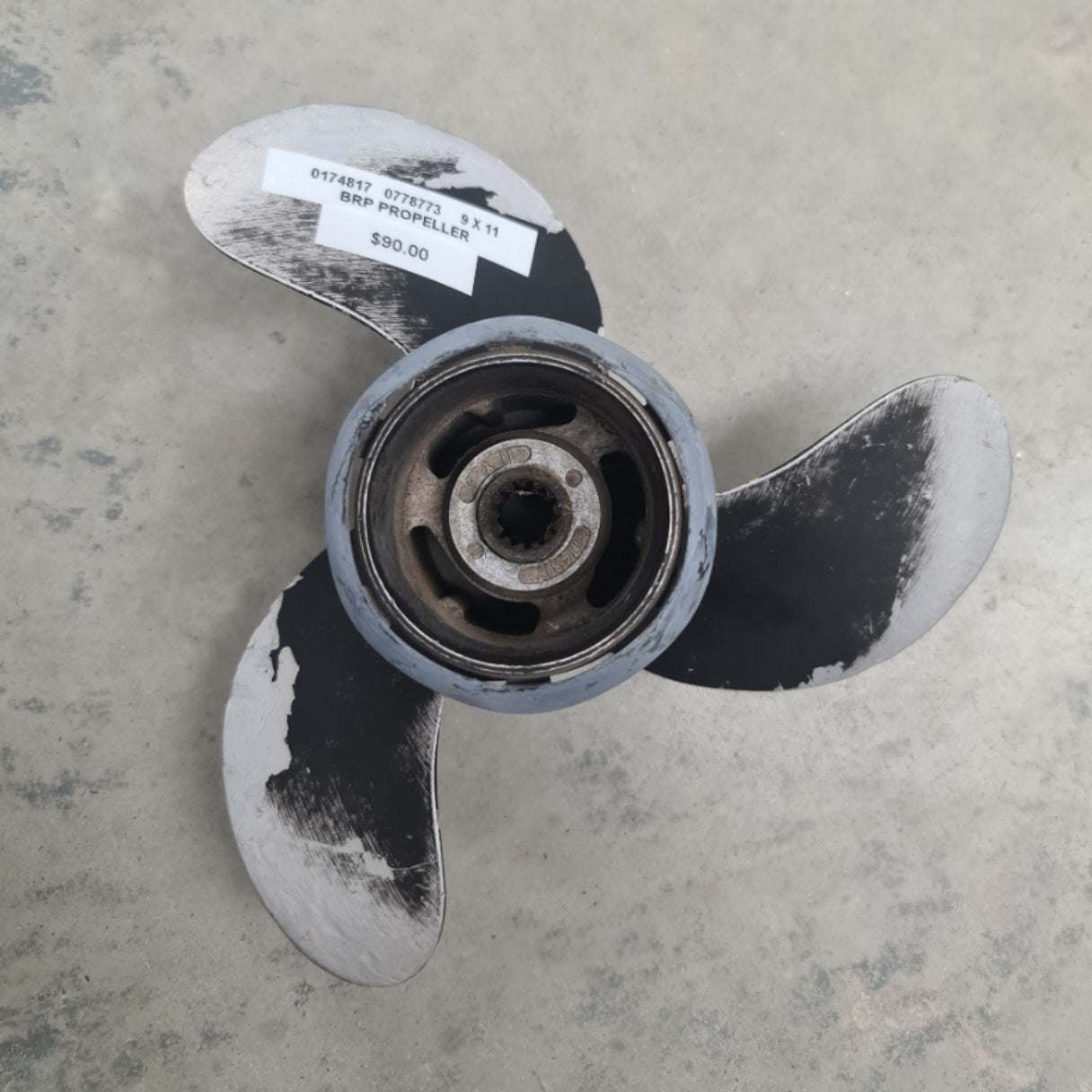

Genuine Evinrude Johnson 9 1/4 x 11 Aluminium Propeller - Part Number: 0174817 / 0778773

A genuine used three-blade right-hand aluminium propeller for selected Evinrude and Johnson 8HP, 9.9HP and 15HP outboards using the 13-spline thru-hub-exhaust gearcase.

Original part 0174817 was catalogued as a 9 x 11 propeller. The current BRP service propeller 0778773 uses the updated nominal size of 9 1/4 x 11 while retaining the same 11-inch pitch application. Correct selection must be confirmed by spline count, model year and the engine's recommended wide-open-throttle RPM.

⚙️ Key Features

• Genuine BRP / Evinrude / Johnson OEM propeller
• Original part 0174817 with current service reference 0778773
• Three-blade aluminium construction with right-hand rotation
• Current nominal size: 9 1/4-inch diameter x 11-inch pitch
• 13-spline hub for the applicable small-outboard thru-hub-exhaust gearcase

🚤 Compatibility

Commonly used on

• Evinrude and Johnson small-outboard propeller systems using a 13-spline thru-hub-exhaust shaft
• The 0174817 / 0177160 / 0778773 11-pitch propeller family

Typically suits

• Engine models:
• Johnson / Evinrude 9.9HP two-stroke - 1974-2005
• Johnson / Evinrude 15HP two-stroke - 1974-2005
• Johnson / Evinrude 8HP four-stroke - 1996-2005
• Johnson / Evinrude 9.9HP four-stroke - 1995-2001
• Johnson / Evinrude 15HP four-stroke - 1995-2001
• Not suitable for 2002-and-newer Suzuki-manufactured 9.9HP / 15HP four-strokes using the 14-spline propeller shaft
• HP Range: 8HP - 15HP
• Engine Type: Evinrude / Johnson two-stroke and early four-stroke outboard with 13-spline thru-hub-exhaust gearcase
• Year Range: Approximately 1974 - 2005, model and spline controlled

🔌 Function

The propeller converts engine torque into forward thrust. Its 11-inch pitch is commonly used where the boat and load require a balance of acceleration, planing performance and engine RPM within the manufacturer's full-throttle operating range.

⚠️ Common Signs of Failure

• Blades are bent, chipped or cracked
• Rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Blade-edge damage causes cavitation or poor acceleration
• Hub splines are worn, corroded or damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0778773 → Supersedes 0177160
• 0177160 → Supersedes 0174817
• 0174817 earlier 9 x 11 three-blade aluminium propeller reference

OEM / Related Numbers

• 0174817
• 174817
• 0177160
• 177160
• 0778773
• 778773
• 0765756
• 765756

Aftermarket / Verified Equivalents

• Solas Amita 3: 2111-093-11 - 9 1/4 x 11 three-blade aluminium
• Solas Amita 4: 2113-093-11 - 9 1/4 x 11 four-blade aluminium alternative
• Solas Saturn: 2121-093-11 - 9 1/4 x 11 three-blade stainless-steel alternative
• Michigan Wheel: 12013 - 9 1/4 x 11 aluminium replacement family

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
