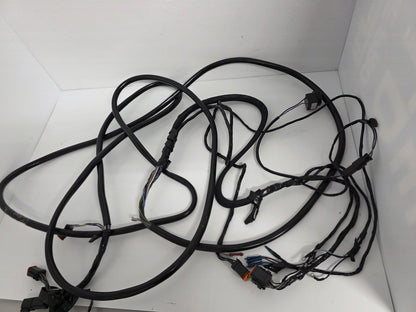

0176341 BRP Cable Loom | Genuine Used Part

🔧 Product Description

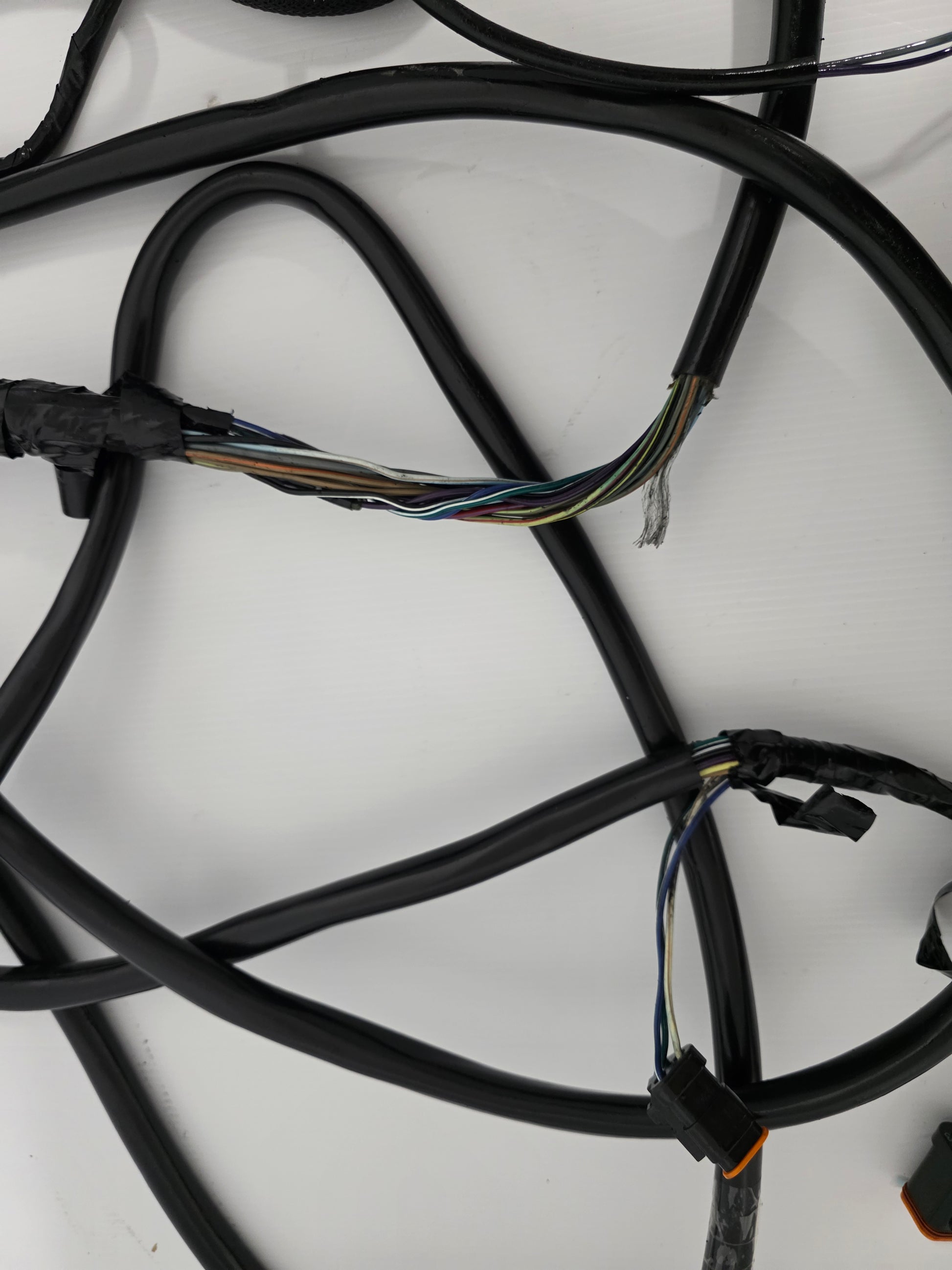

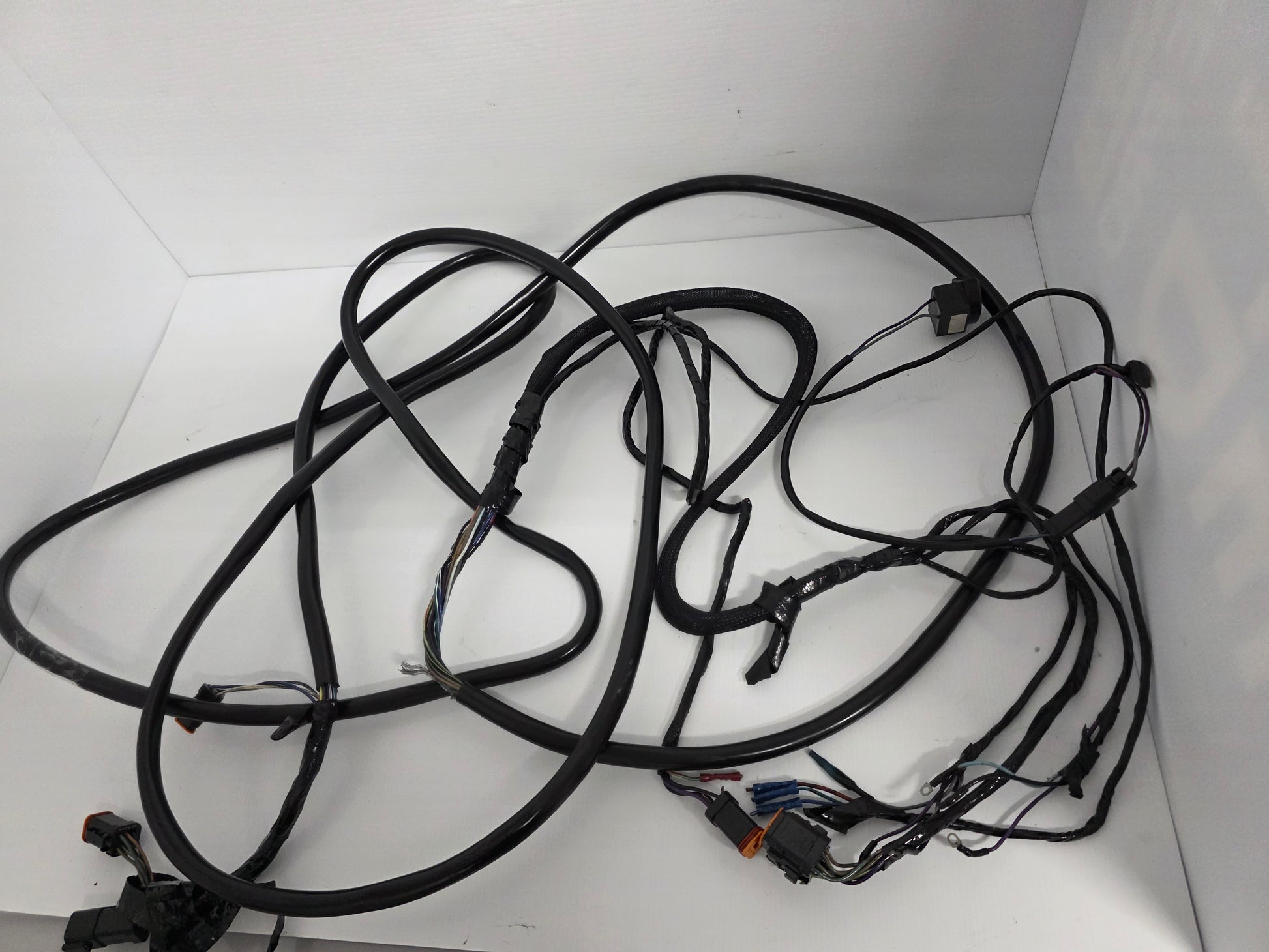

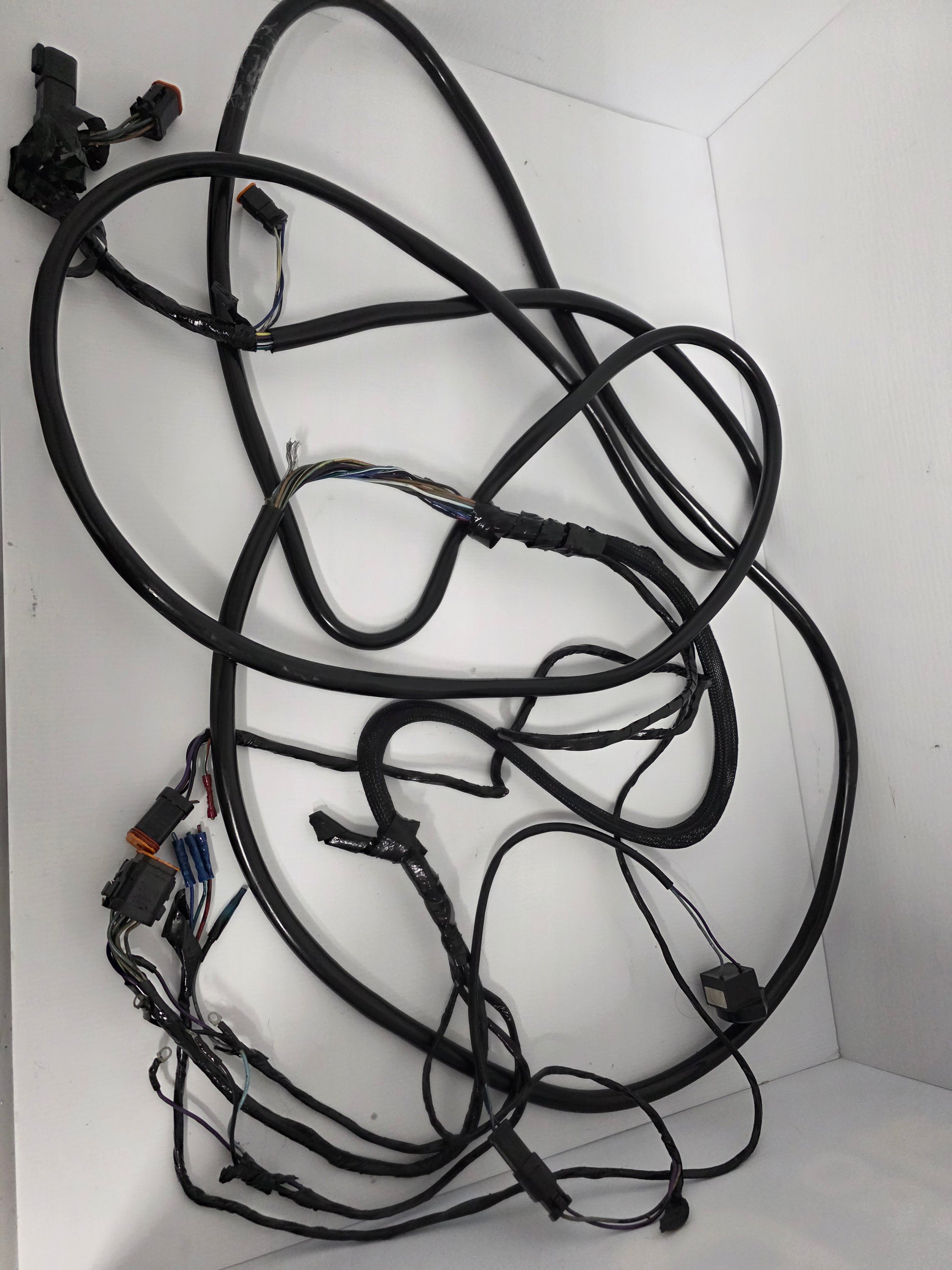

Genuine BRP / OMC 20-Foot SystemCheck Main Wiring Harness - Part Number: 0176341

A genuine Johnson and Evinrude 20-foot boat-side wiring harness used to connect the helm-mounted ignition switch, warning system and instruments to a compatible modular engine harness.

The loom uses the OMC / BRP modular electrical system fitted to SystemCheck-equipped outboards. Its extended length suits installations where the control station is positioned farther from the transom.

⚙️ Key Features

• Genuine BRP / OMC boat-side wiring loom
• Correct part number 0176341
• Approximately 20-foot harness length
• Supports ignition, start, warning and instrument circuits
• Recmar replacement harness available

🚤 Compatibility

Commonly used on

• Johnson and Evinrude modular SystemCheck electrical systems
• Boat-side control and instrument installations requiring a 20-foot harness

Typically suits

• Engine systems:
• Johnson outboards equipped with the 1996-on modular SystemCheck harness
• Evinrude outboards equipped with the 1996-on modular SystemCheck harness
• Johnson / Evinrude carburetted two-stroke installations using the compatible red-plug modular system
• Johnson / Evinrude Ficht installations where boat harness 0176341 is specified
• Repower installations retaining the compatible OMC / BRP helm wiring system
• Application Selection: Determined by the electrical connector system and required harness length rather than engine horsepower
• Engine Type: Johnson / Evinrude outboard with modular SystemCheck wiring
• Year Range: Approximately 1996 onward

🔌 Function

The harness carries ignition-switch, starter-solenoid, engine-stop, charging, warning, tachometer and trim signals between the helm controls and the outboard.

⚠️ Common Signs of Failure

• Engine will not crank from the key switch
• Warning lights or warning horn operate intermittently
• Tachometer or trim gauge loses its signal
• Corroded, bent or heat-damaged connector pins
• Intermittent electrical faults when the loom is moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0176341 current documented 20-foot modular harness reference
• 176341 unprefixed OMC service-number format

OEM / Related Numbers

• 0176341
• 176341
• Related SystemCheck key-switch and warning-light panels
• Related engine-side modular wiring harness
• Related tachometer, trim-gauge and warning-horn connections

Aftermarket / Verified Equivalents

• Recmar: REC176341

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
