0176572 0763930 Evinrude/Johnson Viper 13 7/8 x 17 Stainless Steel Propeller | Genuine Used Part
0176572 0763930 Evinrude/Johnson Viper 13 7/8 x 17 Stainless Steel Propeller | Genuine Used Part
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

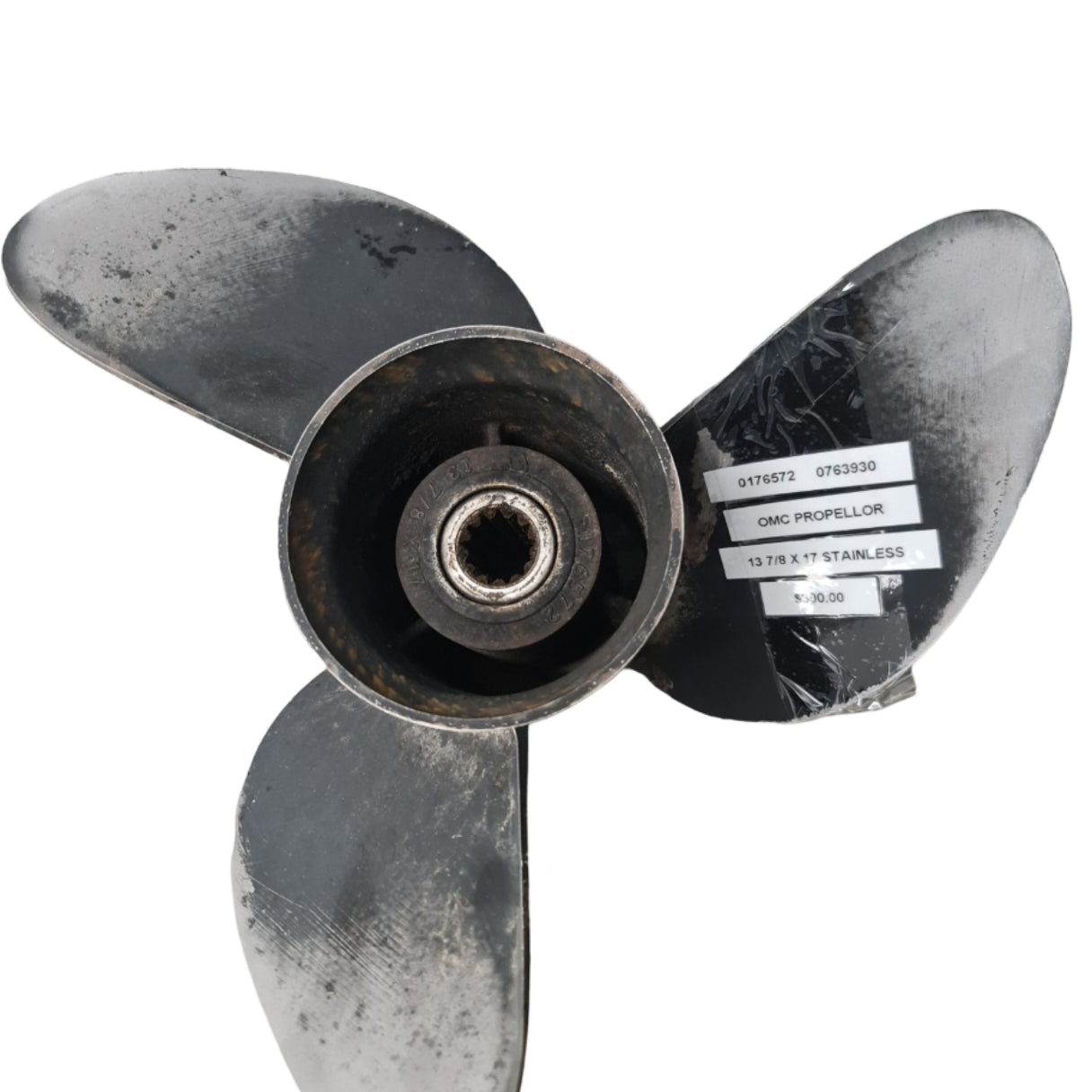

Genuine Evinrude Johnson Viper V4 13 7/8 x 17 Stainless Steel Propeller - Part Number: 0176572 / 0763930
A genuine used BRP Viper V4 three-blade stainless-steel propeller for Evinrude, Johnson and compatible OMC 13-spline large-gearcase applications.
The swept Viper blade design combines 17-inch pitch with increased rake for strong acceleration, efficient cruising and bow lift on suitable hulls. The propeller uses right-hand rotation, a rubber-cushioned hub and the 13-spline 4 1/4-inch gearcase. Propeller choice must still be confirmed against boat load and wide-open-throttle RPM.
⚙️ Key Features
- Genuine BRP / Evinrude / Johnson Viper V4 propeller
- 13 7/8-inch diameter x 17-inch pitch
- Three-blade stainless-steel construction with right-hand rotation
- 13-spline rubber hub for the 4 1/4-inch large gearcase
- Swept-blade design developed for acceleration, general recreation and bow lift
🚤 Compatibility
Commonly used on
- Evinrude and Johnson 4 1/4-inch large-gearcase outboards with 13-spline propeller shafts
- OMC Sea Drive and OMC Model 400 / Cobra sterndrives using the 13-spline 4 1/4-inch gearcase
Typically suits
- Engine models:
- Evinrude E-TEC 40HP, 50HP and 60HP - 2004 onward
- Johnson / Evinrude 45HP Commercial - 1986 onward
- Johnson / Evinrude 50HP pleasure and Commercial - 1971-1974
- Johnson / Evinrude 50HP three-cylinder pleasure - 1994-1998
- Johnson / Evinrude 55HP pleasure - 1968-1969
- Johnson / Evinrude 55HP Commercial - 1980 onward
- Evinrude E-TEC 55HP - 2009 onward
- Johnson / Evinrude 60HP three-cylinder pleasure - 1970-1971 and 1986-2001
- Johnson / Evinrude 60HP four-stroke - 1998 onward where the 13-spline gearcase is fitted
- Evinrude E-TEC 60HP - 2004 onward
- Johnson / Evinrude 65HP pleasure - 1972-1973
- Johnson / Evinrude 65HP Commercial - 1984-2001
- Evinrude 65HP Pontoon Series - 2014 onward
- Johnson / Evinrude 70HP pleasure and Commercial - 1974-2001
- Johnson / Evinrude 70HP four-stroke - 1998 onward where the 13-spline gearcase is fitted
- Johnson / Evinrude 75HP pleasure - 1975-1984
- Evinrude E-TEC 75HP - 2004 onward
- Johnson / Evinrude 85HP V4 - 1969-1980 and 1991-1995
- Johnson / Evinrude 88HP V4 - 1981-1996
- Johnson / Evinrude 90HP V4 - 1981 onward
- Evinrude E-TEC 90HP - 2004 onward with the 13-spline gearcase
- Johnson / Evinrude 100HP V4 - 1979-1980 and 1988-1993
- Johnson / Evinrude 110HP V4 - 1986-1989
- Johnson / Evinrude 112HP V4 - 1994-1996
- Johnson / Evinrude 115HP and 115 H.O. V4 - 1973 onward
- Evinrude E-TEC 115HP and 115 H.O. - 2004 onward with the 13-spline gearcase
- Johnson / Evinrude 120HP V4 - 1986-1994
- Johnson / Evinrude 125HP V4 - 1971-1972
- Evinrude E-TEC 130HP - 2009-2010 with the 20-inch / 13-spline gearcase
- Johnson / Evinrude 135HP V4 - 1973-1976
- Johnson / Evinrude 140HP V4 - 1977-1984 and 1986-1994
- OMC Sea Drive 1.6L V4 - 1982 onward with the 13-spline 4 1/4-inch gearcase
- OMC Sea Drive 1.8L V4 - 1987 onward with the 13-spline 4 1/4-inch gearcase
- OMC Model 400 2.3L - through 1991
- OMC Model 400 2.5L - 1978-1984
- OMC Model 400 3.0L - through 1989
- OMC Cobra 2.3L - 1988-1991
- OMC Cobra 2.5L - 1985-1987
- OMC Cobra 3.0L - 1985-1987
- Fitment excludes 25-inch E-TEC 90HP, 115HP and 130HP models equipped with the larger 15-spline gearcase
- HP Range: 40HP - 140HP outboards, plus compatible OMC Sea Drive and 2.3L-3.0L sterndrive applications
- Engine Type: Evinrude / Johnson two-stroke and E-TEC outboard; compatible OMC Sea Drive / 400 / Cobra sterndrive
- Year Range: Approximately 1968 onward for matching 13-spline outboards; OMC sterndrive applications approximately 1978-1991
🔌 Function
The propeller converts engine torque into thrust. Its stainless-steel swept blades resist flex under load, while the 17-inch pitch and Viper rake profile are intended to provide efficient acceleration, cruising speed and bow lift on correctly matched boats.
⚠️ Common Signs of Failure
- Blade tips or leading edges are bent, chipped or cracked
- Rubber hub slips under heavy acceleration
- Propeller causes vibration because a blade is out of track
- Pitting, crevice corrosion or weld repairs weaken a blade
- Engine RPM or boat handling changes after impact damage
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 0765796 → Supersedes 0763930
- 0763930 → Supersedes 0176572
- 0176572 earlier Viper V4 13 7/8 x 17 OEM reference
OEM / Related Numbers
- 0176572
- 176572
- 0763930
- 763930
- 0765796
- 765796
- 0176623
- 176623
- 0177259
- 0384139
- 0389948
- 389948
- 0390114
- 390114
Aftermarket / Verified Equivalents
- Solas Rubex HR3: 9451-139-17 with RBX-106 hub - 13 7/8 x 17 stainless steel
- Solas Rubex 3 Plus: 9411-139-17 with RBX-106 hub - 13 7/8 x 17 aluminium alternative
- Michigan Wheel Apollo: 335031 - 13 1/2 x 17 stainless-steel performance alternative
- Michigan Wheel: 013030 / 13030 - 13 3/8 x 17 stainless-steel alternative
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
