0176641 0177107 BRP Tachometer & System Check | Genuine Used Part

🔧 Product Description

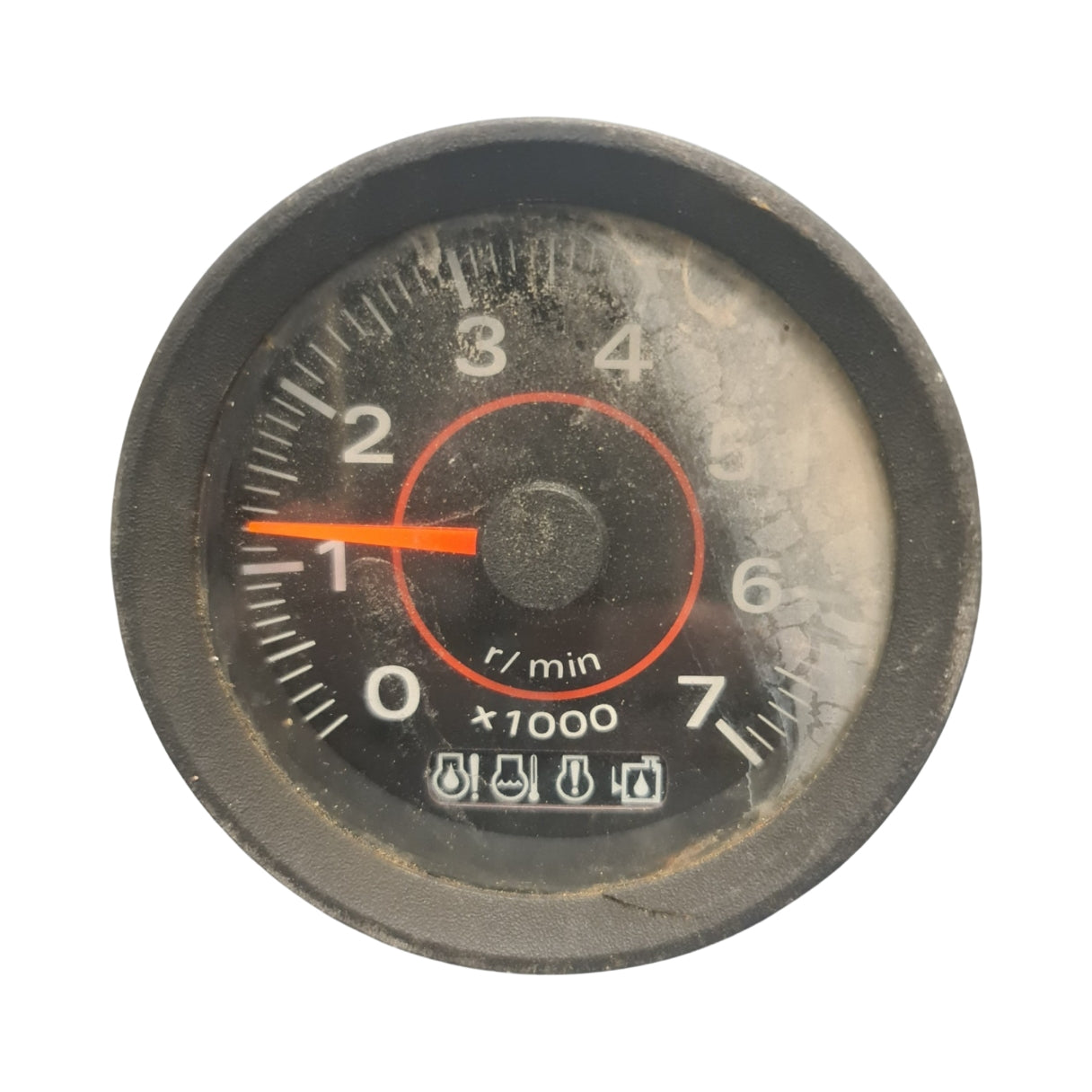

Genuine BRP Tech Series 7000 RPM Tachometer with SystemCheck - Part Number: 0177107

A genuine Johnson and Evinrude combination tachometer and four-light SystemCheck warning gauge.

The instrument displays engine speed up to 7000 RPM while also providing dedicated warning lamps for:

• No Oil
• Low Oil
• Hot
• Check Engine

Current part number 0177107 replaces 0176641 and several related earlier SystemCheck tachometers.

⚙️ Key Features

• Genuine BRP / OMC combination instrument
• Correct current part number 0177107
• Supersedes 0176641
• 0-7000 RPM tachometer
• Integrated four-light SystemCheck display

🚤 Compatibility

Commonly used on

• Johnson and Evinrude outboards with the 1996-on SystemCheck system
• Modular Wiring System instrument panels
• Installations combining the tachometer and warning display in one gauge

Typically suits

• Johnson / Evinrude 50HP and larger SystemCheck-equipped outboards
• Johnson 105HP model families
• Johnson / Evinrude 150HP model families
• Johnson / Evinrude 200HP model families
• 1996 Evinrude 200HP SE200WTPXA
• 1997 Johnson 200HP SJ200WTPLS
• 2000 Johnson 105HP J105WPLSSC
• Other carburetted, Ficht and selected E-TEC engines wired for the same SystemCheck gauge
• Gauge Range: 0-7000 RPM
• Electrical System: OMC Modular Wiring System / SystemCheck
• Year Range: Approximately 1996 onward

🔌 Function

The instrument displays engine speed and identifies the category of an active engine-protection warning.

⚠️ Common Signs of Failure

• Tachometer works but warning lamps do not
• Warning lamps work but RPM remains at zero
• Incorrect pulse setting causes inaccurate RPM
• Lamps fail during the key-on self-test
• Modular connector develops corrosion
• Gauge fogs or internal lighting fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0177107 → Supersedes 0177109
• 0177107 → Supersedes 0176641
• 0177107 → Also replaces related 0176300 and 0176301 SystemCheck tachometers
• 0176641 earlier Tech Series SystemCheck tachometer

OEM / Related Numbers

• 0177107
• 177107
• 0176641
• 176641
• 0177109
• 177109
• 0176300
• 176300
• 0176301
• 176301
• Related SystemCheck modular wiring harness
• Related tachometer signal, trim and warning connectors

Aftermarket / Verified Equivalents

• Faria Beede / International: 58935P Amega SystemCheck tachometer - functional replacement for compatible systems
• No aftermarket unit is guaranteed to duplicate the original Tech Series face exactly
• Replacement must support the OMC four-light SystemCheck connector and correct tachometer pulse setting

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
