03 Bayliner Faria Oil Gauge | Genuine Used Part

🔧 Product Description

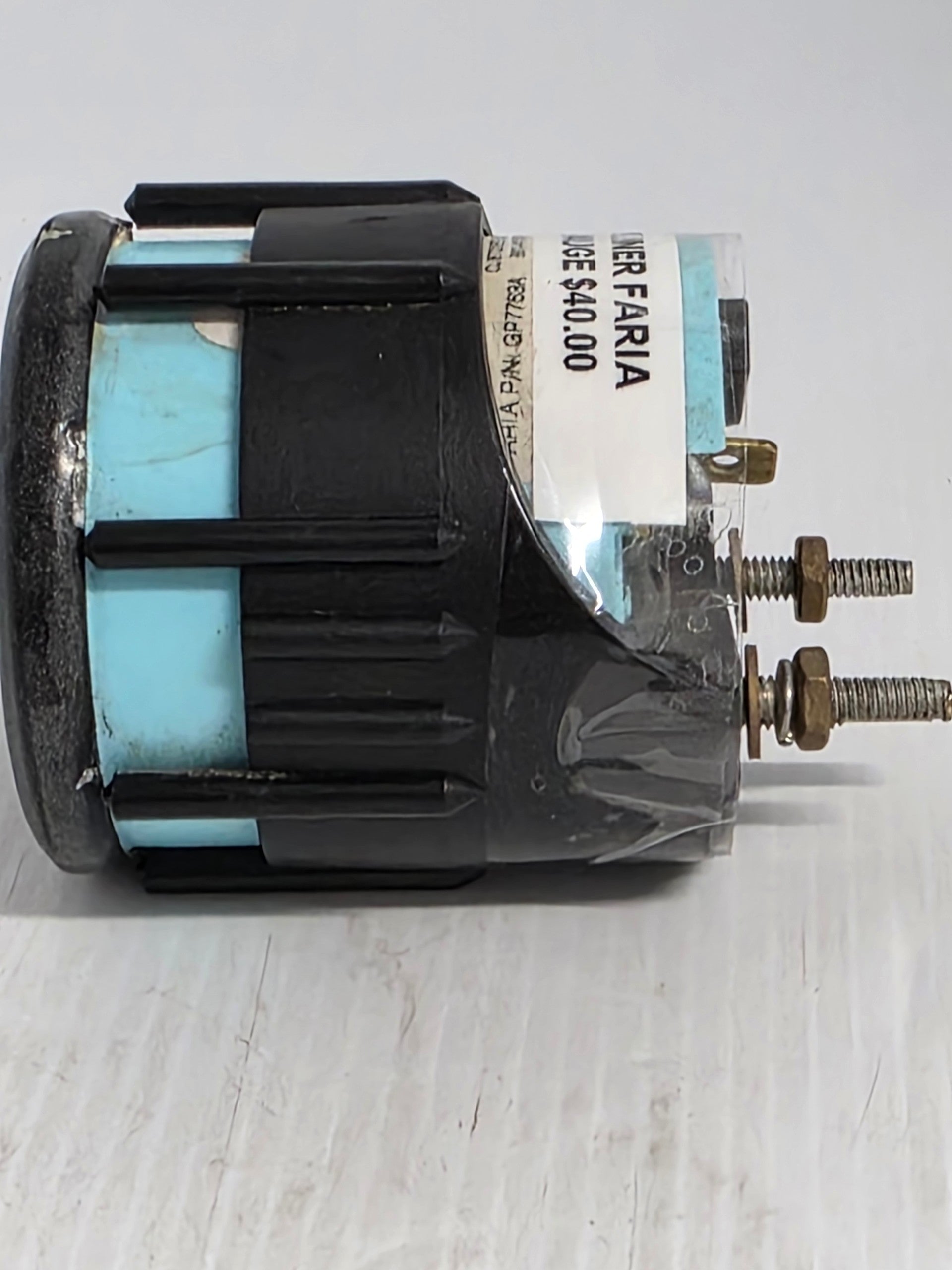

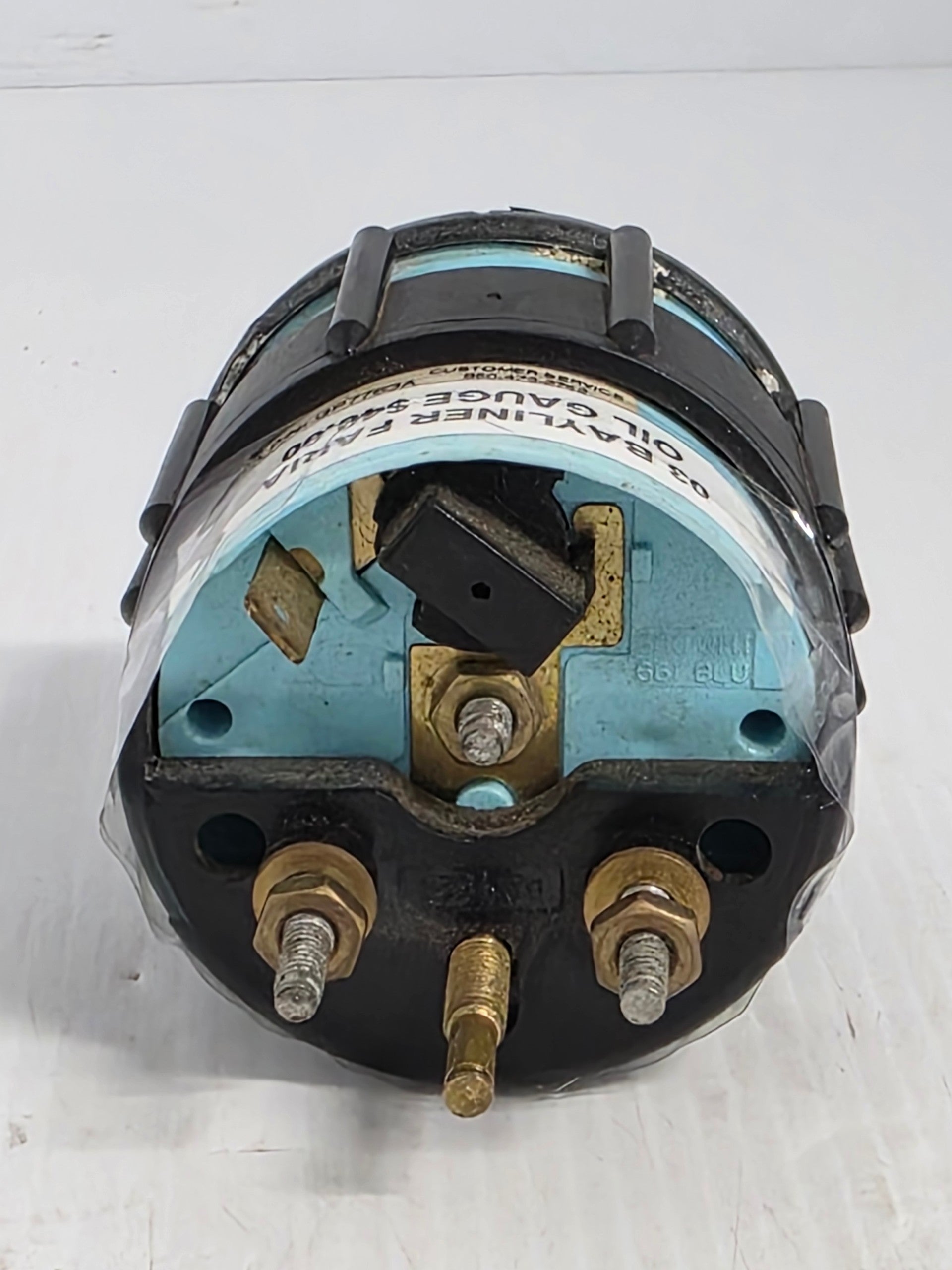

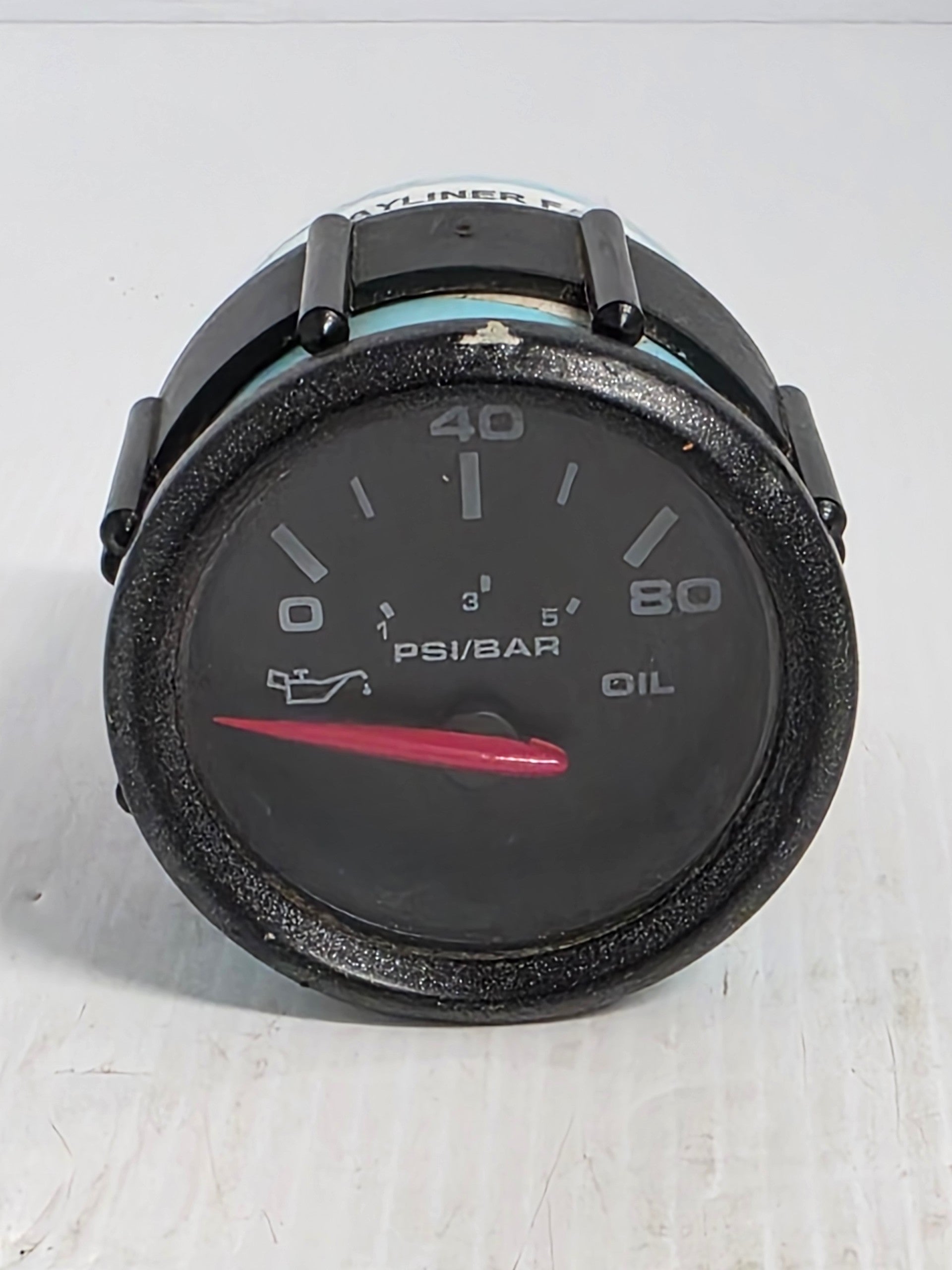

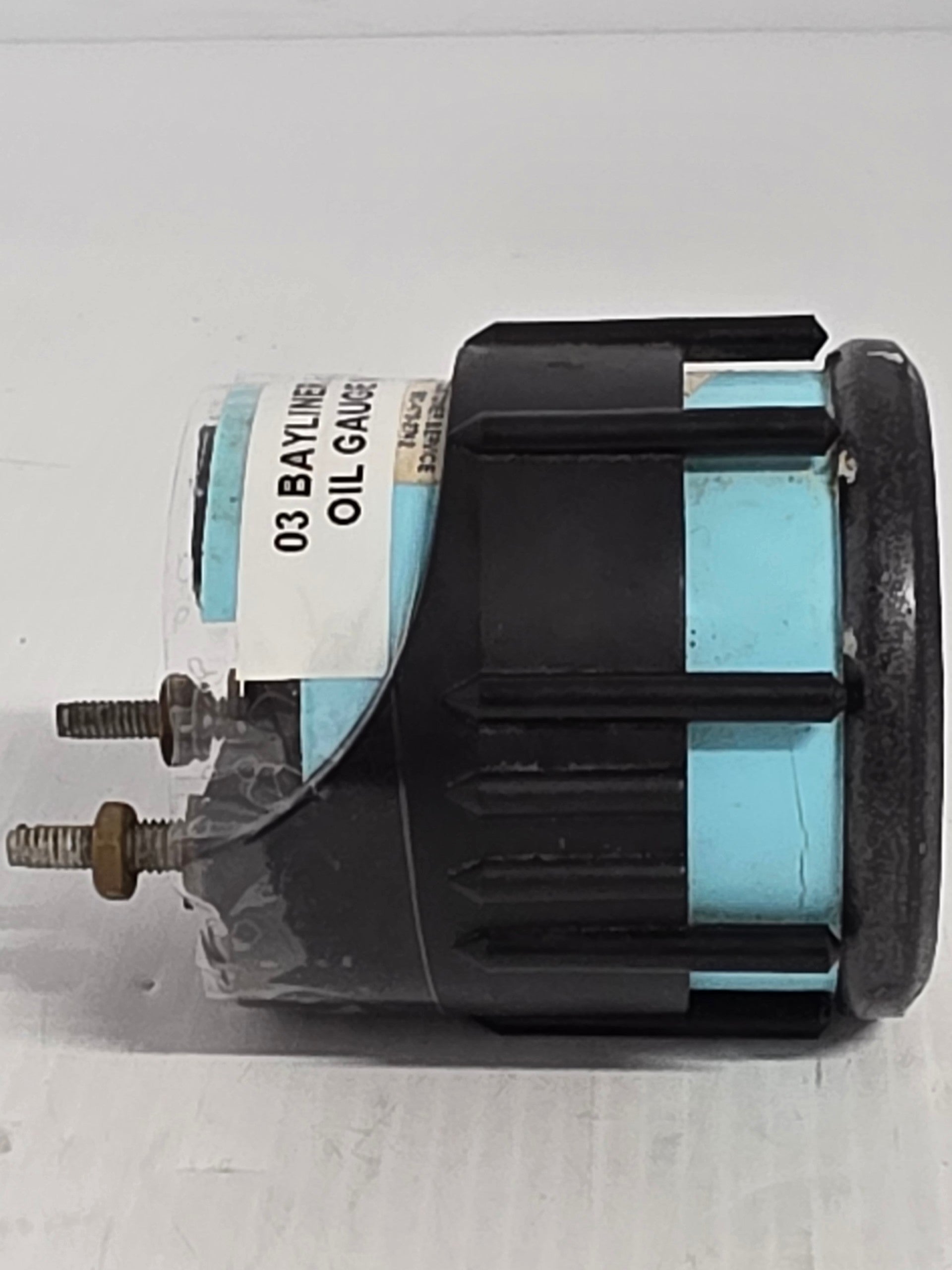

Genuine 2003 Bayliner Faria Oil Pressure Gauge

An original Faria analogue oil-pressure gauge removed from a 2003 Bayliner instrument panel.

The gauge displays engine lubrication pressure from an electrical oil-pressure sender. Bayliner used custom Faria gauge faces and bezels, so this instrument is particularly suitable for restoring a dashboard where matching the original style is important.

The title does not provide the Faria factory number printed on the rear label. A separate retail part number should therefore not be invented.

⚙️ Key Features

• Genuine used Bayliner-specified Faria instrument
• Original 2003 Bayliner dashboard styling
• Electrical oil-pressure gauge
• Typically uses a marine 0-80 PSI scale
• Modern Faria and Sierra functional replacements available

🚤 Compatibility

Commonly used on

• 2003 Bayliner instrument panels using the same custom Faria face and bezel
• MerCruiser-powered Bayliner runabouts and cuddy cabins
• Electrical oil-pressure systems using the sender matched to the gauge

Typically suits

• 2003 Bayliner dashboard clusters with the identical mounting diameter
• Bayliner petrol sterndrive packages using a compatible 0-80 PSI sender
• MerCruiser 3.0L, 4.3L, 5.0L and 5.7L installations only where the sender resistance matches the gauge
• Gauge Type: Electrical oil-pressure indicator
• Typical Range: 0-80 PSI
• Vessel Year: 2003

🔌 Function

The gauge displays engine oil pressure so the operator can detect lubrication loss before serious engine damage occurs.

⚠️ Common Signs of Failure

• Gauge remains at zero with normal engine pressure
• Reading is permanently high
• Needle fluctuates because of a poor sender connection
• Sender and gauge resistance ranges do not match
• Gauge ground or ignition feed is lost
• Lens fogs or backlighting fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

• Original Bayliner / Faria custom-production gauge
• No confirmed superseding Bayliner or Faria number without the rear identification label

OEM / Related Numbers

• Faria production number located on the rear gauge label
• Related matching Bayliner Faria tachometer
• Related Bayliner Faria voltmeter, fuel and temperature gauges
• Related oil-pressure sender
• Related dash-light socket and mounting bracket

Aftermarket / Verified Equivalents

• Faria Beede two-inch 0-80 PSI oil-pressure gauge
• Faria Kronos: 19002, 0-80 PSI - functional alternative
• Faria GP9640, GP9647, GP9527, GP9573 and other 80 PSI series variants
• Sierra / Teleflex 0-80 PSI marine oil-pressure gauge

📦 Condition

• Genuine used part
• Removed from running boat where applicable
• In good working condition unless otherwise stated
