03 Bayliner Faria Temp Gauge | Genuine Used Part

🔧 Product Description

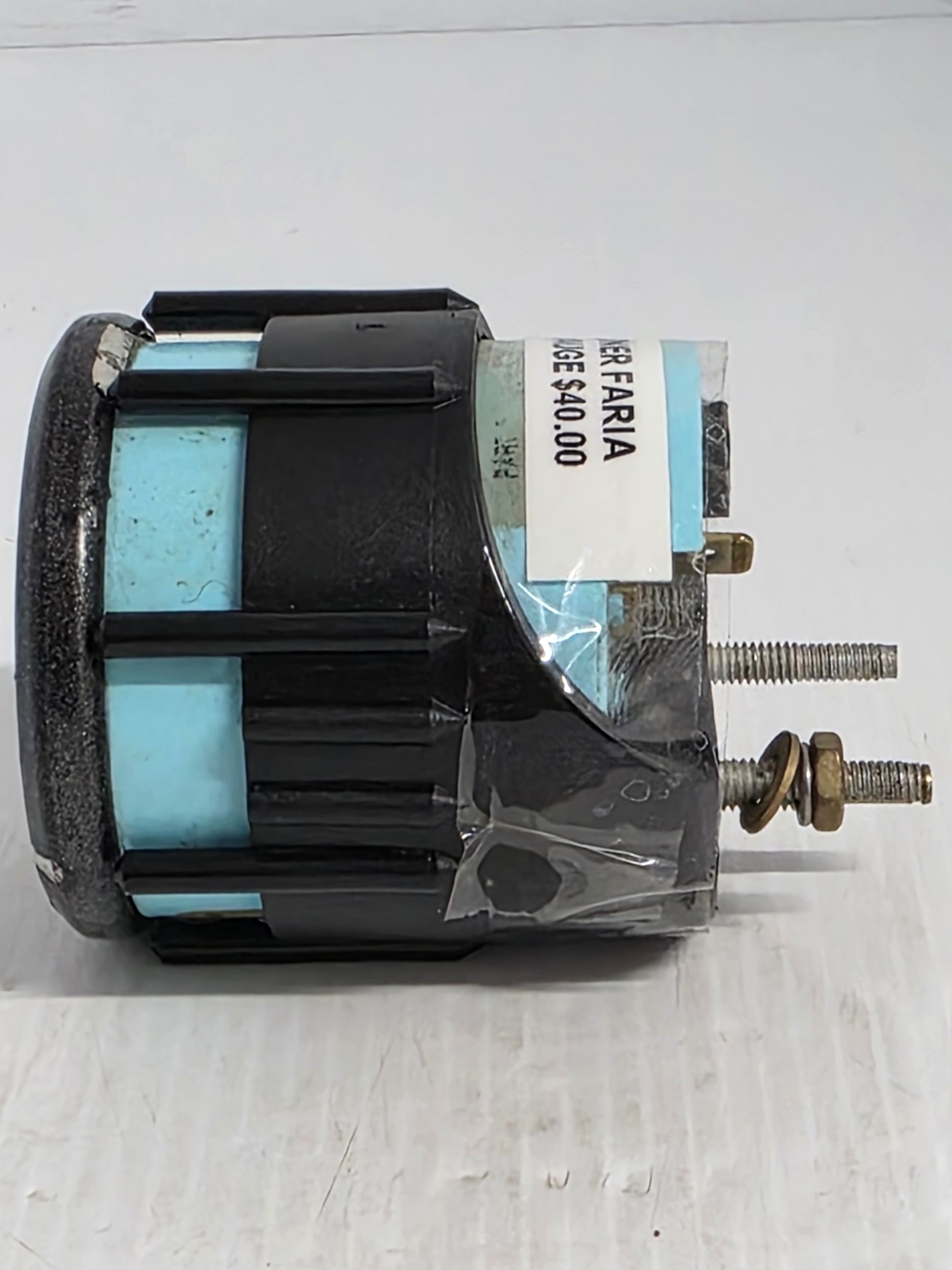

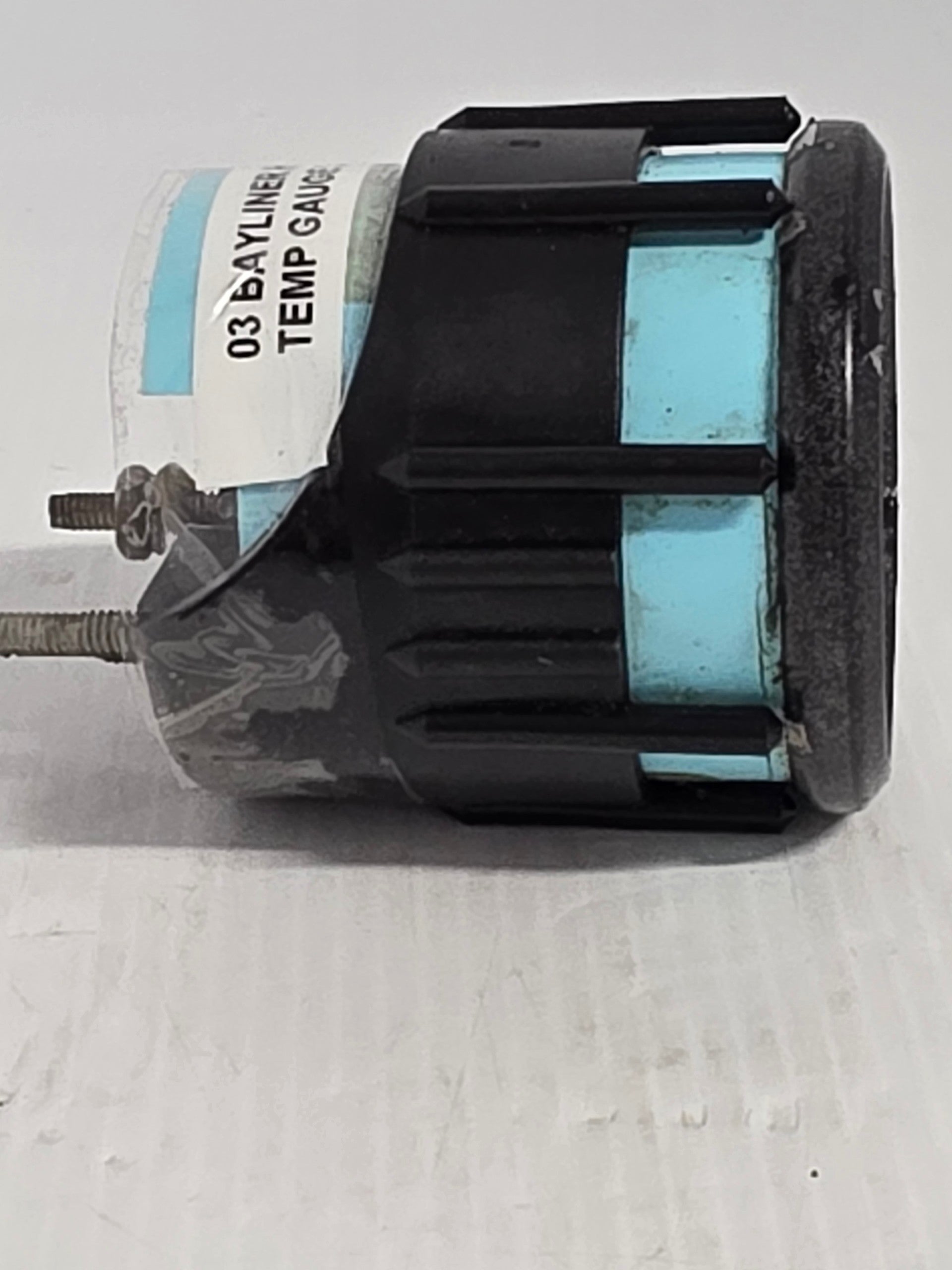

Genuine Bayliner Faria Water Temperature Gauge - 2003-Style Instrument

A genuine used Faria marine water-temperature gauge removed from a Bayliner instrument panel.

The "03" identifier appears to refer to the donor boat or model year rather than a unique Faria factory part number. The gauge should therefore be matched by its dial design, cut-out diameter, electrical terminals and sender calibration before installation.

⚙️ Key Features

• Genuine used Bayliner-specified Faria gauge
• Approximately two-inch dash cut-out

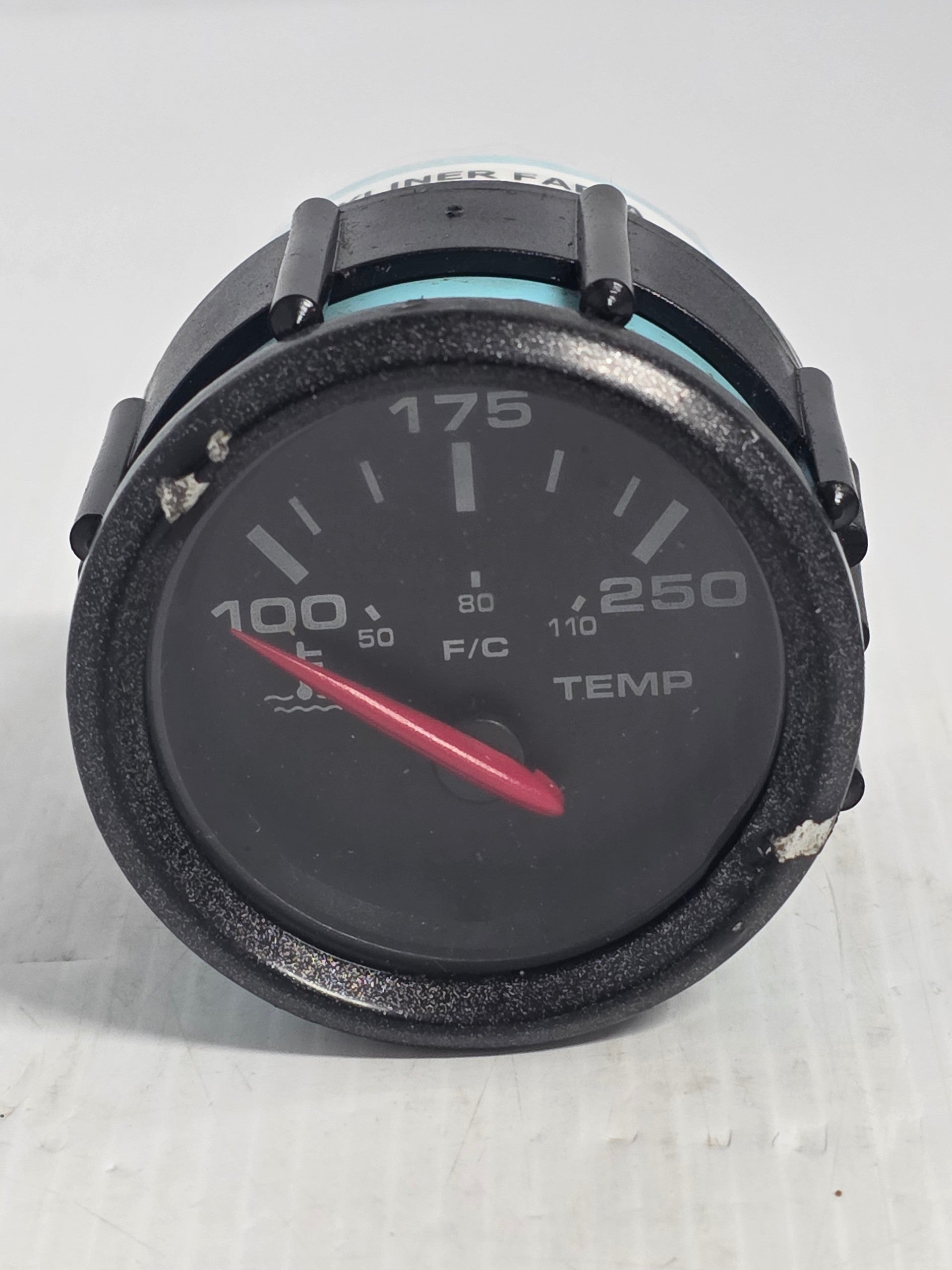

• Analogue water-temperature display
• Common 100-250°F marine temperature range
• Illuminated marine instrument construction

🚤 Compatibility

Commonly used on

• Bayliner petrol sterndrive instrument panels
• MerCruiser-powered Bayliner boats
• Marine engines using a conventional resistance-type temperature sender

Typically suits

• 12-volt marine electrical systems
• Approximately two-inch instrument-panel cut-outs

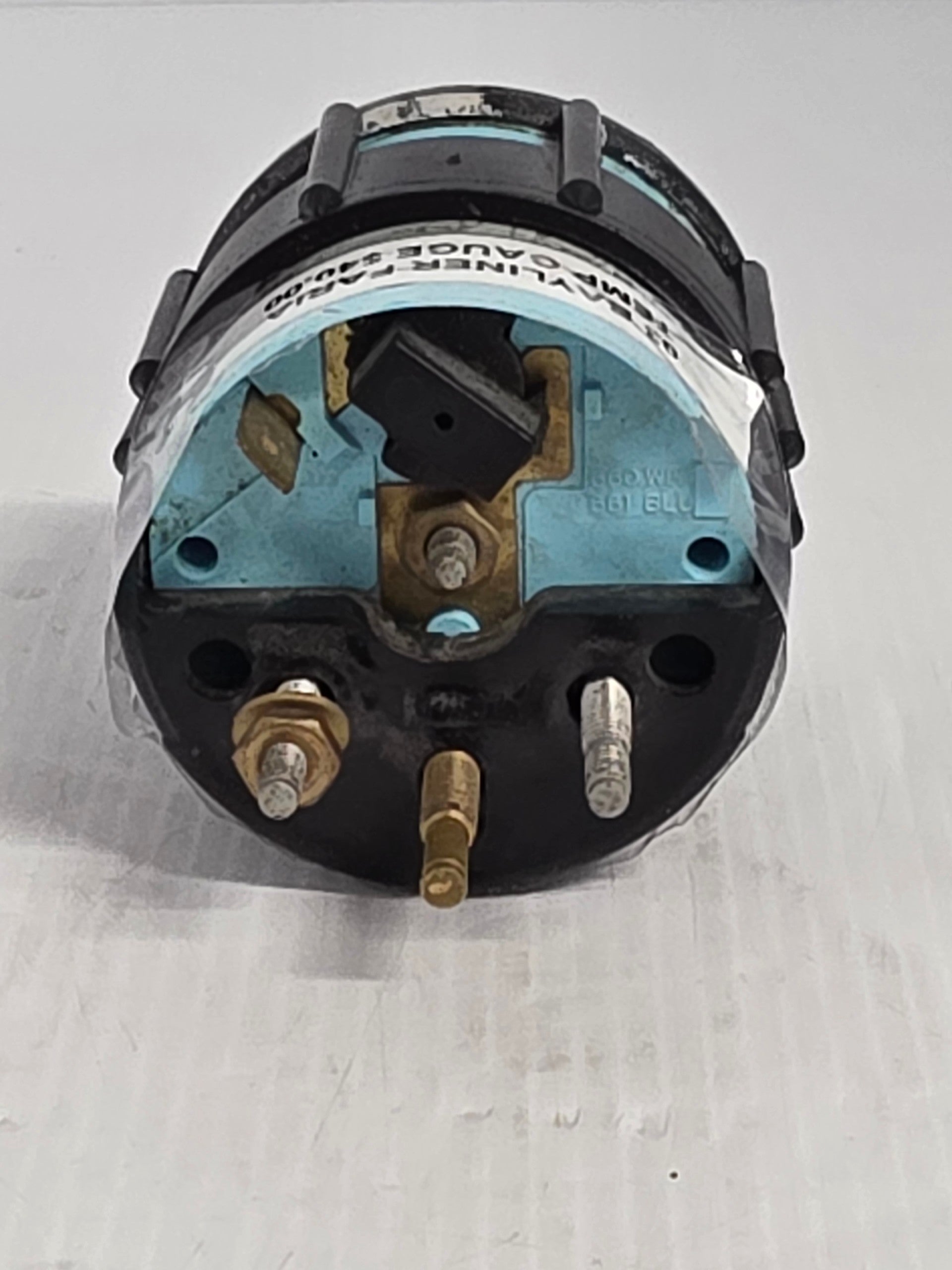

• Three-terminal analogue temperature-gauge wiring
• Engine senders calibrated for the replacement gauge range

🔌 Function

The gauge receives a variable-resistance signal from the engine-temperature sender and displays the approximate coolant or cylinder-head temperature.

⚠️ Common Signs of Failure

• Gauge remains at the cold end of the scale
• Needle immediately moves to maximum temperature
• Reading is inaccurate or intermittent
• Gauge illumination does not operate
• Terminals are corroded
• Needle sticks as the engine warms
• Gauge reacts when the wiring harness is moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

• No confirmed supersession chain for the "03" inventory identifier
• Bayliner and Faria supplied several visually different gauges with the same electrical function

OEM / Related Numbers

• Bayliner: 1717992 - related two-inch water-temperature gauge
• Faria: GP7682A - Bayliner water-temperature gauge
• Faria: GP9157A - Bayliner Old Style temperature gauge
• Faria: GP9163A - Bayliner Old Style black temperature gauge
• Faria: GP9142 - two-inch 100-250°F temperature gauge
• Faria: GP9146 - two-inch 100-250°F temperature gauge
• Faria: GP9461 - two-inch 100-250°F temperature gauge

Aftermarket / Verified Equivalents

• Faria: F12812 - Euro Black two-inch 100-250°F temperature gauge
• Faria: GP7682 - two-inch 100-250°F temperature gauge
• Current Faria two-inch marine temperature gauges with matching sender calibration
• Sierra / Teleflex two-inch 100-250°F marine temperature gauge with compatible sender

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
