0328522 Evinrude Johnson Split Pin | Genuine OEM BRP Outboard Part

🔧 Product Description

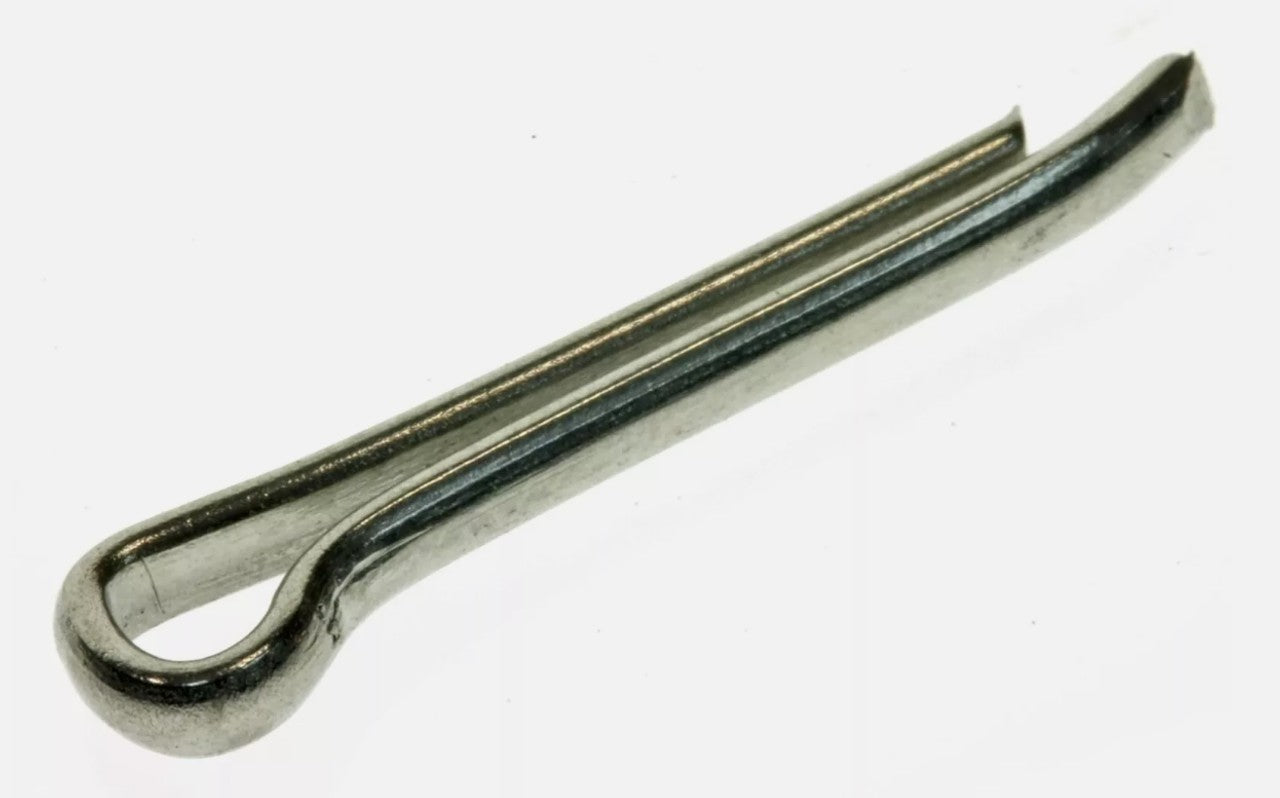

Genuine BRP Propeller-Nut Cotter Pin - Part Number: 0328522

A genuine BRP split pin used to lock the propeller nut to the propeller shaft on selected Evinrude and Johnson outboards.

The pin passes through the castellated propeller nut and drilled propeller shaft, preventing the nut from rotating loose during operation.

⚙️ Key Features

• Genuine BRP OEM propeller-nut cotter pin
• Correct OMC part number 0328522
• Locks the propeller nut to the shaft
• Single-use retaining hardware
• Later BRP and SEI cross-reference numbers available

🚤 Compatibility

Commonly used on

• Evinrude and Johnson propeller-shaft assemblies
• Castellated propeller nuts
• Outboards whose propeller shaft specifies cotter pin 0328522

Typically suits

• Engine models:
• Evinrude / Johnson small-horsepower outboards using a castellated propeller nut
• Evinrude / Johnson midrange outboards using cotter pin 0328522
• Evinrude / Johnson V4 propeller-shaft assemblies
• Evinrude / Johnson V6 propeller-shaft assemblies
• Selected Evinrude E-TEC propeller-nut installations
• HP Range: Propeller-shaft controlled
• Engine Type: Evinrude / Johnson outboard
• Year Range: Model and propeller-shaft design controlled

🔌 Function

The cotter pin provides a positive mechanical lock between the propeller nut and shaft so the nut cannot loosen or detach while the propeller is rotating.

⚠️ Common Signs of Failure

• Pin bent, corroded or fractured
• Pin missing after propeller service
• Propeller nut begins to loosen
• Pin cannot pass through the shaft hole
• Previously used pin has weakened legs

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0765612 → Supersedes 0328522
• 0328522 original OMC cotter-pin reference

OEM / Related Numbers

• 0328522
• 328522
• 0765612
• 765612

Aftermarket / Verified Equivalents

• SEI Marine: 98-361-46A

📦 Condition

• Genuine BRP part
• Brand new
• Supplied in original or equivalent packaging
