0328821 0127466 OMC Trim Tab | Genuine Used Part

🔧 Product Description

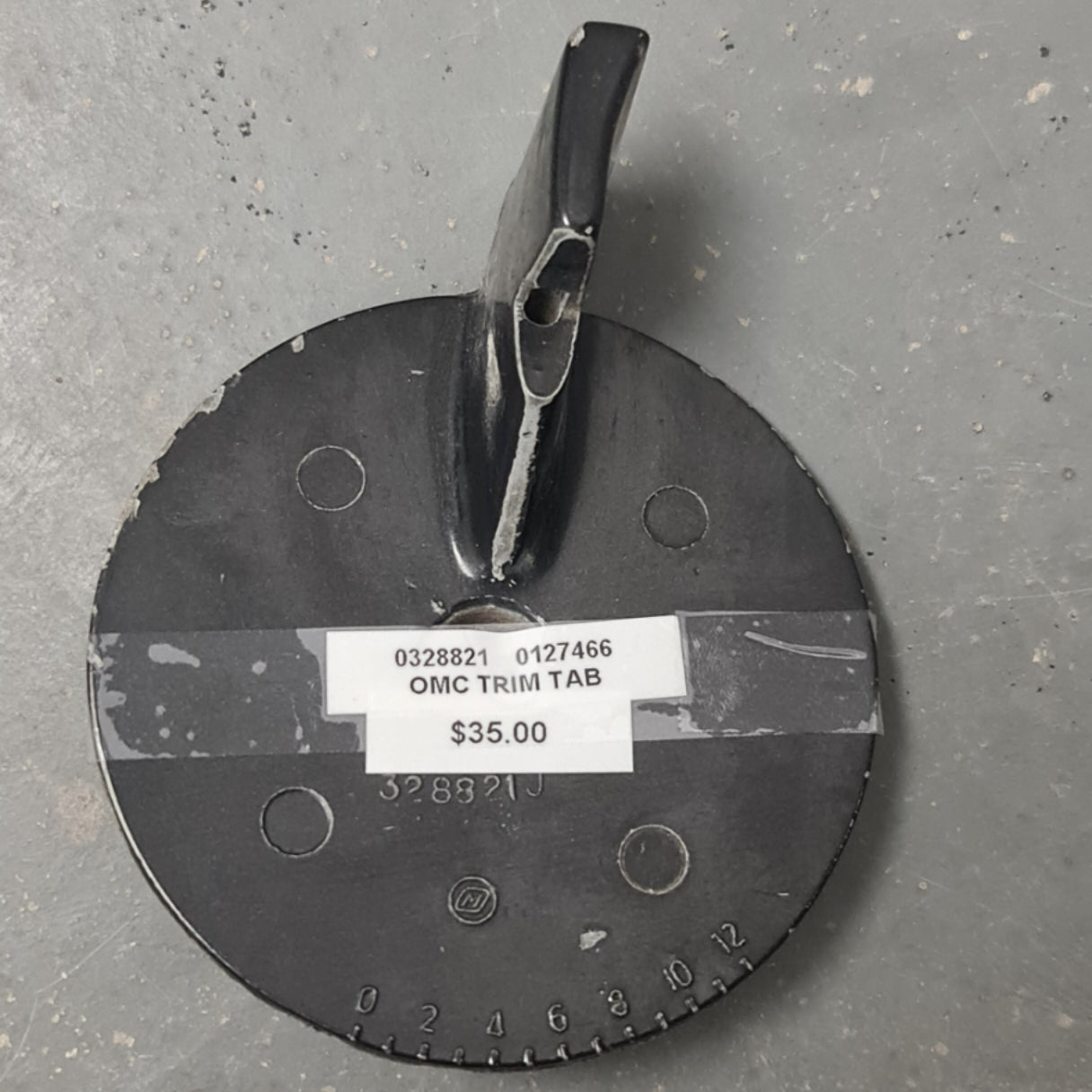

Genuine OMC Johnson / Evinrude Torque-Compensating Trim Tab - Current Part Number: 0127466

A genuine OMC adjustable trim tab fitted behind the propeller on selected Johnson and Evinrude gearcases. The tab offsets propeller steering torque and also protects the gearcase as a sacrificial corrosion component on applicable installations. Current service number 0127466 replaces earlier 0328821.

⚙️ Key Features

• Genuine OMC adjustable trim tab
• Current service number 0127466
• Supersedes 0328821
• Corrects steering torque on standard-rotation gearcases
• Gearcase-mounted marine aluminium component

🚤 Compatibility

• Johnson / Evinrude 35HP-55HP gearcases where the 127466 tab is specified
• Johnson / Evinrude 60HP, 70HP, 75HP, 85HP, 90HP and 100HP applications
• Selected larger OMC gearcases using the same tab profile
• Approximate service-family era: late 1970s through 1990s
• Standard-rotation installations; counter-rotation torque correction differs
• Exact fitment depends on gearcase casting and trim-tab bolt location

🔌 Function

The adjustable tab produces a small hydrodynamic force that counteracts propeller steering torque and helps the boat track with reduced helm effort.

⚠️ Common Signs of Failure

• Tab is missing or broken
• Steering pulls strongly to one side
• Adjustment marks are lost
• Mounting bolt is seized
• Tab is heavily corroded
• Propeller contacts an incorrectly positioned tab

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0127466 → Supersedes 0328821
• 0127466 also replaces earlier related 0324077 and 0337348 in applicable catalogues
• 0769435 is a later service reference for the same torque-tab family on selected applications
• Paint, profile and bolt size must match the gearcase

OEM / Related Numbers

• 0127466 / 127466
• 0328821 / 328821
• 0324077 / 324077
• 0337348 / 337348
• 0769435 / 769435 later service reference
• Related trim-tab bolt and gearcase anodes

Aftermarket / Verified Equivalents

• Aftermarket OMC torque-compensating trim tabs sold under 0127466 / 0769435 cross-references
• Sierra and other marine replacement trim tabs are available for matching OMC gearcases
• A flat sacrificial anode is not equivalent where steering-torque adjustment is required

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
