0332435 Evinrude E30 Tilt Cylinder Pin | Genuine Used Part

🔧 Product Description

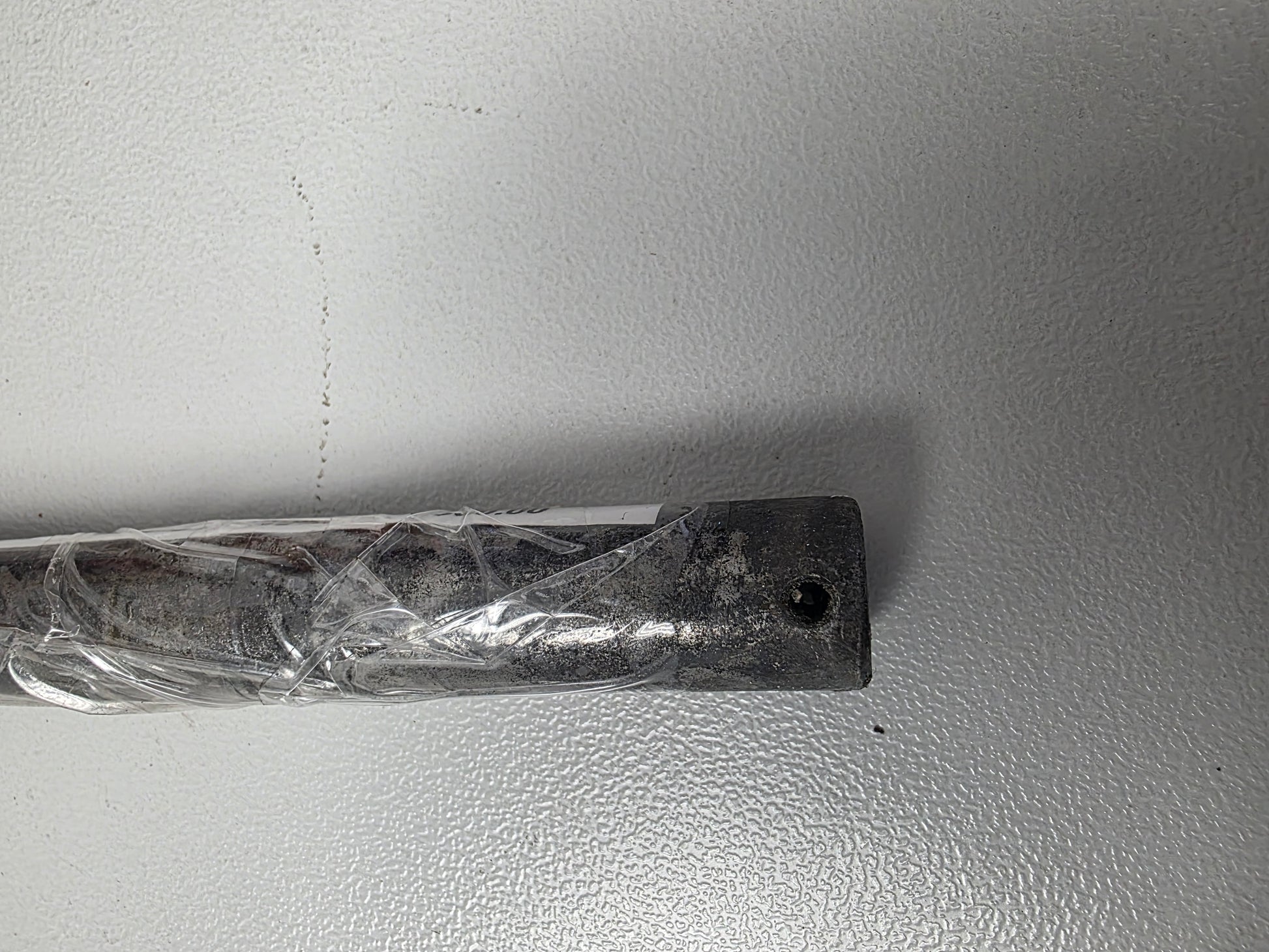

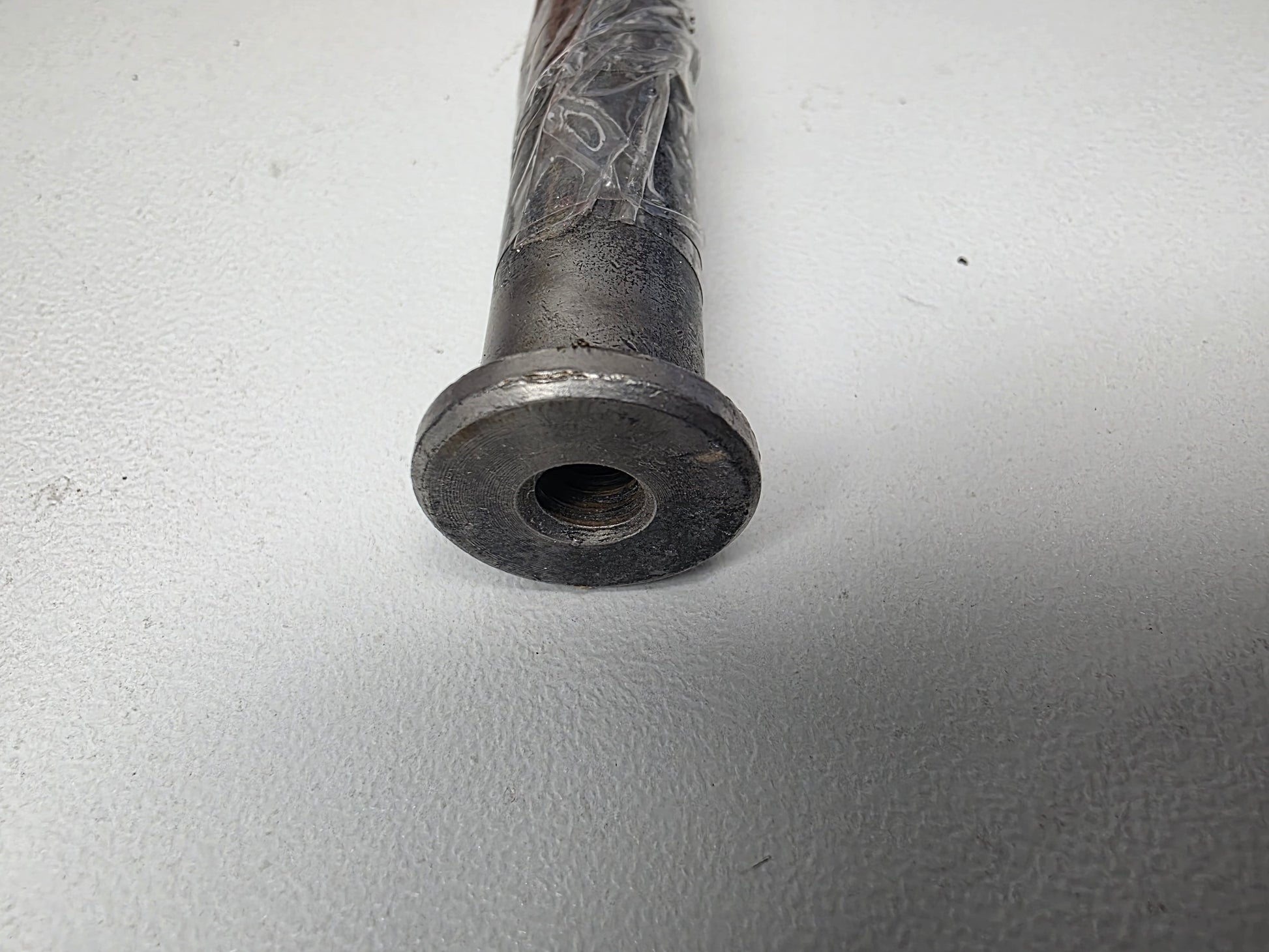

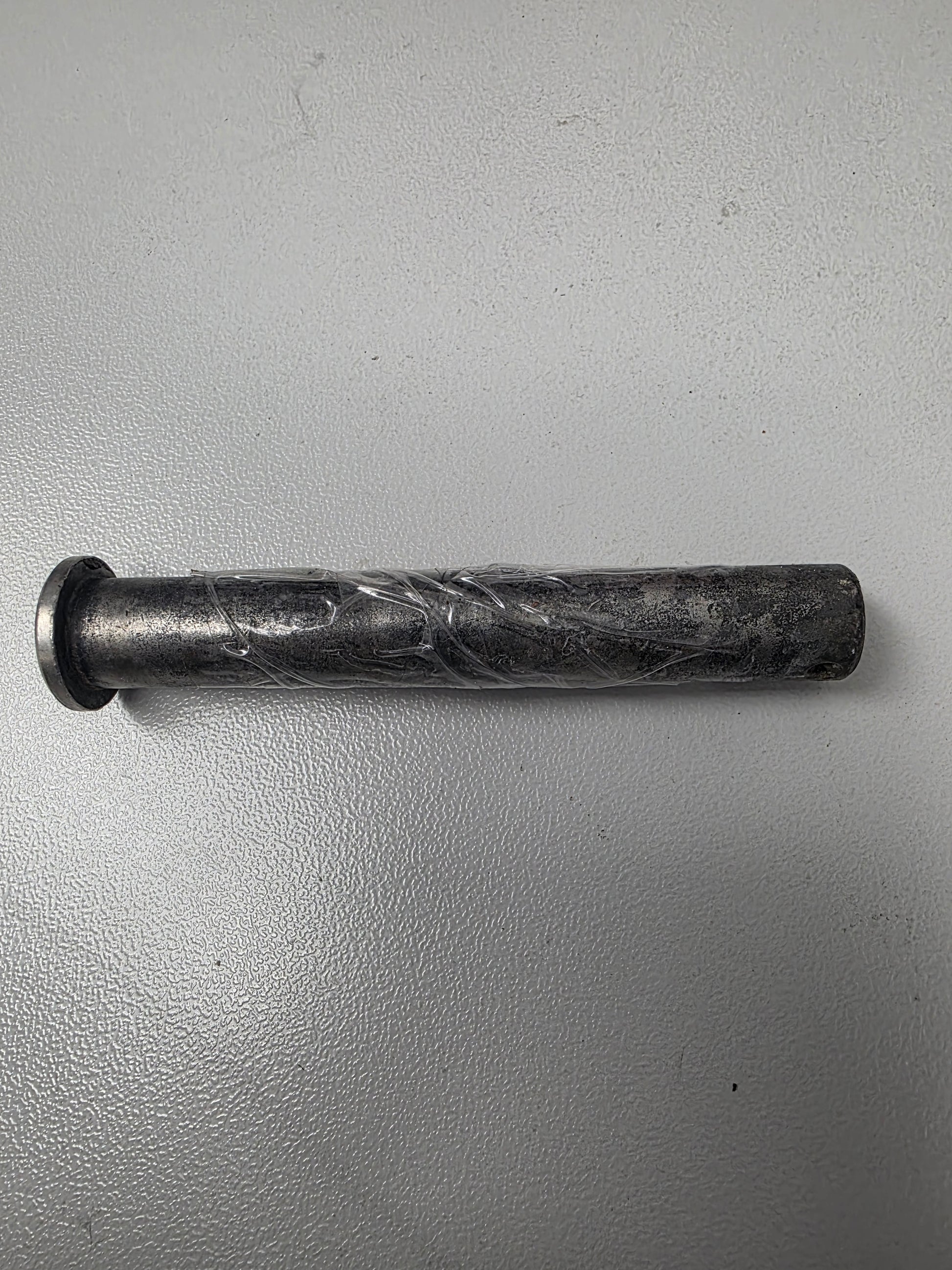

Genuine BRP Evinrude 15HP-60HP Tilt-Cylinder Pivot Pin - Part Number: 0332435

A genuine Johnson / Evinrude tilt-cylinder pivot pin used in small- and mid-range power-trim and tilt assemblies. It is fitted to Evinrude E-TEC E30 models and numerous earlier Johnson and Evinrude 15HP-60HP outboards, securing the hydraulic cylinder to the swivel or stern-bracket structure.

⚙️ Key Features

• Genuine BRP / OMC tilt-cylinder pin
• Correct part number 0332435
• Unprefixed number 332435
• Used on Evinrude E30 trim-and-tilt systems
• Broad small- and mid-range OMC application

🚤 Compatibility

• Evinrude E-TEC 15HP, 25HP and 30HP model families
• Johnson / Evinrude 35HP, 40HP, 48HP and 50HP model families
• Selected 60HP stern-bracket and trim systems
• Documented service-family years: approximately 1989-2005 and 2010-2015
• E30 AA, AB and related model families
• Exact use is controlled by swivel-bracket and trim-cylinder diagram

🔌 Function

The pin forms a structural pivot between the hydraulic cylinder and bracket, allowing the cylinder to change angle while raising, lowering and trimming the engine.

⚠️ Common Signs of Failure

• Pin bends or corrodes
• Retaining groove wears
• Cylinder eye develops side movement
• Pin seizes in the cylinder or bracket
• Trim operation clunks
• Retaining clip is missing

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0332435 is the documented service number
• 332435 is the unprefixed OMC format
• No later universal supersession has been verified

OEM / Related Numbers

• 0332435 / 332435
• Related E30 trim cylinder and hydraulic assembly
• Related retaining clips, washers and cylinder bushings
• Related 0332477 tilt pin

Aftermarket / Verified Equivalents

• No verified branded direct aftermarket pin
• Genuine used BRP 0332435 is the direct replacement
• Machined marine replacements require exact diameter, length, groove and stainless specification

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
