0335308 BRP Gear | Genuine Used Part

🔧 Product Description

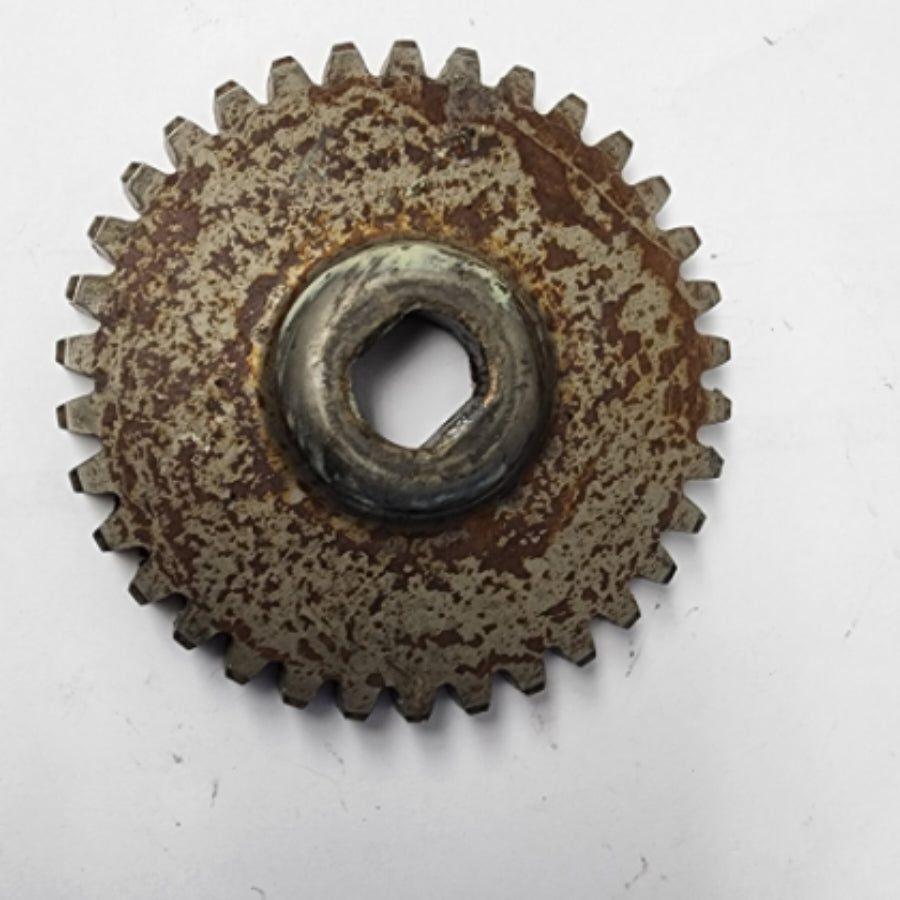

Genuine BRP Johnson Evinrude Starter Pinion-Shaft Gear - Part Number: 0335308

A genuine used OMC / BRP starter-motor gear for selected Johnson and Evinrude 60-degree V4 and V6 two-stroke outboard motors.

Part number 0335308 is the driven gear or pinion-shaft gear within the starter-motor reduction assembly. It works with the starter drive gear to transmit electric-motor rotation to the starter pinion.

⚙️ Key Features

• Genuine used Johnson / Evinrude starter gear

• Correct OEM part number 0335308

• Factory descriptions include Driven Gear and Gear, Pinion Shaft

• Used in selected reduction-gear starter motors

• Original tooth profile and shaft fit

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0335308 current original individual gear reference

• No direct supersession confirmed for the separate gear

OEM / Related Numbers:

• 0335308

• 335308

• 0335309 related starter drive gear

• 0341613 related pinion-shaft bushing

• Related starter pinion, shaft, armature and housing

• Related starter solenoid and mounting hardware

Aftermarket / Verified Equivalents:

• No verified aftermarket equivalent for the individual gear

• Complete replacement starter motors are available from ARCO, Sierra, API Marine, WAI and DB Electrical after matching the engine and starter number

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude 60-degree V4 and V6 starter motors

Typical model families include:

• Selected 90HP, 100HP, 105HP and 115HP V4 engines

• Selected 150HP and 175HP V6 engines

• Known model-year applications from approximately 1991-2006

• Diagram examples include 2003 Johnson 105HP, 2004 Johnson 90HP / 150HP and 2005 Johnson 150HP

• Fitment Note: Confirm the starter-motor assembly number, shaft diameter and tooth count

🔌 Function

The gear transfers rotation through the starter reduction mechanism so the pinion can engage the flywheel and crank the engine.

Common signs of failure:

• Gear teeth are chipped or worn

• Starter spins without cranking

• Starter makes grinding noises

• Shaft or bushing has excessive play

• Gear binds in the housing

• Metal debris is present in the starter

• Pinion engagement is intermittent

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
