0335480 Evinrude Tilt Cylinder Rod | Genuine Used Part

🔧 Product Description

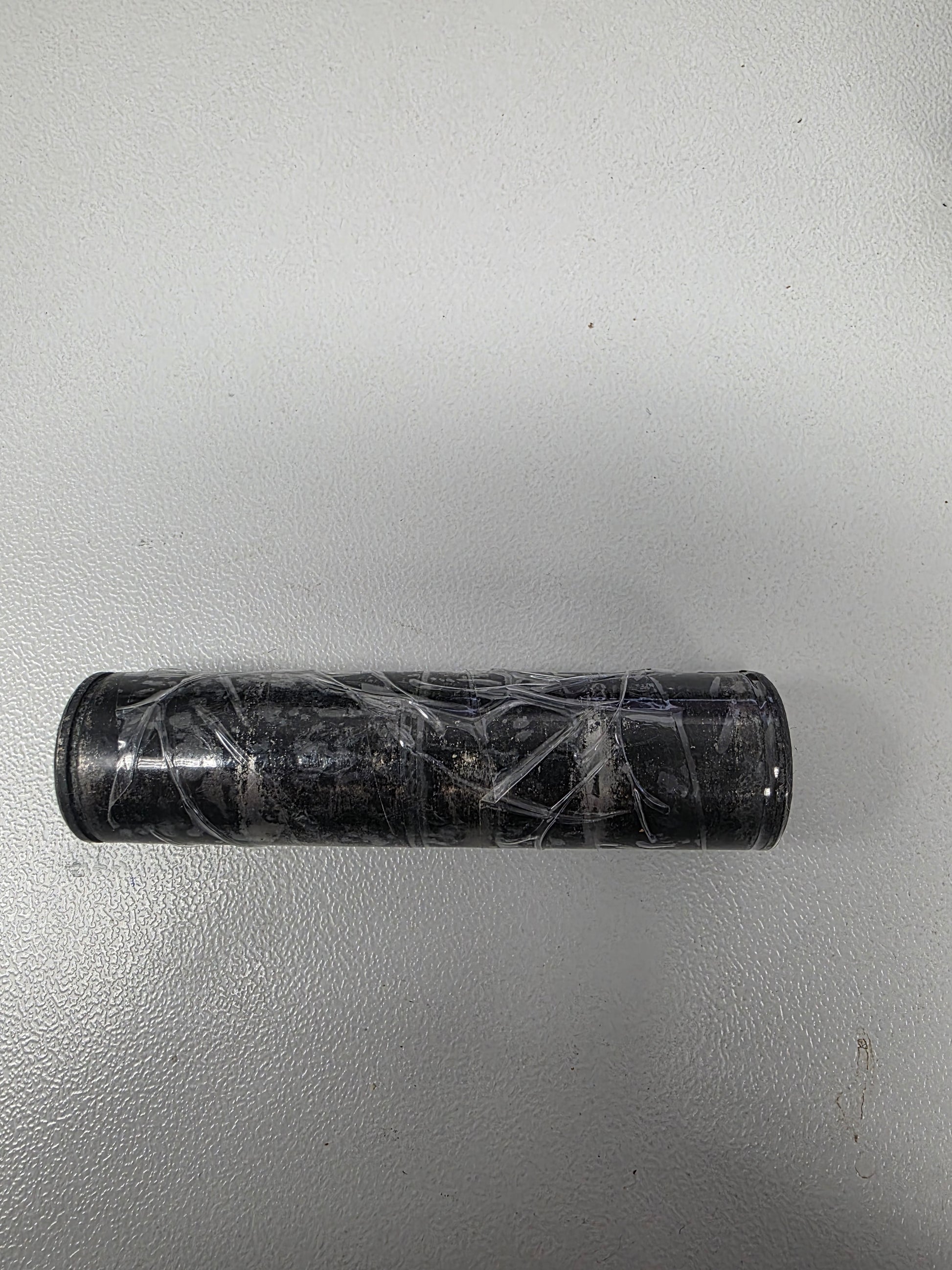

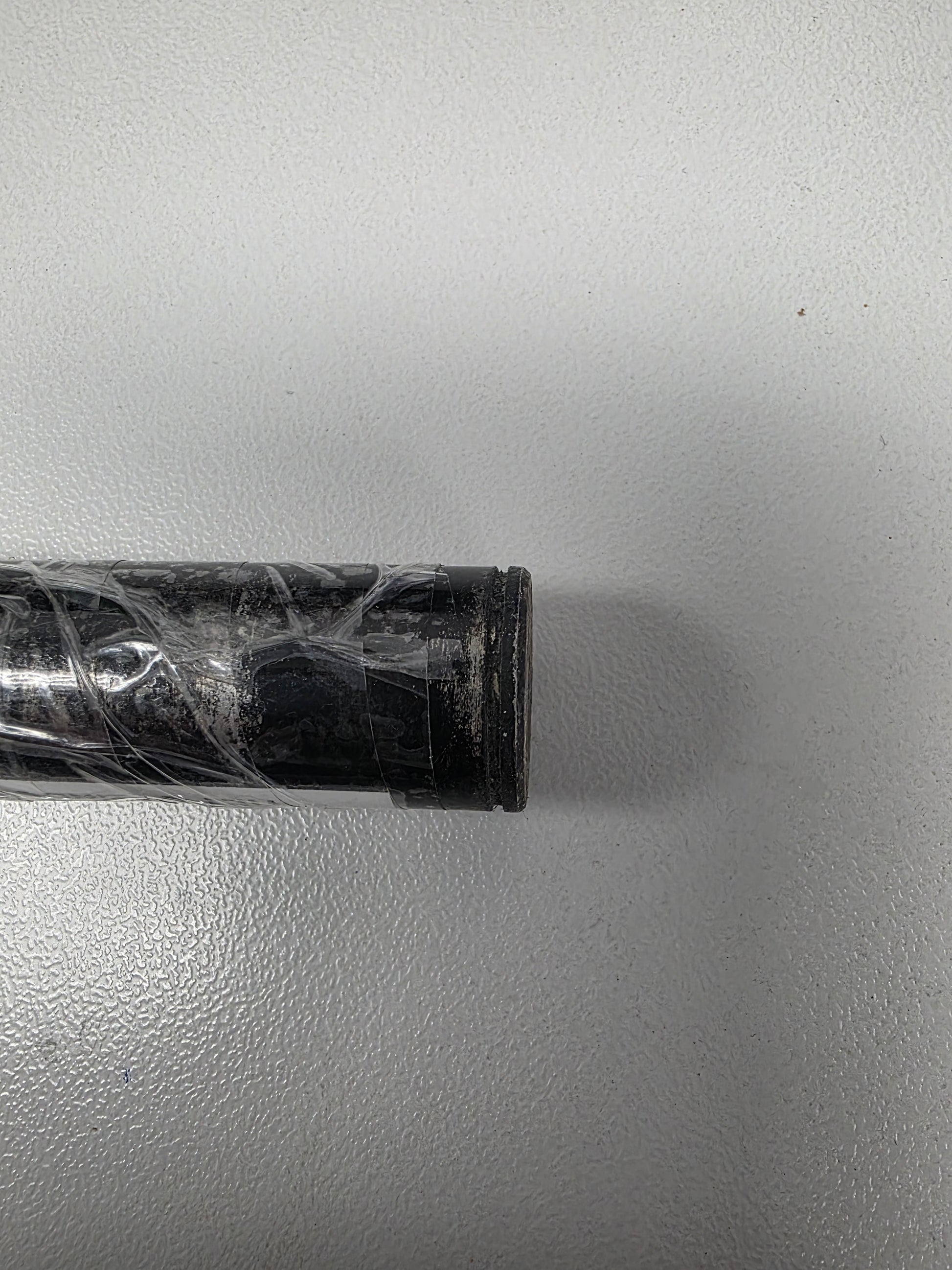

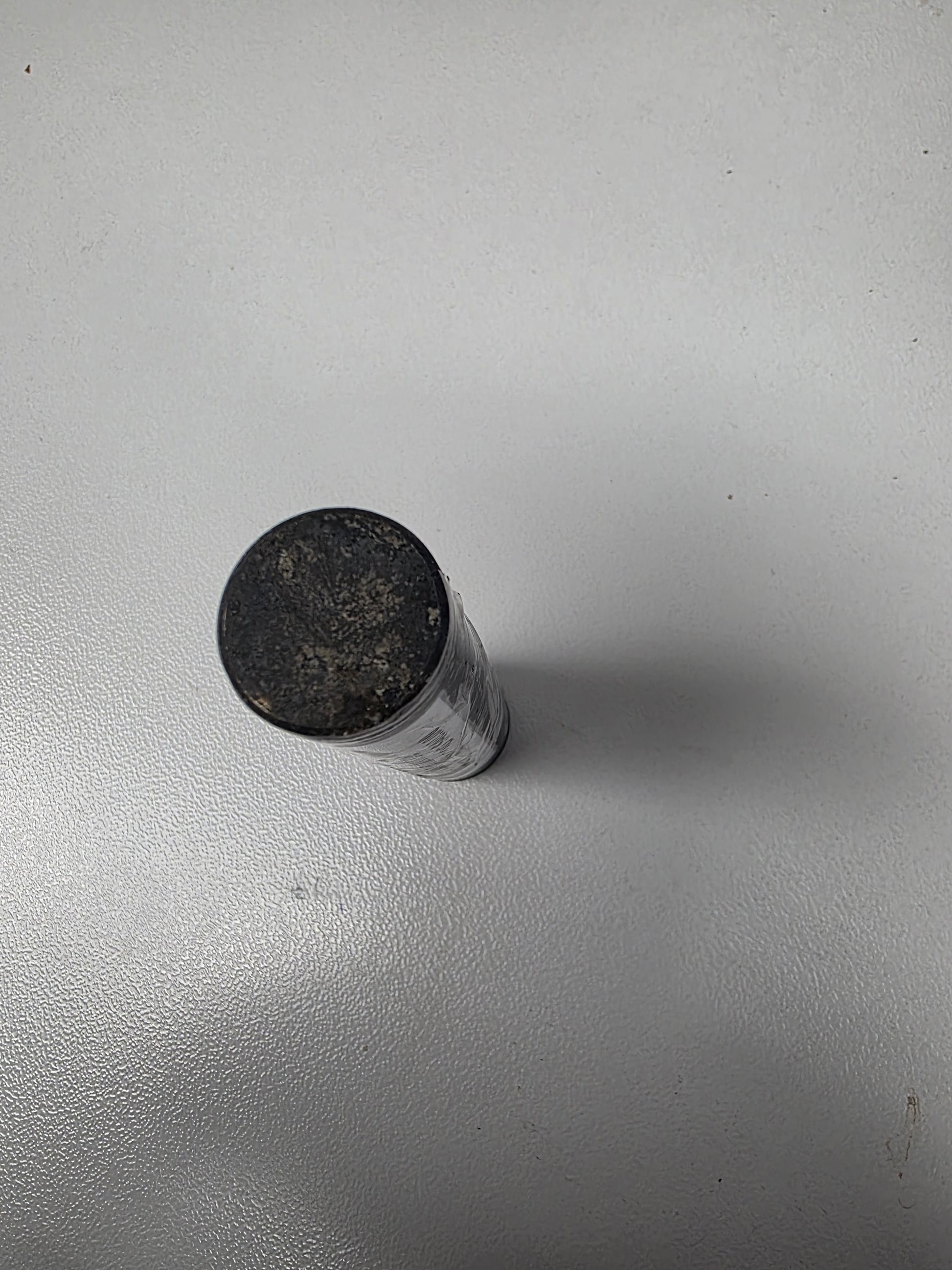

Genuine OMC / BRP Johnson Evinrude Tilt-Cylinder Pivot Pin - Part Number: 0335480

A genuine OMC pivot pin used to attach the hydraulic tilt cylinder within selected Johnson and Evinrude power-trim assemblies. Although often described as a cylinder rod, the OEM catalogue description is Pin, Tilt Cylinder. It is used extensively on V4 and V6 systems.

⚙️ Key Features

• Genuine OMC / BRP tilt-cylinder pin
• Correct part number 0335480
• Unprefixed number 335480
• Used on selected 100HP-250HP engines
• Structural pivot component rather than a hydraulic piston rod

🚤 Compatibility

• Johnson / Evinrude 100HP, 105HP, 115HP, 120HP, 125HP and 130HP families
• Johnson / Evinrude 135HP, 140HP, 150HP and 175HP families
• Johnson / Evinrude 200HP, 225HP and 250HP V6 applications
• Documented application period: approximately 1992-2005
• Examples include 1993 90HP / 150HP, 1996 115HP, 1999 225HP and 2000 75HP-family trim systems where listed
• Exact fitment follows the hydraulic-assembly diagram

🔌 Function

The pin provides the pivot connection for the tilt cylinder so the cylinder can extend, retract and change angle while carrying engine weight and thrust.

⚠️ Common Signs of Failure

• Pin is bent or pitted
• Cylinder eye has excessive side play
• Retaining groove is worn
• Pin seizes from corrosion
• Trim movement clunks
• Cylinder or bracket bore becomes damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0335480 is the documented service number
• 335480 is the unprefixed OMC format
• No later universal supersession has been verified

OEM / Related Numbers

• 0335480 / 335480
• 0335463 related lower mount rod
• Related tilt-cylinder bushings, clips and washers
• Related hydraulic trim-and-tilt assemblies

Aftermarket / Verified Equivalents

• No verified branded direct aftermarket pin
• Genuine used OMC 0335480 is the direct replacement
• Machined replacements require exact stainless grade, diameter, length and retaining-groove geometry

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
