0335553 0321052 Johnson 90HP Stainless Tilt Tube Tube | Genuine Used Part

0335553 0321052 Johnson 90HP Stainless Tilt Tube Tube | Genuine Used Part

$80.00 AUD
$80.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

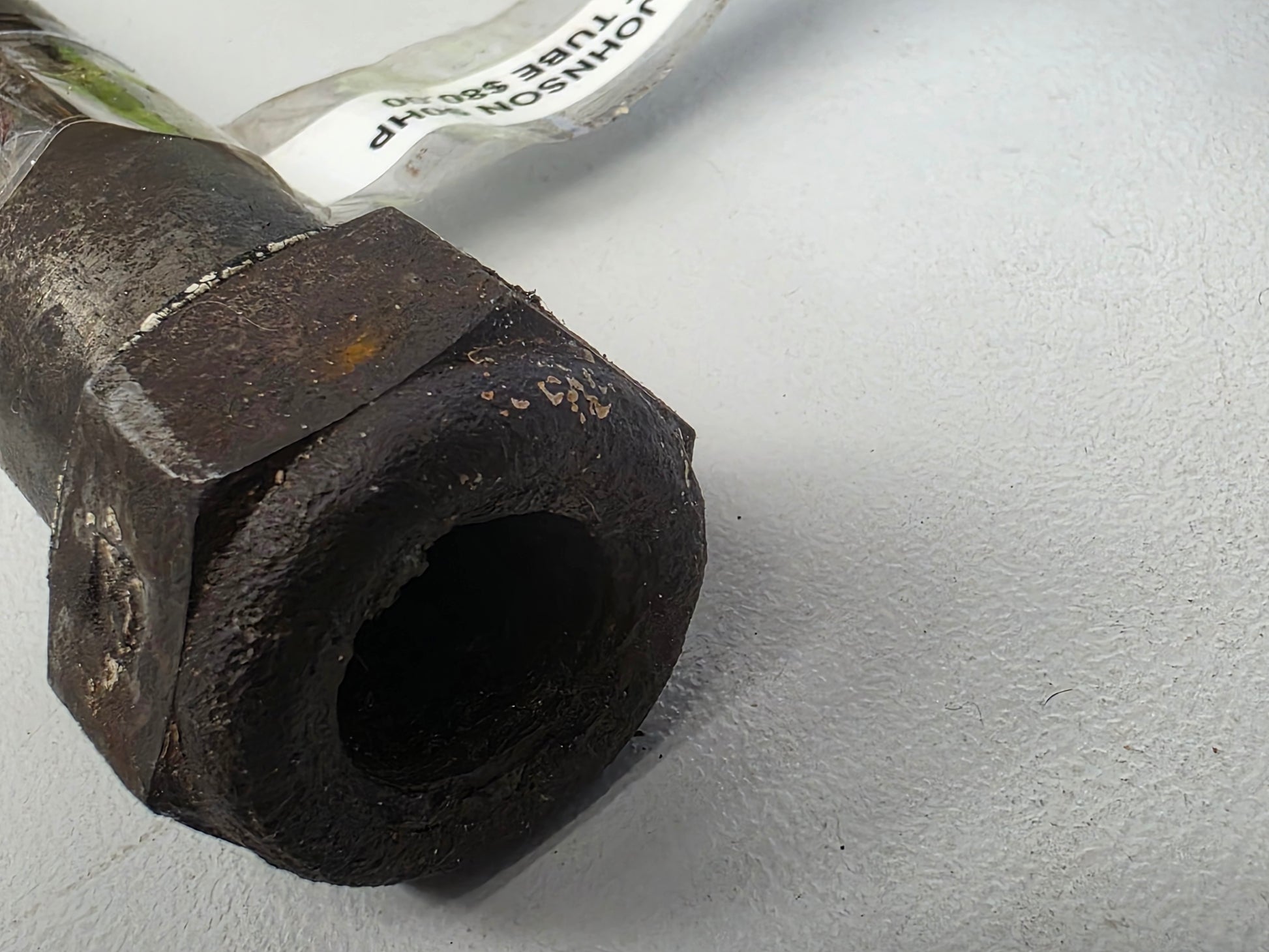

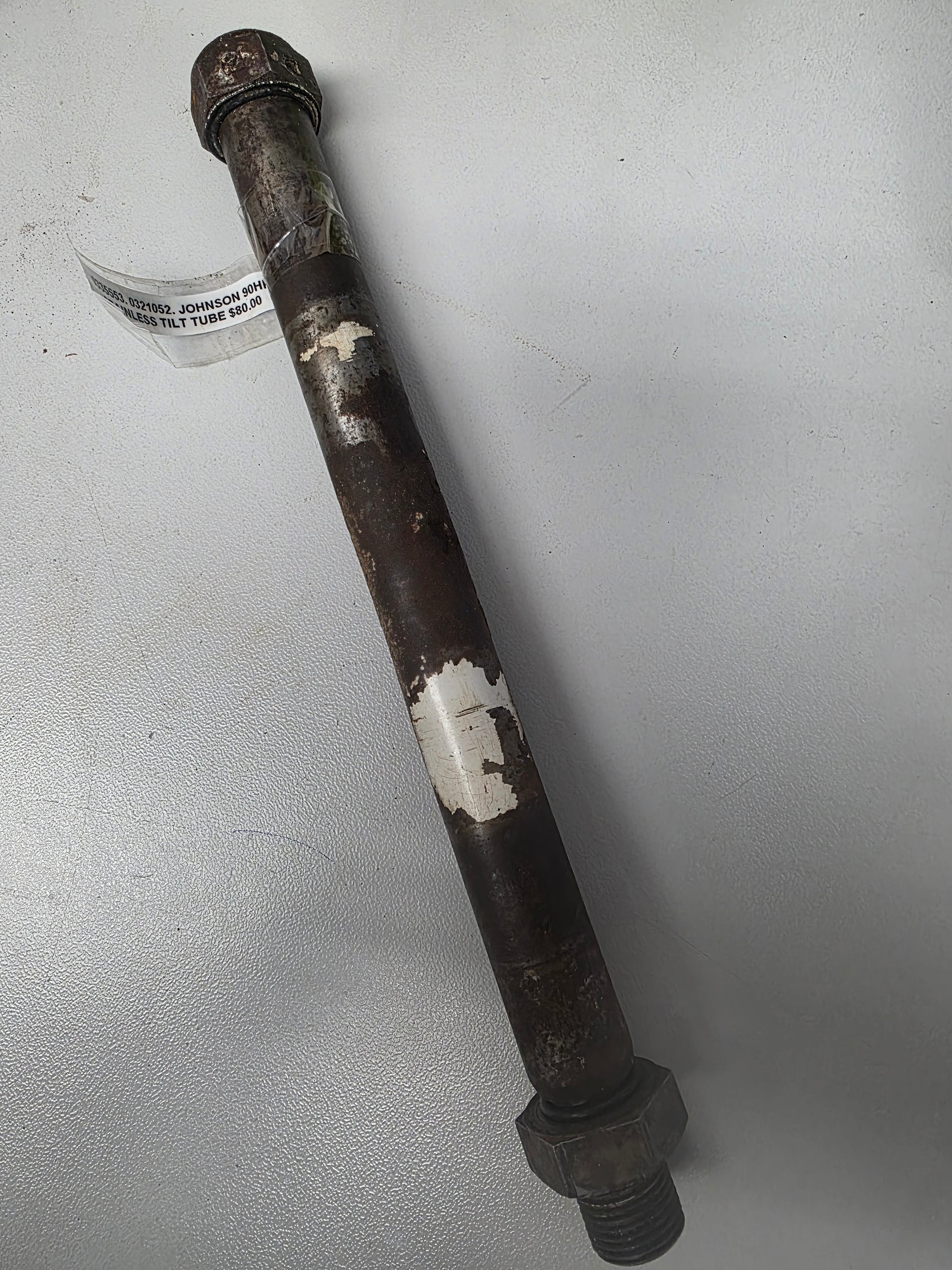

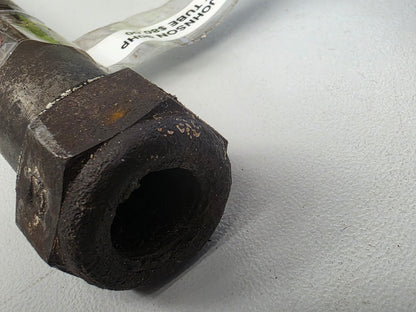

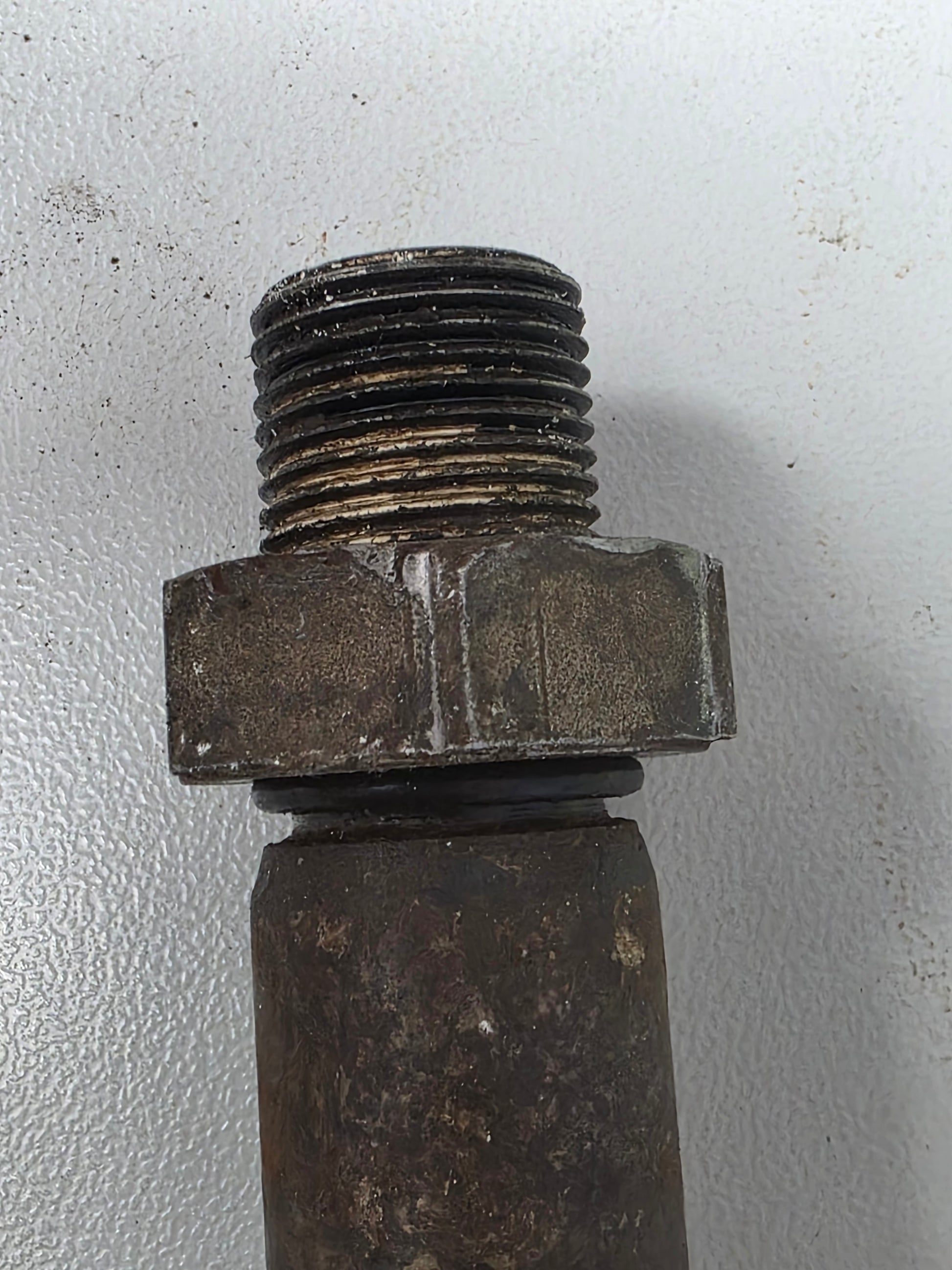

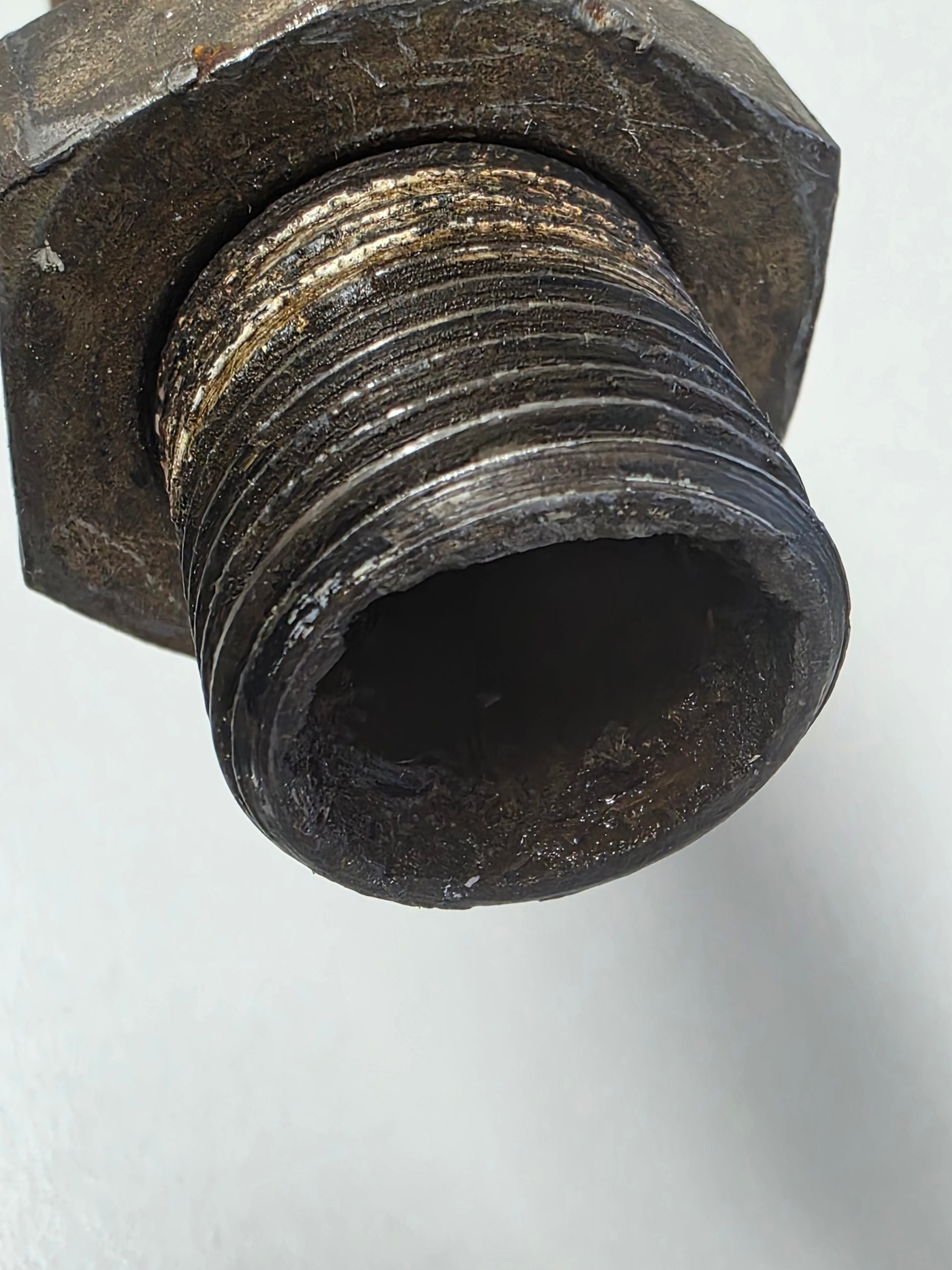

Genuine OMC Johnson / Evinrude Stainless Steering Tilt Tube - Current Part Number: 0335553

A genuine stainless-steel tilt and steering tube used through the port and starboard stern brackets of numerous Johnson and Evinrude V4 and V6 outboards. Current service number 0335553 replaces earlier 0321052. The tube supports the steering cable and forms the horizontal pivot axis for engine tilt.

⚙️ Key Features

  • Genuine OMC stainless tilt tube
  • Current service number 0335553
  • Supersedes 0321052
  • Approximately 1-inch outside diameter and 12⅛-inch overall length
  • Used on broad 85HP-300HP OMC applications

🚤 Compatibility

  • Johnson / Evinrude 85HP, 88HP, 90HP, 100HP and 115HP V4 outboards
  • Johnson / Evinrude 120HP, 125HP, 130HP and 140HP families
  • Johnson / Evinrude 150HP, 175HP, 200HP, 225HP, 250HP and selected 300HP V6 / V8 applications
  • Documented examples include 1981-1983 and 1990 / 1997 90HP installations
  • Broad application era: approximately late 1970s through 2000s
  • Tube length and stern-bracket width must match

🔌 Function

The tube forms the main horizontal tilt pivot and provides the threaded passage through which the mechanical steering cable is secured.

⚠️ Common Signs of Failure

  • Steering cable seizes inside the tube
  • Threads are damaged
  • Tube is bent
  • Internal rust prevents cable removal
  • Engine develops tilt-axis side play
  • Grease passages become blocked

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0335553 → Supersedes 0321052
  • 335553 and 321052 are unprefixed OMC formats
  • 0768629 / 768629 is a related later service and aftermarket cross-reference in applicable catalogues

OEM / Related Numbers

  • 0335553 / 335553
  • 0321052 / 321052
  • 0768629 / 768629
  • Related steering cable nut, tilt-tube bushings and grease fittings
  • Related stern brackets and trim assembly

Aftermarket / Verified Equivalents

  • WSM 986-160 stainless tilt tube
  • STT-2 aftermarket stainless tilt tube
  • Rareelectrical replacement tilt tube for 0335553 / 768629 applications
  • Other marine replacements cross-referenced to 321052, 335553 and 768629

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
