0335591 0335592 BRP Support & Cam | Genuine Used Part

🔧 Product Description

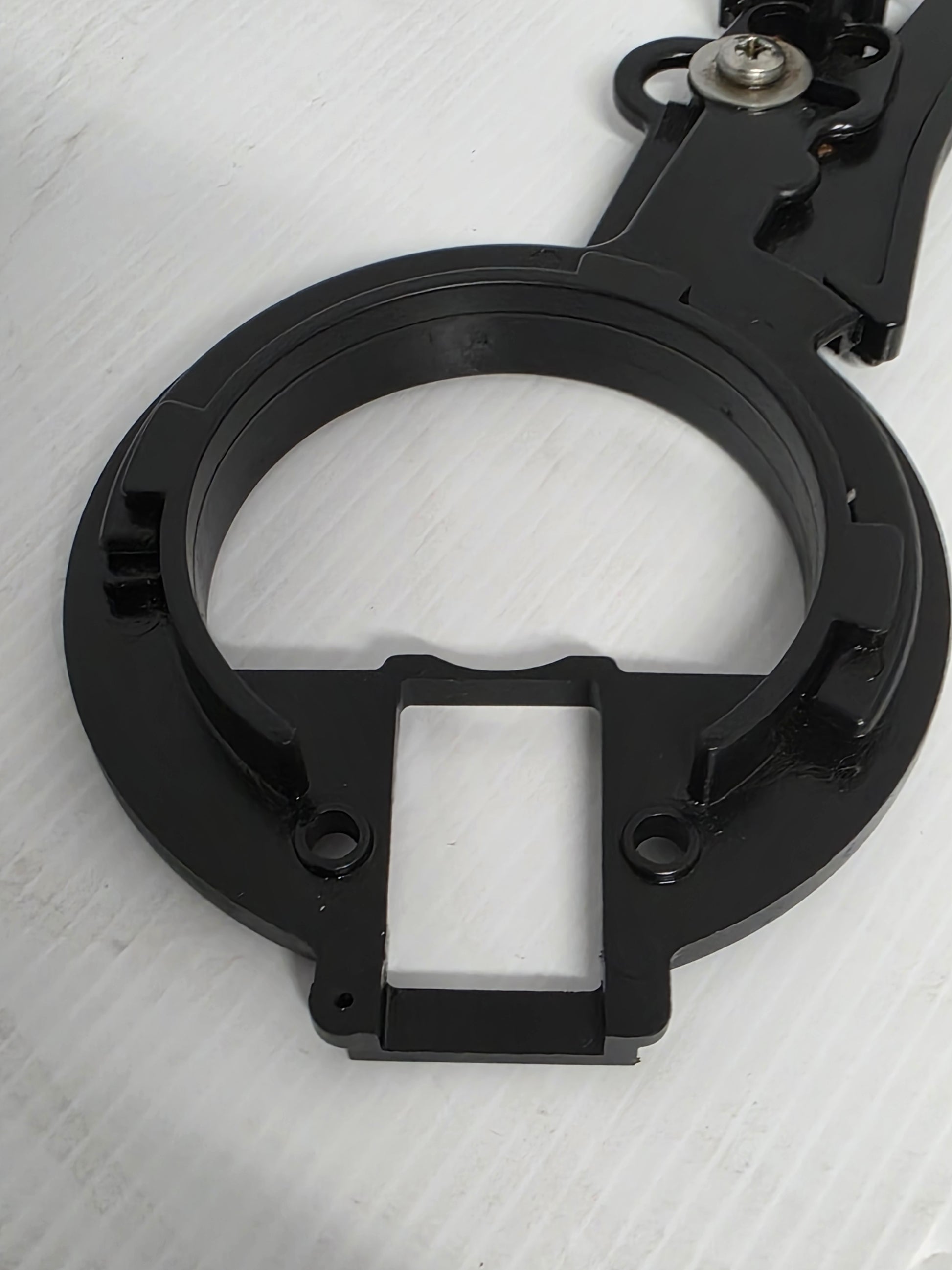

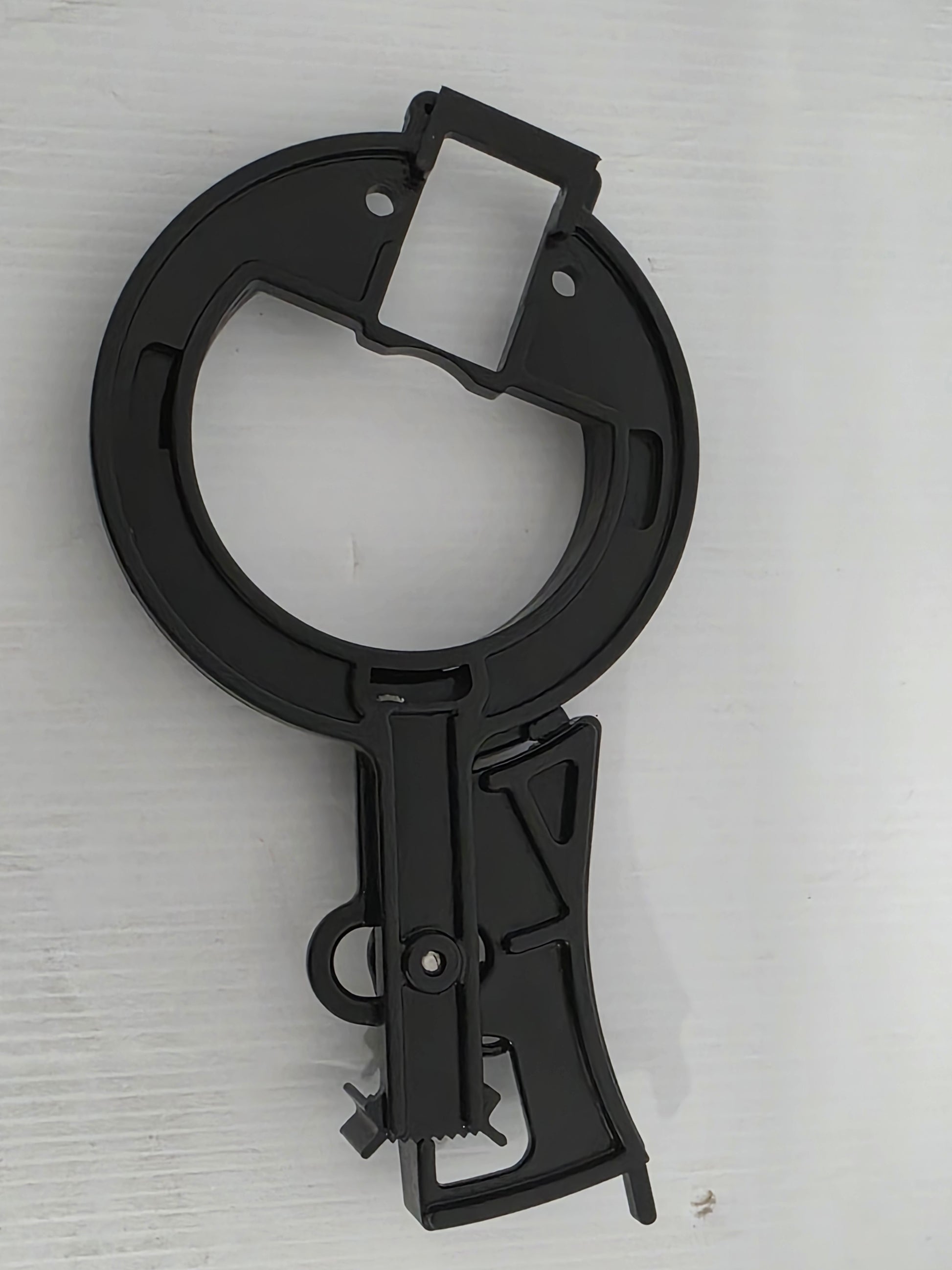

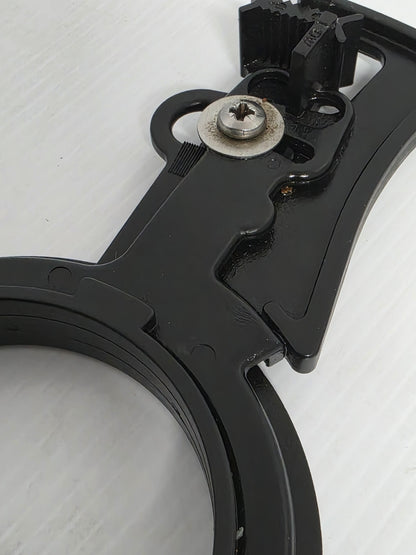

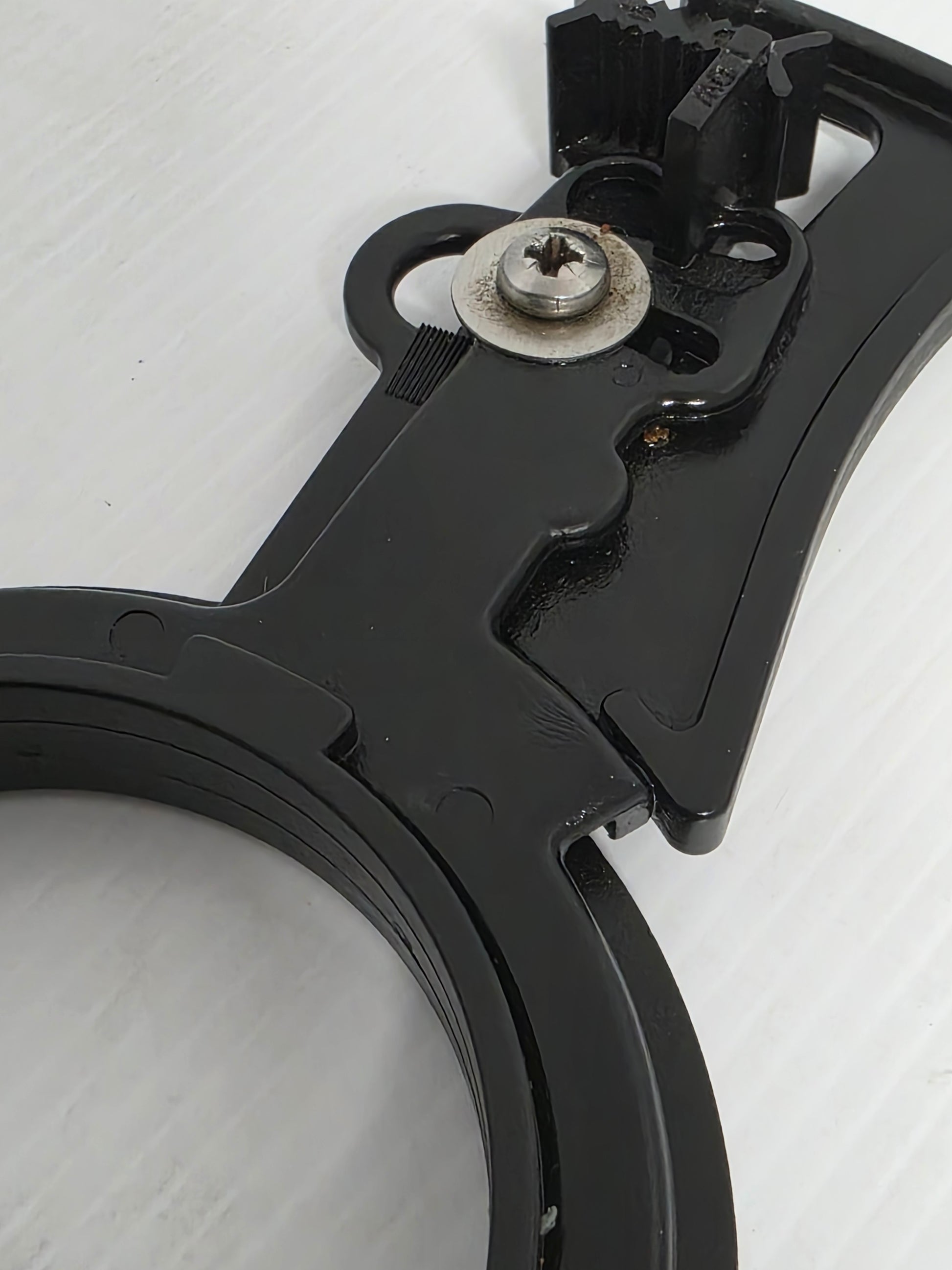

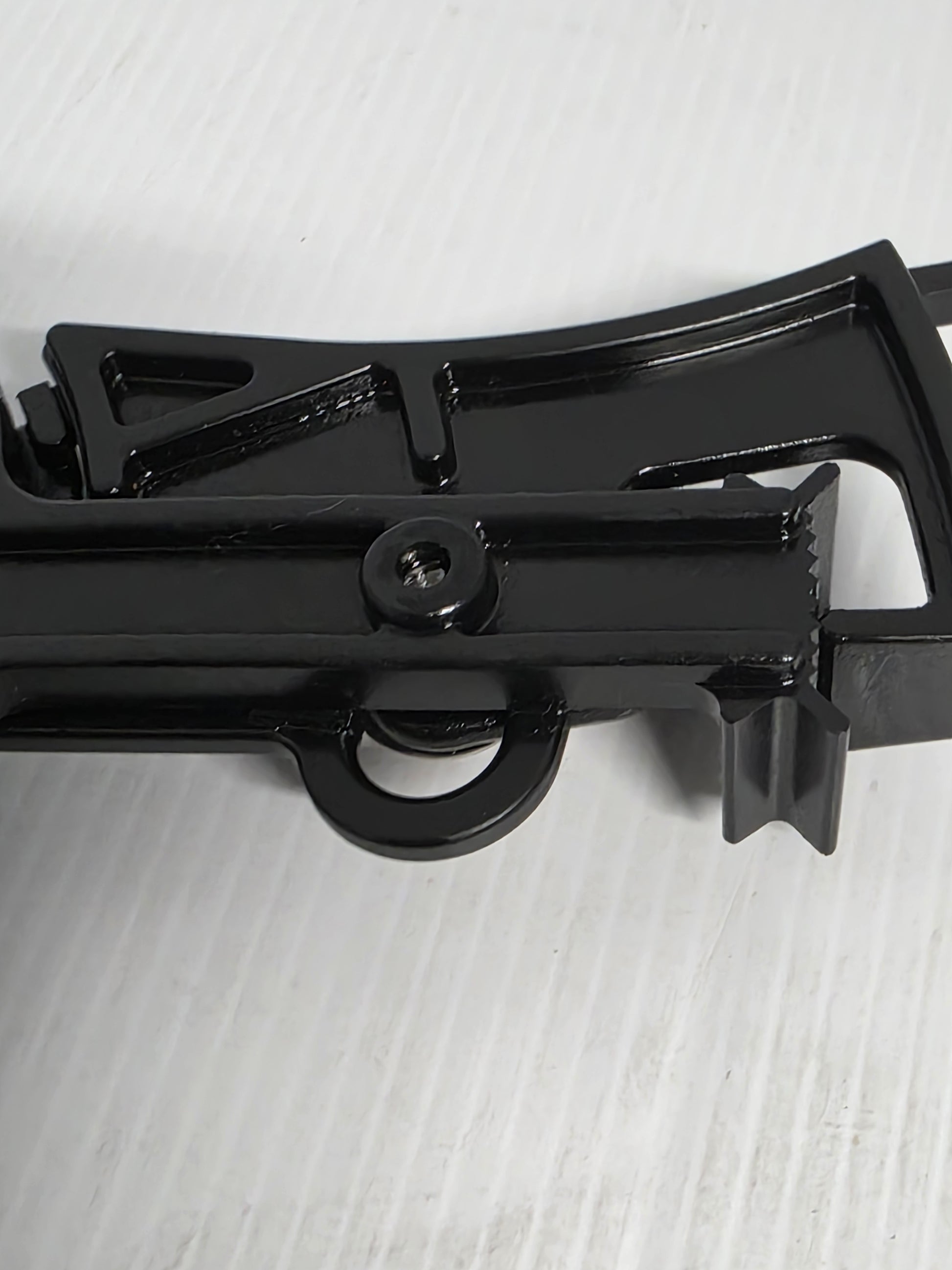

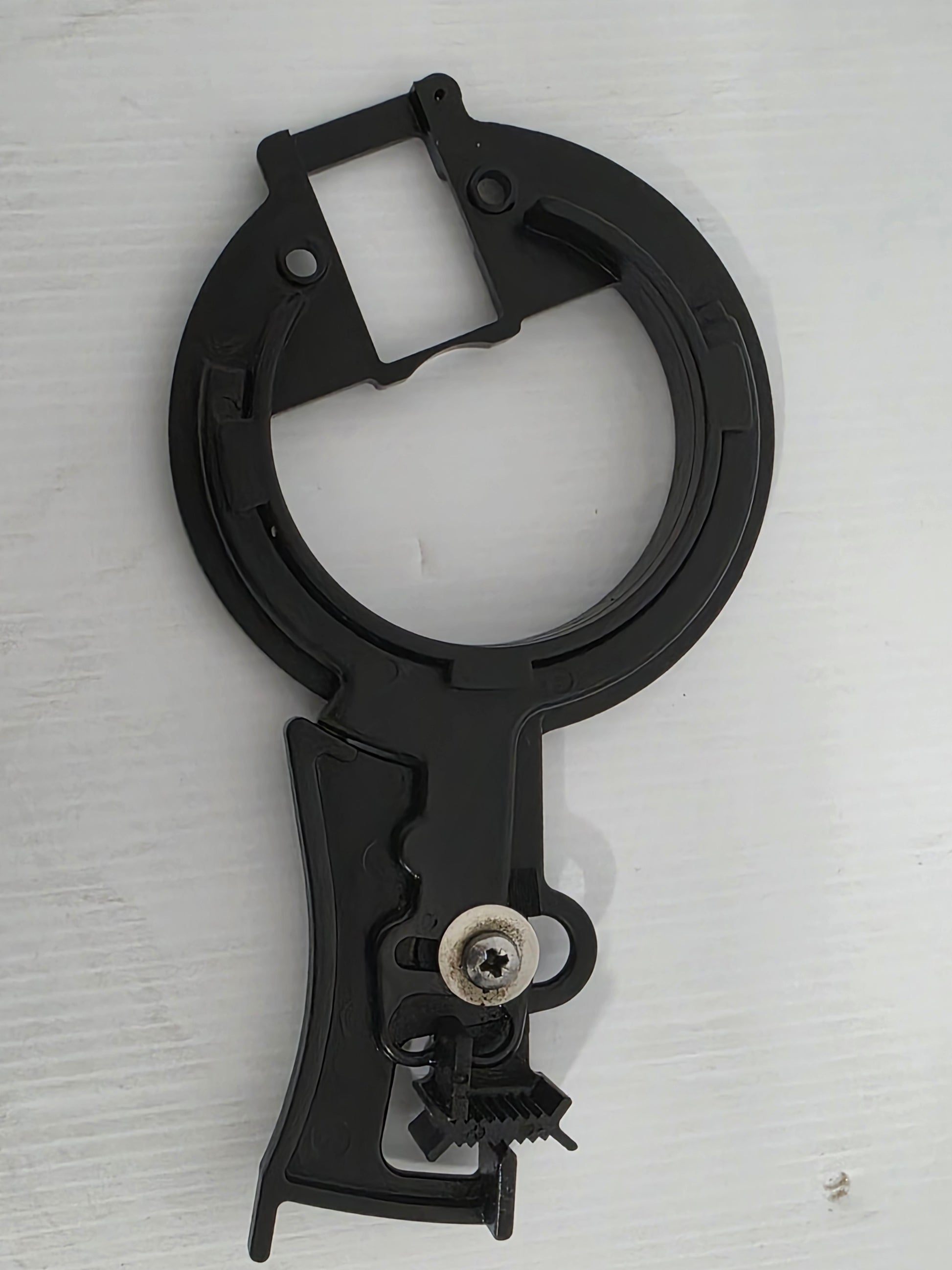

Genuine Used Evinrude Johnson Sensor Support and Spark Cam Set - Part Numbers: 0335591 and 0335592

A genuine pre-owned OMC, Evinrude and Johnson throttle-linkage component set consisting of the ignition-sensor support and wide-open-throttle spark cam.

Part number 0335591 supports and locates the ignition timing sensor, while part number 0335592 provides the profiled spark-advance cam surface used by the throttle and timing linkage.

Together, these components help coordinate throttle opening and ignition advance on compatible 60-degree V4 and V6 outboards.

⚙️ Key Features

• Genuine OMC, Evinrude and Johnson used components

• Includes sensor support 0335591

• Includes wide-open-throttle spark cam 0335592

• Original throttle and ignition-timing linkage parts

• Used on selected 90HP to 175HP outboards

• Suitable for repairing damaged, worn or incomplete linkage assemblies

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• No verified superseding number identified for 0335591

• No verified superseding number identified for 0335592

OEM / Related Numbers:

• 0335591

• 335591

• OEM Description: Support, Sensor

• 0335592

• 335592

• OEM Description: Cam, Spark

• Alternate OEM description: Cam, W.O.T. Spark

• Related system: Throttle Linkage

• Related system: Optical Ignition Timing

Aftermarket / Verified Equivalents:

• No verified direct aftermarket equivalent for the support

• No verified direct aftermarket equivalent for the spark cam

• Genuine used or new-old-stock components are generally required

🚤 Compatibility

Commonly used on:

• Evinrude and Johnson 60-degree V4 outboards

• Evinrude and Johnson 60-degree V6 outboards

• Optical ignition and throttle-linkage assemblies

• Engines using a movable timing sensor and profiled spark cam

Verified example applications include:

• Selected 1992 Johnson 150HP models

• Selected 1995 Evinrude and Johnson 90HP and 115HP models

• Selected 1997 Evinrude 90HP models

• Selected 2000 Johnson 90HP, 150HP and 175HP models

• Selected 2001 Johnson 115HP models

• Selected 2004 and 2005 Johnson 150HP models

• Selected 2006 Johnson 90HP models

Representative horsepower range:

• 90HP

• 115HP

• 150HP

• 175HP

Important fitment note:

• These parts were used across multiple engine families and calibration arrangements.

• Confirm both numbers in the original throttle-linkage diagram.

• Do not set ignition timing from the cam position alone.

• Final synchronisation and timing must follow the correct factory service procedure.

• Fasteners, rollers, sensor, throttle arms and link rods are included only when shown or stated.

🔌 Function

The sensor support holds the ignition-timing sensor in its correct position relative to the engine's timing wheel.

The spark cam provides a controlled profile that moves the timing linkage as the throttle is opened, allowing ignition advance and throttle-plate position to remain synchronised.

Common signs of wear or damage:

• Loose ignition sensor

• Unstable or incorrect ignition timing

• Engine hesitates during acceleration

• Engine will not achieve full spark advance

• Worn or grooved cam surface

• Cracked or distorted sensor support

• Excessive play in the throttle linkage

• Linkage binds before reaching wide-open throttle

• Engine cannot achieve rated rpm

Recommended checks before installation:

• Inspect the cam surface for wear or grooves

• Check the sensor-support mounting points

• Confirm that the timing sensor fits securely

• Inspect the linkage rollers and bushings

• Lubricate only where specified by the service manual

• Perform the complete synchronisation and linkage-adjustment procedure

• Verify idle timing, maximum timing and wide-open-throttle position

📦 Condition

• Genuine OMC, Evinrude or Johnson used parts

• Pre-owned components

• Cosmetic wear, marks and light oxidation may be present

• Cam and support should be inspected before installation

• Included hardware is limited to what is shown or described

• Supplied in protective or equivalent packaging
