0335729 BRP Retainer | Genuine Used Part

🔧 Product Description

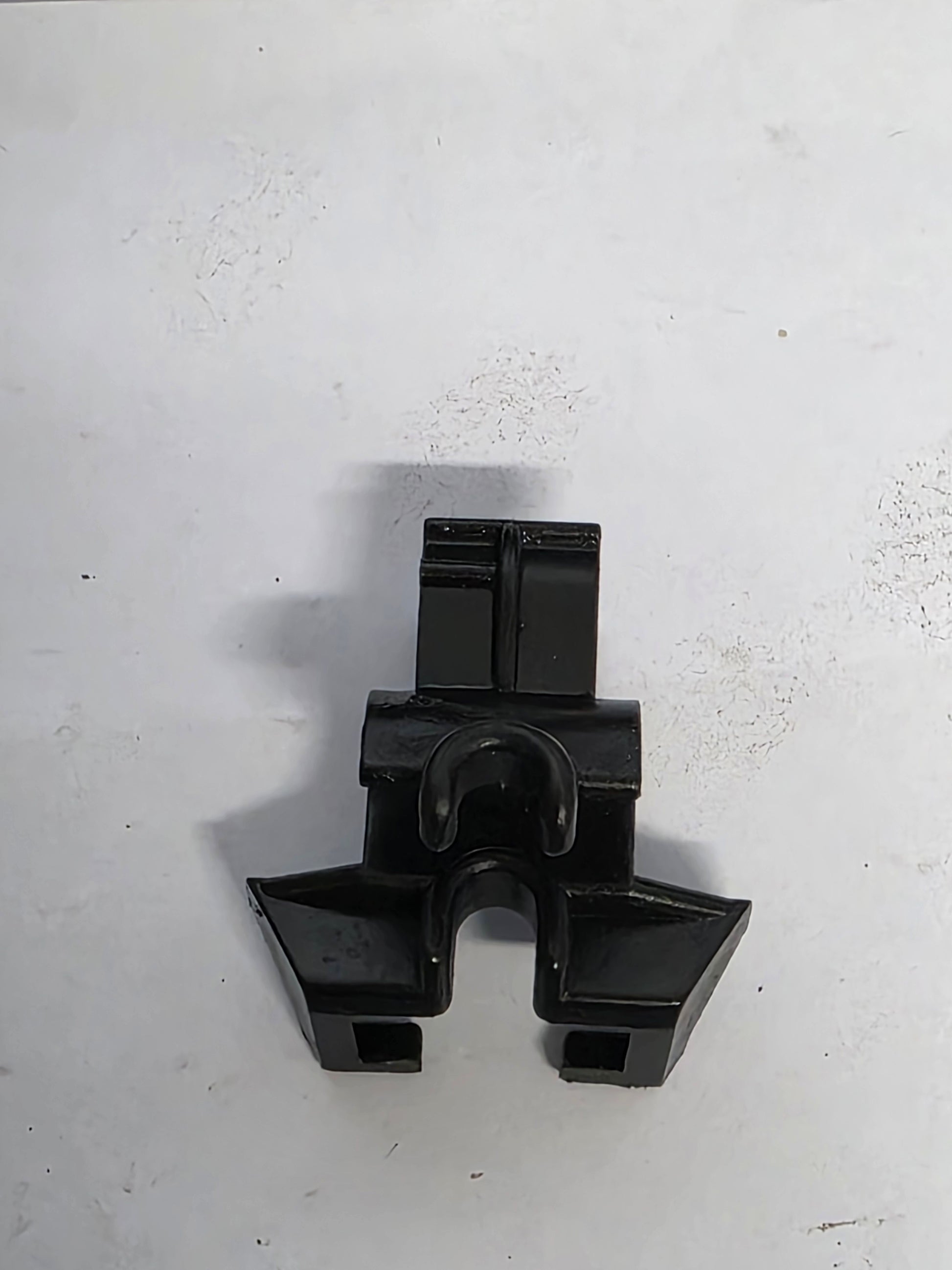

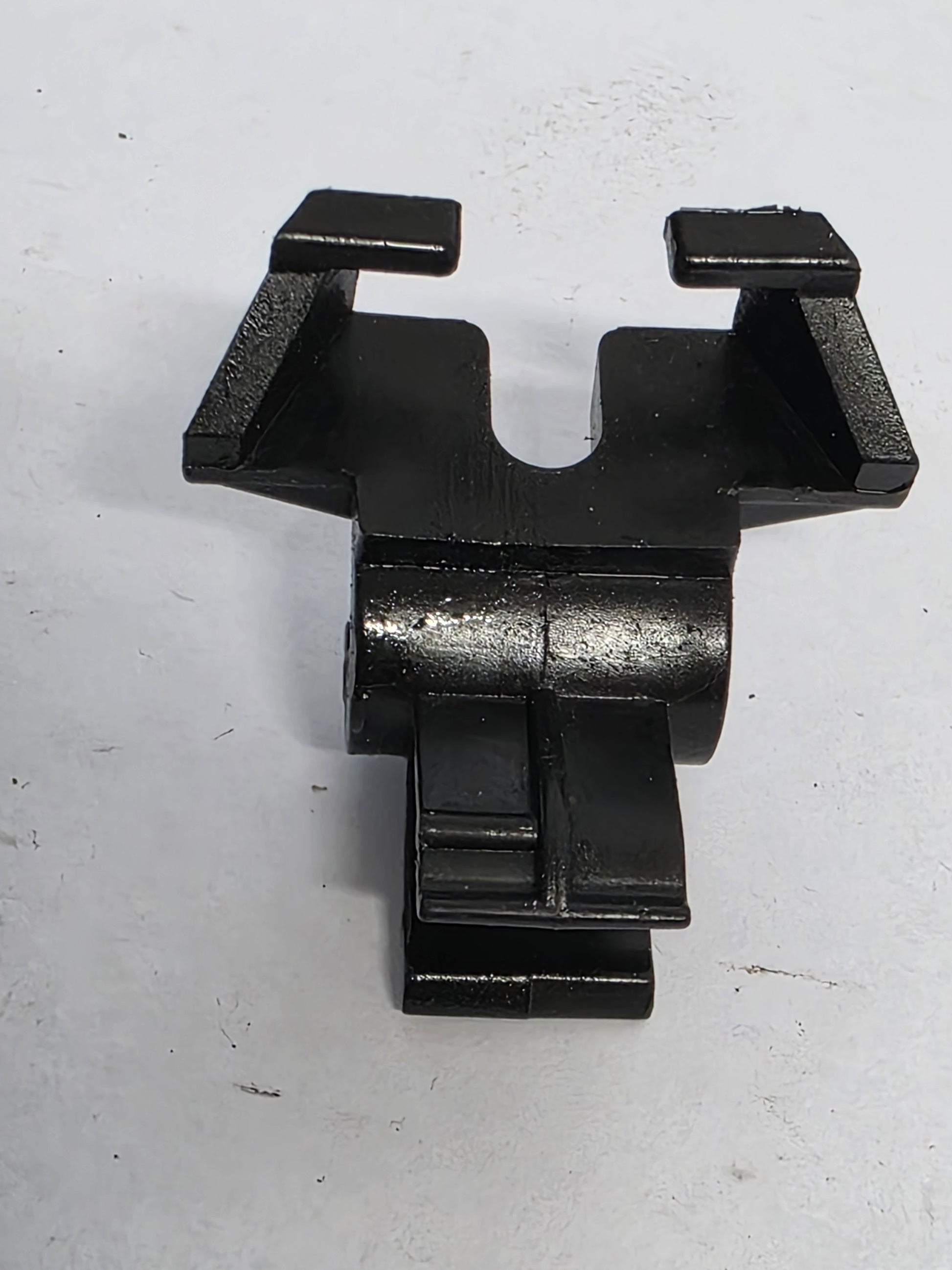

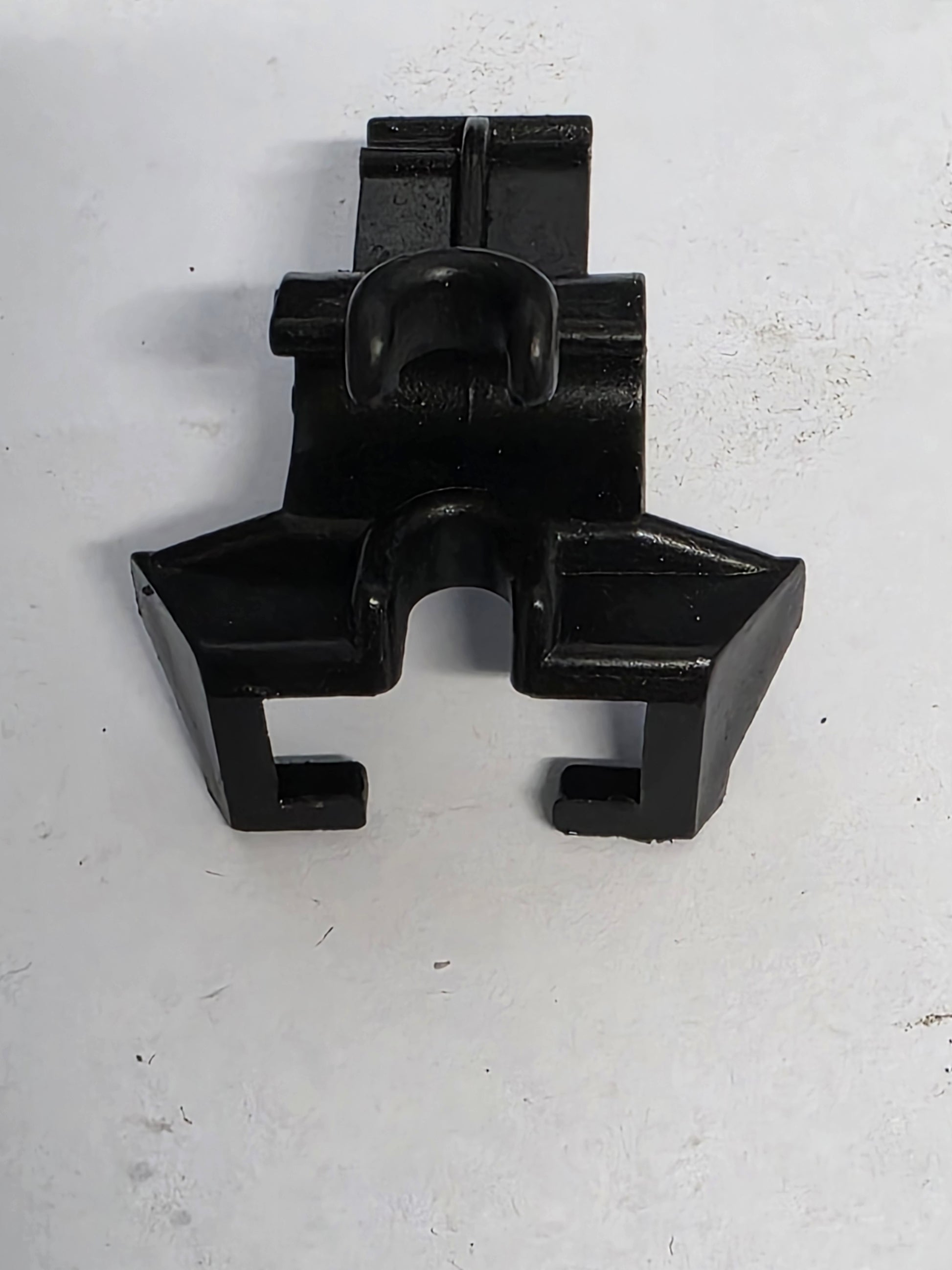

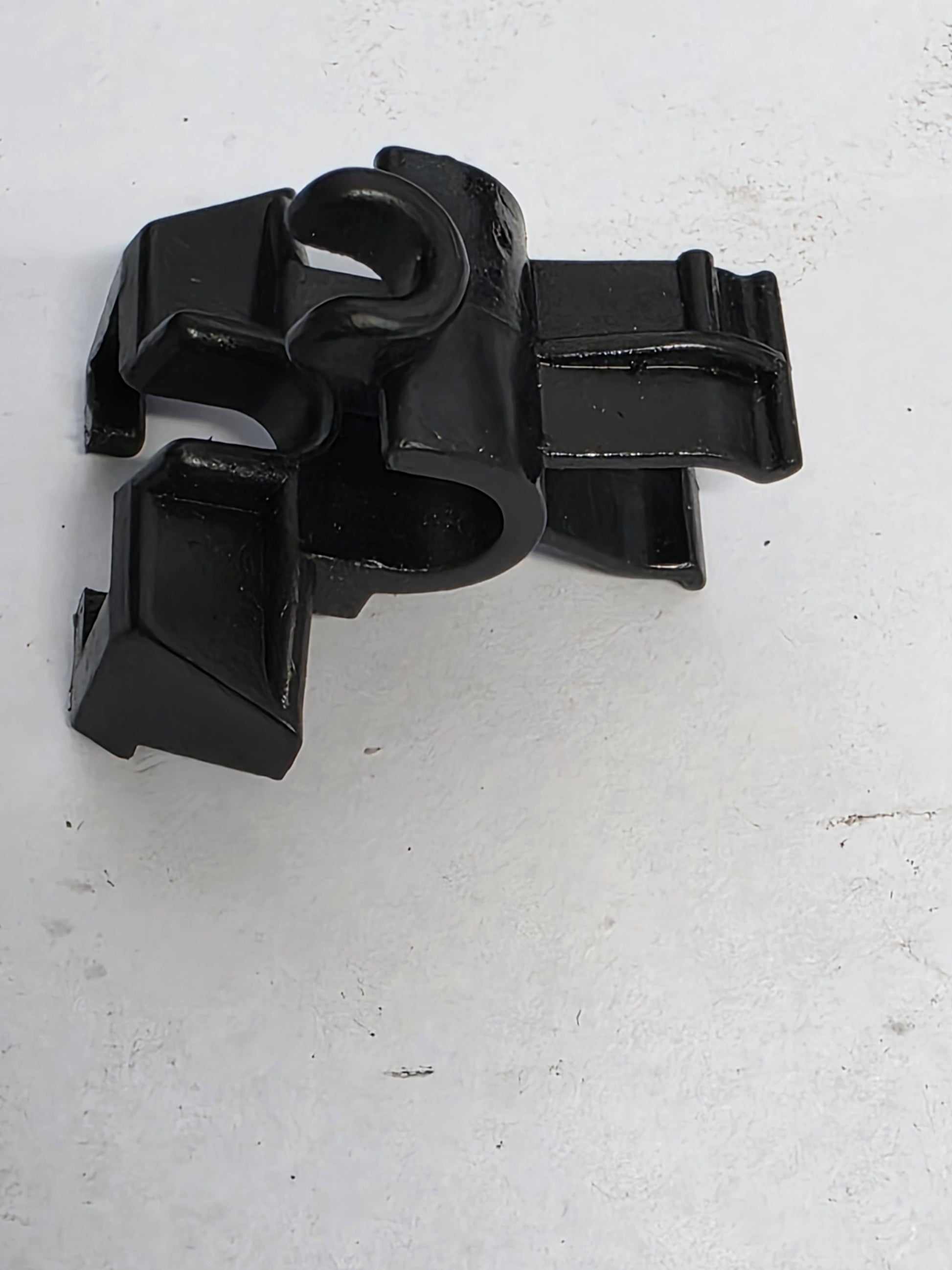

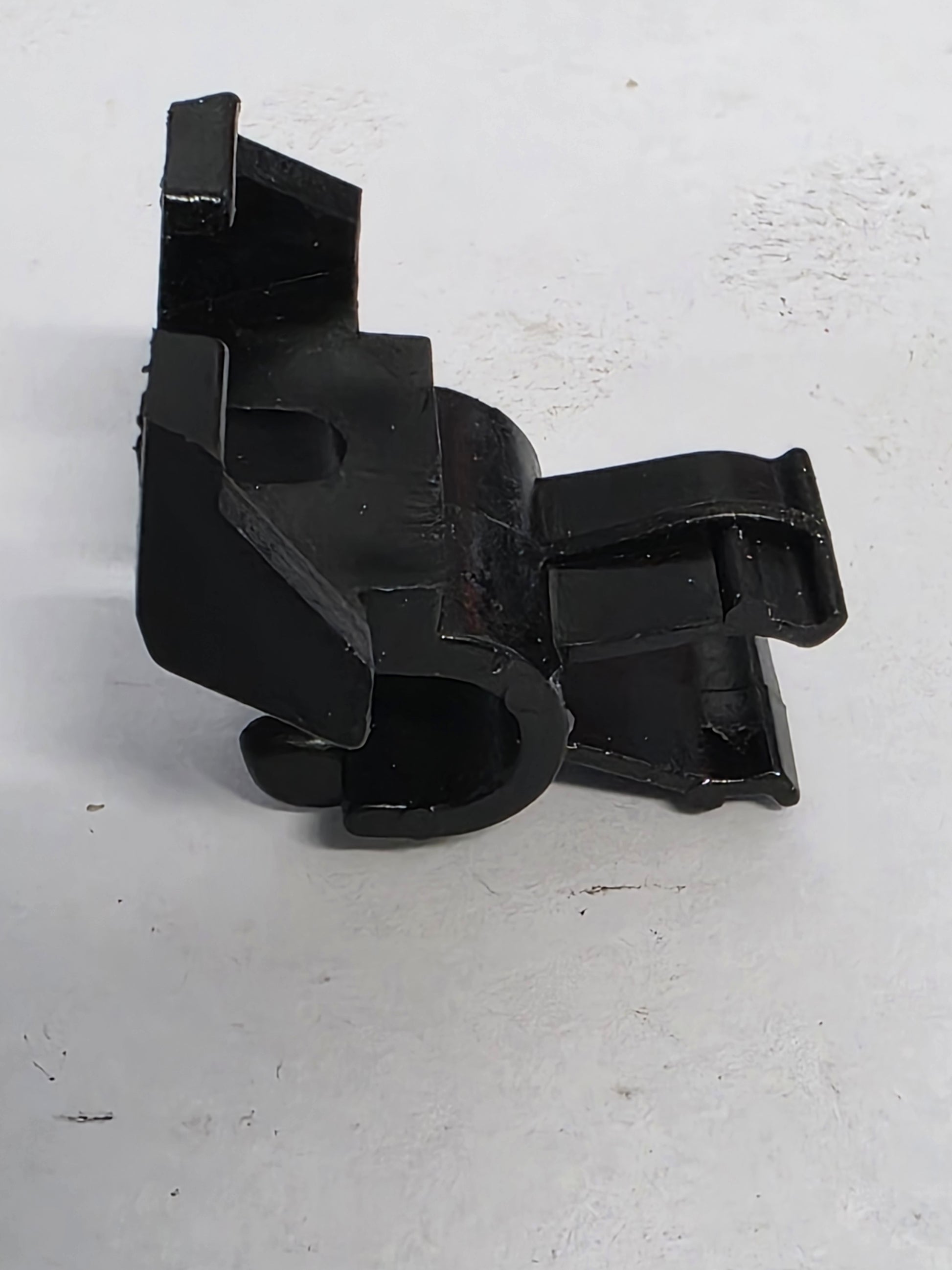

Genuine Johnson Evinrude Intake Balance-Tube Retainer - Part Number: 0335729

A genuine used OMC / BRP retainer for the intake-manifold balance tube used on selected Johnson and Evinrude carburetted V4 and V6 two-stroke outboard motors.

The retainer secures the balance tube or its drain hose across the intake-manifold assembly, preventing the tube from moving into the throttle linkage or vibrating against the air-silencer components.

⚙️ Key Features

• Genuine used Johnson / Evinrude balance-tube retainer
• Correct OEM part number 0335729
• Used in carburettor and intake-manifold assemblies
• Secures the manifold balance tube or drain hose
• Original moulded OMC retaining component

🚤 Compatibility

Commonly used on

• Johnson and Evinrude carburettor and intake-manifold assemblies
• 60-degree V4 and V6 two-stroke engines

Typically suits

• Selected 90HP, 100HP, 105HP and 115HP engines
• Selected 150HP and 175HP engines
• Known applications from approximately 1991 through 2004
• Exact fitment must be confirmed by model-specific intake-manifold diagram
• HP Range: Approximately 90HP-175HP
• Engine Type: Carburetted V4 or V6 two-stroke outboard

🔌 Function

The retainer holds the balance tube in the designed position so intake pressure can equalise correctly without the hose contacting moving linkage components.

⚠️ Common Signs of Failure

• Balance tube becomes loose
• Retainer is cracked or missing
• Hose rubs against the throttle linkage
• Intake vacuum leak develops
• Engine idles unevenly
• Balance-tube hose kinks or disconnects
• Fuel or oil residue accumulates around the loose hose

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0335729 current original balance-tube-retainer reference

OEM / Related Numbers

• 0335729
• 335729
• Related intake-manifold balance tube
• Related balance-tube drain hose
• 0335403 port manifold-to-carburettor seal
• 0335404 starboard manifold-to-carburettor seal
• 0336821 related air-silencer gasket
• 0335257 related linkage-adjustment lever

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Balance tube included only where shown or stated
• Removed from running engine where applicable
• In good working condition unless otherwise stated
