🔧 Product Description

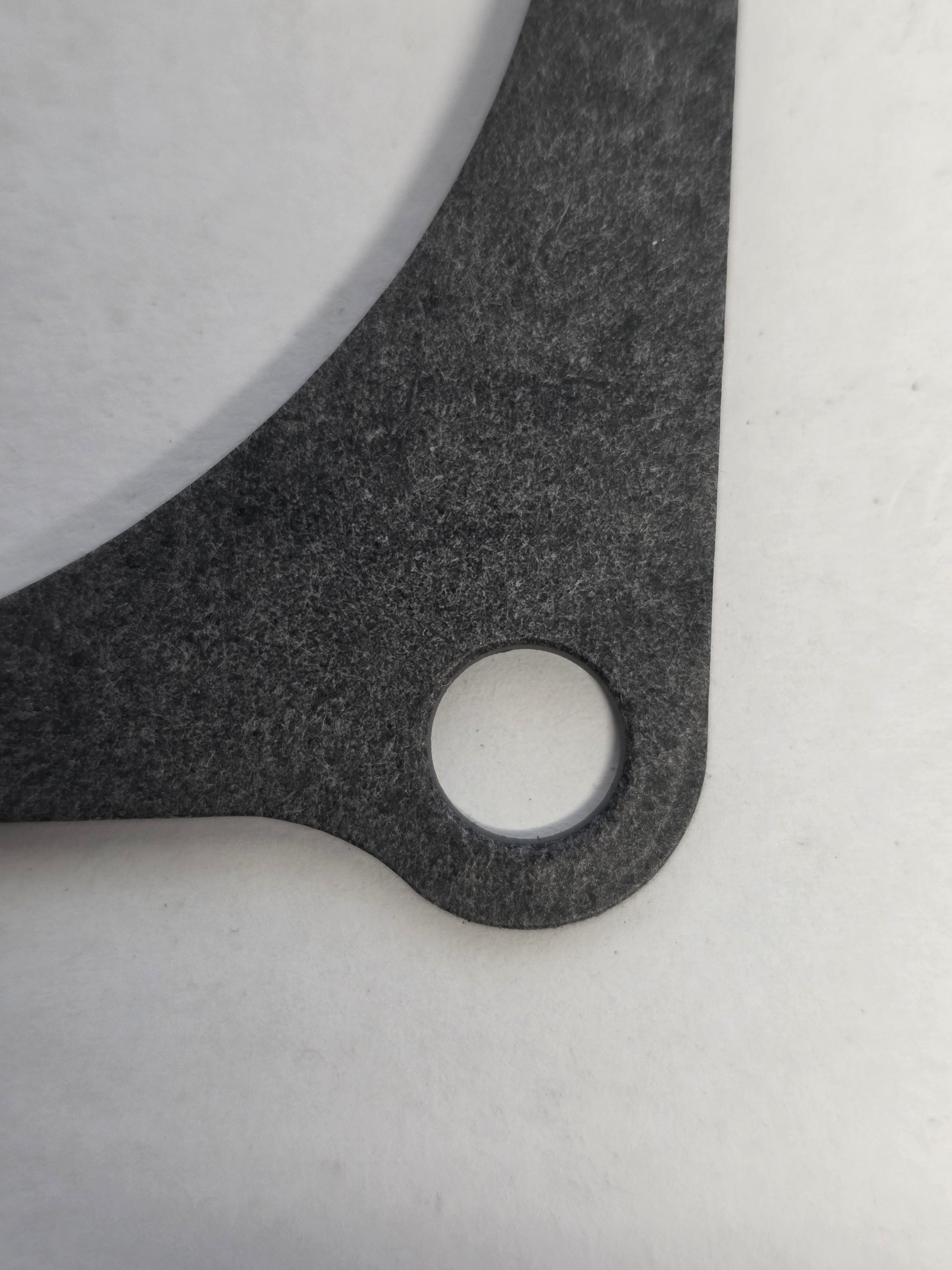

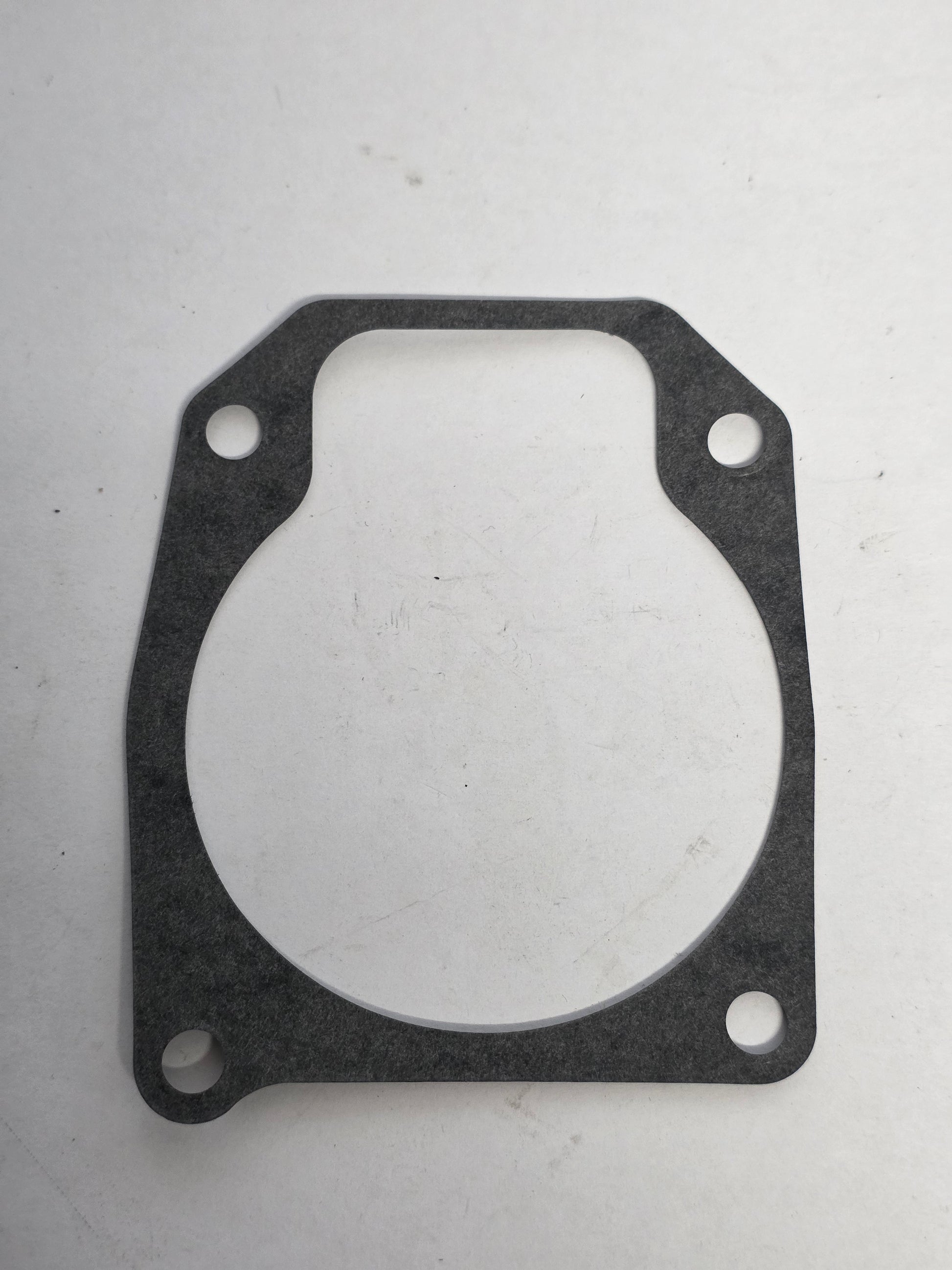

Genuine BRP Evinrude Johnson Water Pump Impeller Plate Gasket - Part Number: 0336530
A genuine BRP lower water-pump gasket fitted beneath the impeller plate on selected 35HP to 70HP two-stroke outboards.
The gasket seals the water-pump plate to the gearcase, preventing air and cooling water from bypassing beneath the impeller chamber.
⚙️ Key Features
- Genuine BRP Evinrude Johnson OEM water-pump plate gasket
- Correct BRP part number 0336530
- Lower gasket beneath the impeller plate
- Used on selected 35HP to 70HP gearcases
- Sierra, Mallory, GLM and EMP equivalents available
🚤 Compatibility
Commonly used on
- Evinrude Johnson small and mid-range water-pump assemblies
- Lower gasket beneath the stainless impeller plate
Typically suits
- Engine models:
- Evinrude and Johnson 35HP
- Evinrude and Johnson 40HP
- Evinrude and Johnson 45HP commercial
- Evinrude and Johnson 48HP
- Evinrude and Johnson 50HP
- Evinrude and Johnson 55HP
- Evinrude and Johnson 60HP
- Evinrude and Johnson 65HP commercial
- Evinrude and Johnson 70HP gearcases using the compatible impeller plate
- Documented 1998 Johnson 60HP gearcase application
- HP Range: 35HP - 70HP
- Engine Type: Evinrude Johnson carburetted two-stroke outboard
- Year Range: Generally pre-1995, with selected later gearcase applications
🔌 Function
The gasket seals beneath the impeller plate so the water pump can develop the suction and pressure required to cool the engine.
⚠️ Common Signs of Failure
- Weak or absent tell-tale stream
- Engine overheats despite a serviceable impeller
- Water or air bypasses beneath the pump plate
- Gasket tears during water-pump disassembly
- Plate will not sit flat because old gasket material remains
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 0777867 later BRP service and packaged gasket reference
- 0336530 original individual water-pump plate gasket reference
OEM / Related Numbers
- 0336530
- 336530
- 0777867
- 777867
- 0302617 related water-pump plate
- Related impeller housing, upper gasket and complete water-pump kit references
Aftermarket / Verified Equivalents
- Sierra: 18-2709
- Mallory: 9-60409
- GLM: 33150
- EMP: 27-01936
- BRP packaged gasket: 0777867
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
