• 0336574 Evinrude Johnson Gear Reverse | Genuine OEM BRP Outboard Part
1 1

0336574 Evinrude Johnson Gear Reverse | Genuine OEM BRP Outboard Part

0336574 Evinrude Johnson Gear Reverse | Genuine OEM BRP Outboard Part

$487.39 AUD
$487.39 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

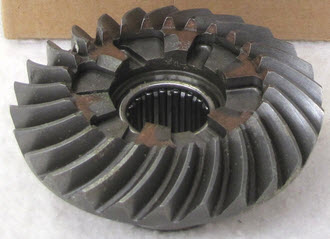

Genuine BRP Evinrude Johnson 0.44 Reverse Gear - Part Number: 0336574

A genuine BRP reverse gear for selected Evinrude and Johnson V4 lower units using the 4.75-inch gearcase family.

The gear rotates freely on the propeller shaft until the sliding clutch dog engages its machined engagement lugs. Once engaged, engine torque is transferred through the reverse gear to rotate the propeller shaft in reverse.

⚙️ Key Features

  • Genuine BRP Evinrude Johnson OEM reverse gear
  • Correct BRP part number 0336574
  • BRP description: reverse gear, 0.44
  • Used in selected V4 4.75-inch gearcases
  • SEI Marine replacement gear available

🚤 Compatibility

Commonly used on

  • Evinrude Johnson V4 4.75-inch-diameter gearcases
  • Selected FP, FX, PX and O-Type lower units

Typically suits

  • Engine models:
  • Evinrude and Johnson 90HP
  • Evinrude and Johnson 100HP
  • Evinrude and Johnson 105HP commercial
  • Evinrude and Johnson 110HP
  • Evinrude and Johnson 115HP
  • Evinrude and Johnson 120HP
  • Evinrude and Johnson 125HP
  • Evinrude and Johnson 130HP
  • Evinrude and Johnson 140HP
  • Evinrude 100HP models including 1993, 1994, 1995, 1997, 2000 and 2001 applications
  • Selected 2007 Evinrude 115HP O-Type gearcases
  • HP Range: Commonly 90HP - 140HP
  • Engine Type: Evinrude Johnson V4 carburetted, direct-injection and E-TEC two-stroke outboard
  • Year Range: Approximately 1991 - 2007, dependent on gearcase model

🔌 Function

The reverse gear meshes continuously with the pinion gear. When the clutch dog moves rearward, its engagement faces lock into the reverse gear and drive the propeller shaft in reverse.

⚠️ Common Signs of Failure

  • Outboard jumps out of reverse under load
  • Grinding or ratcheting occurs when reverse is selected
  • Reverse engagement lugs are rounded or chipped
  • Gear teeth show pitting, spalling or impact damage
  • Metal particles appear in the lower-unit lubricant
  • Reverse gear has excessive movement on the propeller shaft

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0778451 related later BRP service reference
  • 0336574 original OEM reverse-gear reference

OEM / Related Numbers

  • 0336574
  • 336574
  • 0778451
  • 778451
  • 0435123 related complete gear-set reference
  • Related forward gear, pinion gear, clutch dog and thrust-bearing numbers

Aftermarket / Verified Equivalents

  • SEI Marine: 91-306-03BK
  • SEI gear set replacing 0435123 and 0336574
  • Direct replacement reverse gear: 336574

📦 Condition

  • Genuine BRP part
  • Brand new
  • Supplied in original or equivalent packaging
