🔧 Product Description

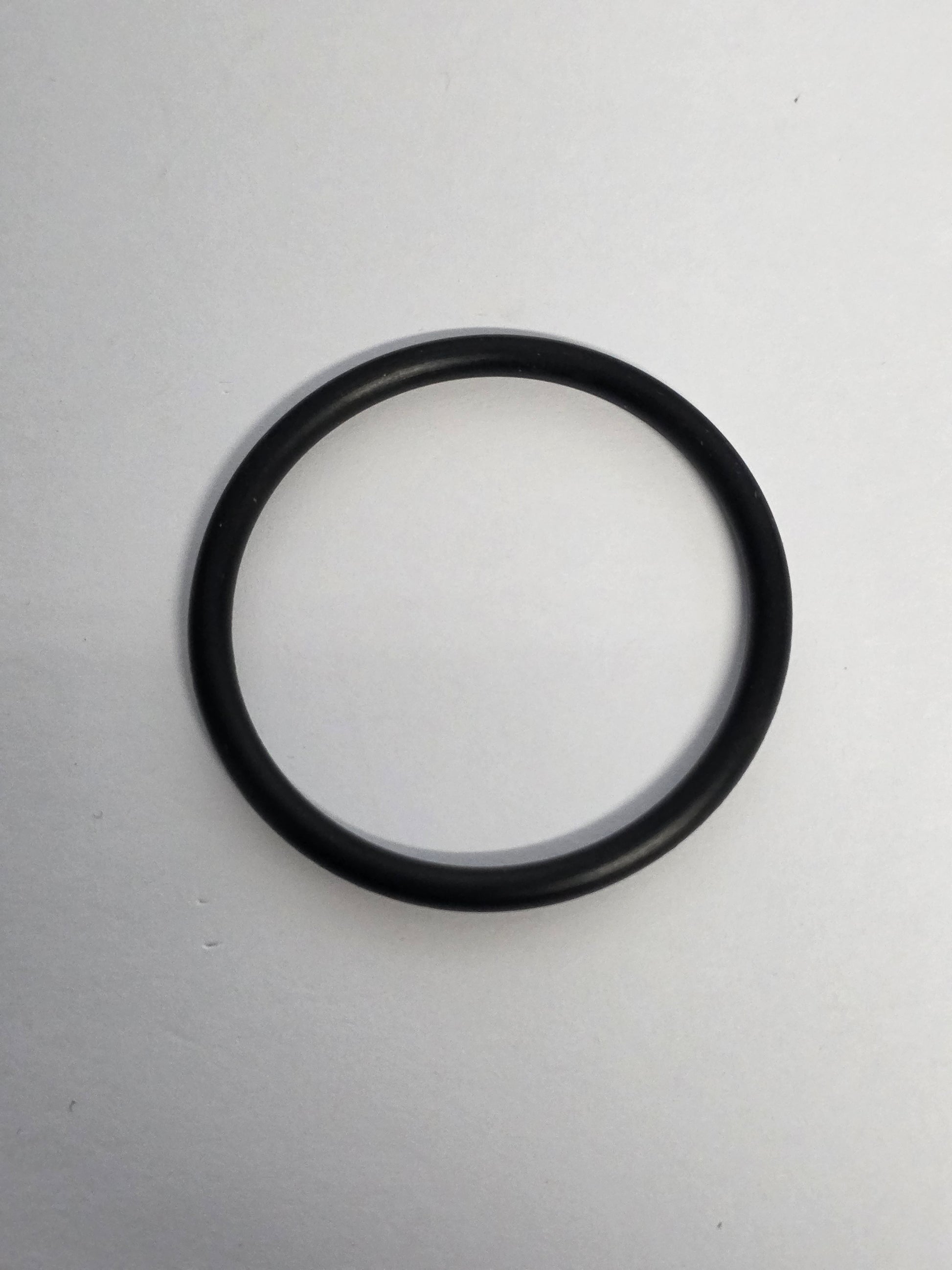

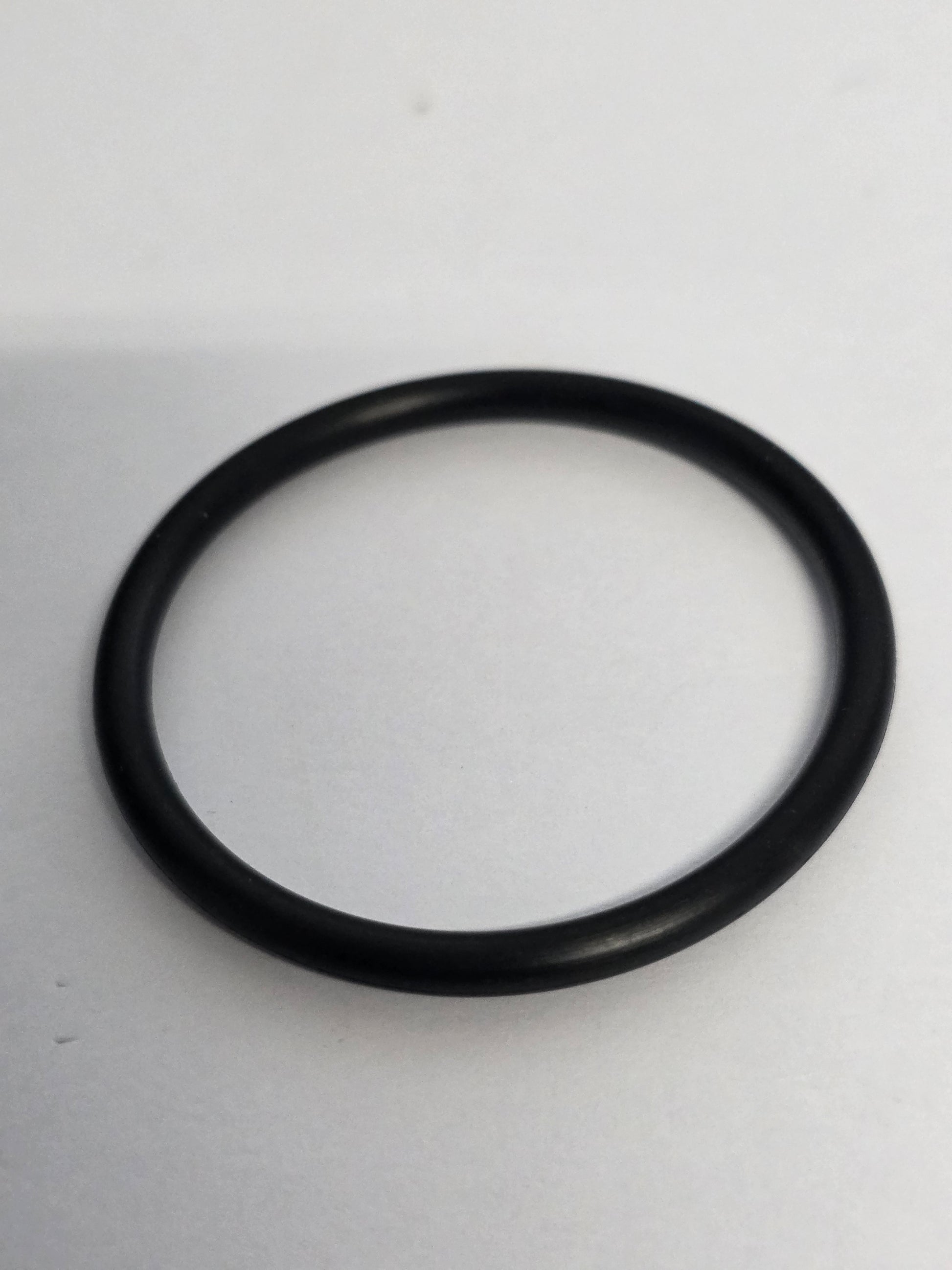

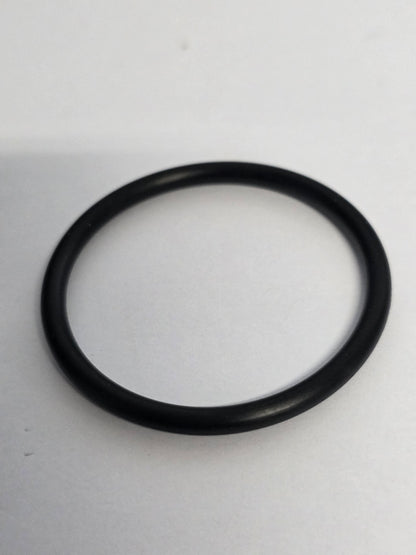

Genuine BRP Evinrude Johnson Shift-Rod Cover to Gearcase O-Ring - Part Number: 0338522
A genuine BRP O-ring used to seal the removable shift-rod cover to the lower-unit gearcase on selected Evinrude and Johnson outboards.
The O-ring sits around the cover assembly containing the shift lever and shift-rod linkage. It prevents water from entering the lower unit and stops gear lubricant escaping around the cover joint.
⚙️ Key Features
- Genuine BRP Evinrude Johnson OEM gearcase O-ring
- Correct BRP part number 0338522
- Seals the shift-rod cover to the gearcase housing
- Dimensions approximately 1-5/8-inch inside diameter x 1-13/16-inch outside diameter x 3/32-inch section
- GLM and EMP replacements available
🚤 Compatibility
Commonly used on
- Evinrude Johnson shift-rod cover assemblies
- Small and mid-range conventional gearcases
- Gearcases using the removable shift-lever cover design
Documented applications include
- Evinrude 40HP 1993
- Johnson and Evinrude 40HP gearcases
- Johnson 50HP 1998
- Johnson 50HP 2001
- Selected 45HP, 48HP, 50HP and related gearcases using cover assembly 0434588
- HP Range: Commonly 40HP - 50HP
- Engine Type: Evinrude Johnson carburetted two-stroke outboard
- Year Range: Approximately early 1990s - early 2000s, dependent on gearcase
🔌 Function
The O-ring seals the shift-linkage access cover to the gearcase while allowing the internal shift lever and rod to operate inside the housing.
⚠️ Common Signs of Failure
- Gear lubricant becomes cloudy or milky
- Oil leaks around the shift-rod cover
- Gearcase fails pressure or vacuum testing
- O-ring becomes flattened, hardened or pinched
- Corrosion develops beneath the cover
- Leakage begins after shift-linkage servicing
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 0338522 current BRP service reference
- 0769575 related BRP packaged service reference
OEM / Related Numbers
- 0338522
- 338522
- 0769575
- 769575
- 0316037 related cover-to-gearcase screw
- 0434588 related shift-rod cover assembly
- 0318372 related shift-rod O-ring
- 0333780 related shift-rod bushing
Aftermarket / Verified Equivalents
- GLM: 81300
- EMP: 25-02442
- Direct replacement O-ring: 338522
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
