0338813 Evinrude Johnson Carb Bowl Gasket | Genuine OEM BRP Outboard Part
0338813 Evinrude Johnson Carb Bowl Gasket | Genuine OEM BRP Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

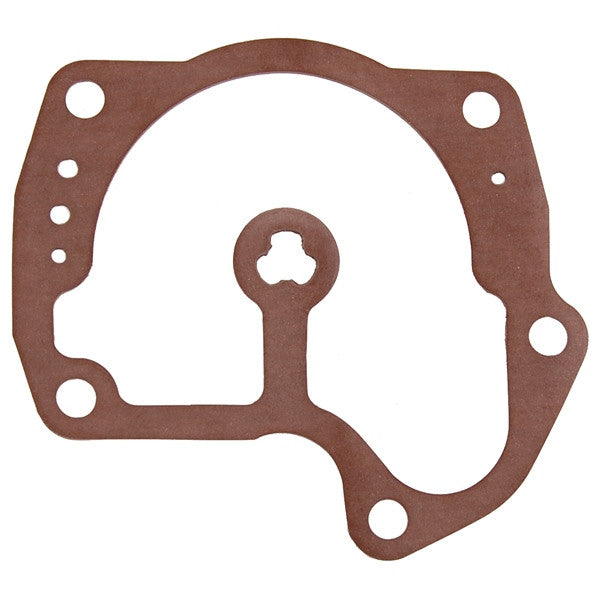

Genuine BRP Evinrude Johnson V6 and V8 Carburettor Float Bowl Gasket - Part Number: 0338813
A genuine BRP float-bowl gasket for selected high-horsepower Evinrude and Johnson carburetted two-stroke outboards.
The gasket seals the float chamber to the carburettor body, preventing fuel leakage and unmetered air entry while allowing the float and inlet-needle system to maintain the correct fuel level.
⚙️ Key Features
- Genuine BRP Evinrude Johnson OEM float-bowl gasket
- Correct BRP part number 0338813
- Used on selected V6 and V8 carburettors
- Available individually and in compatible carburettor repair kits
- Sierra and GLM replacements available
🚤 Compatibility
Commonly used on
- Evinrude Johnson V6 carburettor float chambers
- Evinrude Johnson V8 carburettor assemblies
Typically suits selected
- 120HP and 125HP V4 or V6 carburetted models
- 140HP
- 150HP and 175HP
- 185HP and 200HP
- 225HP and 235HP
- 250HP, 275HP and 300HP
- Selected 3.6-litre and 4.0-litre V8 applications
- Documented Evinrude and Johnson 140HP to 300HP models from approximately 1985 - 1991
- Additional compatible carburettors through approximately 2001
- HP Range: Commonly 120HP - 300HP
- Engine Type: Evinrude Johnson carburetted V4, V6 and V8 two-stroke outboard
- Year Range: Approximately 1985 - 2001, dependent on carburettor number
🔌 Function
The gasket seals the float bowl so the carburettor can maintain its calibrated fuel level and mixture.
⚠️ Common Signs of Failure
- Petrol leaks around the float-bowl joint
- Strong fuel odour beneath the cowl
- Carburettor loses prime
- Engine runs lean because air enters at the bowl joint
- Gasket becomes brittle, swollen or split
- Bowl will not reseal after carburettor cleaning
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 0777761 related BRP packaged service reference
- 0338813 current individual gasket reference
- 0326830 related earlier gasket reference
OEM / Related Numbers
- 0338813
- 338813
- 0326830
- 326830
- 0777761
- 777761
- Related float, inlet needle, carburettor body and float-chamber components
Aftermarket / Verified Equivalents
- Sierra: 18-2582
- GLM: 37760
- Aftermarket reference: 01-1345
- Aftermarket reference: 0418-2582
- Aftermarket reference: 34070
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
