0349729 Evinrude Johnson Clamp Ear 41.0mm | Genuine OEM BRP Outboard Part

🔧 Product Description

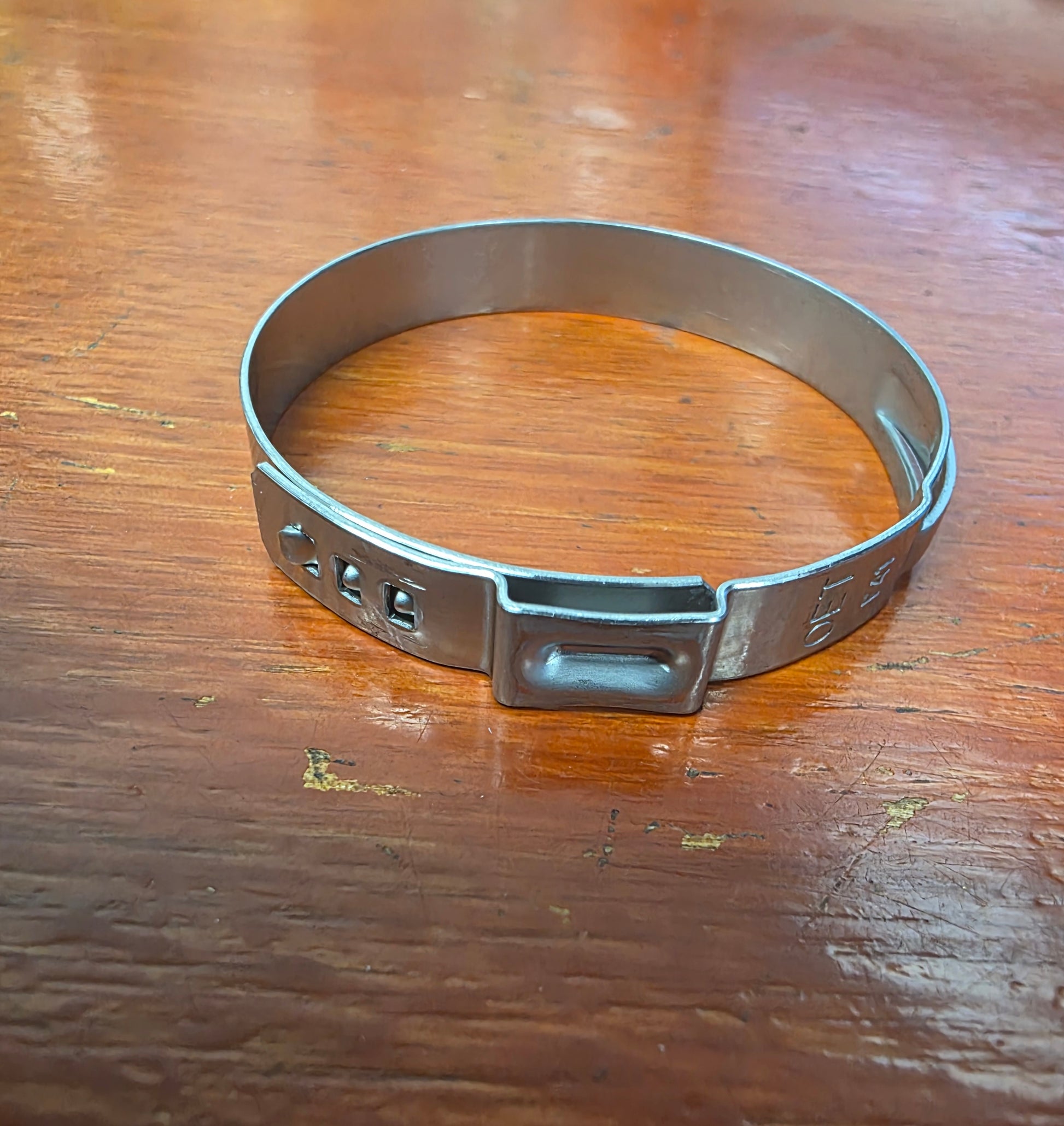

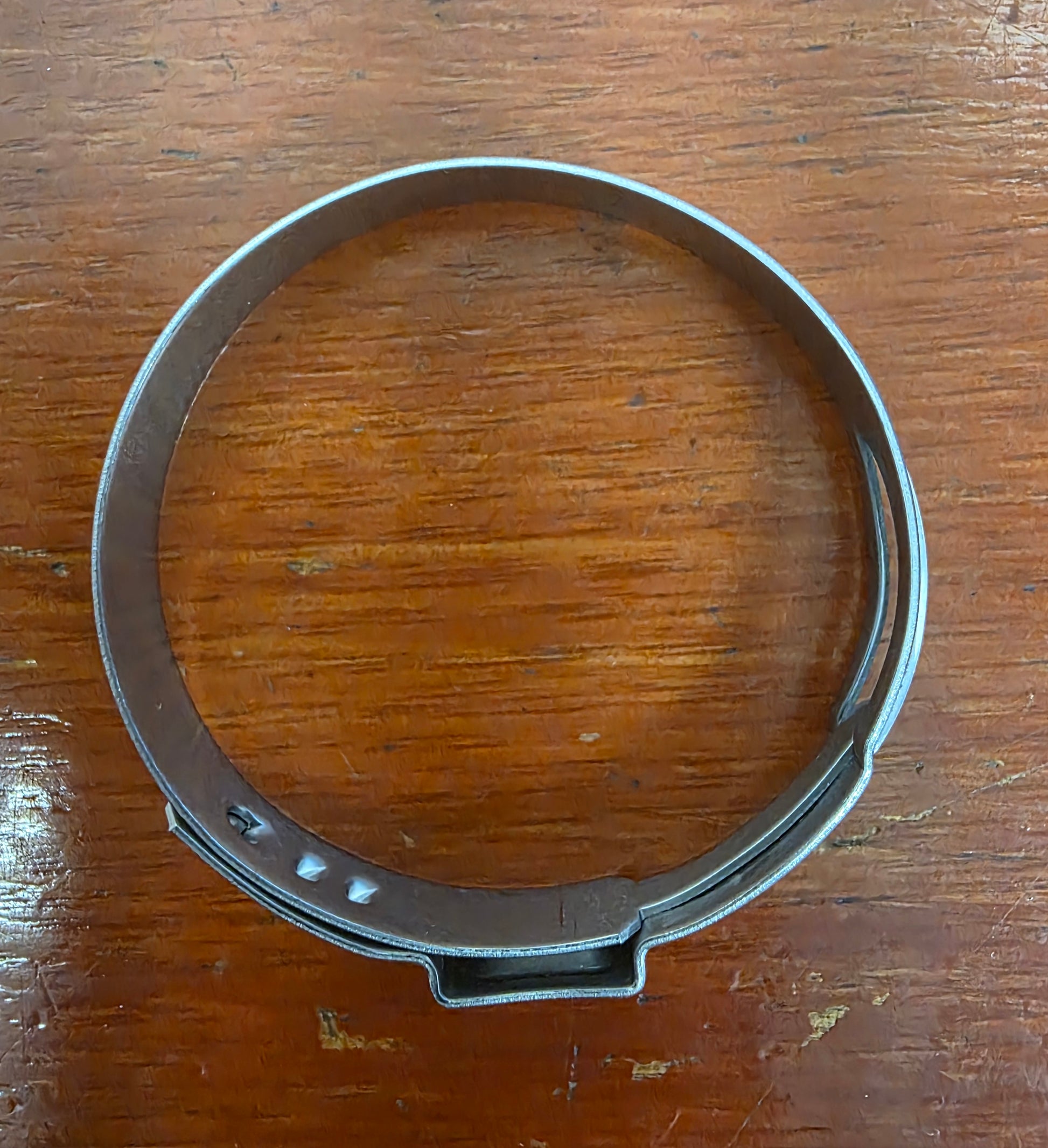

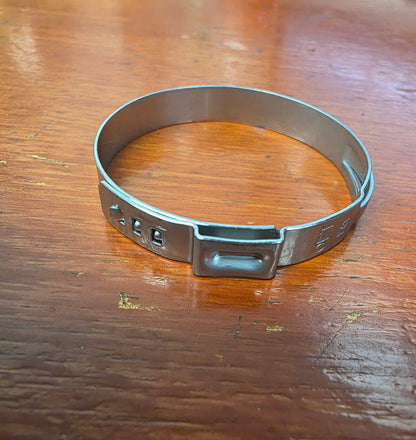

Genuine BRP Evinrude Johnson 41.0mm Stainless Ear Clamp - Part Number: 0349729

A genuine BRP single-use 41mm ear clamp used to secure selected cooling, air-intake, exhaust, crankcase and rubber-grommet connections on Evinrude and Johnson outboards.

The clamp is compressed at its formed ear using suitable ear-clamp pincers, creating even circumferential pressure around the hose or rubber coupling.

⚙️ Key Features

• Genuine BRP Evinrude Johnson OEM ear clamp

• Correct BRP part number 0349729

• Nominal closed size: 41.0mm

• Provides an even, tamper-resistant hose connection

• Used on cylinder, crankcase and hose-routing assemblies

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0349729 current BRP 41.0mm ear-clamp reference

OEM / Related Numbers:

• 0349729

• 349729

• Related crankcase grommet, cooling hose and air-intake connector references

• Two clamps may be required on compatible assemblies

Aftermarket / Verified Equivalents:

• Marine-grade 41.0mm stainless ear clamp

• Oetiker-style ear clamp of matching installed diameter and band width

• Direct replacement clamp: 349729

🚤 Compatibility

Documented applications include:

• Evinrude 100HP - approximately 2004-2005

• Evinrude and Johnson 115HP - approximately 2002-2012

• Evinrude E-TEC 130HP - approximately 2009-2012

• Evinrude 135HP - approximately 2002-2006

• Evinrude 150HP direct-injection and E-TEC engines

• Selected 175HP, 200HP, 225HP and 250HP V6 applications using the same 41mm hose or grommet connection

• Johnson 115HP V4 cylinder and crankcase assemblies

• Evinrude 150HP 2004 cylinder and crankcase assembly

• HP Range: Commonly 100HP - 250HP

• Engine Type: Evinrude Johnson direct-injection and E-TEC two-stroke outboard

• Year Range: Approximately 2002 onward, dependent on hose or grommet diameter

🔌 Function

The ear clamp applies uniform pressure around the hose, grommet or rubber coupling to prevent air, water or exhaust leakage.

Common signs replacement is required:

• Existing clamp has been cut or removed

• Hose joint shows leakage or movement

• Clamp ear is cracked or corroded

• Hose can rotate on its fitting

• Clamp has lost tension

• Rubber connection is being replaced

Installation note:

• Ear clamps are normally single-use

• Use proper ear-clamp pincers for even compression

• Confirm the hose and fitting are fully seated before closing the clamp

📦 Condition

• Genuine BRP part

• Brand new

• Supplied in original or equivalent packaging
