0377978 Evinrude/Johnson 10 x 11 Pin-Drive Aluminium Propeller | Genuine Used Part

🔧 Product Description

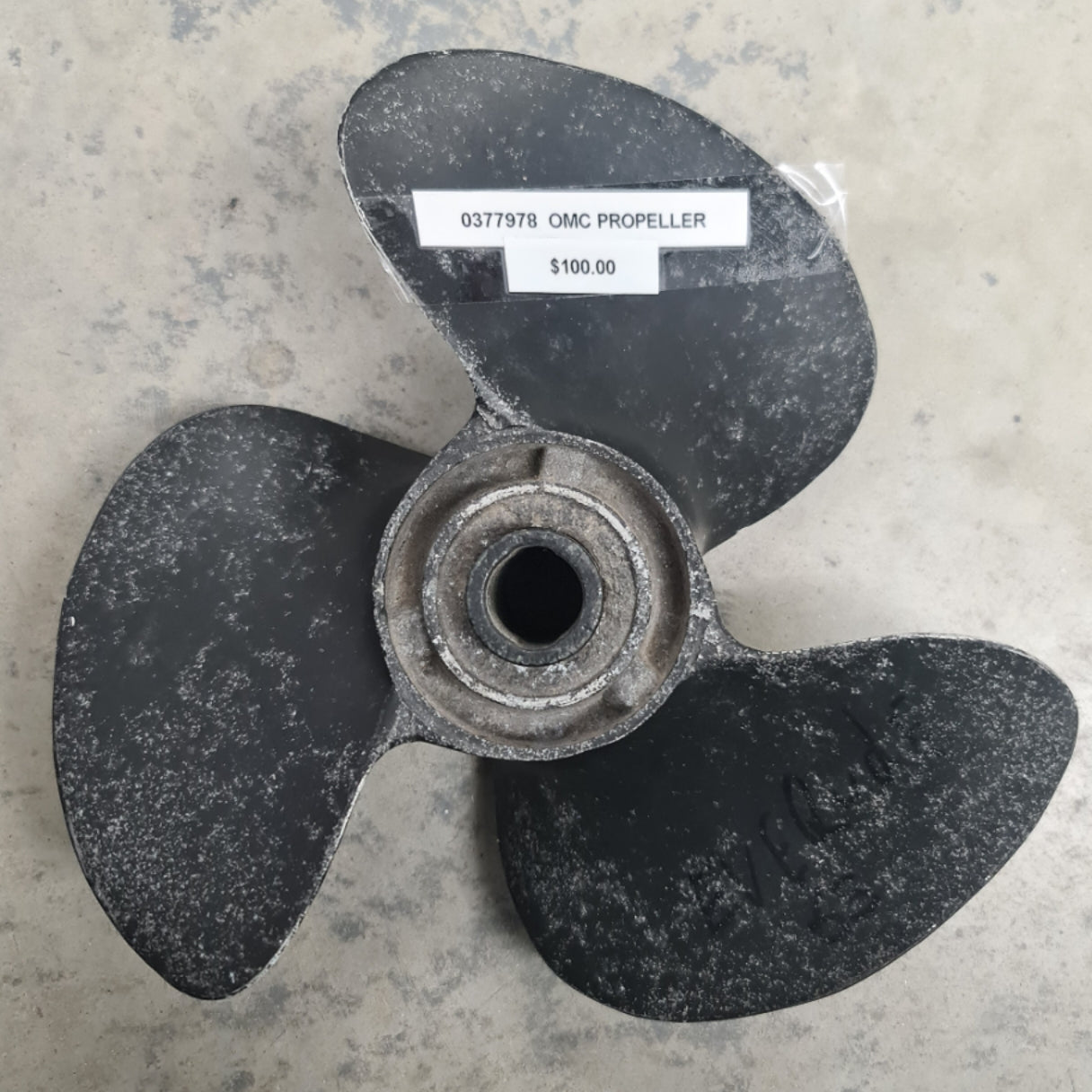

Genuine Evinrude Johnson 10 x 11 Pin-Drive Aluminium Propeller - Part Number: 0377978

A genuine used three-blade right-hand aluminium propeller for early Evinrude, Johnson and Gale V4 outboards using the non-thru-hub pin-drive propeller shaft.

This obsolete 10 x 11 propeller transfers drive through a removable pin in the early 3/4-inch flat propeller shaft. It must not be fitted to later splined or thru-hub-exhaust gearcases.

⚙️ Key Features

• Genuine OMC / Evinrude / Johnson OEM propeller

• 10-inch diameter x 11-inch pitch

• Three-blade aluminium construction with right-hand rotation

• Pin-drive hub for the early 3/4-inch flat shaft

• Direct Michigan Wheel cross-reference available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0377978 current known OMC service reference

• 377978 original unprefixed reference

OEM / Related Numbers:

• 0377978

• 377978

Aftermarket / Verified Equivalents:

• Michigan Wheel: 12044 - direct 10 x 11 aluminium equivalent

🚤 Compatibility

Commonly used on:

• Early Evinrude, Johnson and Gale V4 pin-drive gearcases

• Non-thru-hub-exhaust propeller shafts using a removable drive pin

Typically suits:

• Engine models:

• Johnson / Evinrude 60HP - approximately 1964-1967

• Johnson / Evinrude 65HP - 1968

• Johnson / Evinrude 70HP early V4 pin-drive applications

• Johnson / Evinrude 75HP Speedifour - approximately 1960-1965

• Johnson / Evinrude 80HP V4 - approximately 1958-1968

• Johnson / Evinrude 85HP V4 - through 1968

• Johnson / Evinrude 90HP V4 - through 1968

• Gale-branded 60HP-90HP V4 outboards using the same 3/4-inch flat pin-drive shaft

• HP Range: 60HP - 90HP

• Engine Type: Early OMC / Evinrude / Johnson / Gale V4 two-stroke outboard with pin-drive gearcase

• Year Range: Approximately 1958 - 1968

🔌 Function

The propeller converts engine torque into thrust through the shaft drive pin. The 11-inch pitch provides a mid-range load and speed option for the compatible early V4 gearcase.

Common signs of failure:

• Blades are bent, chipped, cracked or out of track

• The rubber hub slips and engine RPM rises without matching boat speed

• Propeller vibration increases with engine speed

• Cavitation, ventilation or poor acceleration develops after impact damage

• Hub splines, drive-pin surfaces or thrust faces are worn or corroded

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
