0378716 Hexagon nut, low profile, with clamping piece (non-metal insert) 7/16" | Marine Stainless Fastener

🔧 Product Description

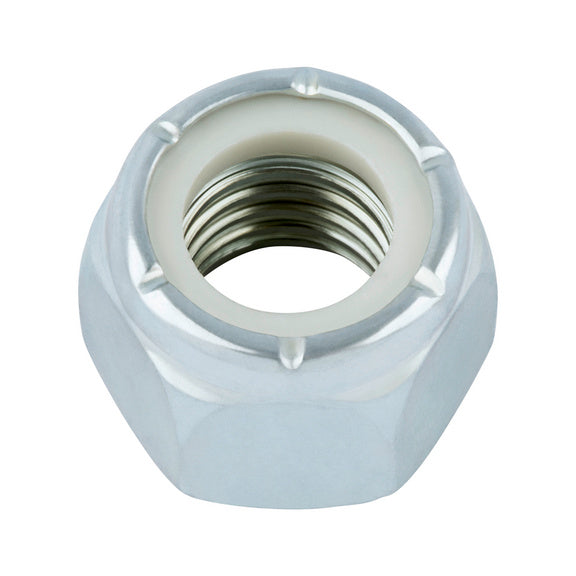

Hexagon nut, low profile, with clamping piece (non-metal insert) 7/16" - Part Number: 0378716

⚙️ Key Features

• Manufactured to DIN 985 standard
• Plastic clamping-piece insert generates locking torque to resist loosening
• Nuts with reduced load capacity
• Hexagon nuts with lower nominal height complying with the withdrawn DIN 985 standard cannot support test loads as per DIN EN ISO 20898-2
• The strength class designation has two vertical bars added before and after the strength code to differentiate.
• DIN 985 has been replaced by ISO 10511, 10512 and 7040
• When the bolt-nut connection is established, the screw thread is secured by the plastic ring. The high level of friction created by the clamping forces between the thread profiles generates the locking torque necessary to maintain the preload force.
• No damage to the thread surfaces
• Operating temperature range: -70 °C to +120 °C
• When using a nut and bolt of the same size, the difference between strength class |8| and |10| is a greater load capacity of approximately 40 %

📏 Specifications

• Thread size: 7/16"

📦 Condition

• Brand new genuine product
• Supplied in original packaging
