0382407 Evinrude Johnson Bearing | Genuine OEM BRP Outboard Part

🔧 Product Description

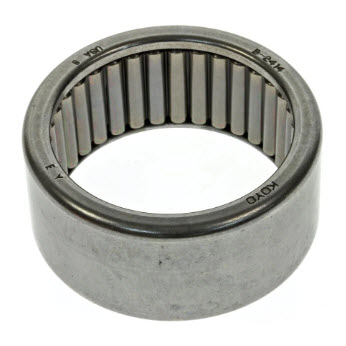

Genuine BRP Evinrude Johnson Forward Gear Needle Bearing Assembly - Part Number: 0382407

A genuine BRP caged needle-roller bearing used to support the forward gear in selected Evinrude and Johnson lower units.

The bearing fits between the forward gear and propeller shaft or bearing-housing assembly, allowing the gear to rotate freely around the shaft until the clutch dog engages it. BRP diagrams may describe the position as the front or forward-gear bearing.

⚙️ Key Features

• Genuine BRP Evinrude Johnson OEM needle bearing
• Correct BRP part number 0382407
• Supports the forward gear on the propeller shaft
• Caged needle-roller construction
• Sierra and GLM replacements available

🚤 Compatibility

Documented gearcase applications include

• Legacy Johnson and Evinrude 90HP and 115HP lower units
• Evinrude E-TEC 50HP, 55HP and 60HP F-Type gearcases
• Evinrude E-TEC 75HP and 90HP gearcases
• Evinrude E-TEC 90HP, 115HP and 130HP S2 gearcases
• Evinrude E-TEC 150HP through 250HP L2 and O-Type gearcases
• Selected 200HP L2 gearcases
• Additional conventional V4, V6 and V8 lower units where 0382407 is specified
• HP Range: Used across selected 40HP - 300HP gearcases
• Engine Type: Evinrude Johnson conventional two-stroke, direct-injection and E-TEC outboard
• Year Range: Gearcase dependent

🔌 Function

The bearing supports the forward gear and allows it to rotate independently of the propeller shaft until forward gear is selected.

⚠️ Common Signs of Failure

• Lower unit growls or whines in forward gear
• Forward gear has excessive radial movement
• Needle rollers are pitted, discoloured or missing
• Metal particles appear in the gear lubricant
• Gear teeth show uneven contact wear
• Bearing becomes damaged after water contamination

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0382407 current BRP bearing reference
• 0777577 related packaged service reference

OEM / Related Numbers

• 0382407
• 382407
• 0777577
• 777577
• Related forward gear, propeller shaft and bearing-housing references

Aftermarket / Verified Equivalents

• Sierra: 18-1351
• GLM: 22870
• Direct replacement forward-gear needle bearing: 382407

📦 Condition

• Genuine BRP part
• Brand new
• Supplied in original or equivalent packaging
