0382795 BRP Gearbox (L) | Genuine Used Part

🔧 Product Description

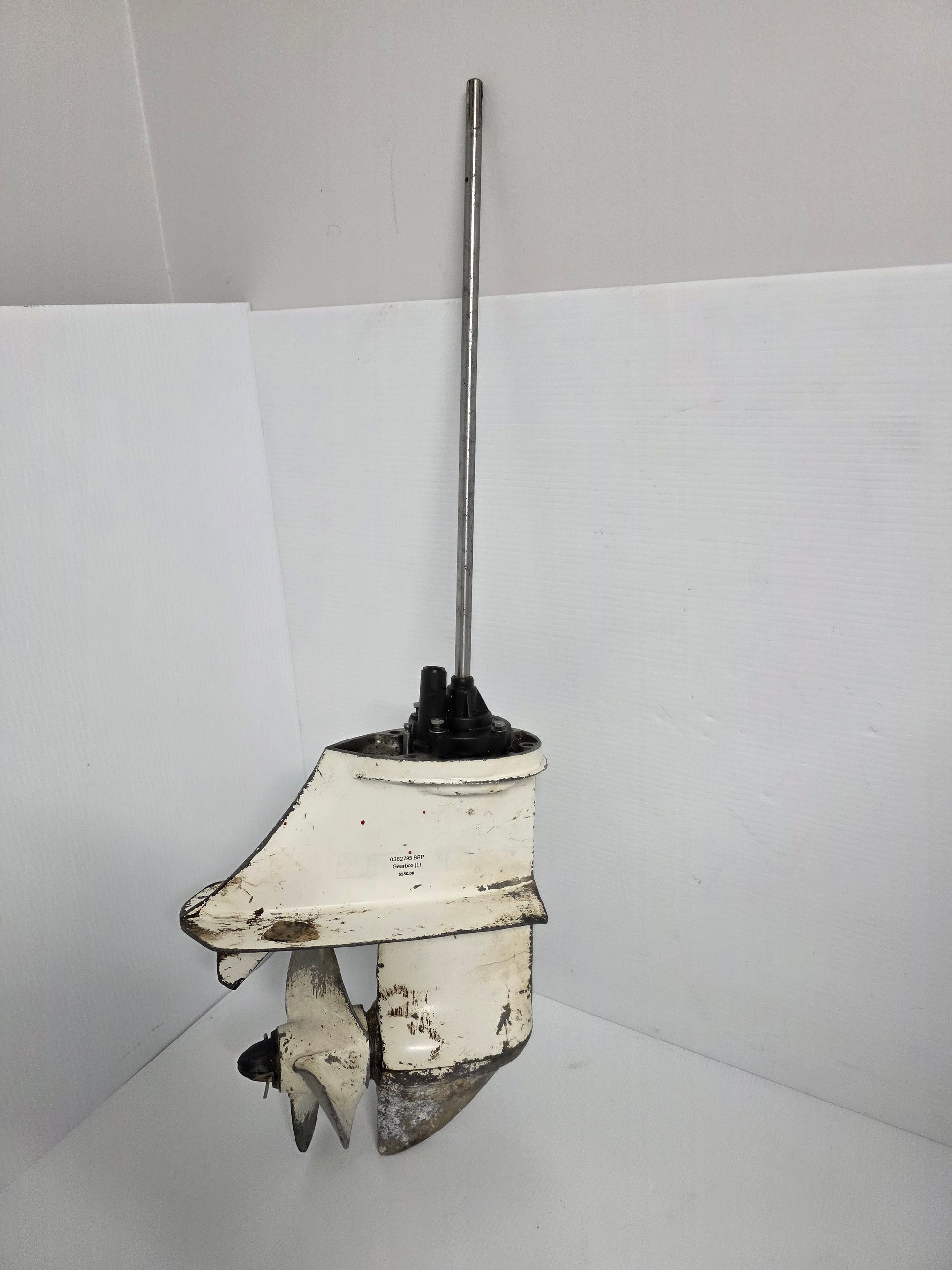

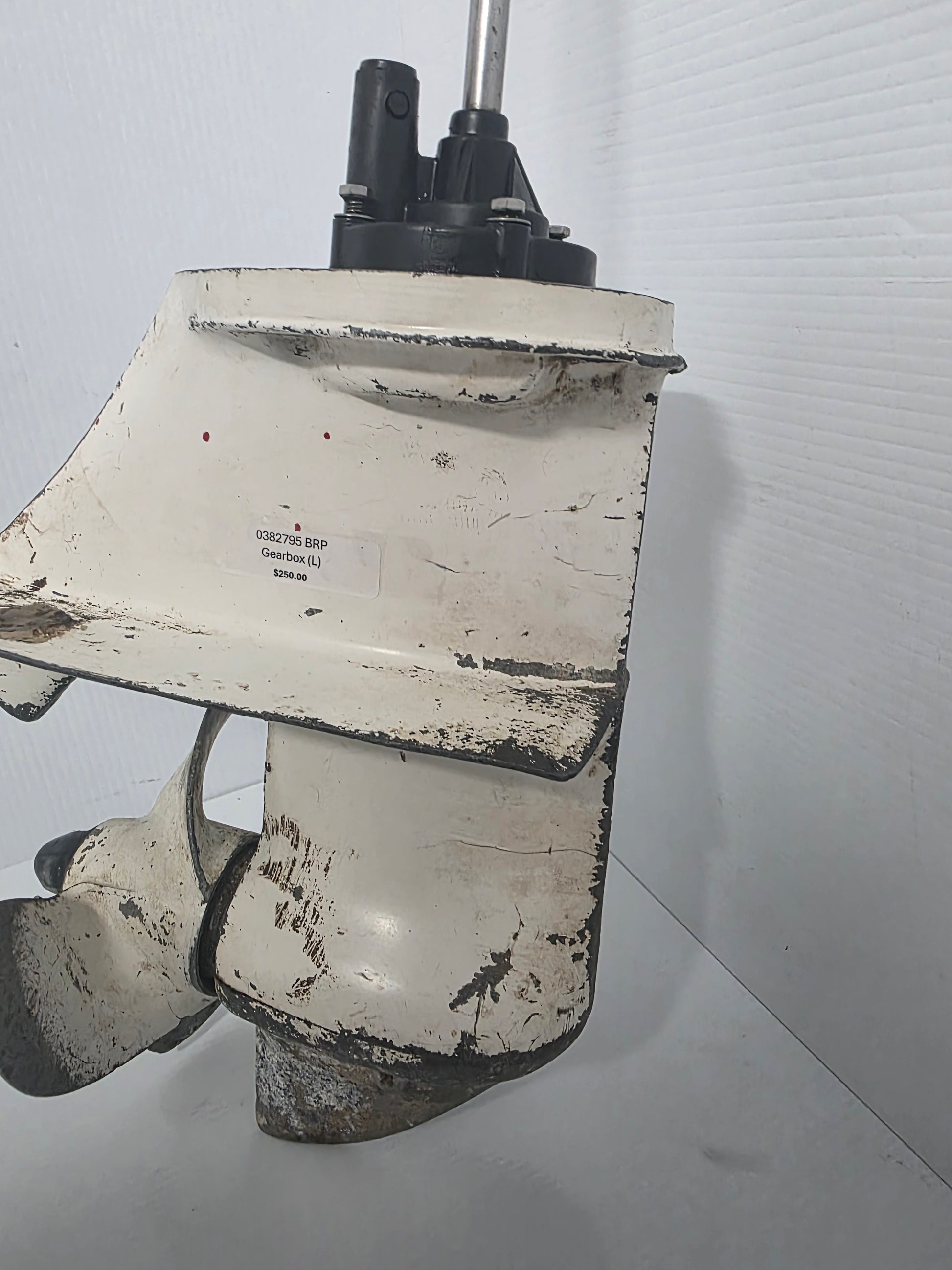

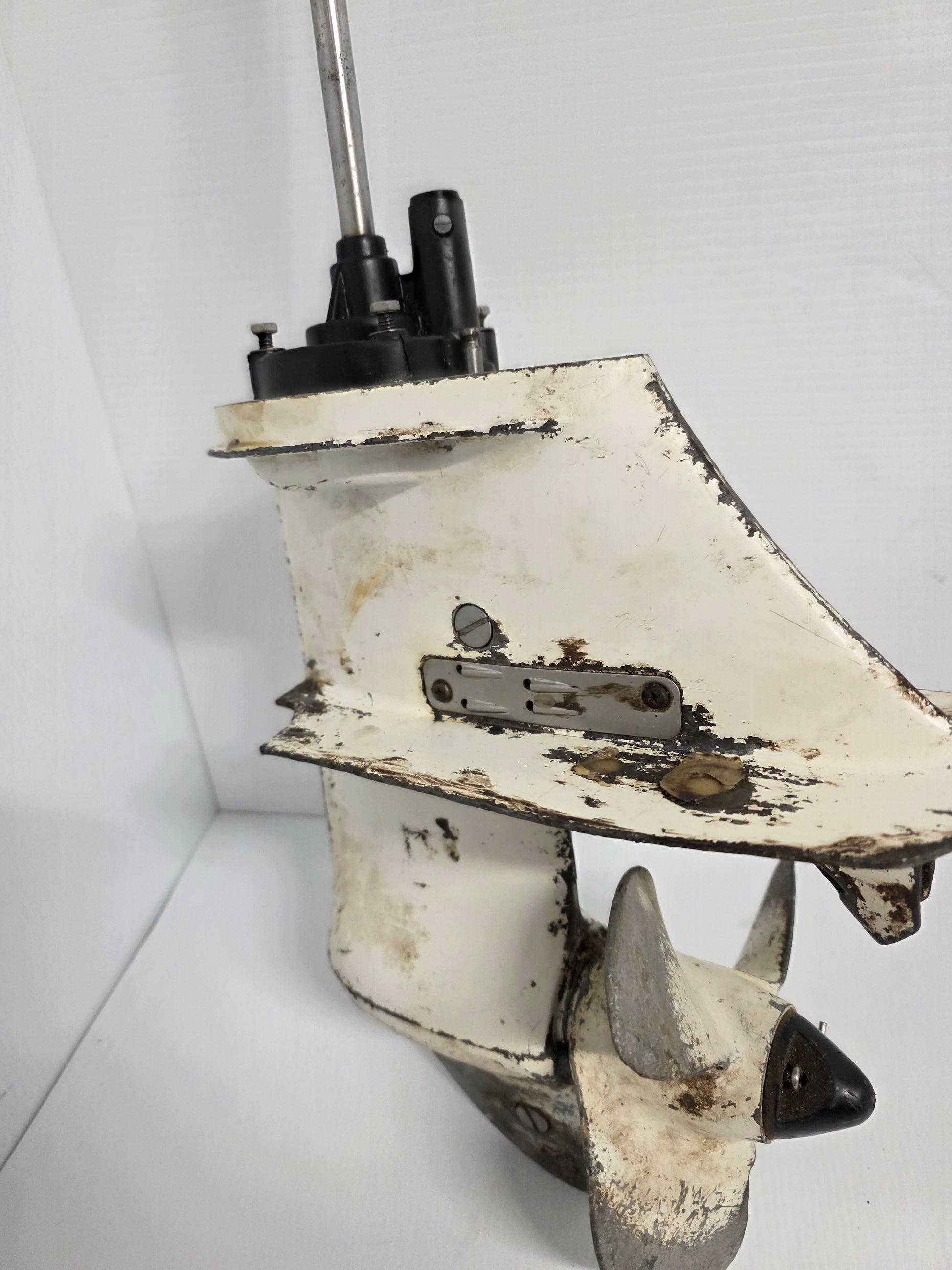

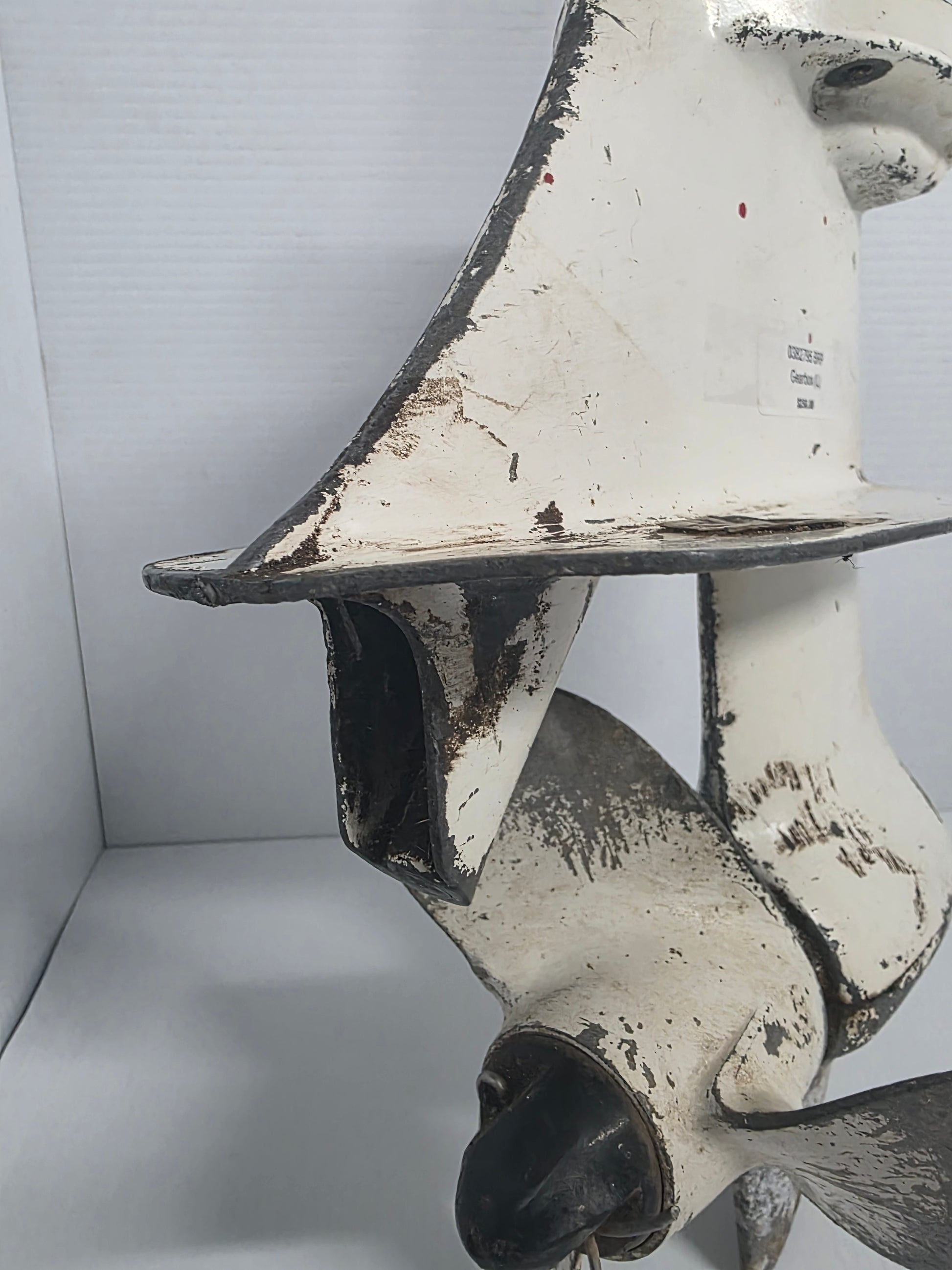

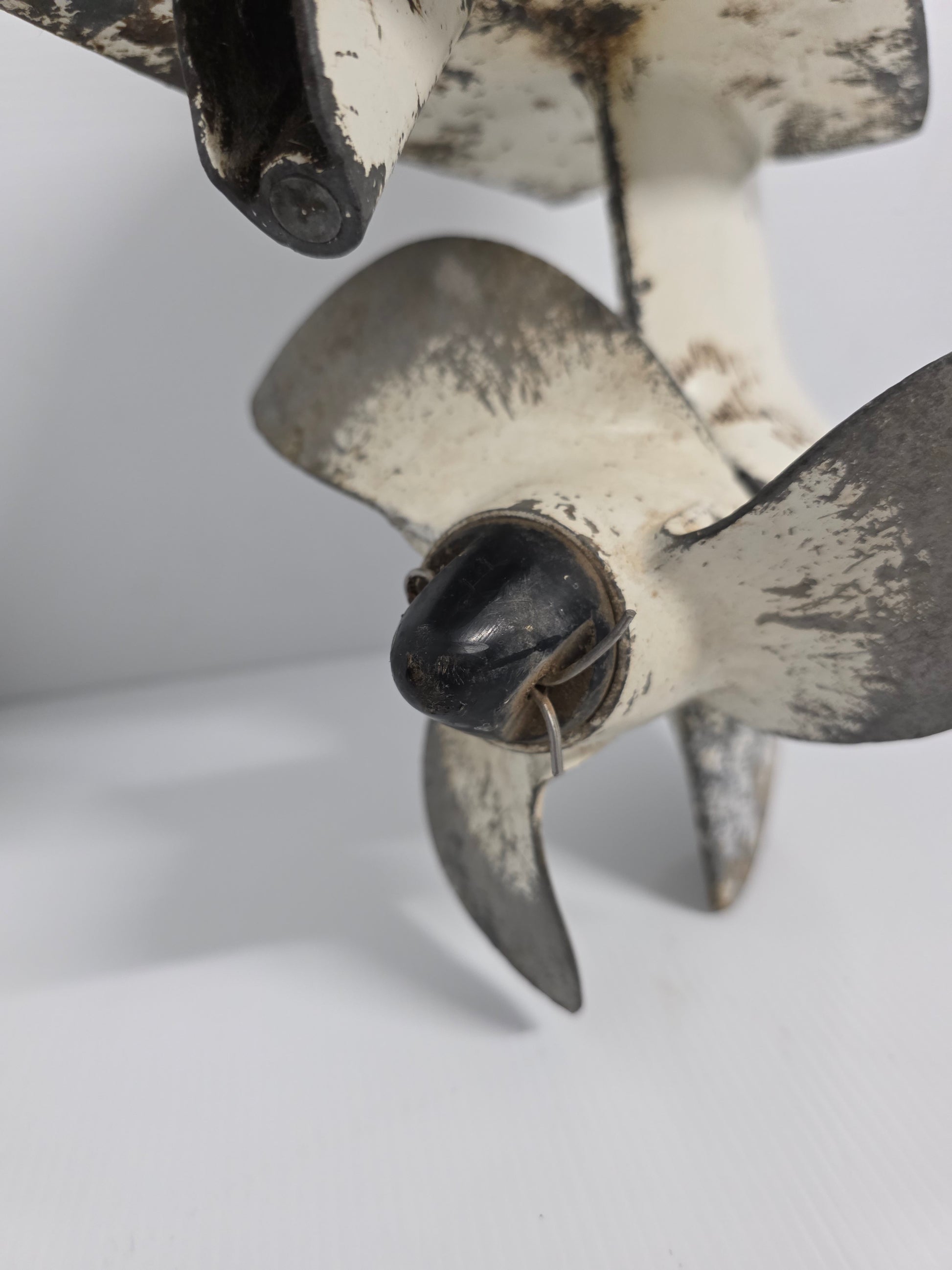

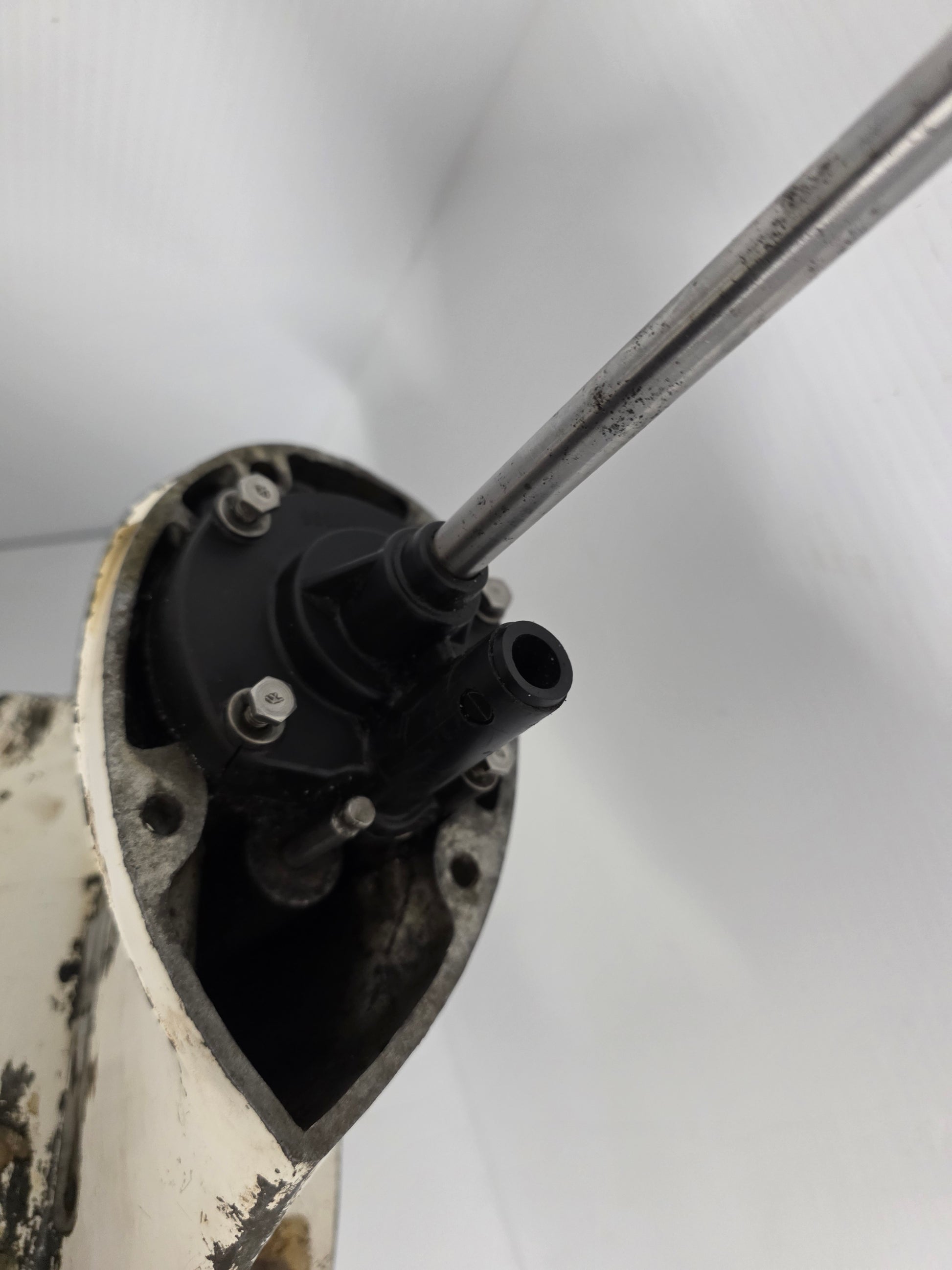

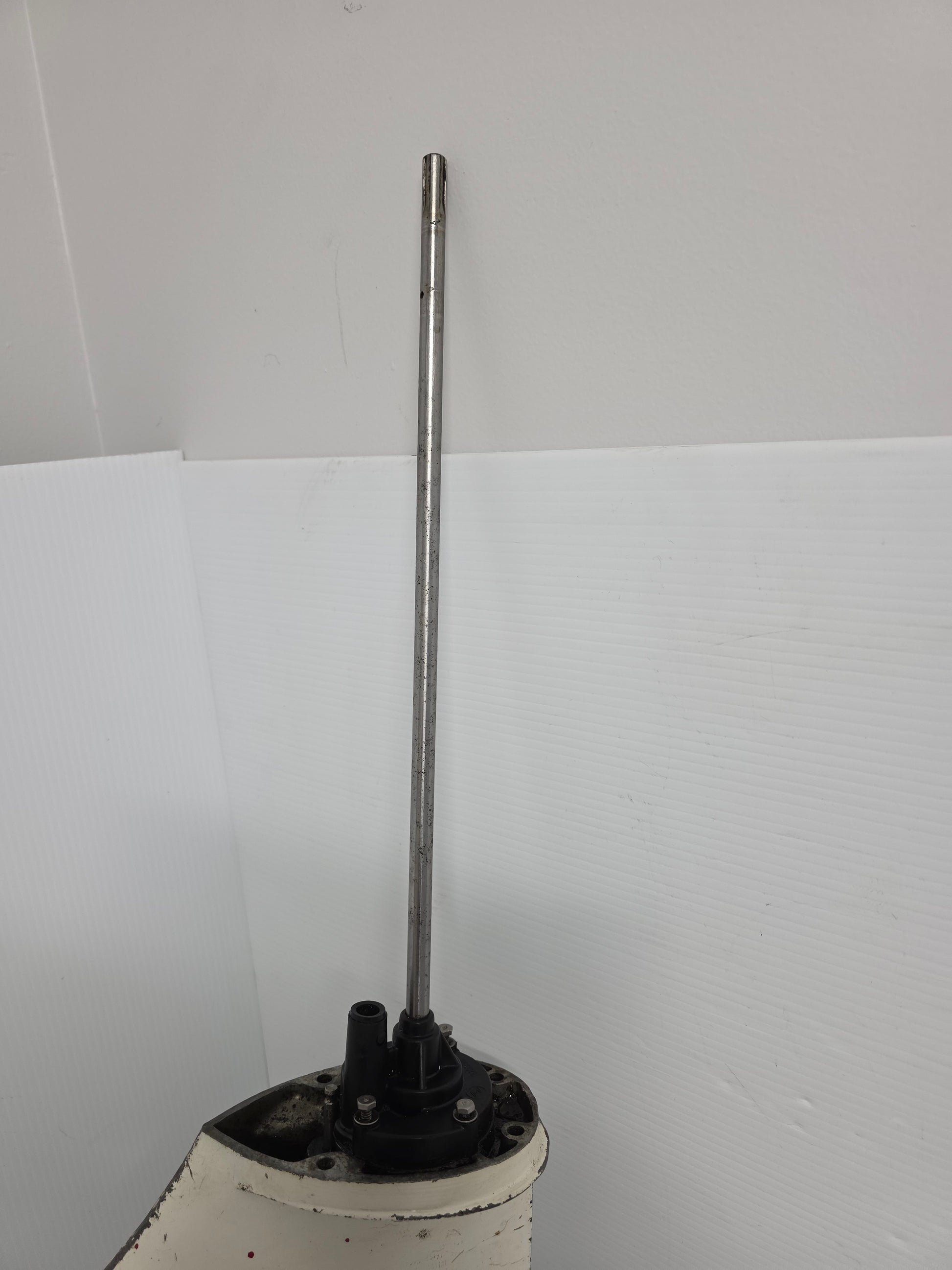

Genuine Johnson Evinrude 6HP Gearcase Assembly - Part Number: 0382795

A genuine OMC complete gearcase assembly for selected vintage Johnson and Evinrude 6HP two-stroke outboards.

The supplied listing identifies an "L" long-shaft unit; however, 0382795 is the base complete gearcase service number found in standard 6HP diagrams. Shaft configuration must be confirmed from the fitted driveshaft and any exhaust-housing extension.

⚙️ Key Features

• Genuine OMC complete lower unit
• Correct part number 0382795 / 382795
• Mechanical forward-neutral-reverse gearcase
• Designed for vintage 6HP twin-cylinder engines
• Includes gear housing and internal geartrain where supplied complete
• Original two-piece / cavitation-plate exhaust-era design

🚤 Compatibility

Documented on selected

• 1970 Johnson 6R70B
• 1971 Johnson 6HP model families
• 1975 Johnson 6R75R
• 1975 Evinrude 6504R
• Related Johnson and Evinrude Fisherman 6HP models from approximately the late 1960s through the 1970s
• Standard and long-shaft versions only where the correct driveshaft and extension housing are fitted
• Engine Type: OMC twin-cylinder carburetted two-stroke outboard
• HP Range: 6HP
• Fitment Requirement: Verify the complete OMC model number, driveshaft length and shift-rod configuration

🔌 Function

The gearcase reduces engine speed, changes the direction of power through the bevel gears and clutch dog and turns the propeller shaft in forward or reverse.

⚠️ Common Signs of Failure

• Gear oil contains water or metal
• Propeller shaft is bent
• Unit jumps out of gear
• Driveshaft or pinion bearings are noisy
• Shift rod is seized
• Housing is cracked or heavily corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0382795 original documented complete gearcase assembly
• No direct modern replacement confirmed

OEM / Related Numbers

• 0382795
• 382795
• 0382796 related bearing-housing and retainer assembly
• 0381026 related standard driveshaft on selected models
• Related long-shaft driveshaft and extension components
• Related propeller shaft, clutch dog and water-pump components

Aftermarket / Verified Equivalents

• Specialist rebuilt 6HP OMC gearcase
• Used complete Johnson / Evinrude 6HP lower unit
• GLM and Sierra seals, impellers and individual water-pump components are available for compatible vintage gearcases
• No verified new complete aftermarket gearcase

📦 Condition

• Genuine used complete gearcase
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Shaft length must be verified before purchase
• Pressure and vacuum testing is recommended before installation
