0383662 BRP Carburettor | Genuine Used Part

0383662 BRP Carburettor | Genuine Used Part

$100.00 AUD
$100.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

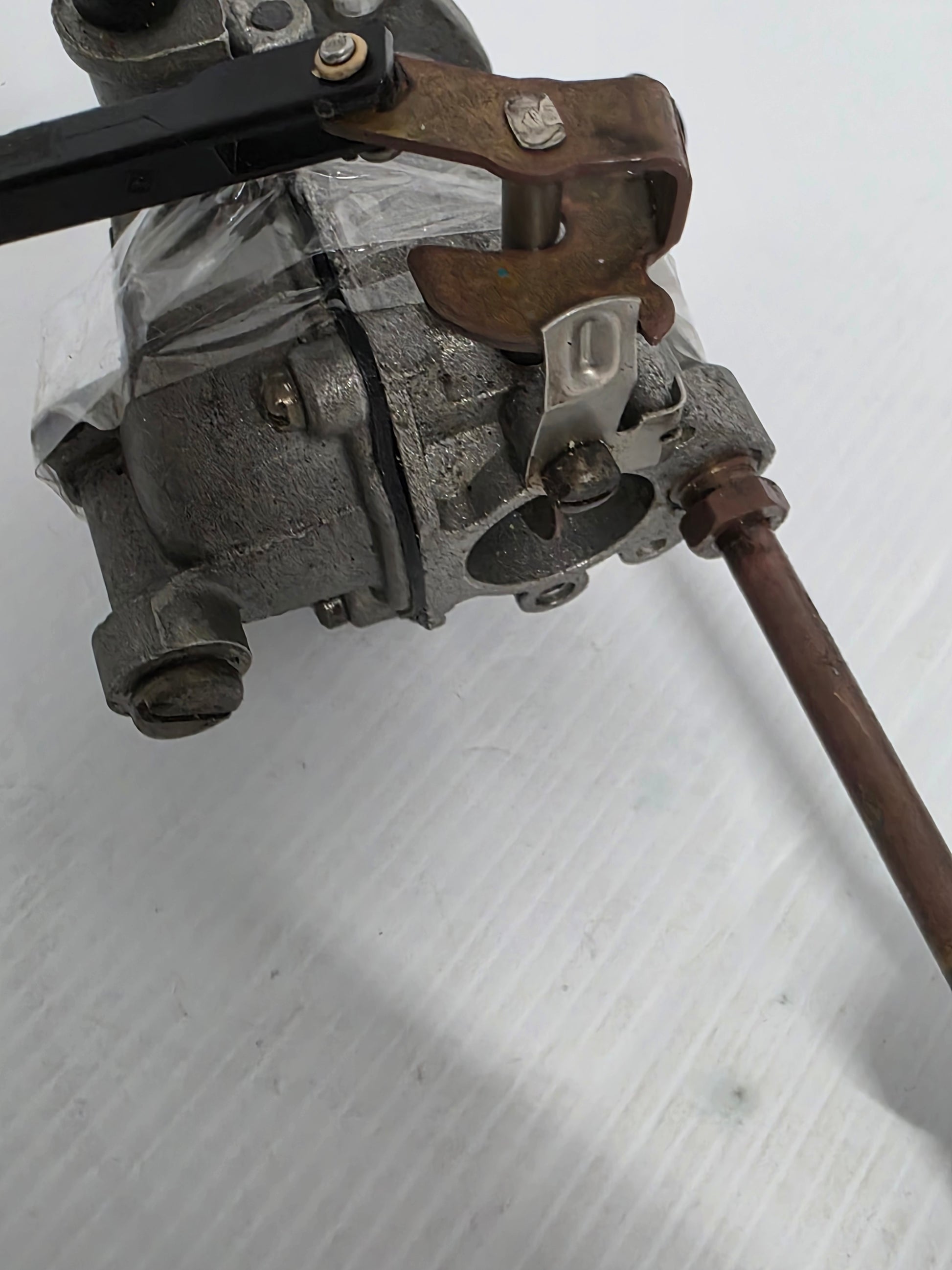

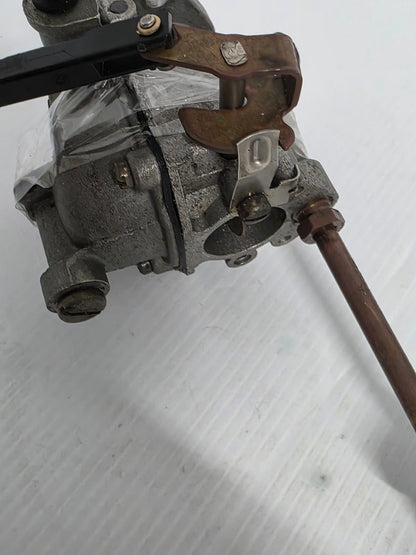

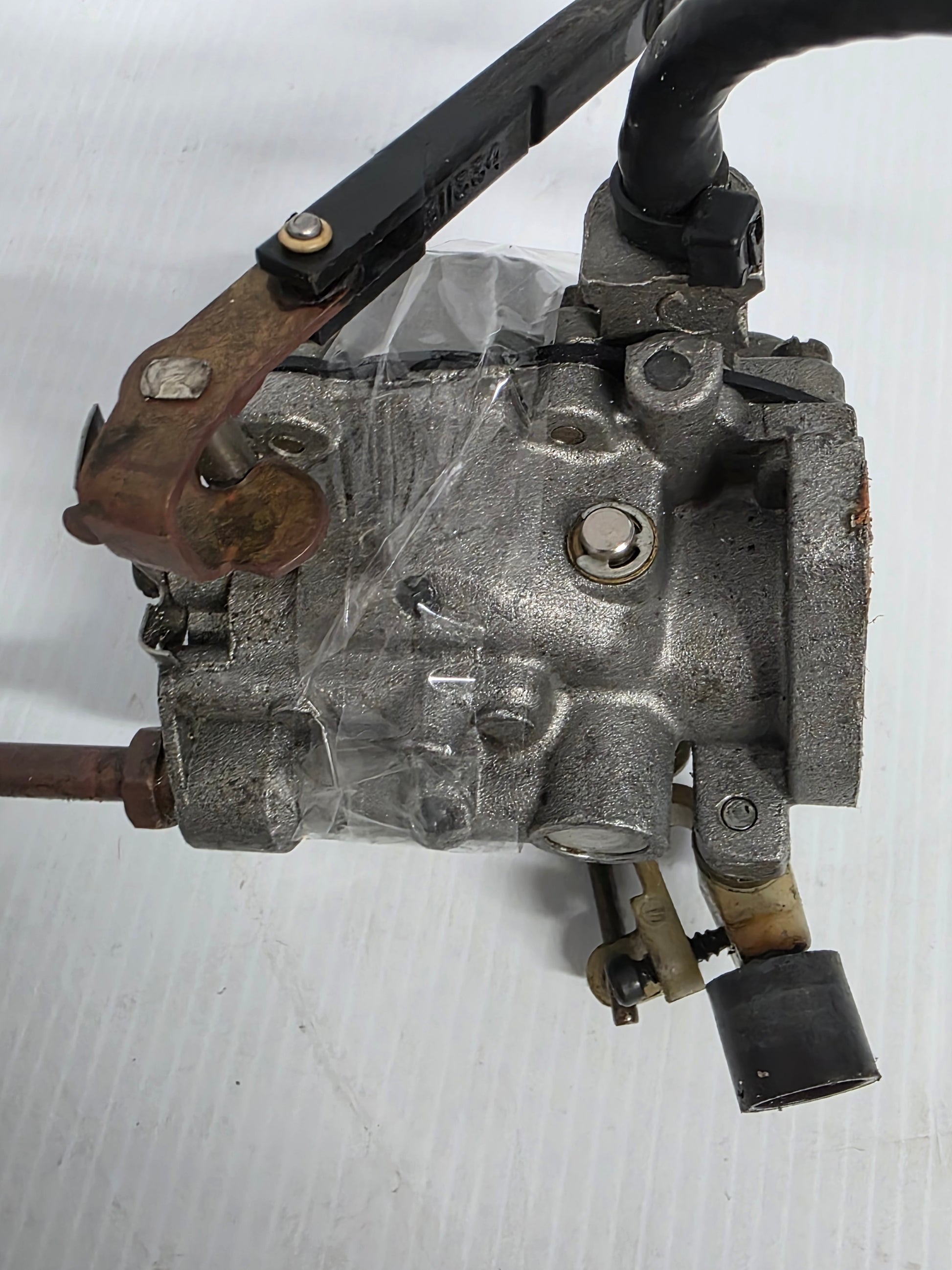

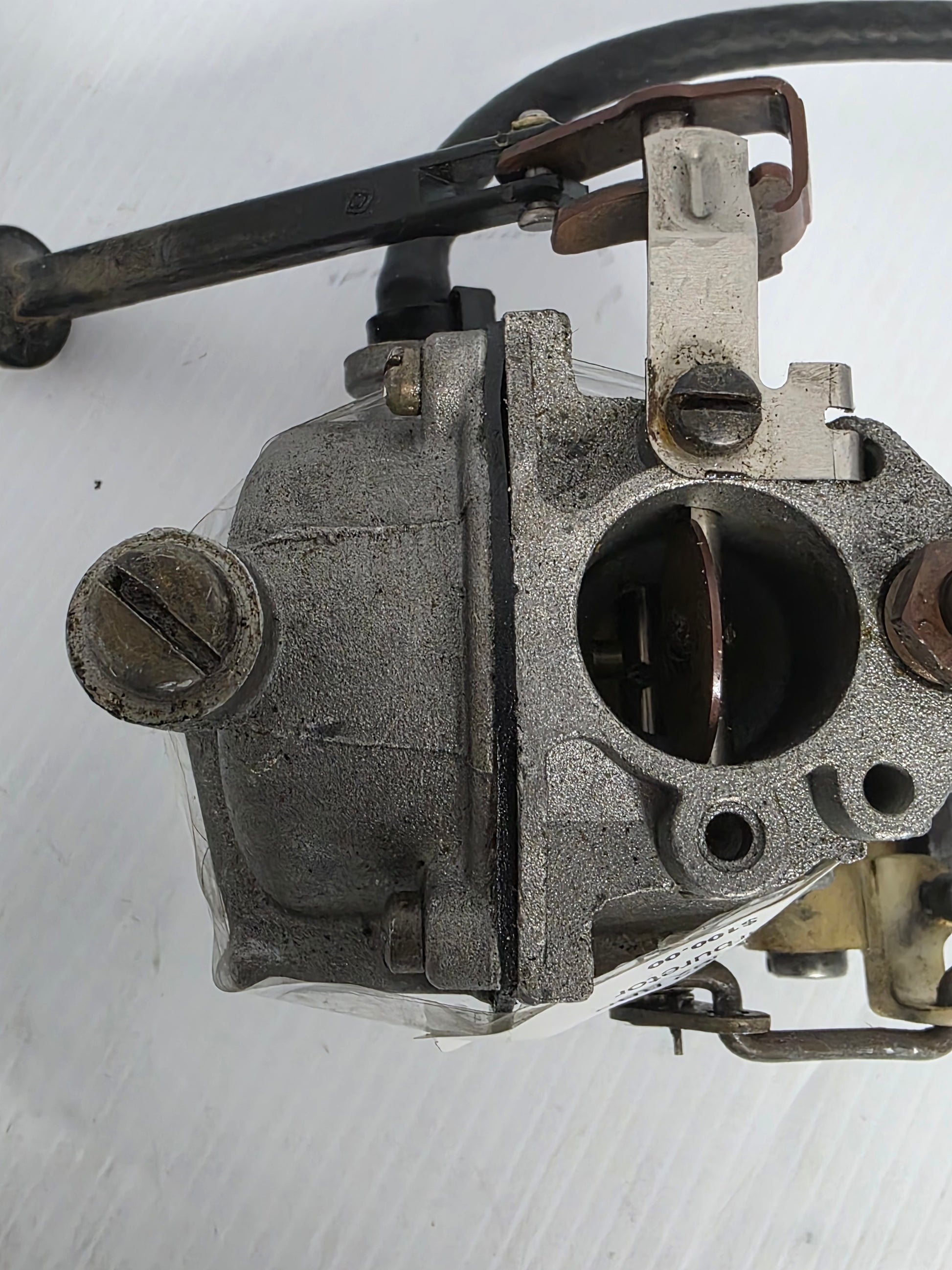

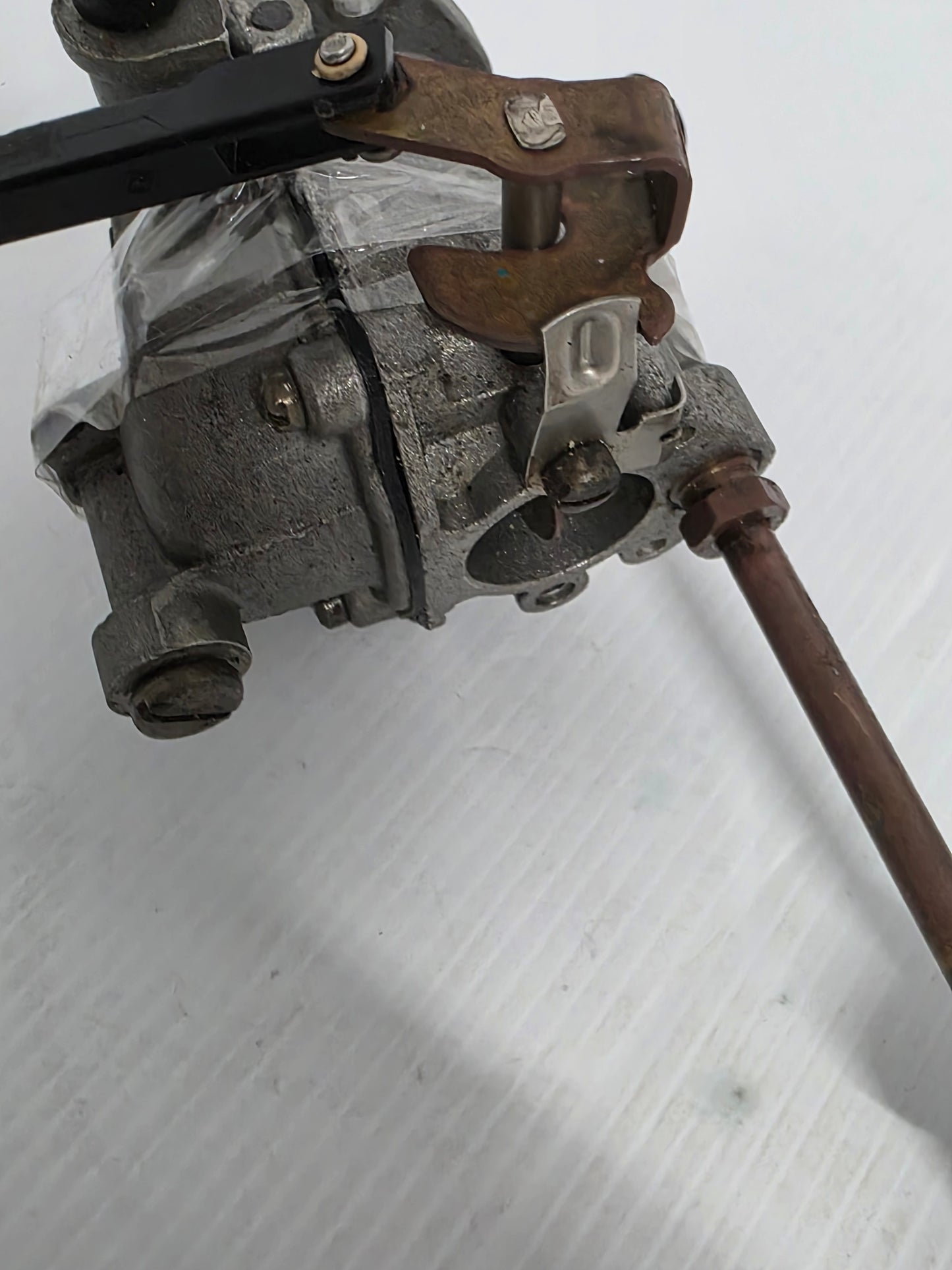

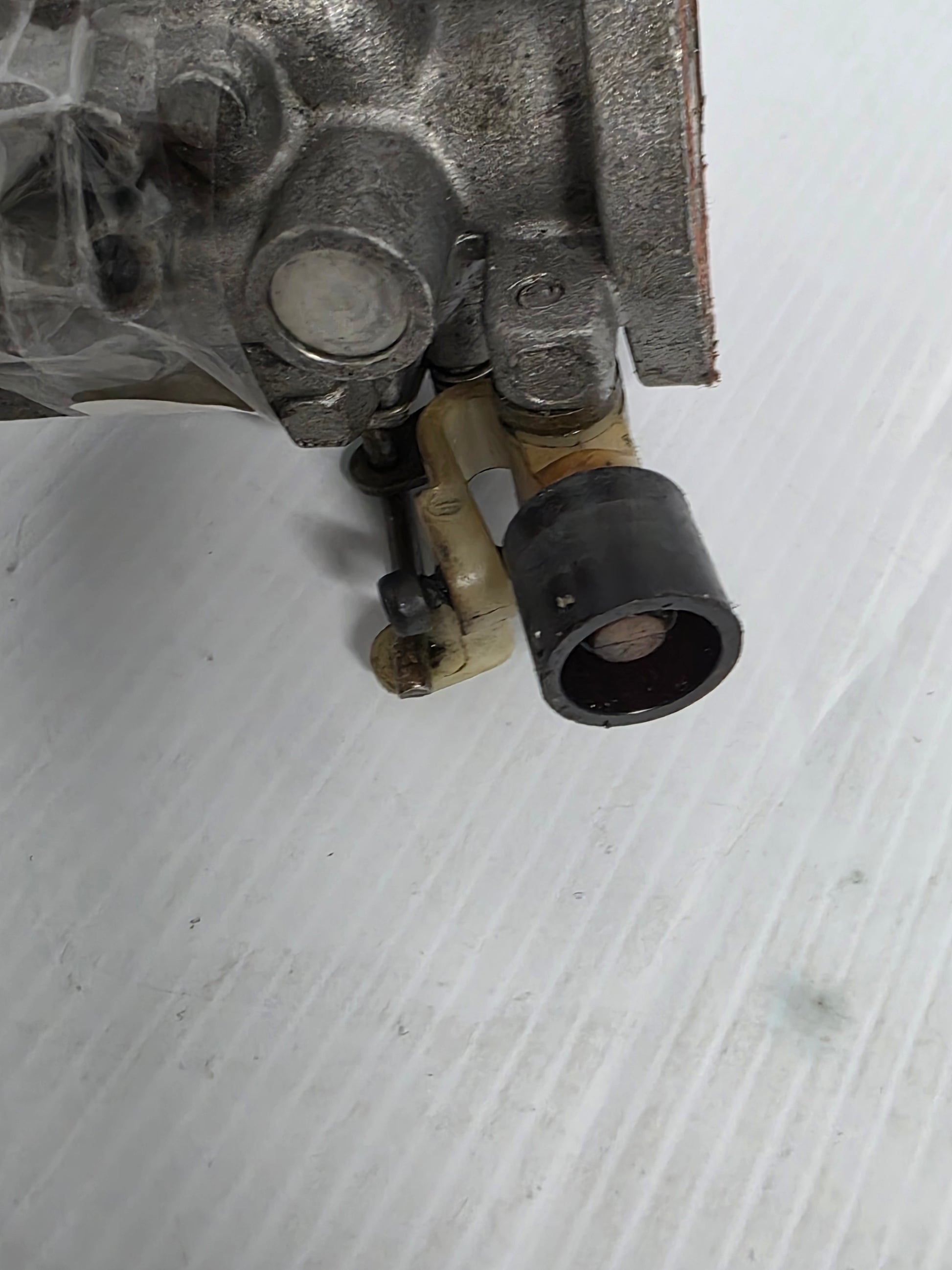

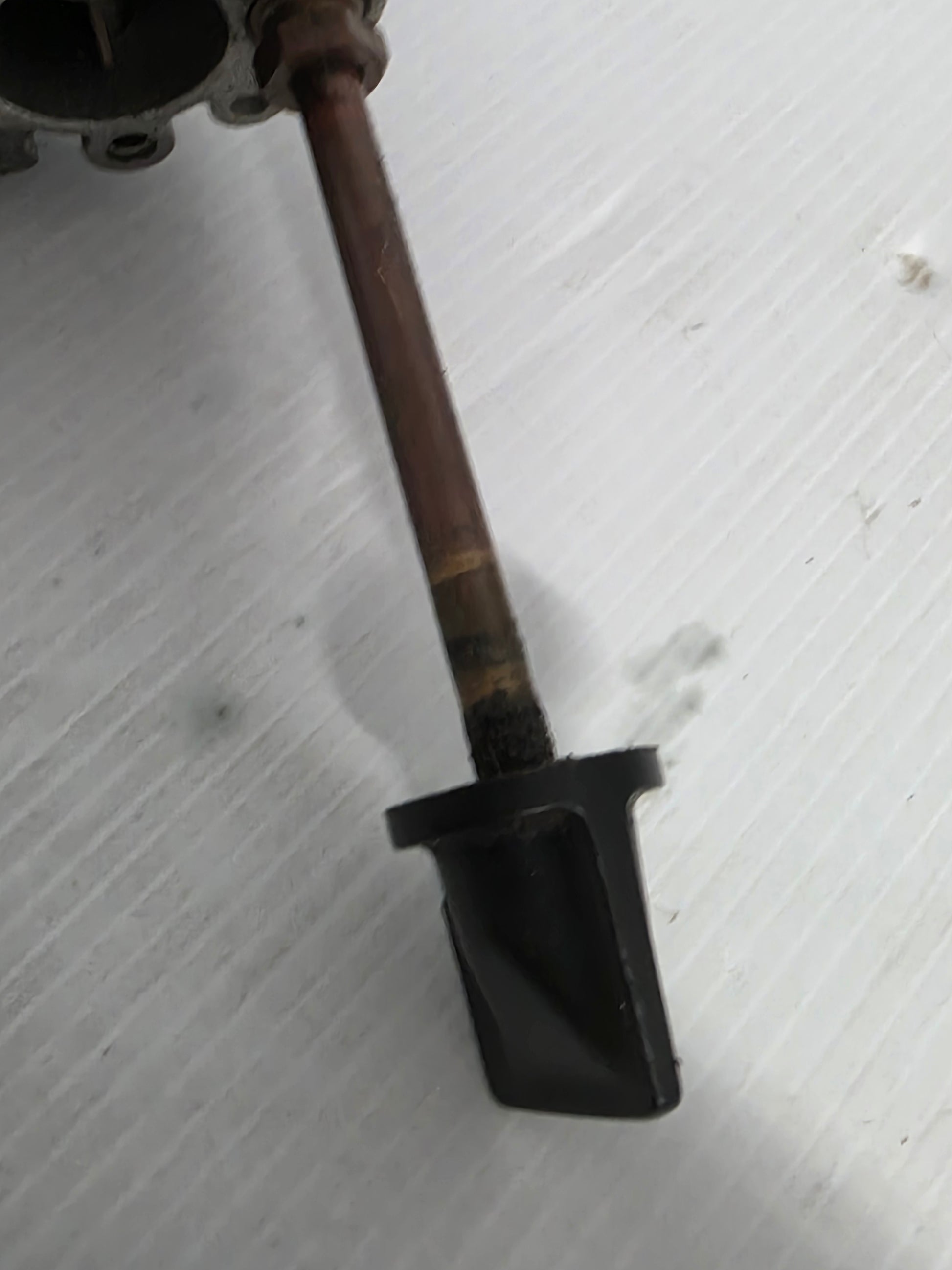

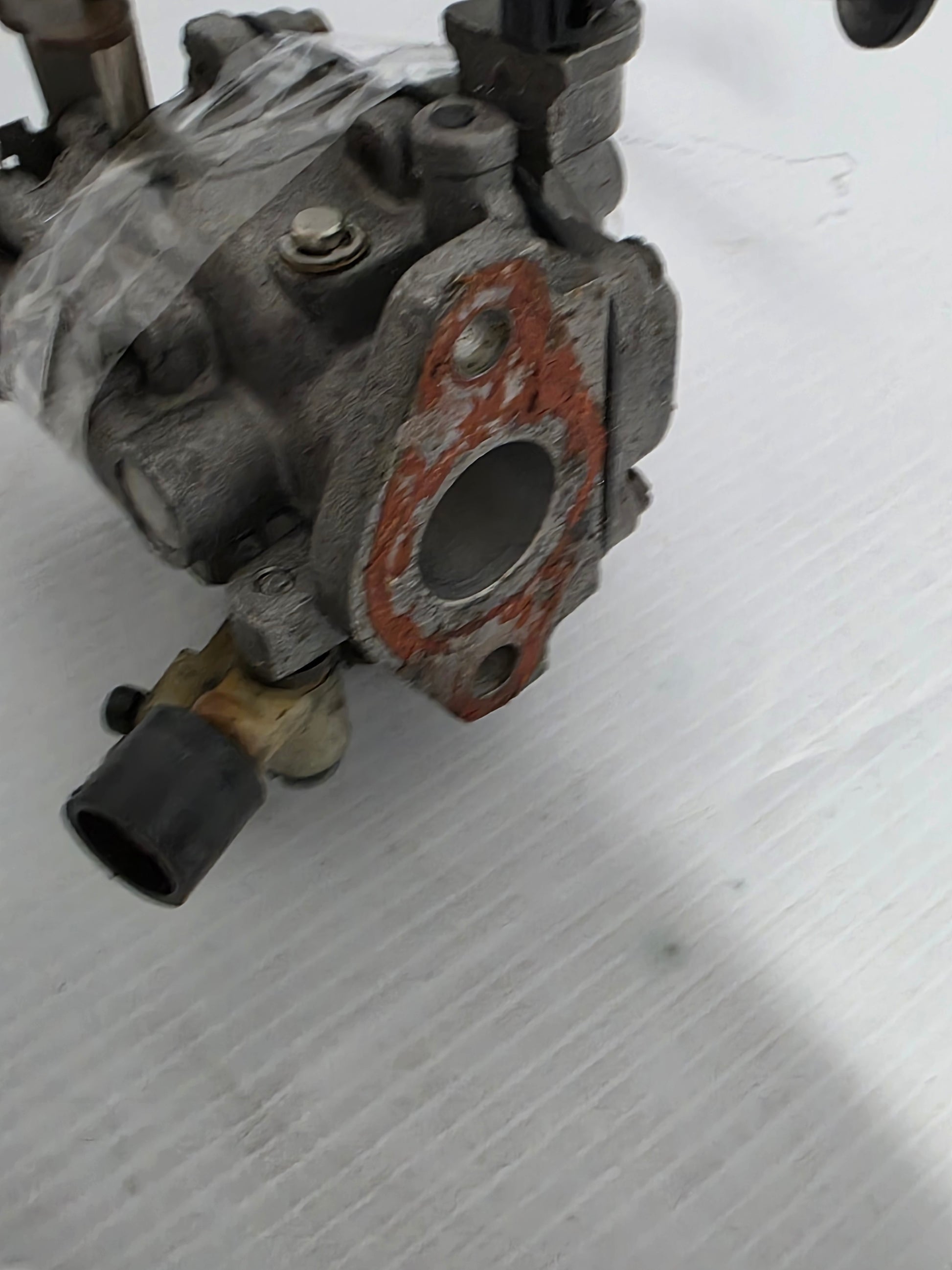

Genuine BRP / OMC Carburettor Body Assembly - Part Number: 0383662

A genuine Johnson and Evinrude carburettor body, plug and throttle-valve assembly for selected 6HP twin-cylinder two-stroke outboards.

Part number 0383662 is the main carburettor body assembly rather than the complete carburettor. It houses the venturi, throttle plate and internal fuel-metering passages used by complete carburettor assembly 0383661.

⚙️ Key Features

  • Genuine BRP / OMC carburettor body assembly
  • Correct part number 0383662
  • Includes the carburettor body and throttle-valve section
  • Used on early Johnson and Evinrude 6HP twins
  • Related to complete carburettor assembly 0383661

🚤 Compatibility

Commonly used on

  • Johnson and Evinrude 6HP twin-cylinder carburettor assemblies

Typically suits

  • Engine models:
  • Johnson 6HP two-stroke outboards - approximately 1969-1975
  • Evinrude 6HP two-stroke outboards - approximately 1969-1975
  • Johnson 6R72D 6HP - 1972
  • Johnson 6R74C 6HP - 1974
  • Complete carburettor assemblies using body 0383662 and assembly number 0383661
  • HP Range: 6HP
  • Engine Type: Johnson / Evinrude twin-cylinder carburetted two-stroke outboard
  • Year Range: Approximately 1969-1975

🔌 Function

The carburettor body meters and mixes fuel with incoming air before delivering the mixture to the engine crankcase. The throttle valve controls airflow and engine speed.

⚠️ Common Signs of Failure

  • Engine is difficult to start or will not idle
  • Fuel leaks from the carburettor body or bowl joint
  • Blocked internal passages cause lean running
  • Throttle shaft or plate has excessive wear
  • Corrosion, distortion or stripped threads prevent correct rebuilding

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0383662 current body-assembly reference for the applicable carburettor family
  • 383662 unprefixed OEM reference

OEM / Related Numbers

  • 0383662
  • 383662
  • 0383661 complete carburettor assembly
  • 383661 complete carburettor assembly
  • 0379687 / 379687 related early 6HP carburettor reference

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
