0384139 0763930 Evinrude/Johnson Viper 13 3/8–13 7/8 x 17 Stainless Steel Propeller | Genuine Used Part

🔧 Product Description

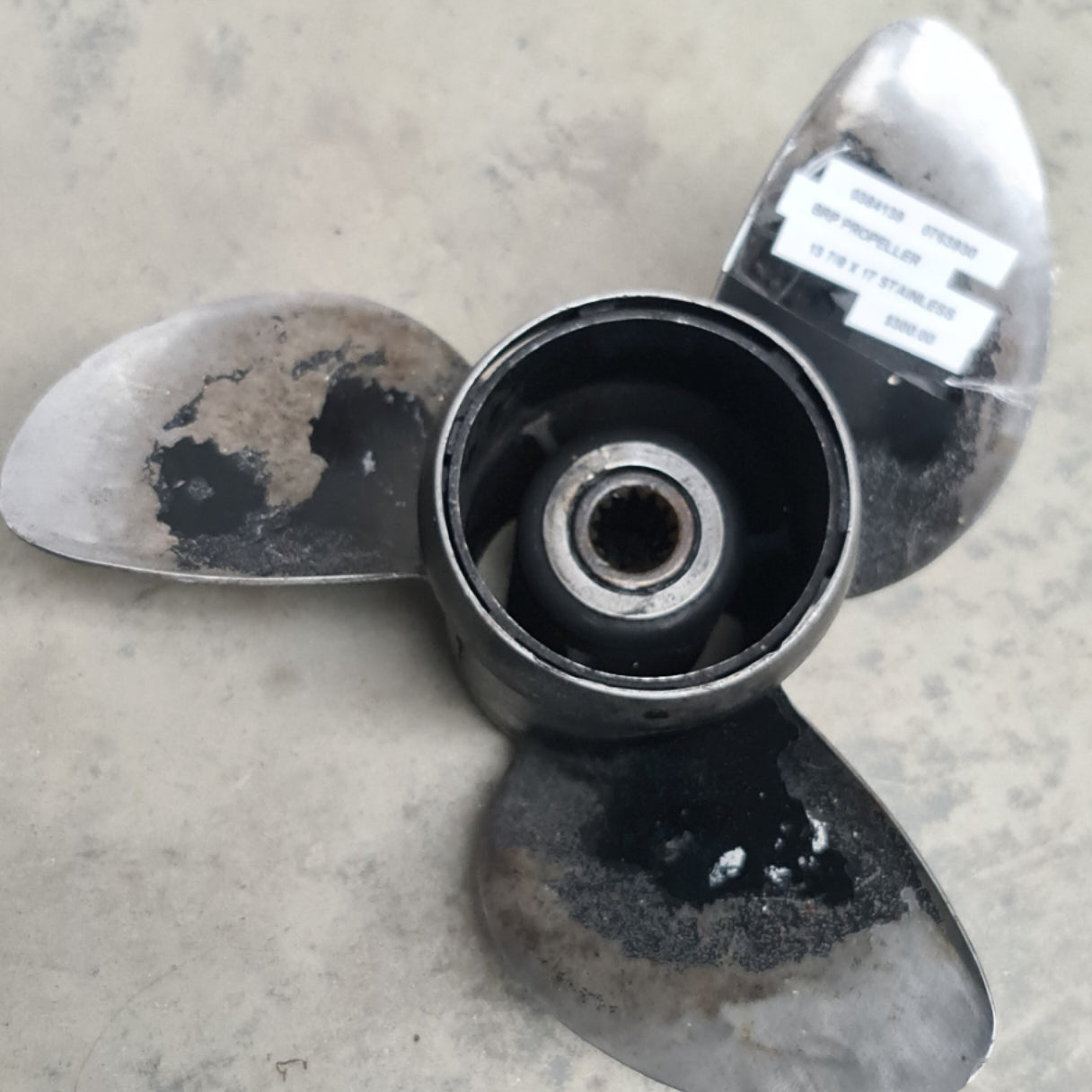

Genuine Evinrude Johnson Viper V4 Stainless Steel Propeller - Part Number: 0384139 / 0763930

A genuine used three-blade right-hand stainless-steel propeller for Evinrude, Johnson and compatible OMC 13-spline large-gearcase applications.

Original propeller 0384139 was catalogued as 13 3/8 x 17. Current Viper service propeller 0763930 uses a nominal 13 7/8-inch diameter with the same 17-inch pitch and 13-spline V4 hub.

⚙️ Key Features

• Genuine BRP Viper V4 propeller
• Original size 13 3/8 x 17; current size 13 7/8 x 17
• Three-blade stainless-steel construction
• Right-hand rotation with rubber-cushioned 13-spline hub
• Swept high-rake blade design for acceleration, cruising efficiency and bow lift

🚤 Compatibility

Commonly used on

• Evinrude and Johnson 4 1/4-inch gearcases with 13-spline shafts
• Compatible OMC Sea Drive, Model 400 and Cobra 13-spline gearcases

Typically suits

• Engine models:
• Evinrude E-TEC 40HP, 50HP, 55HP and 60HP - 2004 onward
• Johnson / Evinrude 40HP, 45HP Commercial, 48HP and 50HP - matching 13-spline gearcases
• Johnson / Evinrude 55HP, 60HP, 65HP and 70HP - matching 13-spline gearcases
• Johnson / Evinrude 75HP - 1975-1984
• Evinrude E-TEC 75HP - 2004 onward
• Johnson / Evinrude 85HP V4 - 1969-1980 and 1991-1995
• Johnson / Evinrude 88HP V4 - 1981-1996
• Johnson / Evinrude 90HP V4 - 1981 onward with the 13-spline gearcase
• Evinrude E-TEC 90HP - 2004 onward with the 13-spline gearcase
• Johnson / Evinrude 100HP V4 - 1979-1980 and 1988-1993
• Johnson / Evinrude 110HP V4 - 1986-1989
• Johnson / Evinrude 112HP V4 - 1994-1996
• Johnson / Evinrude 115HP and 115 H.O. V4 - 1973 onward with the 13-spline gearcase
• Evinrude E-TEC 115HP / 115 H.O. - 2004 onward with the 13-spline gearcase
• Johnson / Evinrude 120HP V4 - 1986-1994
• Johnson / Evinrude 125HP V4 - 1971-1972
• Evinrude E-TEC 130HP - 2009-2010 with the 20-inch 13-spline gearcase
• Johnson / Evinrude 135HP V4 - 1973-1976
• Johnson / Evinrude 140HP V4 - 1977-1984 and 1986-1994
• OMC Sea Drive 1.6L and 1.8L V4 - matching 13-spline gearcases
• OMC Model 400 2.3L, 2.5L and 3.0L sterndrives
• OMC Cobra 2.3L, 2.5L and 3.0L sterndrives
• Excludes 25-inch E-TEC 90HP, 115HP and 130HP engines fitted with the larger 15-spline gearcase
• HP Range: 40HP - 140HP, plus compatible OMC sterndrives
• Engine Type: Evinrude / Johnson two-stroke and E-TEC outboard; compatible OMC sterndrive
• Year Range: Approximately 1968 onward, gearcase and spline controlled

🔌 Function

The propeller converts torque into thrust. The Viper blade shape and 17-inch pitch favour efficient cruising and bow lift while maintaining good acceleration on a correctly matched hull.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, drive-pin surfaces or thrust faces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0765796 → Supersedes 0763930
• 0763930 → Supersedes 0384139
• 0384139 earlier 13 3/8 x 17 stainless-steel reference

OEM / Related Numbers

• 0384139
• 384139
• 0763930
• 763930
• 0765796
• 765796
• 0176572
• 0176623
• 0177259
• 0389948
• 0390114

Aftermarket / Verified Equivalents

• Solas Rubex HR3: 9451-139-17 with compatible OMC hub - 13 7/8 x 17 stainless steel
• Solas Rubex 3 Plus: 9411-139-17 with compatible OMC hub - aluminium alternative
• Michigan Wheel Apollo: 13 1/2 x 17 stainless-steel performance alternative
• Michigan Wheel: 013030 / 13030 - 13 3/8 x 17 stainless-steel alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
