🔧 Product Description

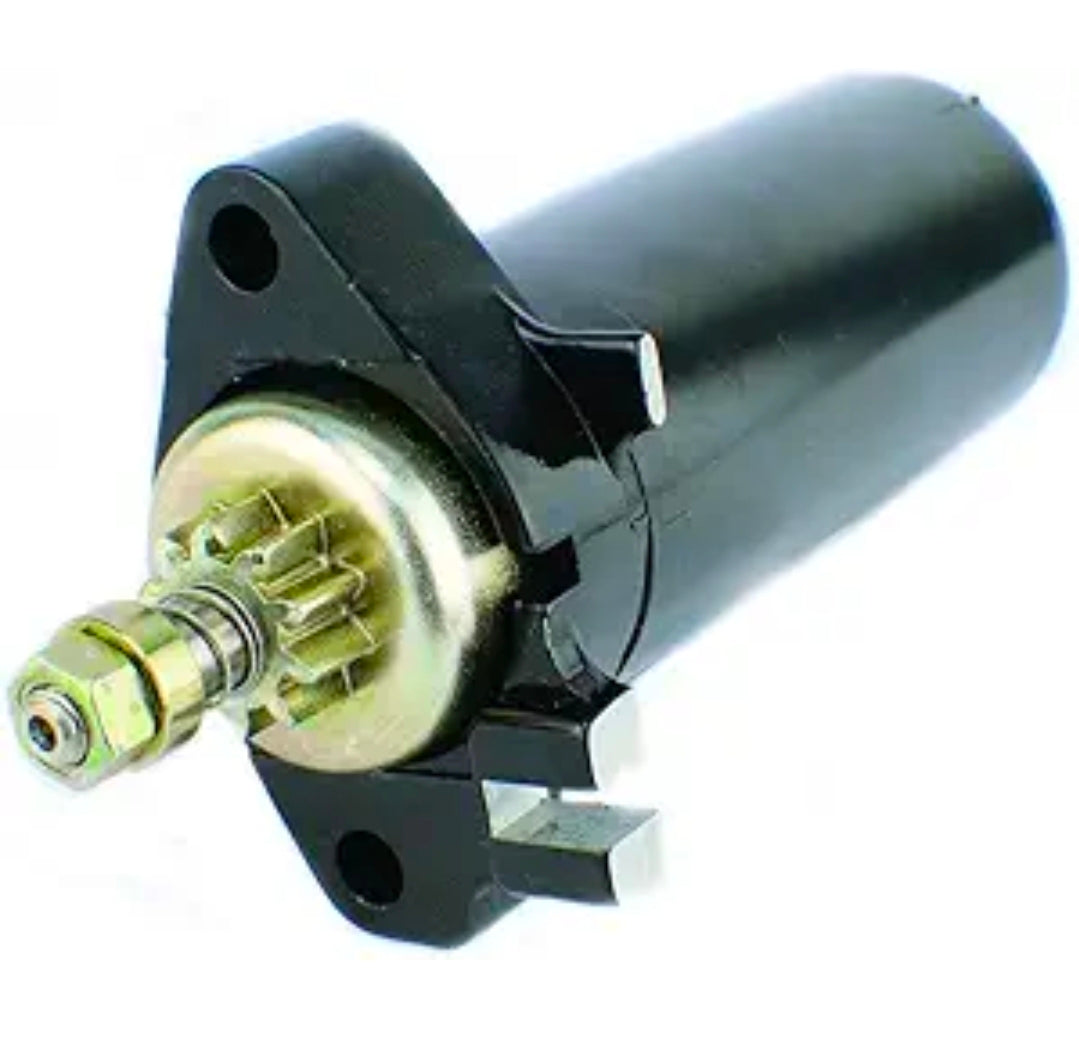

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0386430

Brand-new 12-volt marine starter motor designed to replace the original Johnson, Evinrude and OMC starter used on selected 8HP, 9.9HP, 10HP and 15HP two-cylinder outboards. This permanent-magnet direct-drive starter uses a 10-tooth pinion and provides the cranking torque required to turn the flywheel during electric starting.

Match the original starter number, mounting points, electrical terminal position and pinion arrangement before installation. Rotation descriptions can differ depending on whether the unit is viewed from the drive end or commutator end, making the OEM reference the safest fitment identifier.

⚙️ Key Features

• 12-volt permanent-magnet direct-drive marine starter

• 10-tooth starter pinion

• Replacement for early Johnson and Evinrude two-cylinder electric-start systems

• Corrosion-resistant external finish for marine service

• Complete starter motor assembly; external starter solenoid and battery cables are not included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0763454 → Later BRP service replacement for 0386430

• 0586276 → Related later BRP starter reference

• 0386430 / 386430 (earlier OMC reference)

OEM / Related Numbers:

• 0386430 / 386430

• 0586276 / 586276

• 0763454 / 763454

• 0584613 / 584613

• 0586274 / 586274

• Johnson Electric 0203323, 0203340 and 5659240

Aftermarket / Verified Equivalents:

• ARCO Marine: 5369

• Sierra Marine: 18-6434

• Sierra Marine: 18-5617

• API Marine: MOT2015N

• Arrowhead / DB Electrical: SAB0110 / 410-21058

• EMP: 4-6434 / 4-6940

• Lester / WAI: 5652 / 5710

• United Technologies: 0203323-M020SM / 0203740-M030SM / SM02033

• Mercury / Quicksilver: 50-825991A2 / 8M6007316

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude two-cylinder electric-start outboards

• Selected early OMC-built small outboard platforms

• Selected Suzuki-manufactured Johnson and Evinrude four-stroke models where the original starter reference matches

Typically suits:

• Engine models:

• Evinrude E10, E10E, E10EL, E10RE, E10REL, E10SE and E10SEL

• Evinrude E15, E15E, E15EC, E15EE, E15EL, E15R and E15REL

• Evinrude E10F four-stroke family

• Evinrude BE8FR and E8FR four-stroke family

• Evinrude BE10FA, BE10FC, BE10FW and E10FO four-stroke family

• Johnson 10, 10E, 10EL, 10RE, 10REL, 10SE and 10SEL

• Johnson 15, 15E, 15EL, 15RE and 15REL

• Selected Johnson 8HP and 9.9HP four-stroke model families

• HP Range: 8HP-15HP

• Engine Type: Two-cylinder two-stroke and selected two-cylinder four-stroke outboards

• Year Range:

• 9.9HP and 15HP two-stroke: approximately 1974-1993

• Selected 8HP-10HP four-stroke: approximately 1996-1998

• Model/Serial Note: No single serial-number range covers every application. Confirm the complete engine model code and original starter reference before ordering.

🔌 Function

The starter motor converts battery power into mechanical rotation. When the start circuit is energised, the pinion engages the flywheel ring gear and cranks the engine until combustion begins.

Common signs of failure:

• Starter does not operate when the start switch is engaged

• Starter turns slowly despite a charged and tested battery

• Clicking from the solenoid without the flywheel cranking

• Pinion spins without consistently engaging the flywheel

• Grinding, squealing or abnormal bearing noise

• Excessive heat, smoke or electrical odour from the starter

• Intermittent starting caused by worn brushes, commutator wear or internal corrosion

📦 Condition

• Brand-new aftermarket replacement starter motor

• Designed to replace the listed Johnson, Evinrude and OMC references

• Supplied in manufacturer or equivalent protective packaging
