0386909 0763461 Evinrude/Johnson 12 1/2 x 13 Aluminium Propeller – 13 Spline | Genuine Used Part

🔧 Product Description

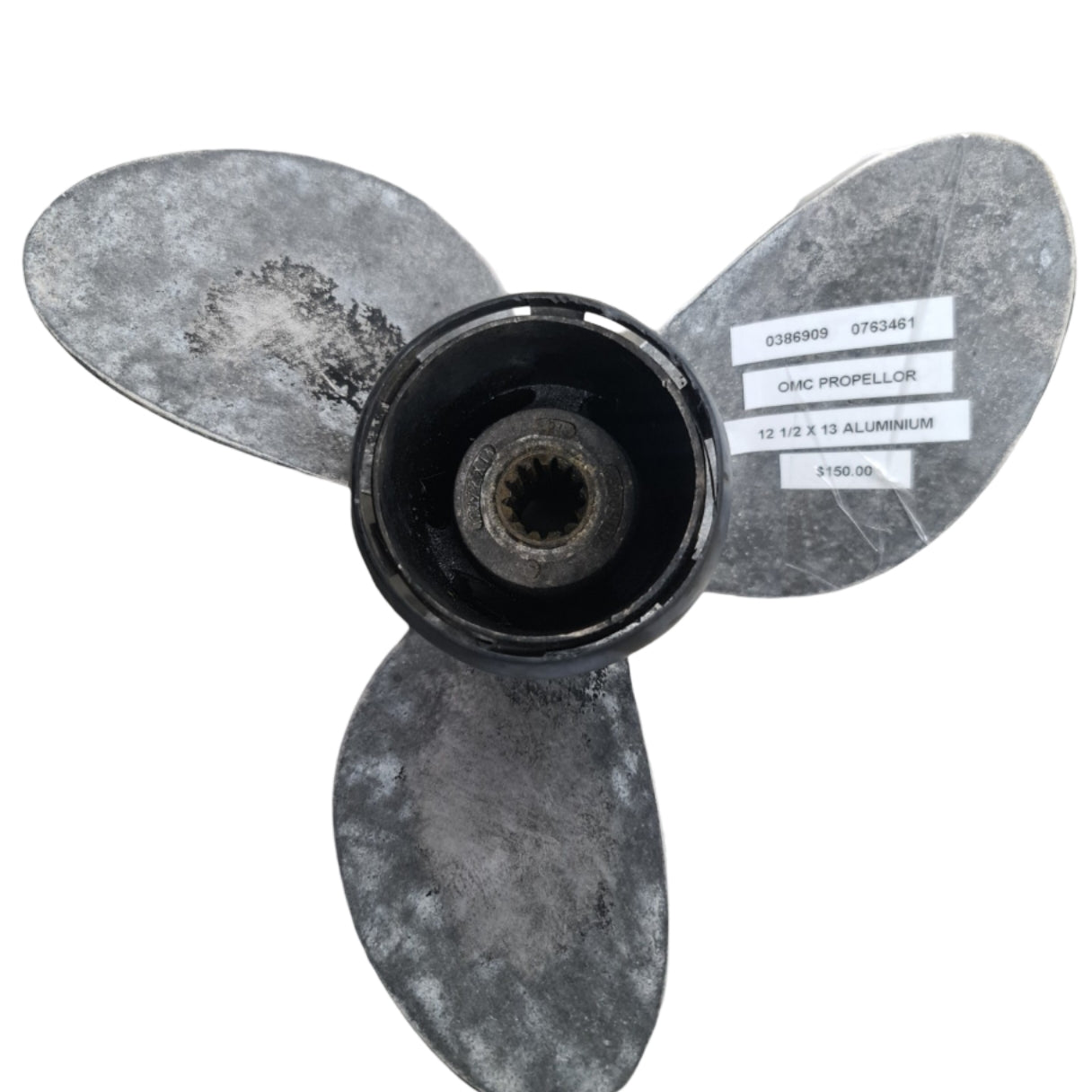

Genuine Evinrude Johnson 12 1/2 x 13 Aluminium Propeller - Part Number: 0386909 / 0763461

A genuine used three-blade right-hand aluminium propeller for selected Evinrude and Johnson mid-range outboards using the compatible 13-spline gearcase.

The 12 1/2-inch diameter and 13-inch pitch provide strong acceleration and load carrying for smaller planing boats, pontoons and heavier operating loads. Final suitability is controlled by gearcase diameter, shaft spline and full-throttle RPM.

⚙️ Key Features

• Genuine BRP / Evinrude / Johnson aluminium propeller

• 12 1/2-inch diameter x 13-inch pitch

• Three blades with right-hand rotation

• 13-spline pressed rubber hub

• Direct Michigan Wheel replacement available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0763461 → Supersedes 0386909

• 0386909 earlier OEM propeller reference

OEM / Related Numbers:

• 0386909

• 386909

• 0763461

• 763461

Aftermarket / Verified Equivalents:

• Michigan Wheel Match: 011035 - 12 1/2 x 13 aluminium equivalent

• Solas Amita 3: equivalent 12 1/2 x 13 aluminium 13-spline application

• Solas Rubex 3: modular 13-pitch aluminium alternative with the correct hub kit

🚤 Compatibility

Commonly used on:

• Evinrude and Johnson mid-range 13-spline outboard gearcases

• Pleasure, commercial and E-TEC applications requiring a 13-pitch propeller

Typically suits:

• Engine models:

• Johnson / Evinrude 40HP and 48HP twin-cylinder outboards with the compatible 13-spline gearcase

• Johnson / Evinrude 50HP, 55HP, 60HP, 65HP, 70HP and 75HP outboards with the compatible 13-spline gearcase

• Evinrude E-TEC 40HP, 50HP, 55HP and 60HP

• Johnson 40HP, 50HP, 60HP and 70HP four-stroke models where the same 13-spline gearcase is fitted

• HP Range: 40HP - 75HP

• Engine Type: Evinrude / Johnson two-stroke, E-TEC and applicable four-stroke outboard

• Year Range: Approximately 1970s onward, gearcase and spline controlled

🔌 Function

The propeller converts engine output into thrust. Its 13-inch pitch generally increases acceleration and load-carrying ability compared with higher-pitch propellers.

Common signs of failure:

• Blades are bent, chipped, cracked or out of track

• The rubber hub slips and engine RPM rises without matching boat speed

• Propeller vibration increases with engine speed

• Cavitation, ventilation or poor acceleration develops after impact damage

• Hub splines, drive-pin surfaces or thrust faces are worn or corroded

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
