• 0387656 Evinrude Johnson Thrust Bearing | Genuine OEM BRP Outboard Part
1 1

0387656 Evinrude Johnson Thrust Bearing | Genuine OEM BRP Outboard Part

0387656 Evinrude Johnson Thrust Bearing | Genuine OEM BRP Outboard Part

$79.11 AUD
$79.11 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

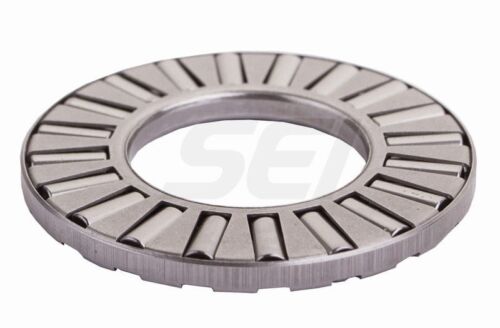

Genuine BRP Evinrude Johnson Driveshaft Thrust Bearing Assembly - Part Number: 0387656

A genuine BRP axial-load bearing assembly used in selected Evinrude, Johnson and OMC outboard or sterndrive gearcases.

The bearing supports thrust generated through the driveshaft and gear train, helping maintain the correct vertical gear position and prevent metal-to-metal contact under propulsion load.

⚙️ Key Features

  • Genuine BRP OEM thrust-bearing assembly
  • Correct OEM part number 0387656
  • Designed to carry axial driveshaft load
  • Used in selected V4, V6 and OMC sterndrive gearcases
  • Precision bearing and race configuration
  • Multiple established aftermarket replacements available

🚤 Compatibility

Commonly used on selected

  • Evinrude and Johnson 90-degree V4 gearcases
  • Counter-rotation V6 gearcases where 0387656 is specified
  • OMC Stringer and Cobra sterndrive lower units
  • Large outboard gearcases requiring the listed thrust-bearing assembly

Verified legacy examples include selected

  • 85HP
  • 90HP
  • 100HP
  • 115HP
  • 125HP
  • 135HP
  • 150HP applications
  • OMC 2.3L, 3.0L, 3.8L, 4.3L, 5.0L and 5.7L sterndrive gearcases

Important fitment note

  • This bearing was used in multiple gearcase families.
  • Confirm the complete gearcase diagram, rotation direction and original bearing number.
  • The bearing race, washers and shims must not be substituted unless expressly cross-referenced.

🔌 Function

The thrust bearing absorbs axial force created as the gears transmit engine torque.

Installation considerations

  • Inspect the mating races and thrust washers
  • Check driveshaft and pinion end float
  • Replace contaminated gear lubricant
  • Pressure- and vacuum-test the gearcase
  • Establish the correct shim and preload settings
  • Do not reuse a bearing that has been exposed to water-contaminated lubricant

⚠️ Common Signs of Failure

  • Gearcase whine or rumble
  • Metal particles on the magnetic drain plug
  • Excessive driveshaft vertical movement
  • Gear-pattern damage
  • Gearcase runs hot
  • Roughness when the driveshaft is rotated
  • Pitting or discolouration on the bearing surfaces

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 0387656
  • 387656
  • 0383248
  • 383248
  • 0777575
  • 777575
  • OEM Description: Thrust Bearing Assembly

Aftermarket / Verified Equivalents

  • Sierra: 18-1365
  • Sierra: 18-0200
  • GLM: 16330
  • SEI Marine: 93-306-13
  • WSM / aftermarket reference: 447-248
  • AM-series replacement for 0387656

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Supplied in genuine or equivalent protective packaging
