0393138 0396730 Evinrude Johnson BRP 20" Long Shaft Gearbox | Genuine Used Part

🔧 Product Description

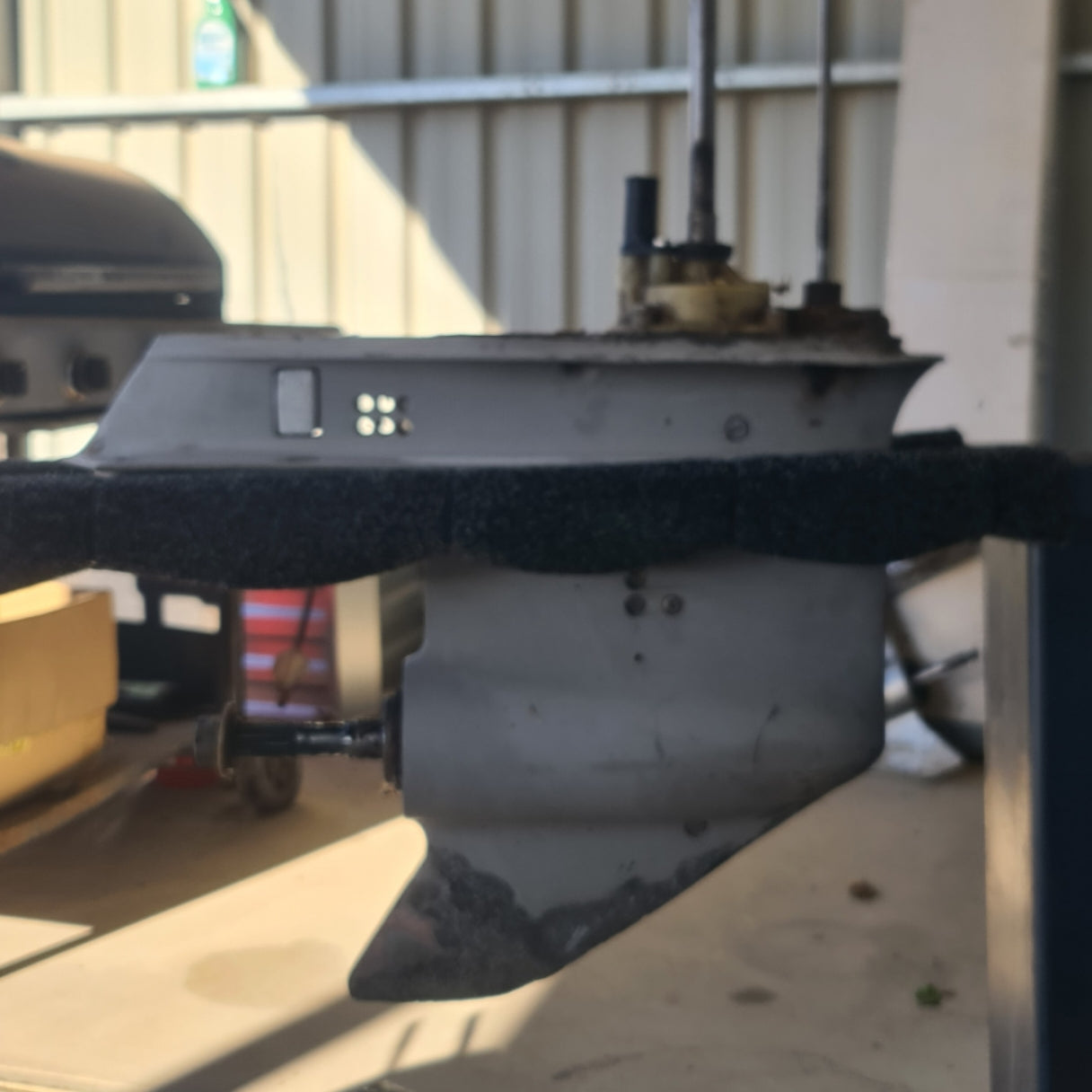

Genuine Johnson Evinrude 60HP-75HP 20-Inch Long-Shaft Gearcase - Part Numbers: 0393138 / 0396730

A genuine OMC complete long-shaft gearcase for selected three-cylinder 60HP, 65HP, 70HP and 75HP outboards.

Part number 0393138 was superseded by 0396730 after a sequence of earlier long-shaft assemblies. The unit is the 20-inch mechanical-shift lower unit used on the older small-hub three-cylinder platform.

⚙️ Key Features

• Genuine OMC 20-inch long-shaft gearcase

• Original part number 0393138

• Later service number 0396730

• Mechanical forward-neutral-reverse shift

• Older three-cylinder small-hub design

• Common 4-spline driveshaft and 13-spline propeller-shaft family

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0389641 → Replaced by 0390940

• 0390940 → Replaced by 0392032

• 0392032 → Replaced by 0393138

• 0393138 → Replaced by 0396730

OEM / Related Numbers:

• 0393138

• 393138

• 0396730

• 396730

• 0389641

• 0390940

• 0392032

• 0392471 related gearcase reference

• 0389145 related chrome pump cup and plate

• 0438602 related later water-pump kit

• Sierra 18-3389 related water-pump kit with housing

Aftermarket / Verified Equivalents:

• Specialist remanufactured 0393138 / 0396730 long-shaft lower unit

• Rebuilt complete three-cylinder OMC gearcase

• Sierra 18-3389 water-pump kit

• Sierra and GLM seal, bearing and clutch components for the 1975-1988 gearcase family

• No verified current new complete aftermarket unit

🚤 Compatibility

Documented on selected:

• Johnson / Evinrude 60HP three-cylinder

• Johnson / Evinrude 65HP three-cylinder

• Johnson / Evinrude 70HP three-cylinder

• Selected 75HP three-cylinder models

• 1981 Evinrude E70ELCIH - 20-inch transom

• 1983 Johnson J70TLCTE - 20-inch transom

• 1984 Johnson J70ELCRD - 20-inch model

• 1986 Evinrude E60TLCDS

• 1987 Evinrude E65WMLCUA

• Broadly approximately 1973-1988 depending on model

• Shaft Length: 20 inch

• Driveshaft: Older 4-spline family on commonly supplied units

• Propeller Shaft: Commonly 13 spline

• Fitment Requirement: Confirm driveshaft splines, shift-rod height and model number

🔌 Function

The gearcase converts vertical driveshaft rotation into horizontal propeller-shaft rotation and provides forward, neutral and reverse through the clutch dog.

Common signs of failure:

• Water contamination in gear oil

• Unit jumps out of gear

• Driveshaft spline is worn

• Propeller shaft is bent

• Pinion or carrier bearings rumble

• Shift rod height is incorrect

📦 Condition

• Genuine used complete gearcase

• Removed from running engine where applicable

• In good working condition unless otherwise stated

• Pressure and vacuum testing is recommended

• Confirm driveshaft spline count before installation
