🔧 Product Description

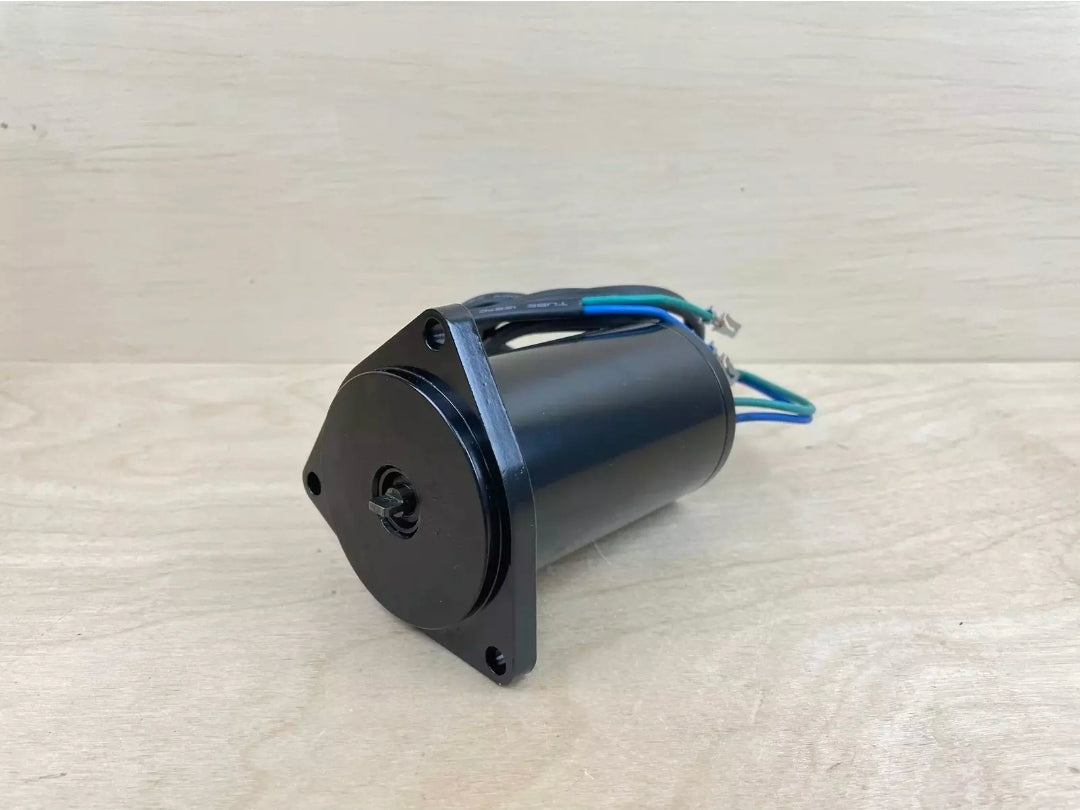

Aftermarket BRP / Bombardier Johnson Evinrude OMC Tilt & Trim Motor and Cable - Part Number: 0393988

Twelve-volt reversible replacement trim-and-tilt motor for the newer two-wire, three-bolt BRP/OMC hydraulic trim system. It powers the hydraulic pump used to raise, lower and trim compatible Johnson, Evinrude and OMC outboards and OMC Sea Drive units and cross-references a large established group of marine-electrical replacement numbers.

⚙️ Key Features

• 12 V direct-current reversible trim/tilt motor

• Two-wire electrical connection with three-bolt pump mounting pattern

• Compatible with the Prestolite-style PMW4002 motor arrangement used on core 1981-1992 applications

• Replaces motor-and-cable assemblies in the 0393988 / 393988 OEM family

• Inspect the motor-to-pump O-ring during installation; related service references include OMC 0321163 and Sierra 18-7510 where the seal is not supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• BRP 0777785 / 777785 → Later service replacement for 0393988 / 393988

• 0393988 / 393988 → Replaces earlier 0391264 / 391264 and 0393259 / 393259 in applicable two-wire systems

OEM / Related Numbers:

• 0777785

• 777785

• 0393988 / 393988

• 0391264 / 391264

• 0393259 / 393259

• 0394176 / 394176

• 0395840 / 395840

• 0434795 / 434795

• 0983019 / 983019

• 0983446 / 983446

• 0985237 / 985237

• Quicksilver 8M6007524

• O-ring 0321163

• Sierra O-ring 18-7510

Aftermarket / Verified Equivalents:

• Recmar: REC0393988

• Sierra Marine: 18-6759

• ARCO Marine: 6220

• API Marine: PT301NM

• DB Electrical / J&N / Arrowhead: 430-20007

• Arrowhead: TRM0004

• Mallory Marine: 9-18102 / 9-18104 - verify terminal and lead configuration

• Lester: 10810

• WAI: 10810N / 82-6856

• MES Marine: T1086M / MESS1086M

• EMP: 4-6759

• Barsanco: 540-015

• Cargo: 111864

• Dixie: TM-507

• EMS: 49-8004

• PIC: 107-110

• RCP: 26220A

• Wood Auto: STR1066

• Wilson: 94-09-1000

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude outboards with the newer two-wire, three-bolt trim-motor system

• OMC outboards and OMC Sea Drive hydraulic trim assemblies

• BRP service applications that directly cross-reference 0393988, 394176, 985237 or 777785

Typically suits:

• Engine families:

• Three-cylinder 50, 55, 60, 65, 70 and 75 HP Johnson/Evinrude models using the two-wire, three-bolt motor

• V4 85, 88, 90, 100, 110, 112, 115, 120, 125, 130, 135 and 140 HP models using this motor family

• V6 150, 155, 175, 185, 200, 210, 225, 235 and selected 250 HP models using this motor family

• V8 250, 275 and 300 HP models where the original parts diagram specifies 0393988-family fitment

• OMC Sea Drive 1.6 L, 2.0 L, 2.6 L, 3.0 L and 4.0 L installations using the Prestolite-style two-wire motor

• Selected 40-50 HP applications only where the model-specific diagram directly calls for 0393988 or a confirmed cross-reference

• HP Range: Principally 50-300 HP; selected 40-50 HP model-specific fitment

• Engine Type: Johnson/Evinrude/OMC two-stroke outboard or OMC Sea Drive with a 12 V hydraulic power-trim system

• Year Range: Core Prestolite-style applications approximately 1981-1992; later service catalogues extend the same two-wire, three-bolt replacement family to model-specific applications from 1982 onward

• Serial / Identification Range: No universal serial range covers this motor. Confirm the complete engine model number, two-wire connection, three-bolt mounting pattern and original OEM motor number before ordering

🔌 Function

The electric motor drives the hydraulic trim pump in both directions, building pressure to raise or lower the outboard and allowing the operator to adjust running trim and trailer position.

Common signs of failure:

• Trim system clicks but the electric motor does not run

• Slow, intermittent or weak raising and lowering

• Operation in one direction only after relays, switches and wiring have been tested

• Excessive current draw, blown fuses, overheating or a burnt electrical smell

• Corroded terminals, water entry, brush wear or abnormal motor noise

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
