🔧 Product Description

Genuine BRP Evinrude Johnson 8HP-15HP Complete Water Pump Kit - Part Number: 0394711

A genuine BRP complete water-pump repair kit for selected 8HP, 9.9HP, 10HP and 15HP Evinrude and Johnson outboards.

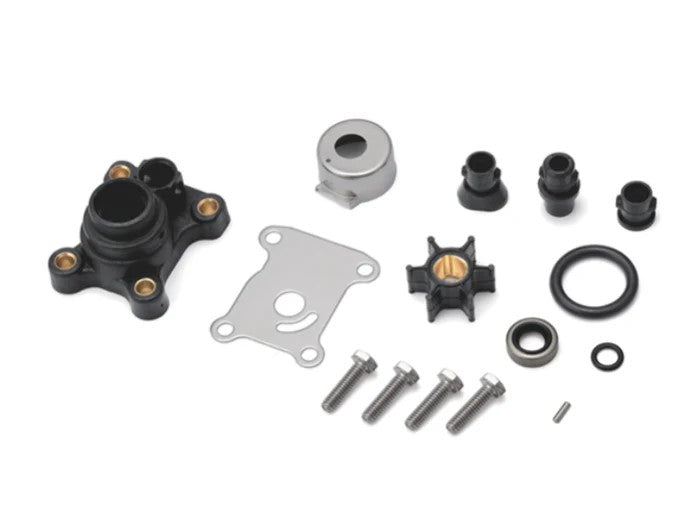

The kit contains the major components required to rebuild the raw-water pump, including the housing, cup, impeller, wear plate, drive pin, seals, O-rings, grommets and mounting hardware according to production packaging.

⚙️ Key Features

  • Genuine BRP OEM water-pump kit
  • Correct OEM part number 0394711
  • Includes pump housing and impeller
  • Uses impeller family 0386084 / 386084
  • Suitable for selected two-stroke and four-stroke small outboards
  • Broad aftermarket support

🚤 Compatibility

Typically suits selected

  • 8HP
  • 9.9HP
  • 10HP
  • 15HP

Representative applications

  • 9.9HP and 15HP two-stroke engines from approximately 1974-2007
  • Selected 8HP, 9.9HP and 15HP four-stroke engines from approximately 1994-1995 onward
  • Engines whose water-pump diagram specifies 0394711

Important fitment note

  • Kit contents and water-tube grommets may differ between two-stroke and four-stroke installations.
  • Confirm the engine model and compare the original housing and cup.

🔌 Function

The rebuilt pump draws seawater through the lower-unit intake and circulates it through the engine.

Installation considerations

  • Replace hardened seals and grommets
  • Confirm the impeller drive pin is fitted
  • Lubricate the cup and impeller during assembly
  • Turn the driveshaft in the normal rotation direction
  • Ensure the water tube seats fully
  • Test the thermostat and cooling passages if overheating continues

⚠️ Common Signs of Failure

  • Weak cooling-water discharge
  • Overheating after extended idle
  • Damaged impeller vanes
  • Grooved insert cup
  • Water-pump housing distortion
  • Leakage around the driveshaft or water tube

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 0394711
  • 394711
  • 0386697
  • 386697
  • 0387610
  • 387610
  • 0388139
  • 388139
  • 0389114
  • 389114
  • 0391388
  • 391388
  • 0391698
  • 391698
  • 0393560
  • 393560
  • 0777801

Aftermarket / Verified Equivalents

  • Sierra: 18-3327
  • GLM: 12050
  • GLM: 12251
  • WSM: 750-290
  • Recmar: REC394711
  • Mallory: 9-48201
  • Mallory: 9-48220
  • EMP / Pro: 3327
  • HJ: JHJB-394711
  • Generic 394711 complete pump kits

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Supplied in genuine or equivalent protective packaging
